Industrial Monitors :   Part #   ID-H22Pw-LED

*** This model is discontinued . Learn more about replacement model ID-HE21Pw  ***


                            22" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display
LCD with LED Backlight Panel
LCD Type

TFT LCD Panel

Backlight

LED

Resolutions

1680 x 1050

Display Color

16.7 M color

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 ( Typical )

Active area (mm)

474 x 296

Viewing angle 160° x 160°

LCD MTBF

50,000 hrs

Signal Input

VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional DC Power

48V / 24V DC Power         Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety :
  Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- TV - PAL or NTSC
- Auto / switch dimming

Mechanical
Dimension
( W x D x H )
 22.5 x 2.3 x 14.9 inch /
 571 x 58 x 377 mm
Product Weight  5 kgs ( 11 lbs )
Casing Color  Dark grey
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE

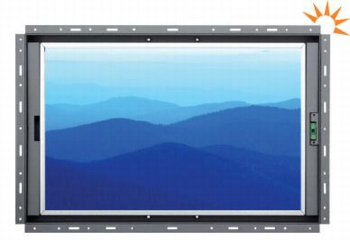

  Front View of  ID-H22Pw-LED

  Construction

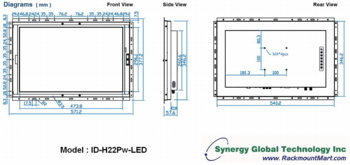

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view


 Download Product Sheet

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7


   DISPLAY BENEFITS :
  • 22" widescreen LCD with high brightness 1000 cd/mē
  • Green LED-backlit panel technology
  • Rugged construction against external impact


   0PTIONS :
  • HDMI, DVI-D, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • HW22" Touchscreen : Capacitive, Resistive
  • 48V or 24VDC power
  • MIL-type or lockable connector
  • Auto / switch dimming
  • TV - PAL or NTSC

    Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-H22Pw-LED 22" Open Frame Widescreen High Brightness LCD with LED-backlit Panel Display
-MC Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
