                         Industrial Flat Panel Display :   Part #   ID-12P

*****This model is discontinued .  Learn more about replacement model ID-12P-LED   *****


                                              12.1" Open Frame TFT Industrial Flat Panel Display
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

12.1 inch diagonal (246.0H x 184.5V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.307 x 0.307 mm

Viewing angle

80 / 80 / 55 / 55 (L / R / U / D)  or
160 / 110

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type,110 ~ 220 VAC at 50 or 60Hz via
AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : RCA-BNC adapter  Details
  • Optional Touch Screen

                     Details

    Optional DC Power

     48V / 24V / 12V DC Power    Details
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
    DC power Output : DC 12V
    Voltage Accuracy
    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

                                      Mechanical

    Material

      1.2mm Steel

    Dimension  341.7 x 59.7 x 253 mm (WxDxH)
    Product Weight  3 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5~90%, non condensing
    Shock  10G peak acceleration
     (11ms duration)
    Vibration  5~500Hz, 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1 , VGA Cable (Male to Male) x
    1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc,
    User Manual x 1

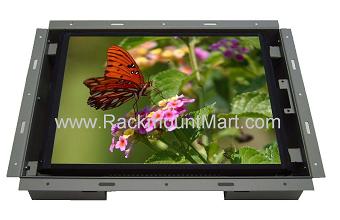

      Front View of  ID-12P



      Construction



       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view






    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7

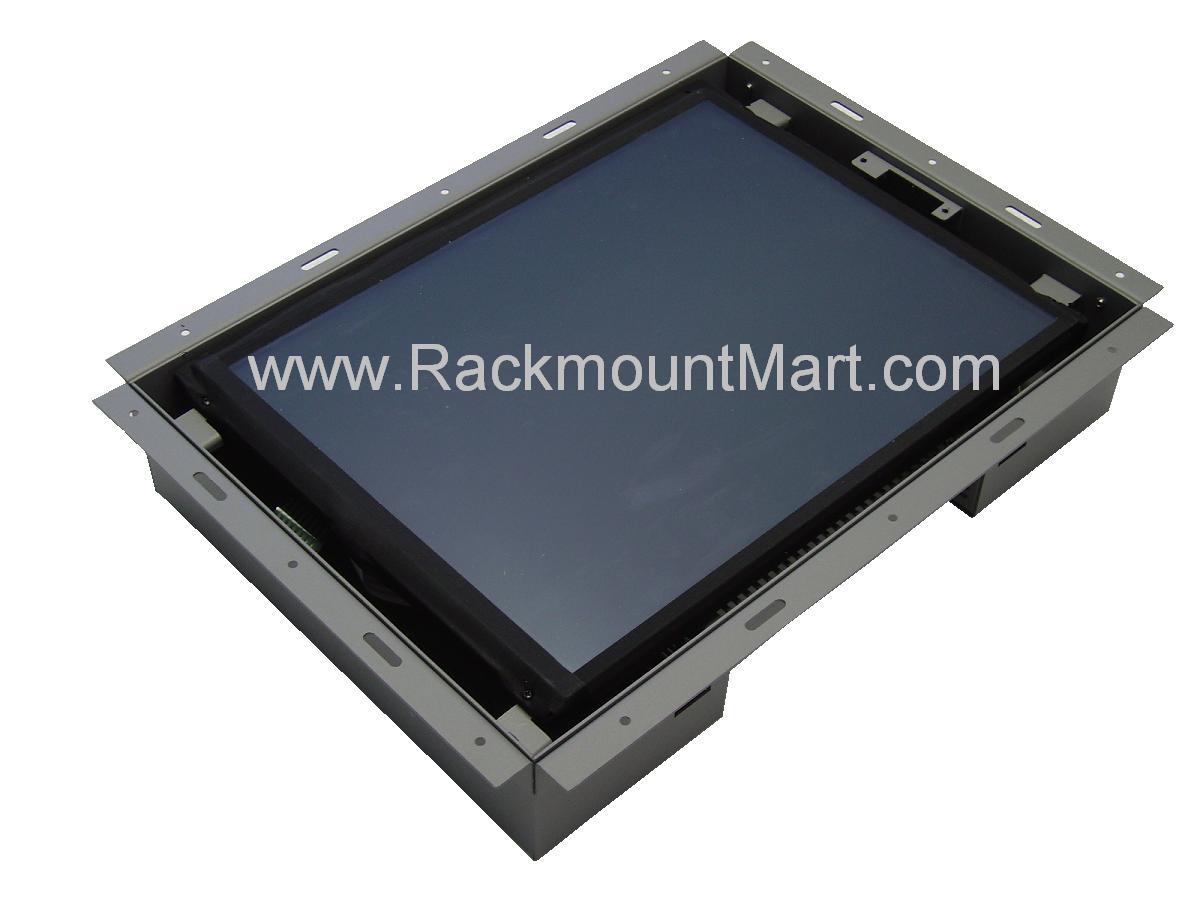

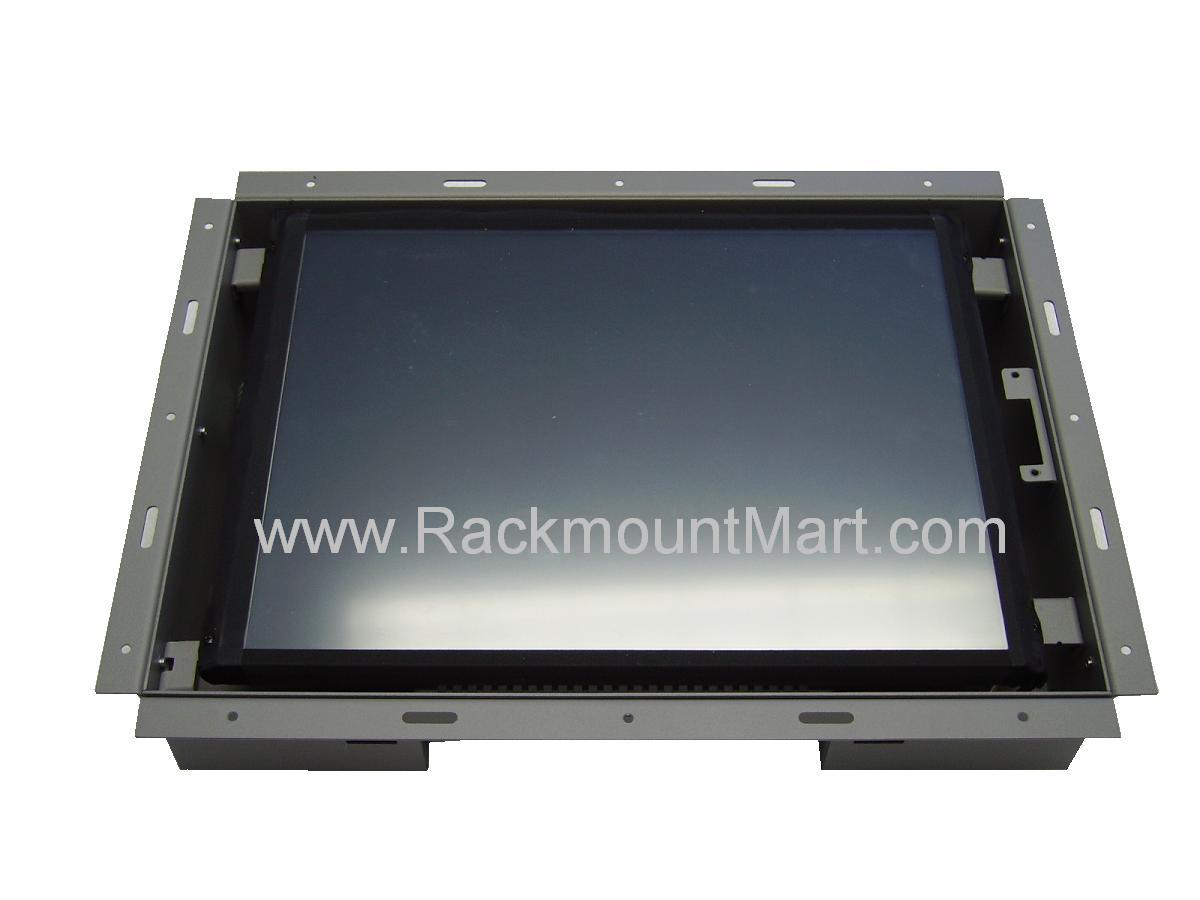

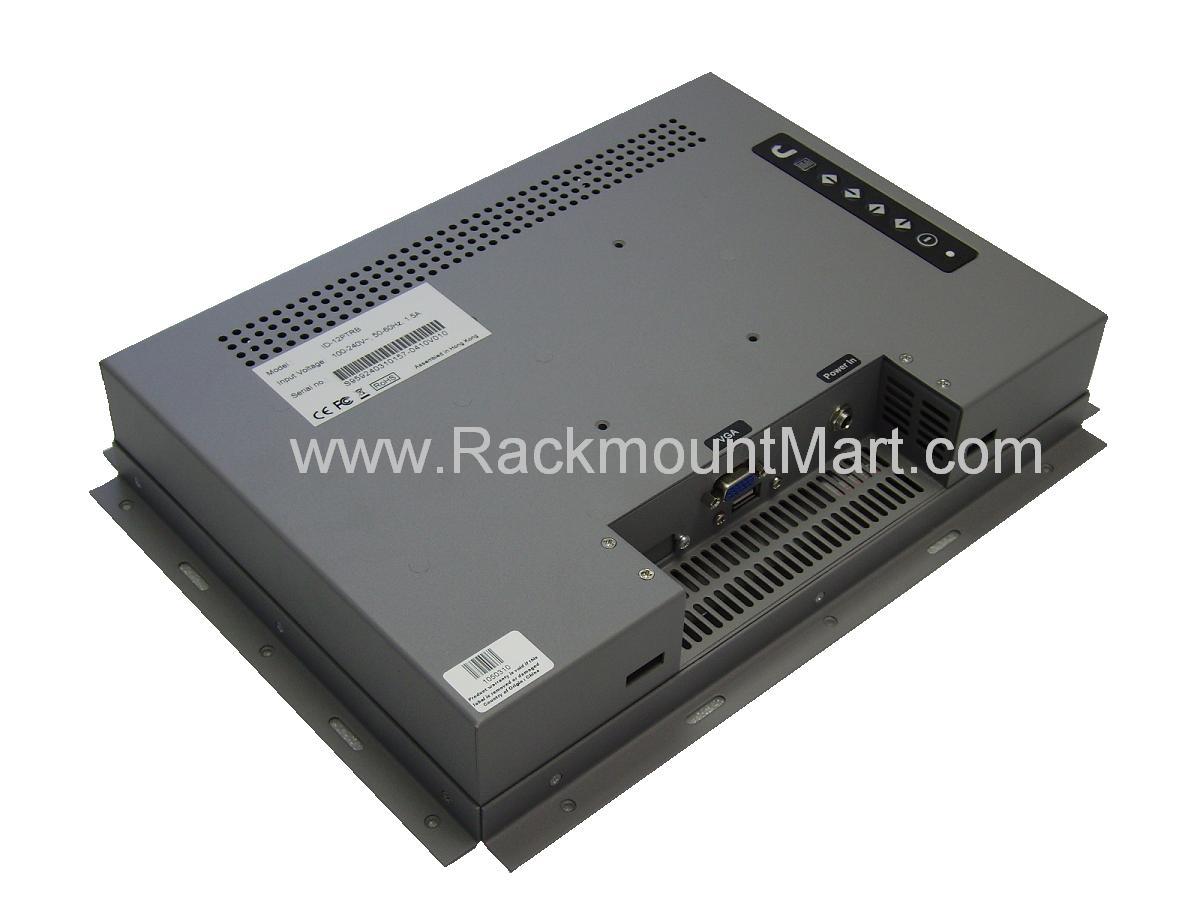

      More photos (click to enlarge )



    FEATURES :
    • 12.1" industrial TFT LCD panel support 800 x 600 pixels
    • 300 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Low power consumption
    • Modularized design
    • Optional video input (S-Video & RCA input)
    • Optional with touch screen and DC power input
    • Low power consumption
    • Universal open frame kits
    • Universal-mount, OEM mounting

    APPLICATIONS :

    • Industrial automation LCD panel
    • Embedded display Unit
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

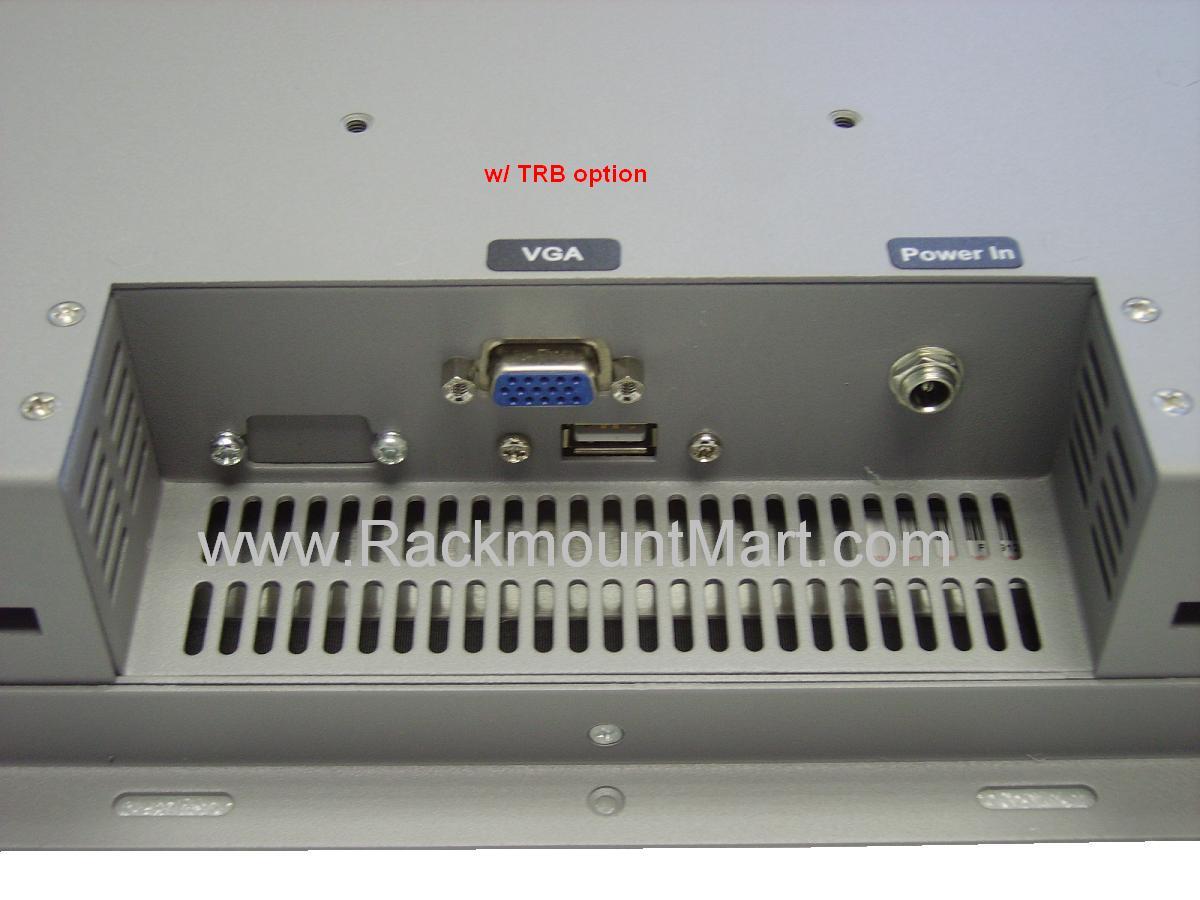

         Diagram for  I/O Outlet


    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-12P
    Standard Version  - 12.1" Open Frame TFT LCD Display
    ID-12PAV
    Version w/option  - 12.1" Open Frame TFT LCD Display + S-Video & Composite video(RCA)
    ID-12PBNC
    Version w/option  - 12.1" Open Frame TFT LCD Display + S-Video & Composite video(BNC)
    ID-12PDC12
    Version w/option  - 12.1" Open Frame TFT LCD Display + 12v DC Power
    ID-12PDC24
    Version w/option  - 12.1" Open Frame TFT LCD Display + 24v DC Power
    ID-12PDC48
    Version w/option  - 12.1" Open Frame TFT LCD Display + 48v DC Power
    ID-12PTRS
    Version w/option  - 12.1" Open Frame TFT LCD Display +
                               Resistive Touch screen & serial controller
    ID-12PTRB
    Version w/option  - 12.1" Open Frame TFT LCD Display +
                               Resistive Touch screen & USB controller
    ID-12PTCS
    Version w/option  - 12.1" Open Frame TFT LCD Display +
                              Capacitive Touch screen & serial controller
    ID-12PTCB
    Version w/option  - 12.1" Open Frame TFT LCD Display +
                               Capacitive Touch screen & USB controller
    -AV
    Add Composite video(RCA) + S-video
    -BNC
    Add Composite video(BNC) + S-video
    -TV
    Add TV tuner with remote controller
    -12VDC
    Add 12V DC Power
    -24VDC
    Add 24V DC Power
    -48VDC
    Add 48V DC Power
    -SPK
    Add Audio input
    -RM
    Add Remote controller
