   Home >>  Industrial Display >>  Open Frame LCD Monitor >>

                                           Industrial LCD :   Part #   ID-40Pw

*** This model is discontinued. Learn more about replacement model ID-42Pw-LED  ***


     40"(16:9) Samsung Wide screen Open Frame Industrial LCD  with Speaker and Remote controller
LCD Panel

LCD Type

Samsung Industrial LCD

Display Size

Wide 40 inch (16:9) (885.1H x 497.6V)

Resolutions

1366  x 768

Display Color

16.7M color

Brightness

500 cd/m2

Contrast ratio

2000 : 1 (Typical)

Response Time

Tr=10 / Tf=6ms

Pixel pitch

0.648 x 0.648 mm

Viewing angle

89 / 89 / 89 / 89 (L / R / U / D)  or
178 / 178

OSD Control

Brightness, Contrast, Phase & Color,
H & V position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog
-Support Picture in Picture (PIP)

Built-in Video  Input

-Built-in VGA  & HDMI input
-Video Input : HDMI, Componet (Y+Pb+Pr), S-Video and Composite
-Input Connectors : HDMI, RCA x 3, S-Video (Mini-DIN 4), RCA

Built-in Audio Input

-Audio Input : Analog audio 2-channel (L/R)
-Connectors:
Audio  RCA x 2
-With speaker as well

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz via AC adapter (12V), 12V DC Output,  Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount & Bracket mount
OPTIONS

Optional Video  Input

  • TV Input : TV tuner -
    Input Connectors : TV tuner with 3.5mm audio jack [
    Signal Input : NTSC, PAL (I, B, G,
    H, M, D, N),    SECAM (D, K, L, B, G)  /
    Connector : RF
    ]
  • DVI Input : DVI-D digital input -
    Input Connectors : DVI-D (male)

Optional DC Power

 48V / 24V / 12V DC Power    Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

Mechanical

Material

  1.2mm Steel

Dimension  1028 x 119 x 611 mm (WxDxH)
Product Weight  45 kg
Environmental
   Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval   CE, FCC
Package Content

Package Content

LCD Monitor x 1, VGA Cable (Male to Male) x 1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc, User Manual x 1 , remote ocntroller

  Front View of Industrial LCD ID-40Pw



  Construction Industrial LCD ID-40Pw

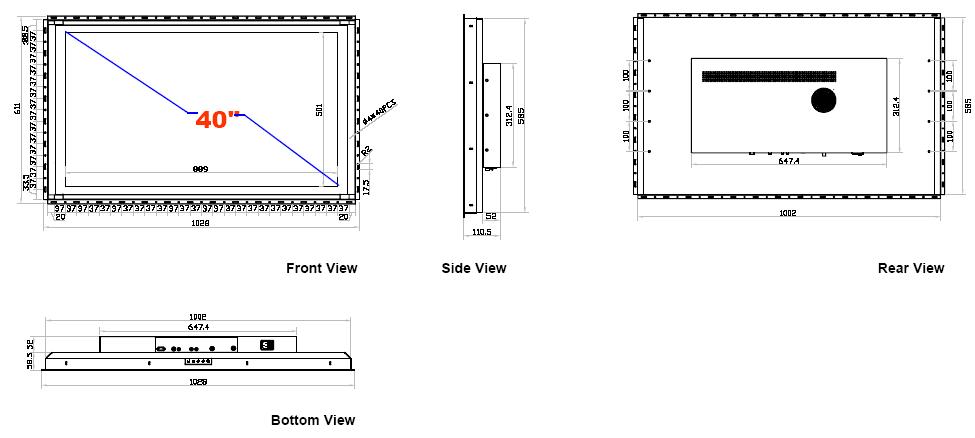

   Front / Rear / Top / Side Views & Dimensions

                                    *click on above picture for enlarged view

   ID-40W IO PLATE

            *click on above picture for enlarged view











More Photos, click on the following for enlarged view:




FEATURES :
  • 40"(16:9) industrial TFT LCD panel support 1366  x 768 pixels
  • with Remote controller
  • Universal open frame mounting for various applications
  • 500 cd/m2 industrial brightness
  • OSD control keys & remote controller to optimize the display
  • Support Picture in Picture (PIP)
  • Built-in VGA  & HDMI input
  • Built-in video input (Component, S-Video & RCA)
  • Built-in audio input with speaker
  • Optional video input (TV tuner & DVI)
  • Modularized design
  • Wall-mount, OEM mounting design
  • Wide-ranges Mounting kits
    (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

APPLICATIONS :

  • Portrait or landscape viewing for information displays
  • Single or multi-display solution for digital signage
  • Ideal solution for data center or conference rooms
  • Embedded display Unit
  • Industrial automation LCD panel
  • Gaming, lottery & amusement display
  • Industrial process control LCD panel
  • Point of sales / Kiosk
  • Security / surveillance
  • Kiosks, arcade games, Hospitality Display, ATM Machines
  • Aviation simulators, Industrial test equipment, and Instrumentation
  • Flight information display panel

Ordering information :
Part # Description
                                                 WITHOUT NEMA 4 / IP65
ID-40Pw
40"  (16:9) Samsung Open Frame Industrial LCD with VGA, HDMI,Component, S-Video & RCA input, audio input with speaker and remote controller
ID-40Pw-TV
40"  (16:9) Samsung Open Frame Industrial LCD with VGA,HDMI, Component, S-Video & RCA input, audio input with speaker and remote controller +  **TV Tuner
-QD
Add Quad Display
-MC
Add Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
