    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitors :   Part #   ID-HE21Pw


21.5" Industrial Grade Open Frame Full HD High Bright Widescreen LCD with LED , TAA Compliant

LCD w/ LED Backlight Panel
LCD Type

21.5" Industrial Grade Ful HD High Brght TFT LCD Panel

Backlight

LED

Display Size

Widescreen 21.5 inch diagonal

Resolutions

1920 x 1080

Display Color

16.7 M

Brightness

1000 cd/m2

Contrast ratio

5000 : 1 ( Typical )

Active area

477 x 268mm

Viewing angle 178 x 178

LCD MTBF

50,000 hrs

Signal Input

Standard VGA, DVI-D and HDMI

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt,
                   Standby 5 Watt

Mounting

Universal mount / VESA mount
OPTIONS

Optional Touch Screen

               Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

250V / 125V / 110V / 48V / 24V / 12V DC Power    Details

Other Option

- Multi-Display Controller         Details
- TV
- MIL-type or lockable connector
- Auto / switch dimming
- S-Video + Composite ( BNC ) or Audio input

Mechanical
Dimension
( W x D x H )
 22.6 x 2.1 x 14.4 inch /
 574.8 x 52.6 x 366.3 mm
Product Weight  5.6 kgs ( 12.3 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , TAA Compliant
Package Content

Package Content

21.5" High Brightness LCD display X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1

  Front View of  ID-HE21Pw

  Construction

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

                       Download Product Sheet
                       Download User Manual
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7 If you do not find the driver required, please contact us.

         Free Ground Shipping * Click for details




More Photos, click on the following for enlarged view:




   DISPLAY BENEFITS :
  • 21.5" widescreen LCD with high brightness 1000 cd/m, Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact


   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 21" Touchscreen : Capacitive, Resistive, 10-point mulit-touch also available
  • S-Video + Composite ( BNC ) or Audio input
  • MIL-type or lockable connector
  • 250V , 125V , 110V, 48V, 24V or 12VDC power
  • Auto / switch dimming

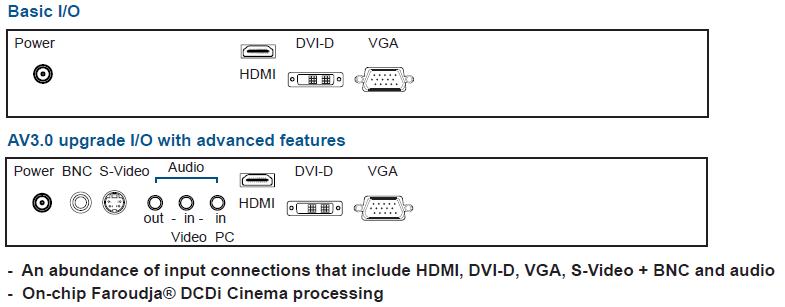

    Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-HE21Pw
Price : $1497
Standard Version - 21" Open Frame Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display, with VGA + DVI-D + HDMI input
ID-HE21Pw-BNC
Price : $1633
21" Open Frame Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display,
with VGA + DVI-D + HDMI + BNC +S-Video + Audio + remote controller
ID-HE21Pw-AV
Price : $1633
21" Open Frame Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display,
with VGA + DVI-D + HDMI + BNC with RCA adapter +S-Video + Audio + remote controller
ID-HE21Pw-TV
Price : $1848
21" Open Frame Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display,
with VGA + TV(ATSC) + HDMI + PC audio in + composite (RCA), w/ remote controller
Optional Video/Audio Inputs
-SDI
Price : $298
With VGA + DVI-D + HDMI + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $339
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $339
Add Resistive Touch Screen with USB Controller
-TCS
Price : $501
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $501
Add Capacitive Touch Screen with USB Controller
-TPC10
Price : $508
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Dimming
-DA
Price : $95
Add Auto Dimming
-DS
Price : $95
Add Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12
Price : $203
Add 12V DC Power
-DC24
Price : $203
Add 24V DC Power
-DC48
Price : $203
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
-DC250
Call for pricing
Add 250V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $136
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
