     Home >>  Industrial Display >>  Open Frame LCD Monitor >>

                   Industrial LCD Monitor Displays :   Part #   ID-06P

*** This model is discontinued . Learn more about replacement model ID-06P-LED  ***


                                                            6.5" Open Frame Industrial Displays
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

6.5 inch diagonal (129.6H x 97.4V)

Resolutions

640 x 480

Display Color

262,144 color

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Response Time

Tr=15 / Tf=25ms

Pixel pitch

0.203 x 0.203 mm

Viewing angle

60 / 60 / 40 / 55 (L / R / U / D)  or
120 / 95

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video    Input

  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : BNC, S-Video adapter  Details
  • Optional Touch Screen

                             Details

    Optional DC Power

     48V / 24V / 12V DC Power    Details
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
    DC power Output : DC 12V
    Voltage Accuracy
    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

    Other options

    -TV turner [ Signal Input : NTSC, PAL (I, B, G, H, M, D,
      N),  SECAM (D, K, L, B, G)  / Connector : RF
    ] with
      Remote controller
    - Remote controller only                                  - Audio Input

                                      Mechanical

    Material

      1.2mm Steel

    Dimension  251.7 x 59.3 x 179 mm (WxDxH)
    Product Weight  1.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5~90%, non condensing
    Shock  10G peak acceleration
     (11ms duration)
    Vibration  5~500Hz, 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1 , VGA Cable (Male to Male) x
    1,   DC 12V adapter  x1 ,  Power cord x 1,  Mounting Bracket x 1 pair, CD disc,
    User Manual x 1

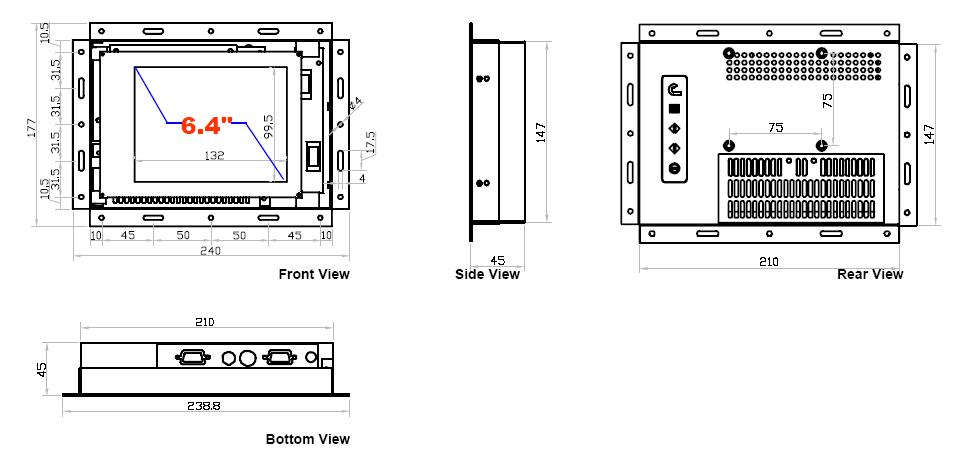

      Front View of  ID-6P

      Construction

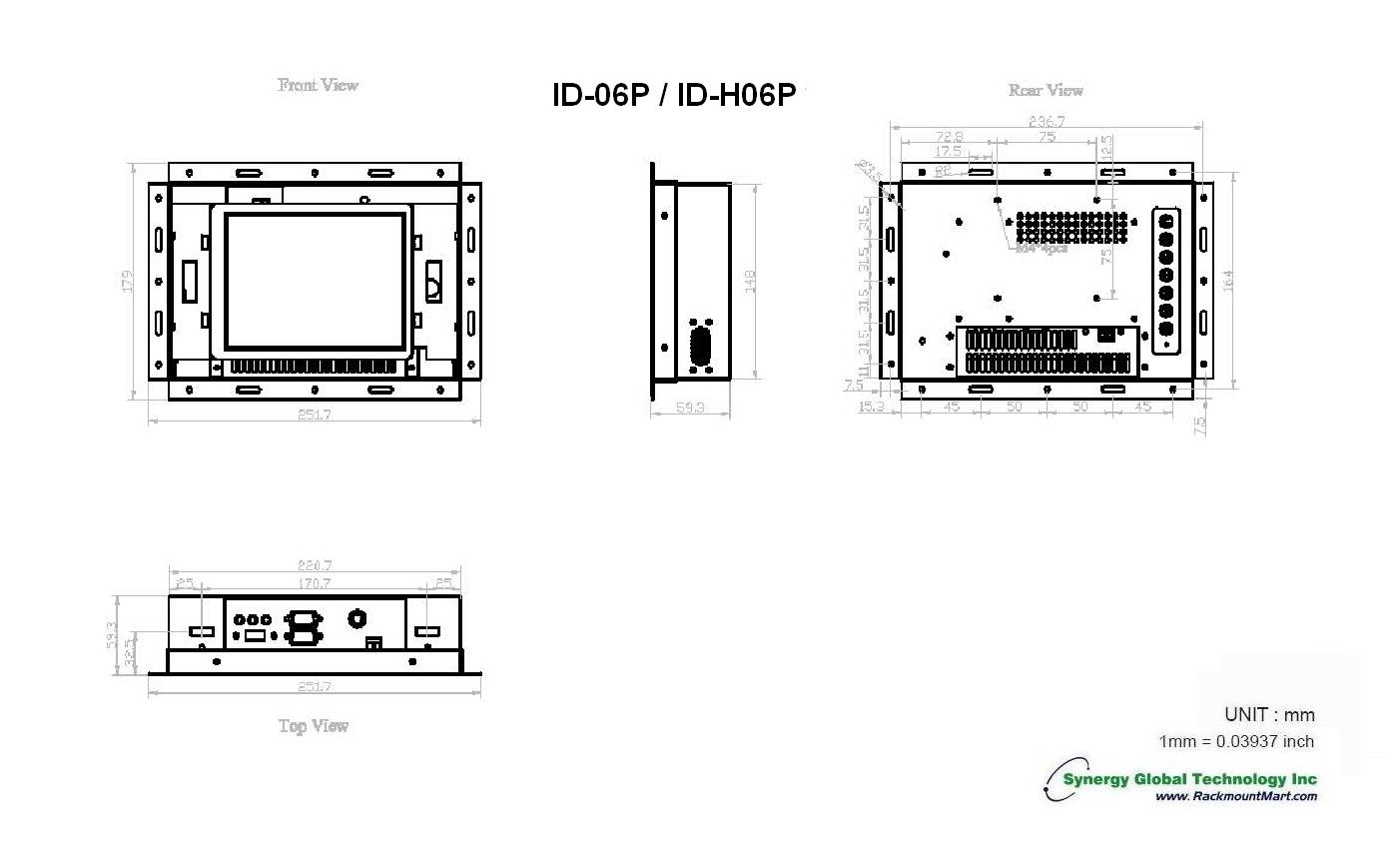

       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view






    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7


    More Photos, click on the following for enlarged view:




    FEATURES :
    • 6.5" industrial TFT LCD panel support 640 x 480 pixels
    • 400 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Low power consumption
    • Modularized design
    • Optional DC to DC power input (12 / 24 / 48 VDC)
    • Optional video input   ( S-Video & RCA input or S-video & BNC  )
    • Optional touch screen
    • New Options:  TV turner with remote controller / remote controller only / Audio Input
    • Low power consumption
    • Universal open frame kits
    • Universal-mount, OEM mounting

    APPLICATIONS :

    • Industrial automation LCD panel
    • Embedded display Unit
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

         Diagram for  I/O Outlet


    Ordering information :
    Part # Description

    ID-06P
    Standard Version  - 6.5" Open Frame Industrial display
    ID-06P-AV
    Version w/option  - 6.5" Open Frame Industrial display + S-Video &
                               RCA
    ID-06P-BNC
    Version w/option  - 6.5" Open Frame Industrial display + S-Video & BNC
    ID-06P-TV
    Version w/option  - 6.5" Open Frame Industrial display + TV turner &
                               Remote Controller
    ID-06P-RM
    Version w/option  - 6.5" Open Frame Industrial display + Remote Controller
    ID-06P-SPK
    Version w/option  - 6.5" Open Frame Industrial display + Audio Input
    ID-06P-DC12
    Version w/option  - 6.5" Open Frame Industrial display + 12v DC Power
    ID-06P-DC24
    Version w/option  - 6.5" Open Frame Industrial display + 24v DC Power
    ID-06P-DC48
    Version w/option  - 6.5" Open Frame Industrial display + 48v DC Power
    ID-06P-TRS
    Version w/option  - 6.5" Open Frame Industrial display +
                               Resistive Touch screen & serial controller
    ID-06P-TRB
    Version w/option  - 6.5" Open Frame Industrial display +
                               Resistive Touch screen & USB controller
    ID-06P-TCS
    Version w/option  - 6.5" Open Frame Industrial display +
                               Capacitive Touch screen & serial controller
    ID-06P-TCB
    Version w/option  - 6.5" Open Frame Industrial display +
                               Capacitive Touch screen & USB controller
                                                      With other options
    -AV
    + S-Video & RCA
    -BNC
    + S-Video &  BNC
    TV
    + TV turner & Remote Controller
    -RM
    + Remote Controller
    -SPK
    + Audio Input
    -DC12
    add -12v DC to DC Power Input
    -DC24
    add -24v DC to DC  Power Input
    -DC48
    add -48v DC to DC  Power Input
