7U Rack 17" LCD MONITOR :
Part# LCDR7U17-02


               SiriusView 7U Rackmount 17" Industrial Grade TFT LCD Monitor Panel, TAA Compliant
    Optional S-Video & BNC / Audio / HDMI / Touch Screen / NEMA4 / DC Input  / Multi-display / MIL-type  Lockable connector

Panel: Industrial Grade 17" LCD panel

Display type

17" TFT color LCD

Resolutions

1280 x 1024

Active area

338 x 270 mm

Contrast ratio

1000 : 1 typical

Brightness

250 cd/ m2 typical

Panel color

16.7 million display colors

Viewing angle

160 (Horiz.) / 160 (Vert.)

Back light

CCFL

LCD MTBF

50,000 hrs

Signal Input

VGA or DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC,50/60Hz
Consumption :
Screen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt
Weight 6.1 kgs / 13.4 lbs
Dimension 480 x 54 x 310 mm / 18.9 x 2.1 x 12.2 inch
Temperature 0 to 55 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non-condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration

Safety Approval

FCC, CE, RoHS2 , REACH & TAA compliant

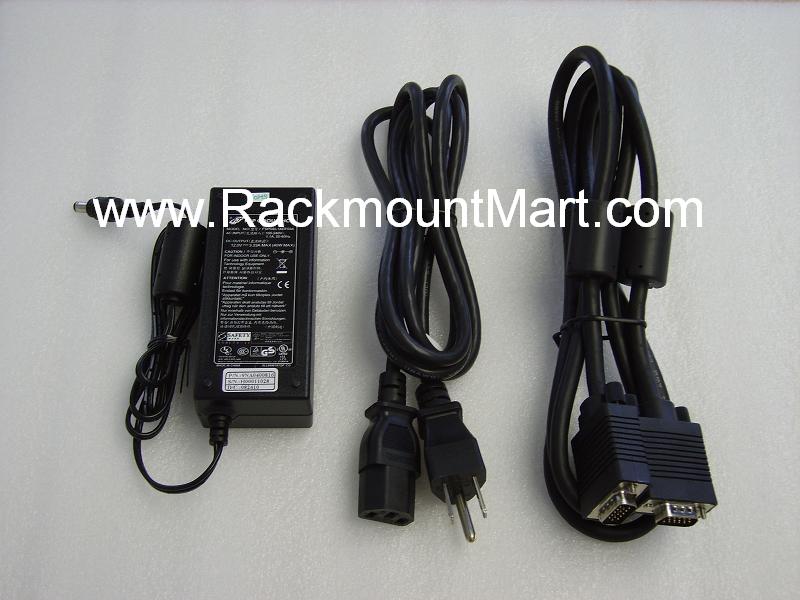

Package Content LCDR7U17-02 X 1, 6ft VGA cable X 1, Power adapter X 1, Power cord X 1

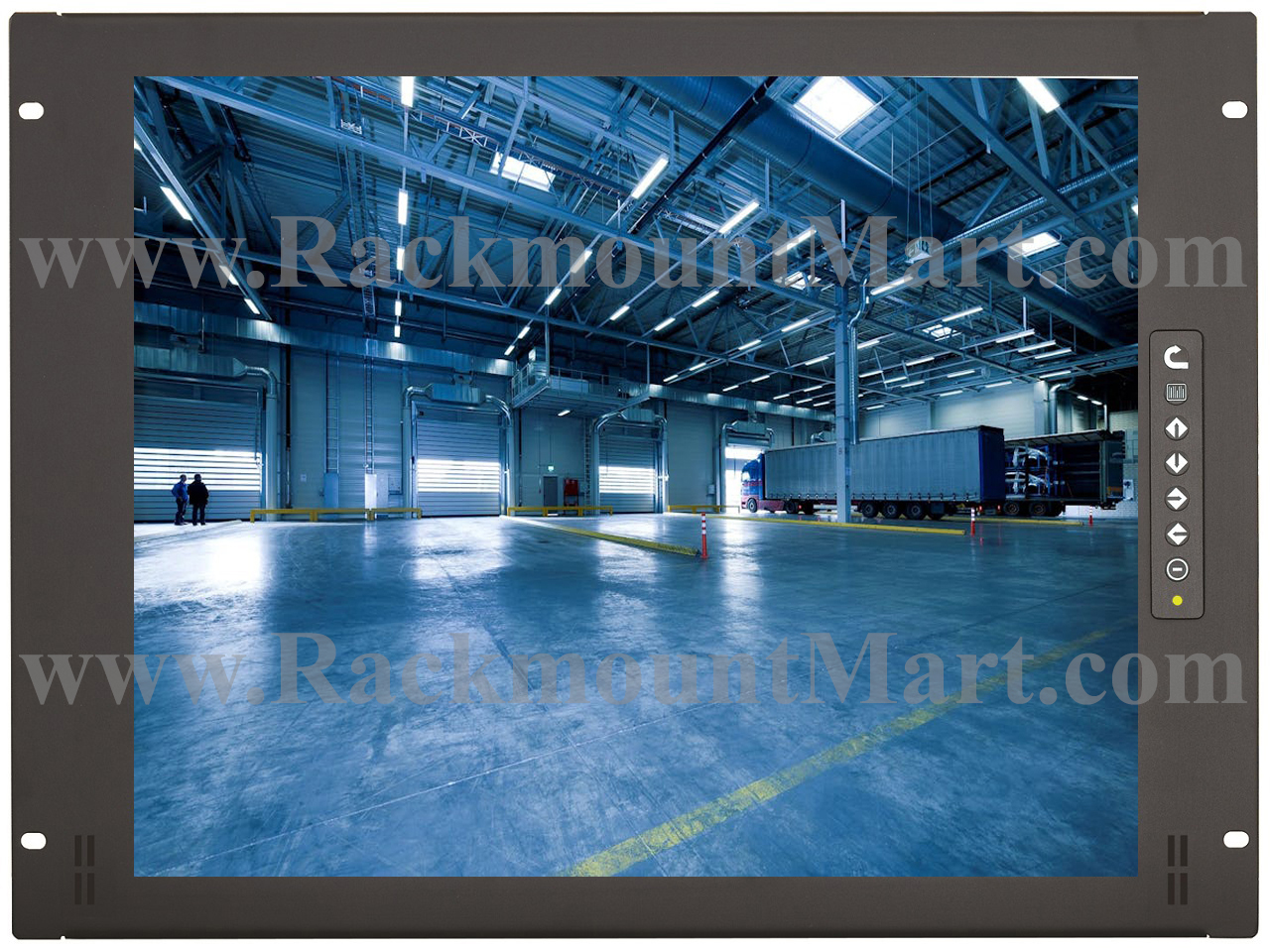

  Front View of  LCDR7U17-02

*click  for enlarged view

 Download Product Sheet
 Download User Manual
 Download Mechanical Drawing

Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

     Free Ground Shipping *Click for details


Display Features & Benefits :
  • 7U 17" rackmount LCD with DVI-D / VGA input
  • Ideal for CCTV security & industrial control

Options :

  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 17" Touchscreen : Capacitive, Resistive
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one for AV2.2 upgrade )
  • DC power : 12V / 24V / 48V / 110 ~ 125V
  • MIL-type or lockable connector

Back to top

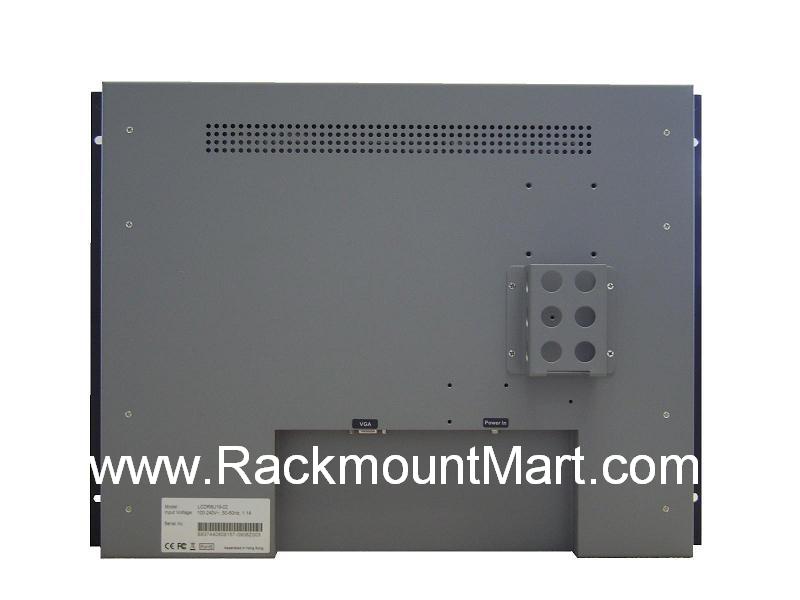

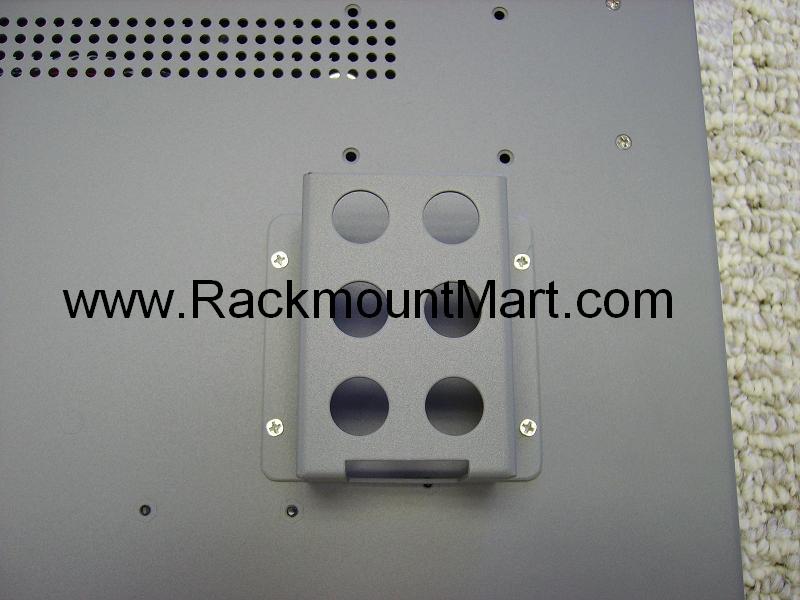

More Photos, click on the following for enlarged view:

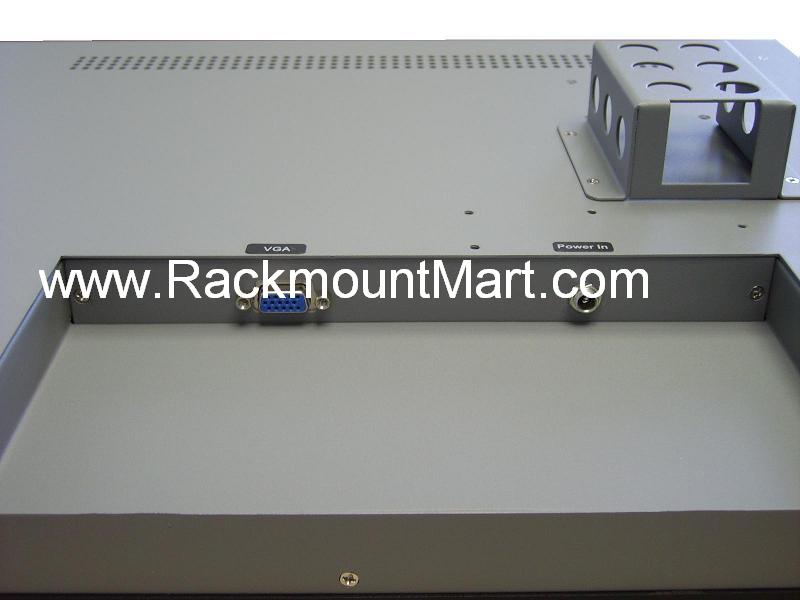

     Diagram for  I/O Outlet

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / Multi-display
- Touch screen
- DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan

Ordering information
Part Number  Description
LCDR7U17-02
Price : $515
7U Rackmount 17" Industrial Grade TFT LCD Monitor
with VGA + DVI-D input.
LCDR7U17-02-BNC
Price : $666
7U Rackmount 17" Industrial Grade TFT LCD Monitor with VGA + DVI-D + S-Video + BNC Composite Video  + Audio Input.
LCDR7U17-02-AV
Price : $666
7U Rackmount 17" Industrial Grade TFT LCD Monitor with VGA + DVI-D + S-Video + BNC Composite Video  with RCA adapter + Audio Input.
LCDR7U17-02-HDMI
Price : $666
7U Rackmount 17" Industrial Grade TFT LCD Monitor
with VGA + HDMI with Speakers,  S-Video + BNC Composite Video + Audio Input( No DVI-D signal )
LCDR7U17-02-HDMI-AV
Price : $848
7U Rackmount 17" Industrial Grade TFT LCD Monitor with VGA + DVI-D + HDMI + S-Video + BNC Composite Video + Audio with Speaker
Optional Signal Input
-MC
Price : $93
Add Multi-display control
( VGA + DVI-D + Multi-Display Control )
Download Spec Sheet
Optional Touch screen
-TRS
Price : $243
Add resistive touch screen + Serial controller
-TRB
Price : $243
Add resistive touch screen + USB controller
-TCS
Price : $421
Add capacitive touch screen + Serial controller
-TCB
Price : $421
Add capacitive touch screen + USB controller
Optional DC Input Power
-DC12
Price : $171
Add 12V DC power supply
-DC24
Price : $171
Add 24V DC power supply
-DC48
Price : $171
Add 48V DC power supply
-DC110
Price : $357
Add 110V DC power supply
-DC125
Price : $357
Add 125V DC power supply
Optional Connector  For DC power only
-MD
Price : $93
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $143
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $36
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $36
Add Lockable USB jack Download Spec Sheet
Optional NEMA4/ IP65
-IP65
Price : $108
Add NEMA4 / IP65 Protective Glass
