Part#  LCDR7U17-03


   TAA Compliant SiriusView SUN LCD Monitor : 7U Rackmount 17"LCD Monitor SUN Solaris Compatible
Auto detection of SUN Server resolution 1152 x 900 @ 66 or 76 Hz, TAA Compliant
Panel: 17" LCD panel

Display type

TFT / LCD active matrix color

Resolutions

-1280 x 1024 native graphic resolution
-1152 x 900 Direct resolution

Contrast ratio

1000 : 1 typical

Brightness

250 cd/ m2 typical

Active area (mm)

338 x 270

Panel color

16.7M

Viewing angle

160° x 160°

Back light

CCFL

MTBF (hrs)

50,000

Signal input

VGA or DVI-D

Power

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :
Sreen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt

                                  Mechanical

Casing Color

Black

Product Dimension

480 x 54 x 310 mm /
18.9 x 2.1 x 12.2 inch

Net Weight

6.1 kgs / ( 13.4 lbs )
Package Content LCD Monitor x 1 ,  6-ft VGA cable x 1, Power adapter X 1, Power cord X 1
                                  Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration
 (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS2 & REACH compliant

 Download User Manual
 Download Product Sheet

      Free Ground Shipping *Click for details

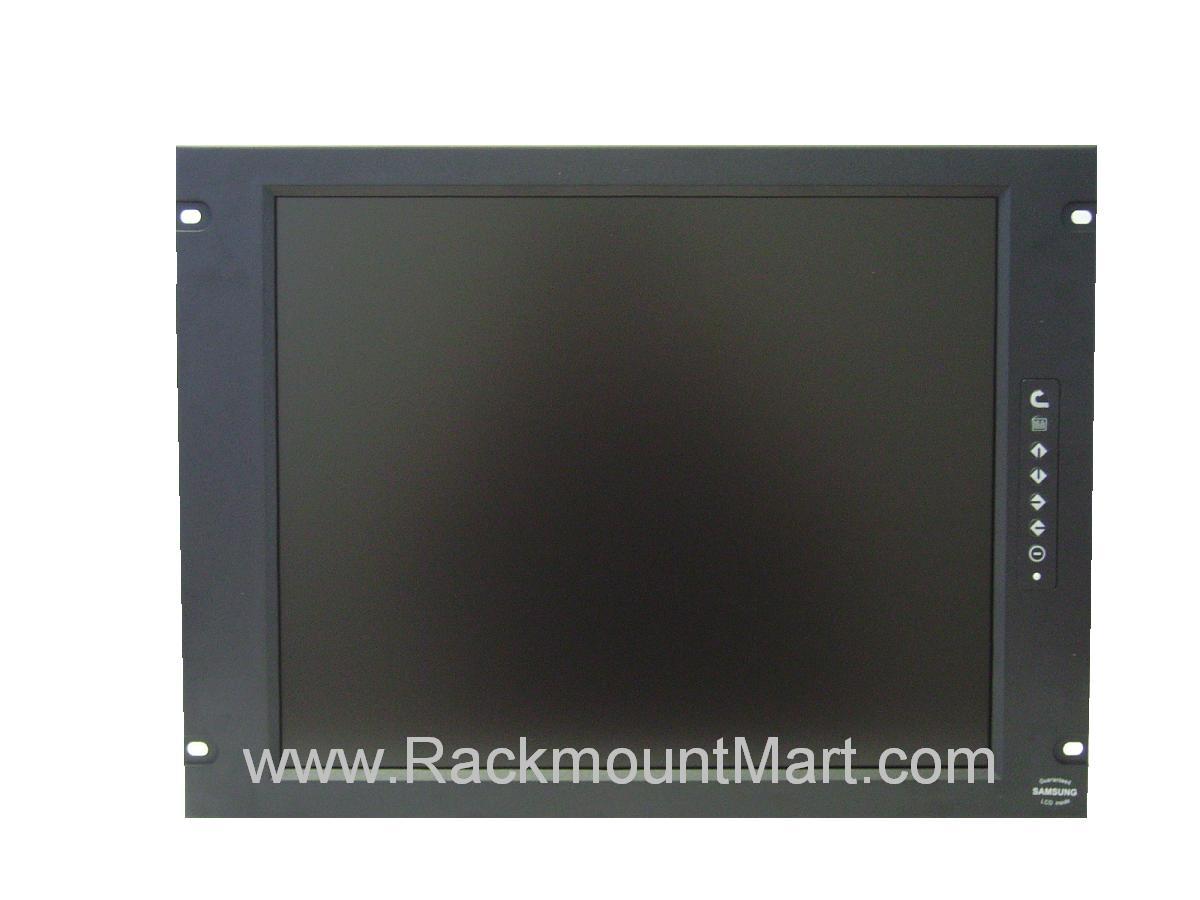

  Front View

                         *click  for enlarged view

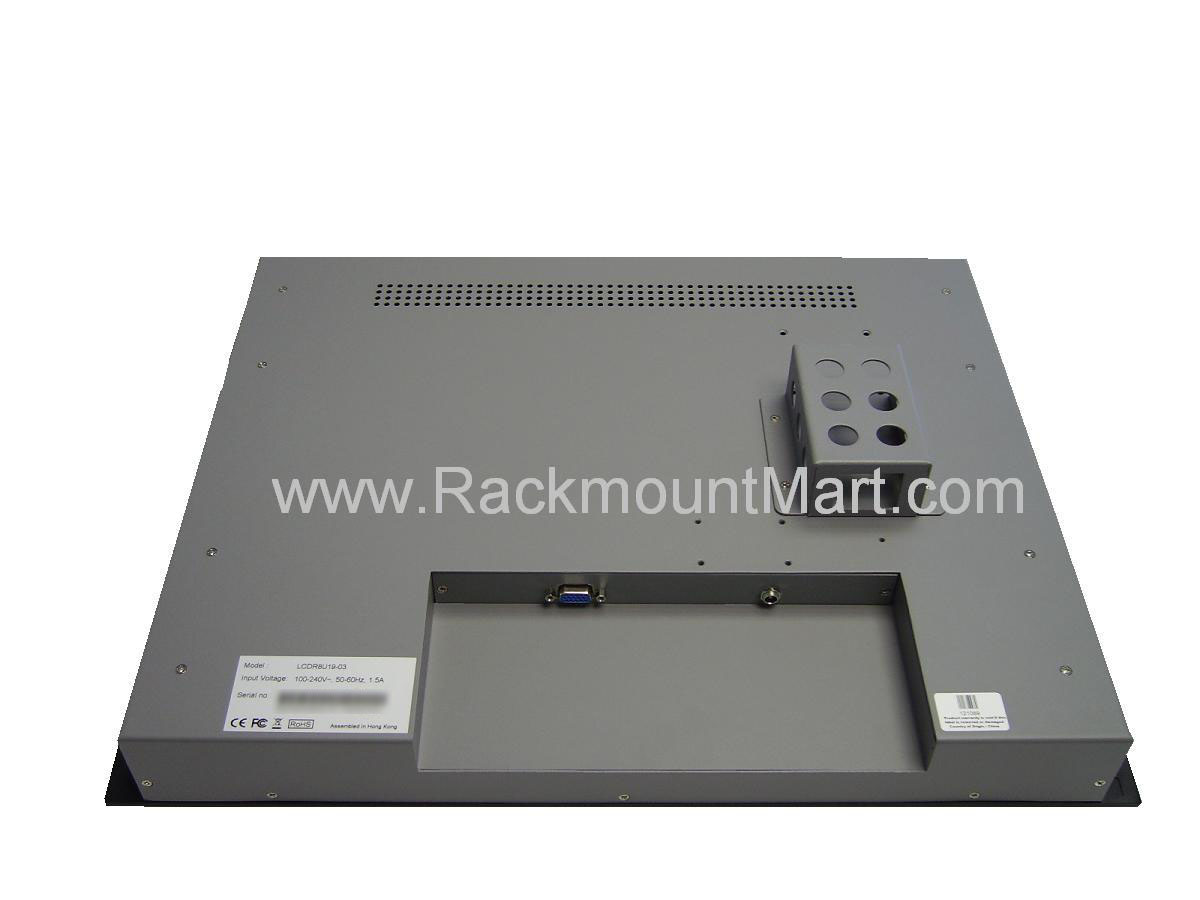

  Construction


*click  for enlarged view

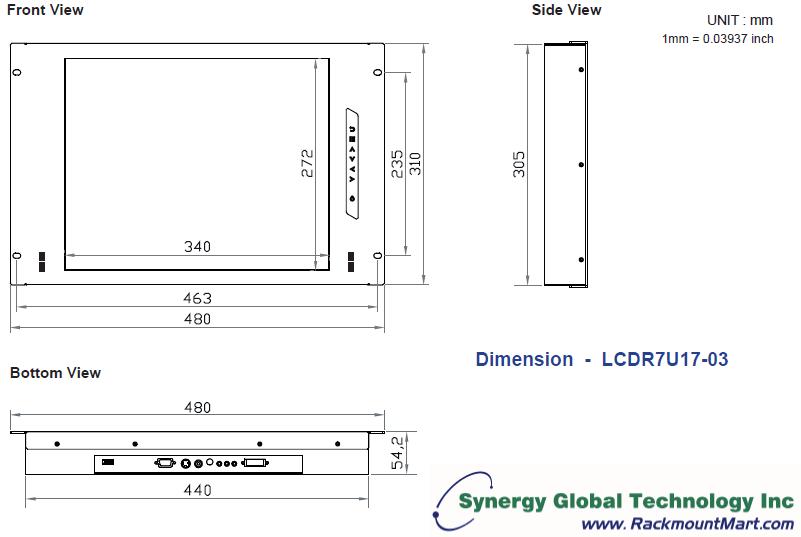

   Front / Bottom / Side Views & Dimensions

*click  for enlarged view

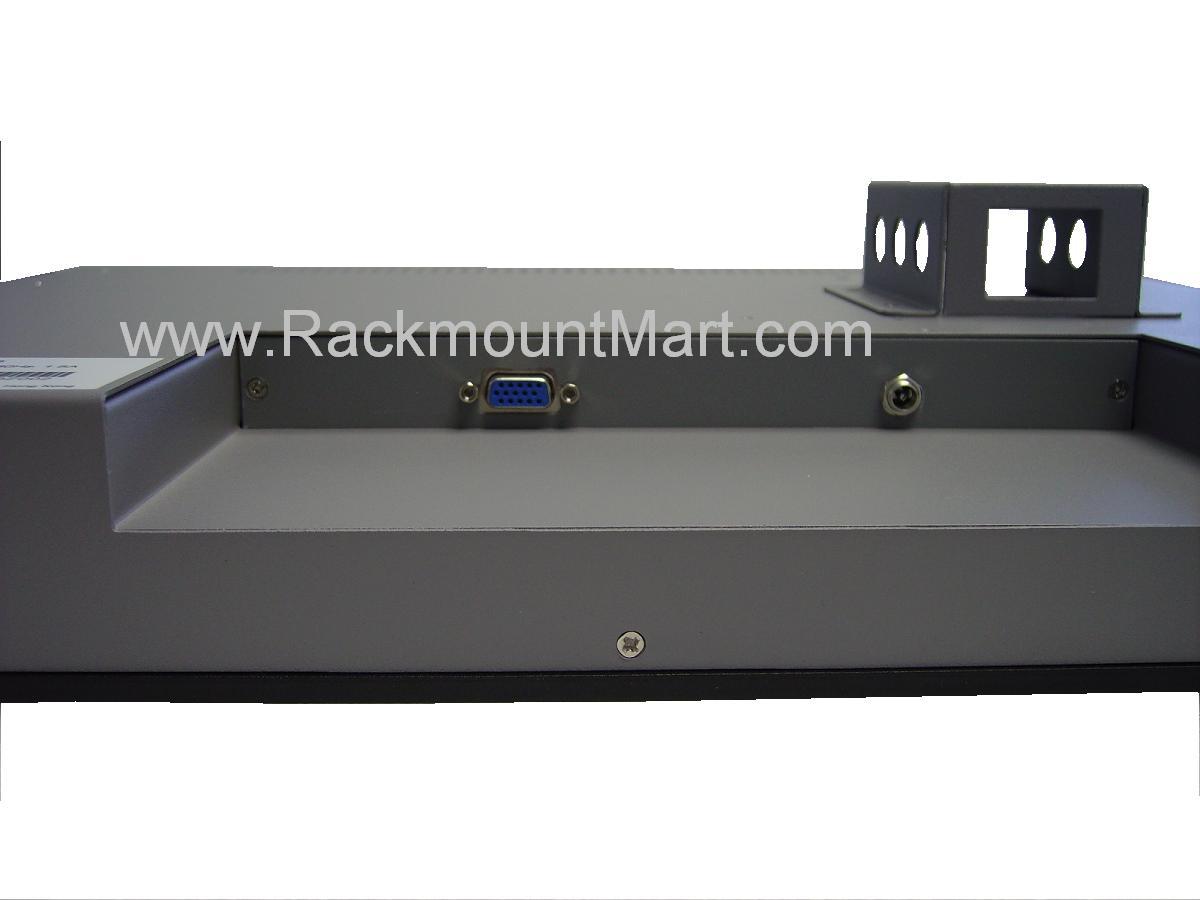

More Photos, click on the following for enlarged view:



   Display Features & Benefits :
  • 7U 17" rackmount LCD with DVI-D / VGA input
  • Direct Support for SUN Micro 1152 x 900 native resolution
  • Ideal for CCTV security & industrial control
   0PTIONS :
  • DC power : 12V / 24V / 48V / 110 ~ 125V

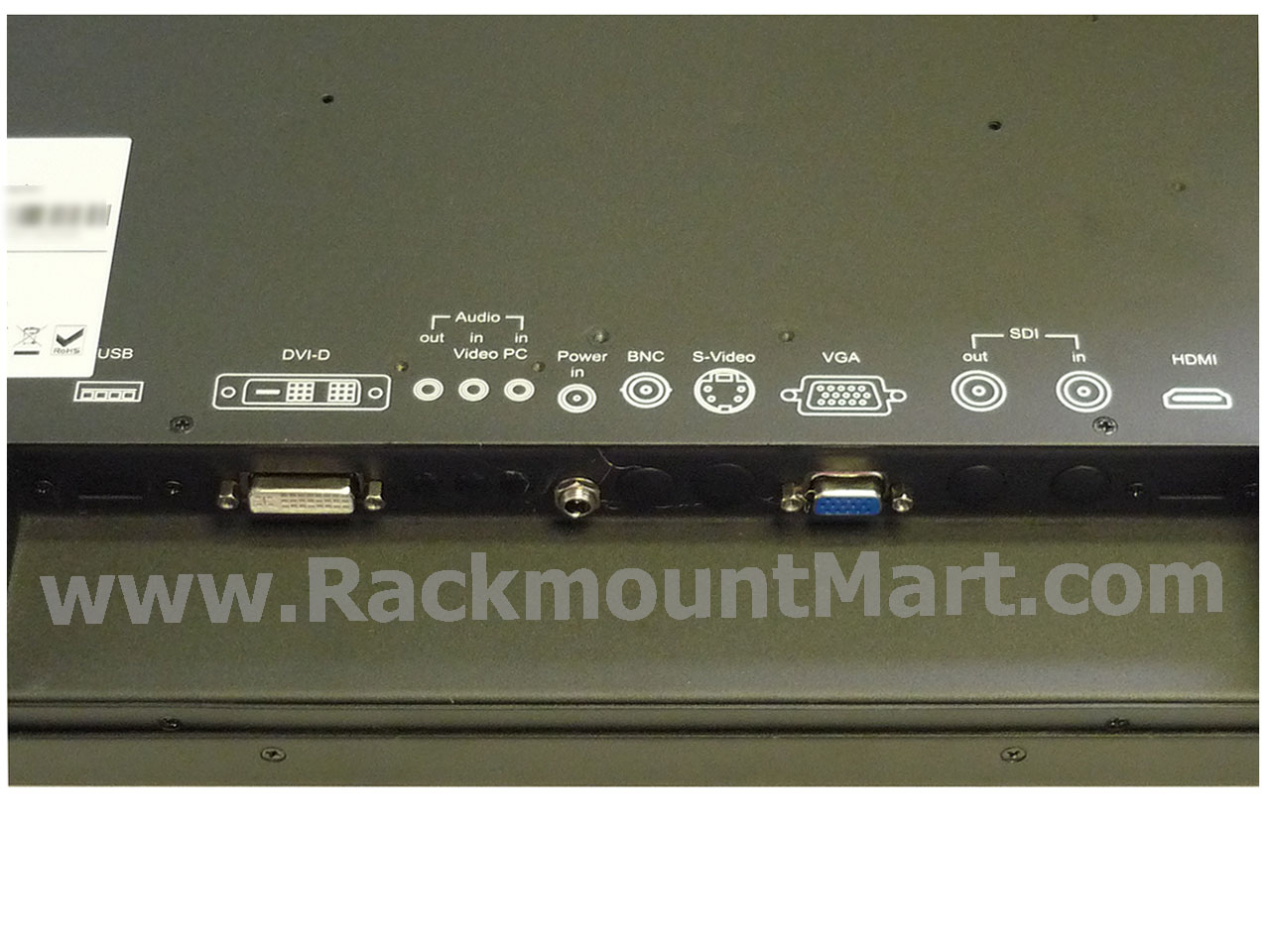

     Diagram for  I/O Outlet

Back to top

Optional Peripheral & Accessory
- S-Video + Composite Video (BNC or RCA) / DVI-D - HDMI
- Touch screen - DC Power Input ( 12V / 24V / 48V )
Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan



Ordering  information
Part Number  Description
LCDR7U17-03
Price : $644
 SUN Solaris Compatible 7U Rackmount 17" industrial Grade TFT LCD Monitor
Optional DC Input Power
-DC12
Price : $171
Add 12V DC input power supply
-DC24
Price : $171
Add 24V DC input power supply
-DC48
Price : $171
Add 48V DC input power supply
-DC110
Price : $357
Add 110V DC input power supply
-DC125
Price : $357
Add 125V DC input power supply
