8U Rack mountable Industrial Monitor :
Part#  LCDR8U20-09


SiriusView 8U Rackmount 20" LG Industrial Gade TFT LCD Monitor Panel , TAA Compliant
Optional HDMI / S-Video & BNC / RCA / Audio / Touchscreen / DC Input / Protective Glass

Panel: LG  20" LCD panel

Display type

TFT LCD

Resolutions

1600 x 1200

Display Area

408(H) x 306(V) mm

Contrast ratio

800 : 1 typical

Brightness

300 cd/ m2 typical

Panel color

16.7 million display colors

Viewing angle

178 (Horiz.) / 178 (Vert.)

Back light

CCFL

MTBF (hrs) 45,000

Signal input

VGA and DVI-D

Casing Color Black front panel
Dark grey rear case

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Product Dimension

480 x 63.5 x 353.8 mm /
18.9 x 2.5 x 14 inch

Net Weight 19 lbs / 8.5 kg
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration  (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration

Safety Approval

 FCC, CE, RoHS, REACH & TAA Compliant

Customer who ordered this product may also order these :
- Rack Keyboard - Wall Rack Mount
- KVM Switch - Rack Shelves
- PDU (Power Distribution Unit ) - Rack Drawer
- Server Rack Cabinet - Power Strips
- 4 Post Rack - Rack Cooling Fan
 Front View

 Rear View

 Download Product Sheet
 Download User Manual
 Download Product Drawing

      Free Ground Shipping *Click for details

Optional Peripheral & Accessory
- S-Video + Composite Video BNC
- DC Power Input ( 12V / 24V / 48V / 110V ~ 125V )

  More photos (click to enlarge )

   Display Features & Benefits :
  • 8U 20" rackmount LCD with DVI-D & VGA input
  • Ultra high resolution 1600 x 1200
  • This monitor is ideal for CCTV security & industrial control
   0PTIONS :
  • HDMI, Audio, S-Video + BNC / RCA inputs
  • Protective Glass
  • Touchscreen
  • 110V ~ 125V , 48V, 24V or 12VDC input

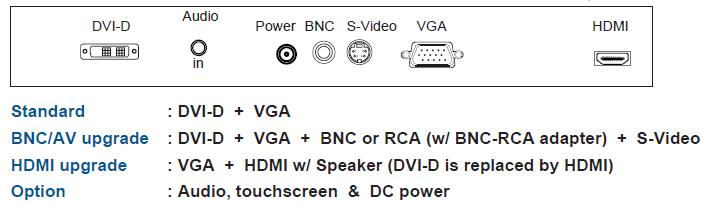

     Diagram for  I/O Outlet

Back to top

Ordering  information
Part Number  Description
LCDR8U20-09
Price : $1135
8U Rackmount 20" Industrial Grade A LCD Monitor with VGA and DVI-D Input
LCDR8U20-09-HDMI
Price : $1256
8U Rackmount 20" Industrial Grade A LCD Monitor with VGA + HDMI with speakers + S-Video + BNC + Audio
(No DVI-D. Audio is from HDMI cable only)
LCDR8U20-09-BNC
Price : $1256
8U Rackmount 20" Industrial Grade A LCD Monitor with S-Video & BNC connector
LCDR8U20-09-AV
Price : $1256
8U Rackmount 20" Industrial Grade A LCD Monitor with S-Video & RCA (BNC-RCA adapter) connector
Optional Protective Glass
-G
Price : $150
Add Protective Glass
Optional Video/Audio Inputs
-SPK
Price : $114
Add speaker
Optional Touch Screen
-TRS
Price : $357
Add resistive touch screen + Serial controller
-TRB
Price : $357
Add resistive touch screen + USB controller
Optional DC power
-DC12
Price : $215
Add 12V DC power supply
-DC24
Price : $215
Add 24V DC power supply
-DC48
Price : $215
Add 48V DC power supply
- DC110V ~ DC125V
Call for pricing
Add 110V ~ 125V DC power supply
