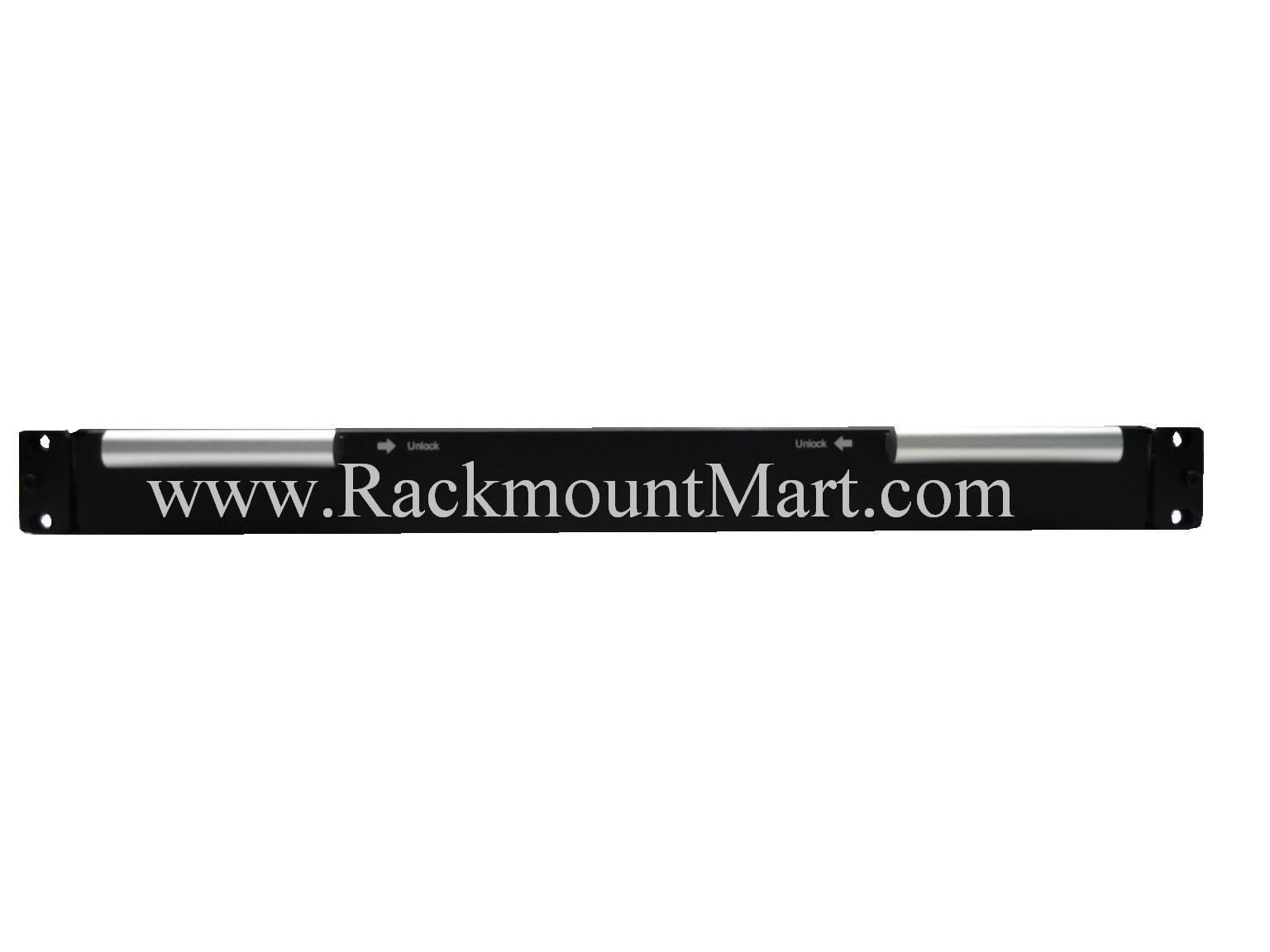

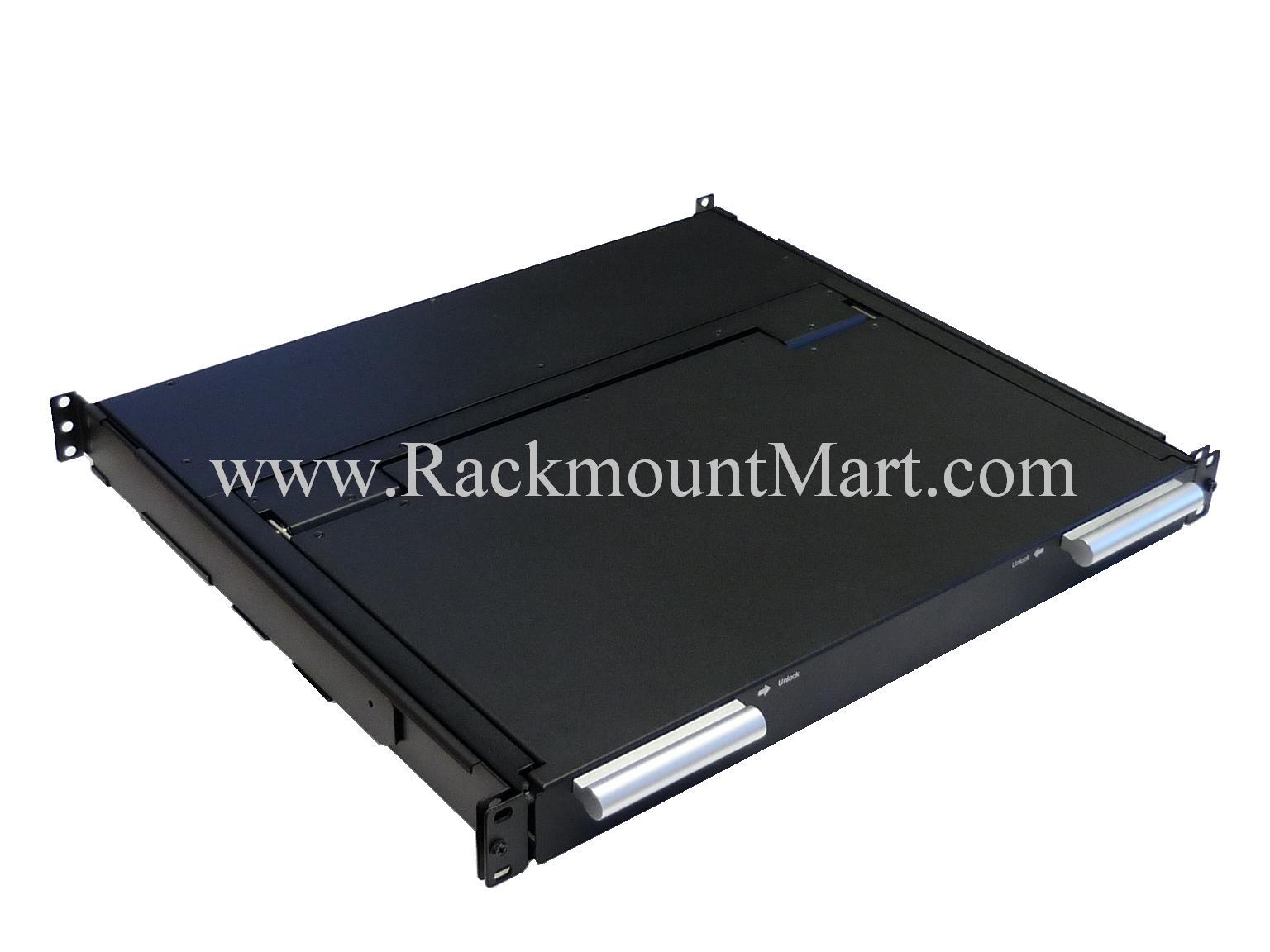

1U Rack-mount LCD Monitor Panel with Keyboard Drawer / KVM Switch :
Part #  LCD1U15-17


                        NOVA Short Depth 1U Rackmount wide format 15" TFT LCD Monitor Keyboard Drawer
                                                          with touchpad &COMBO PS2 / USB INPUT

                           OPTIONAL 8 PORT COMBO PS2/ USB KVM SWITCH  ( FCC & CE approved , RoHS Compliant )


LCD1U15-17-n   LCD1U15-17-8kvm-n

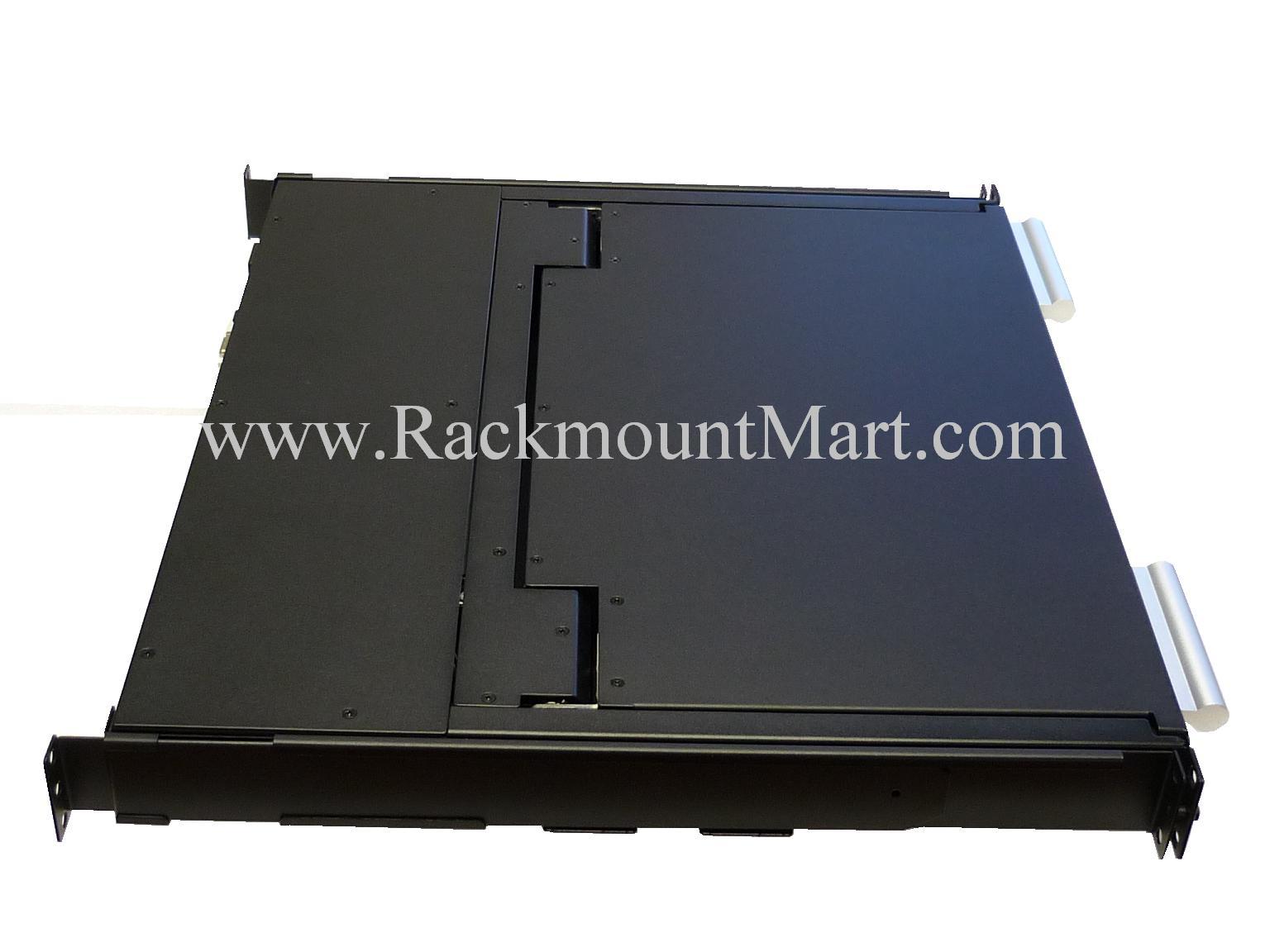

                                                                         ***Click on photos for enlarged view

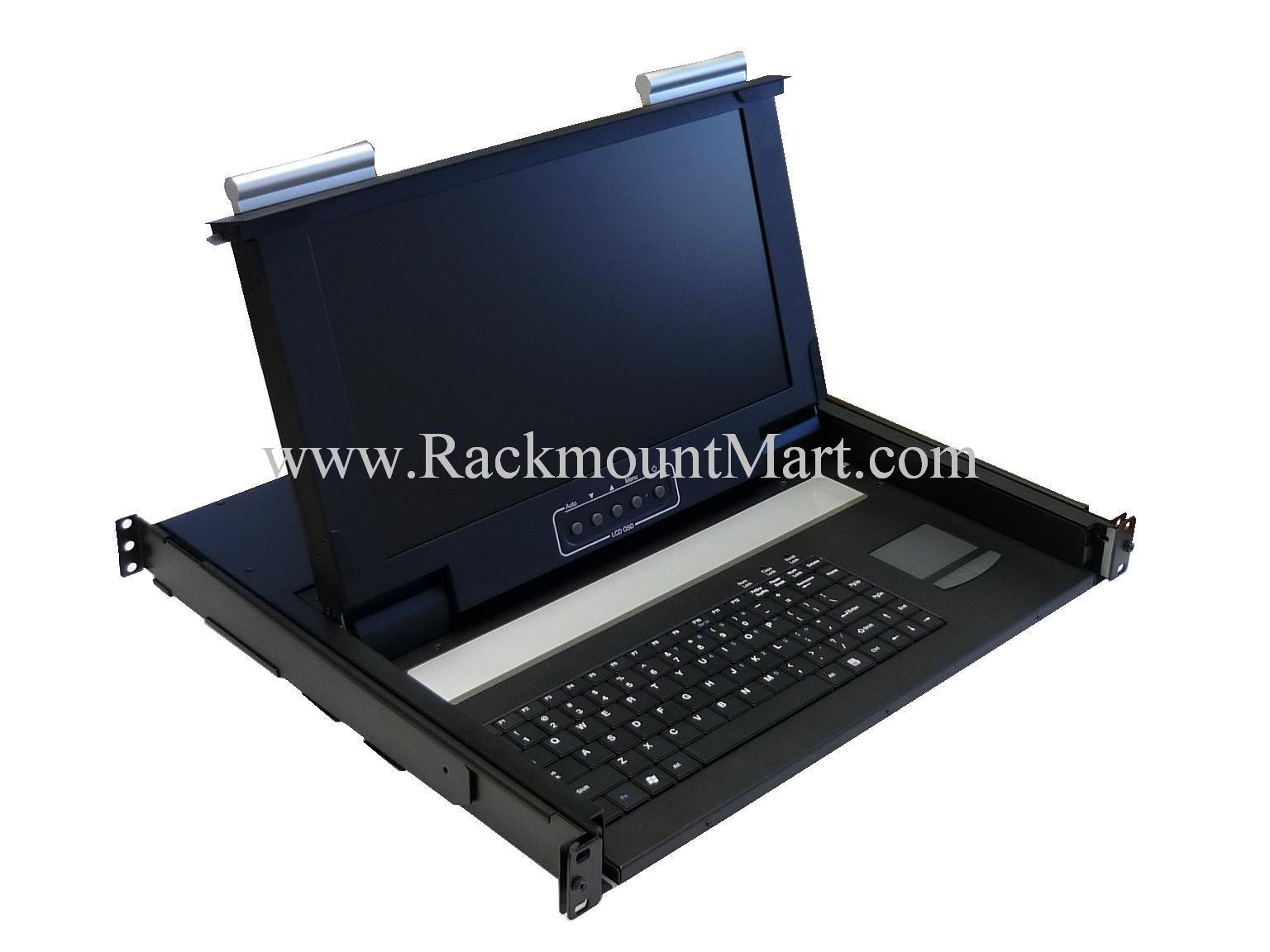

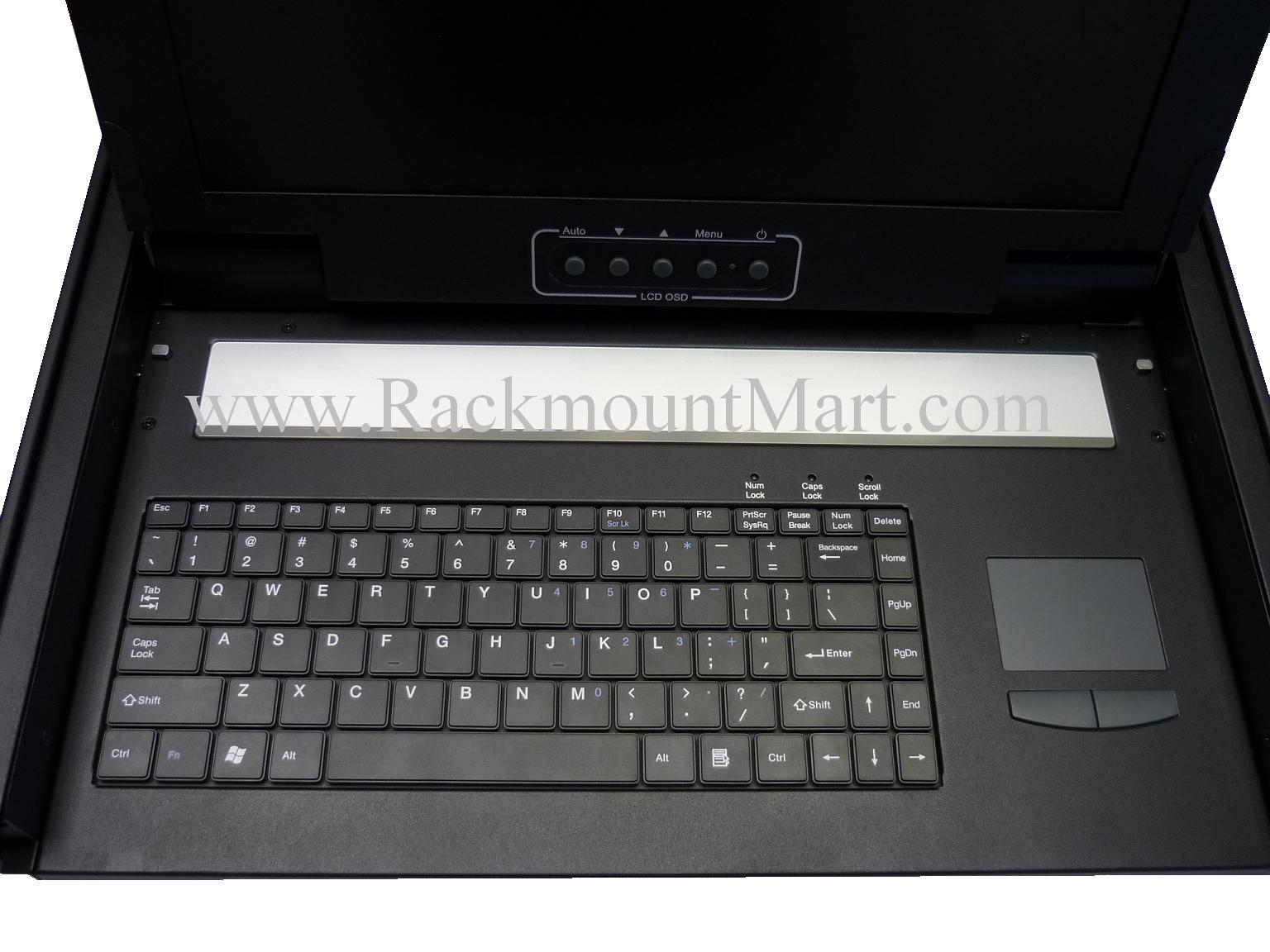

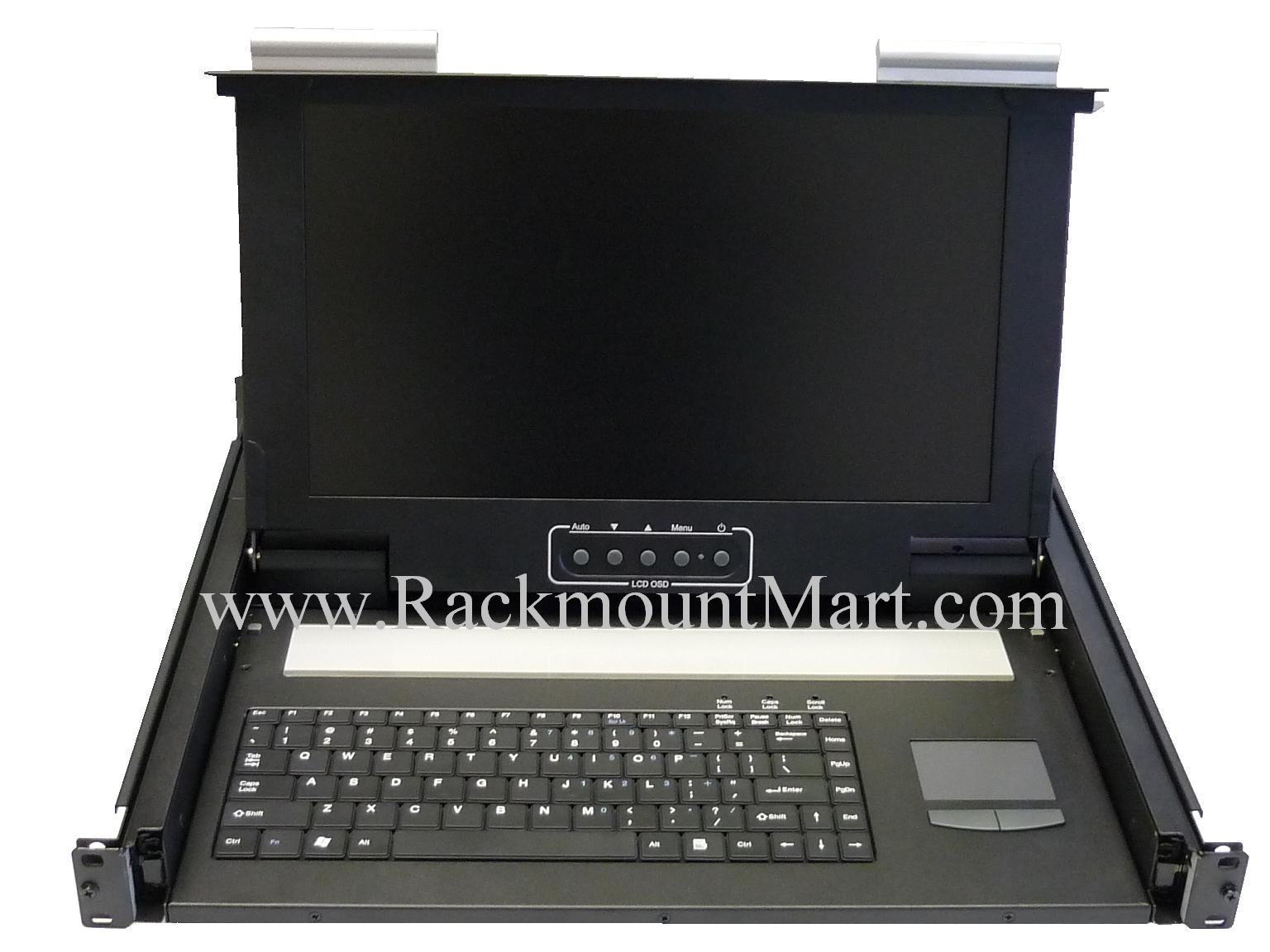

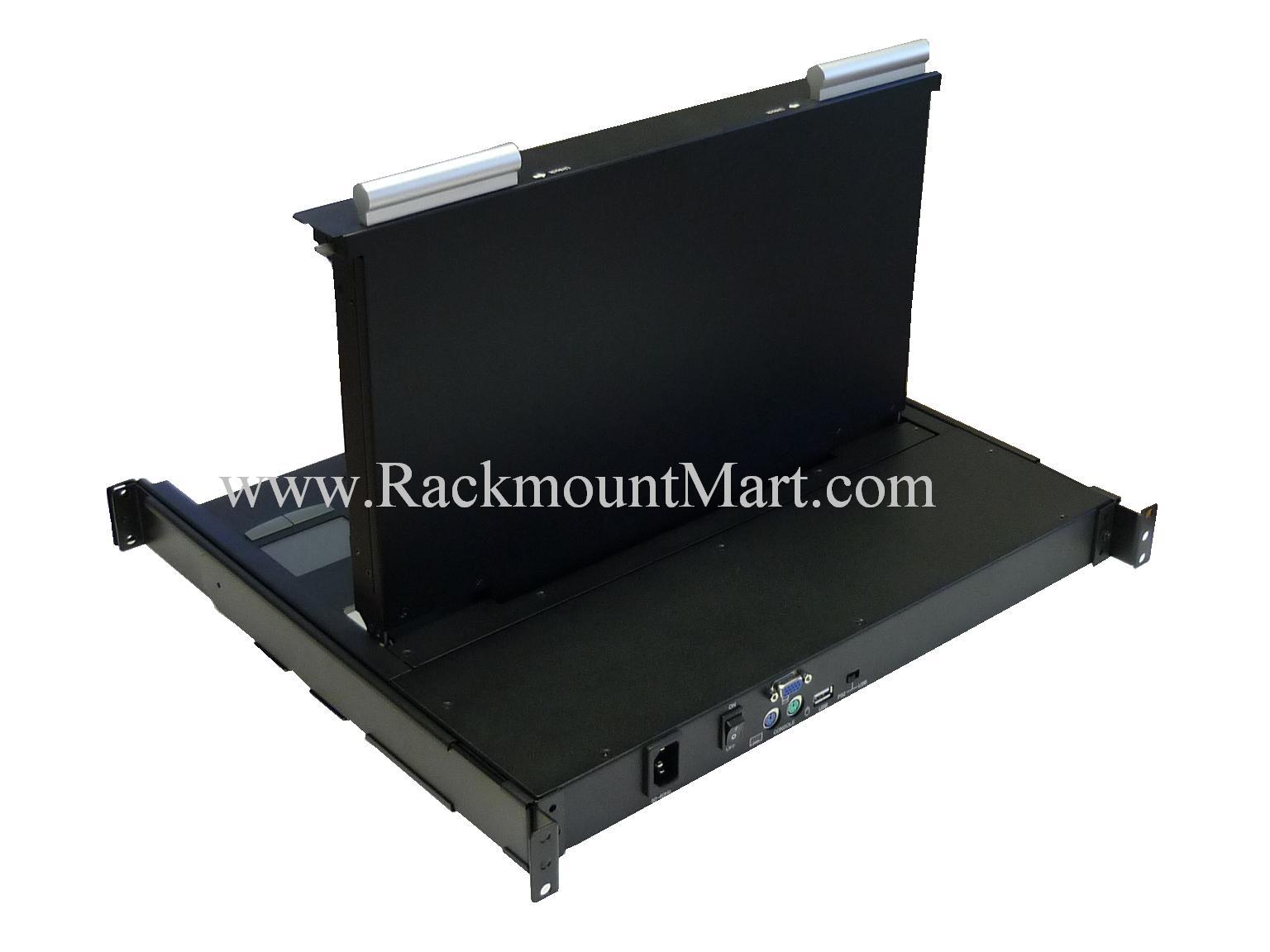

LCD1U15-17-n
(Single port w/ combo PS2/USB input )
Download Product Drawing
Download User Manual
Free Ground Shipping *Click for details

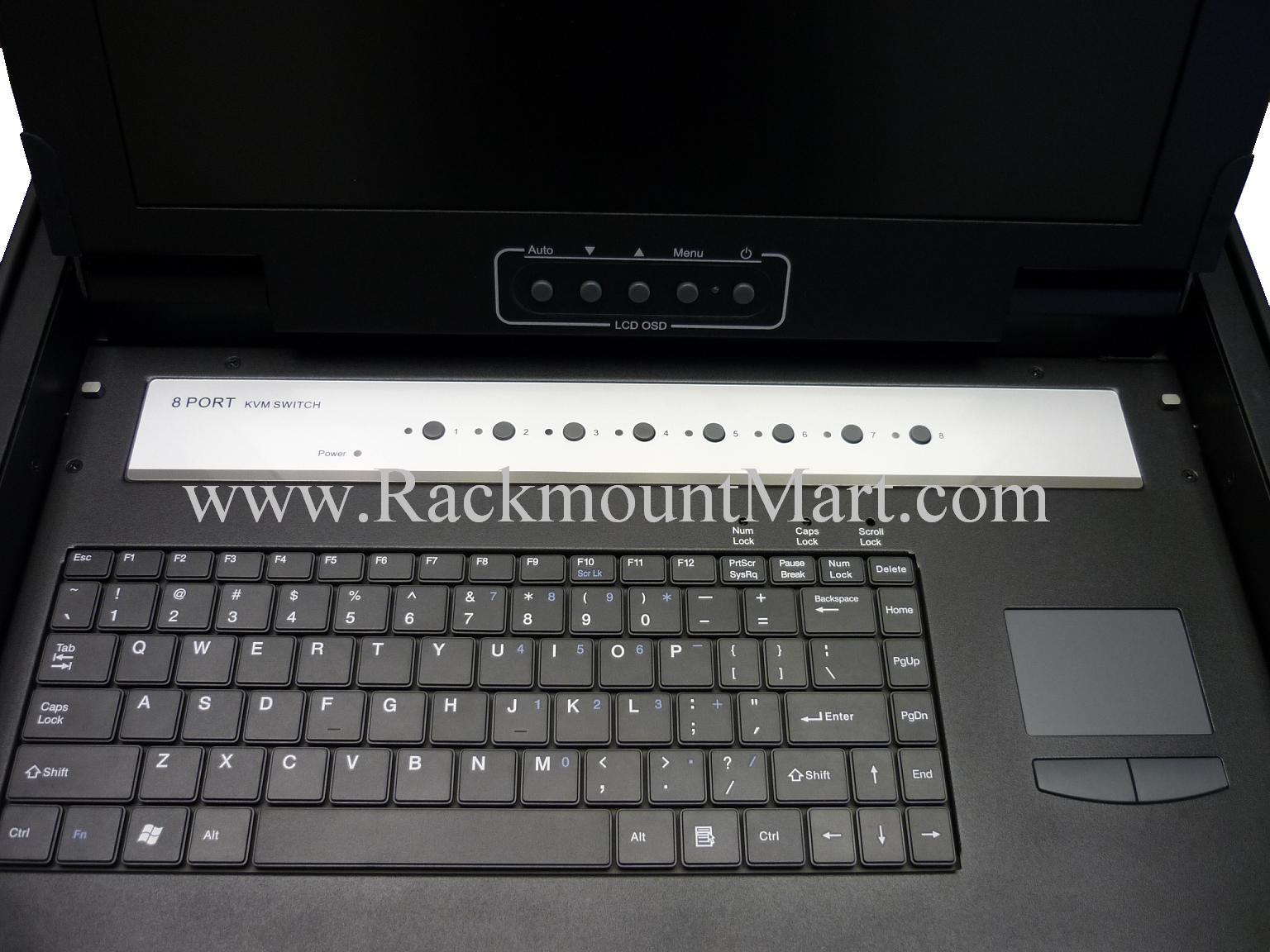

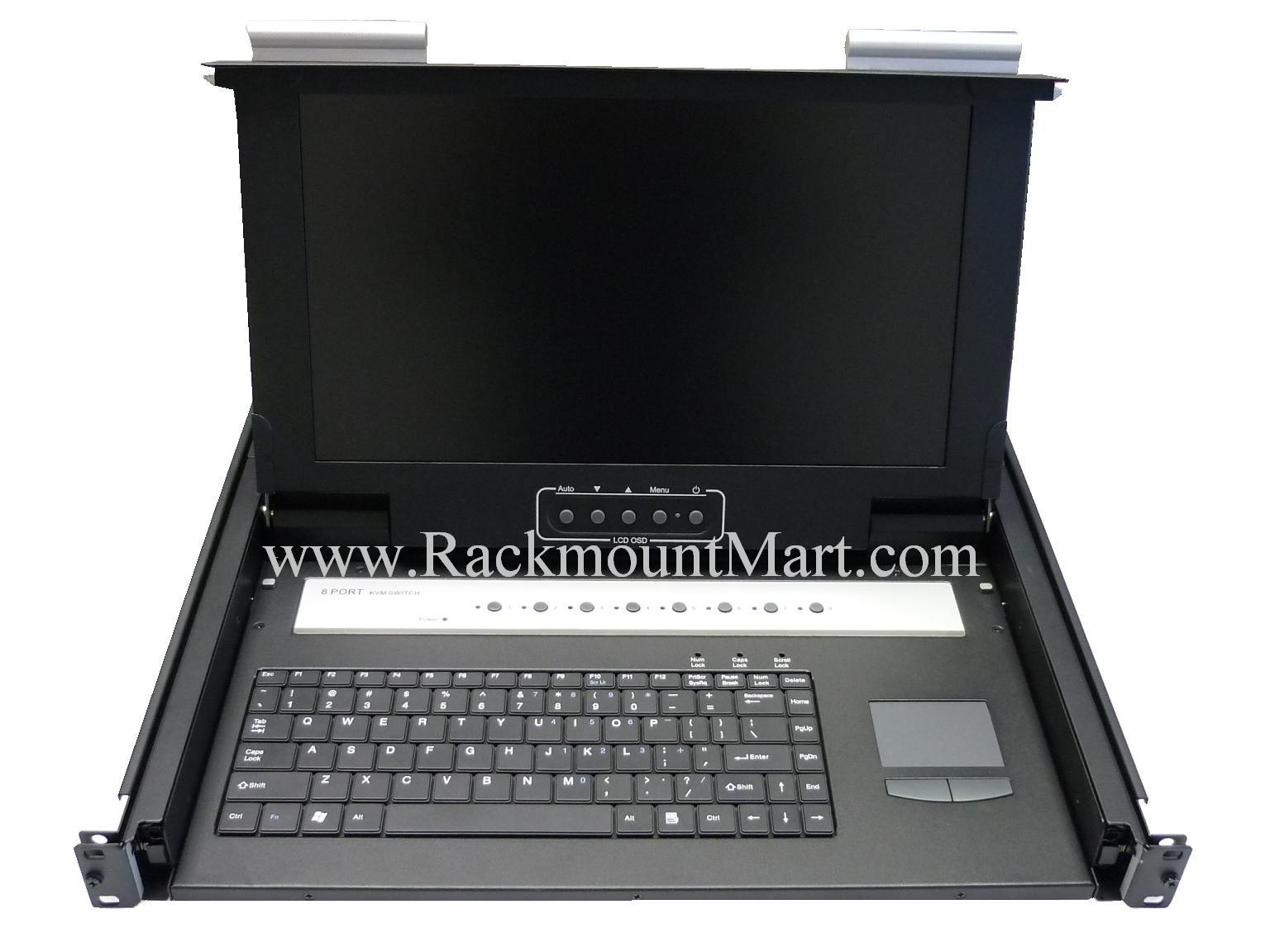

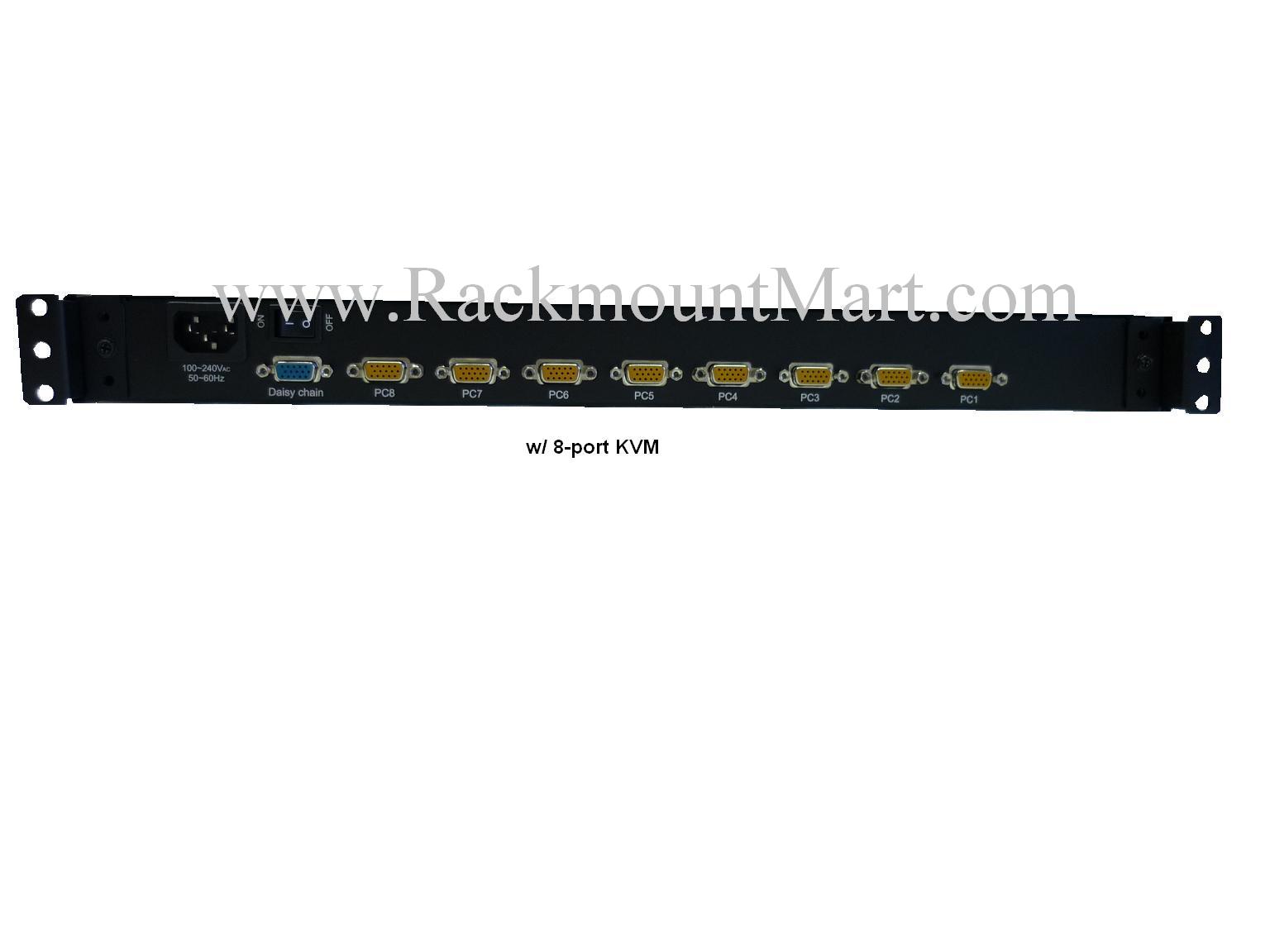

LCD1U15-17-8KVM-n-co
(w/ 8 combo PS2/USB KVM switch)
Download User Manual

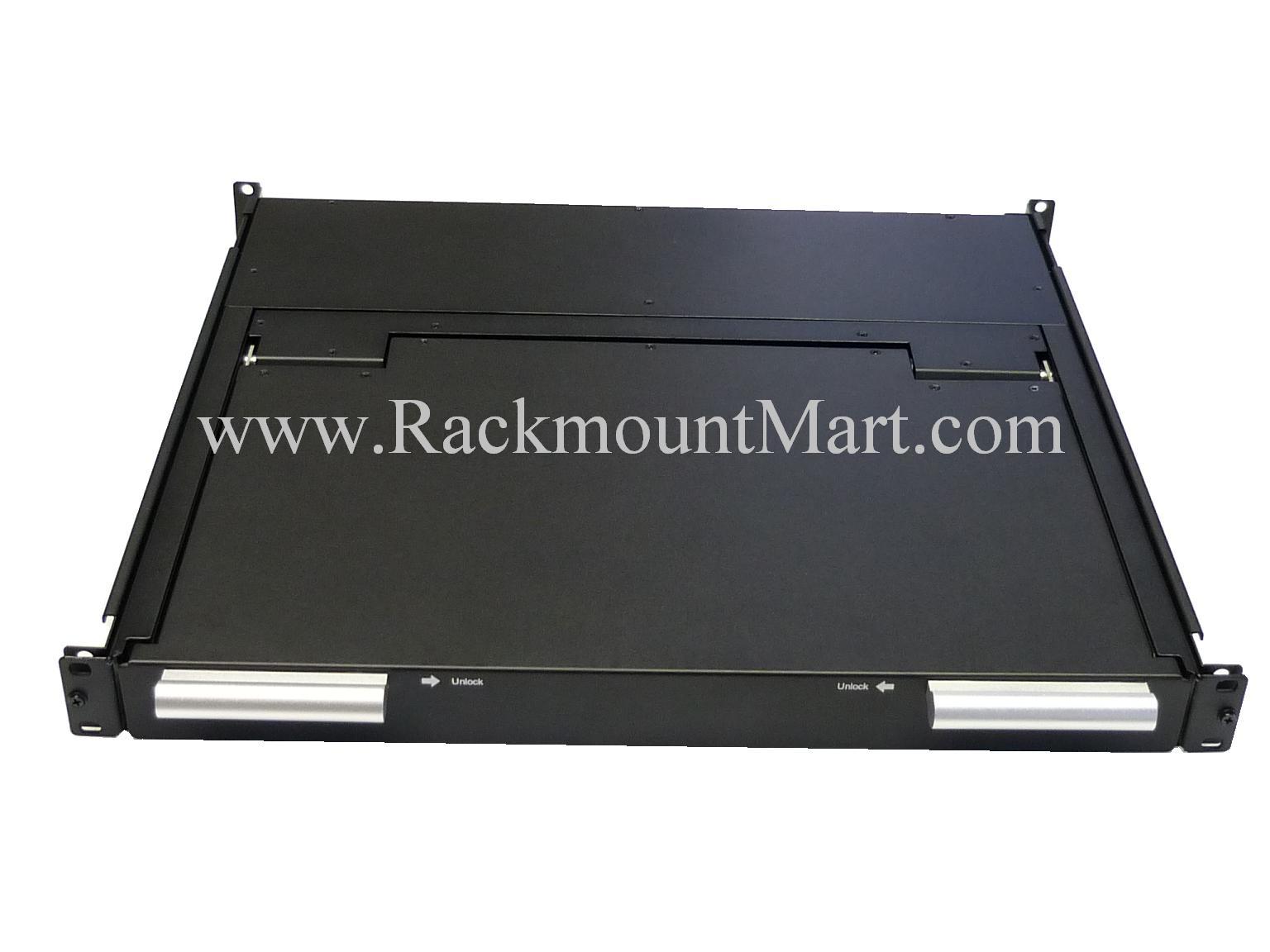

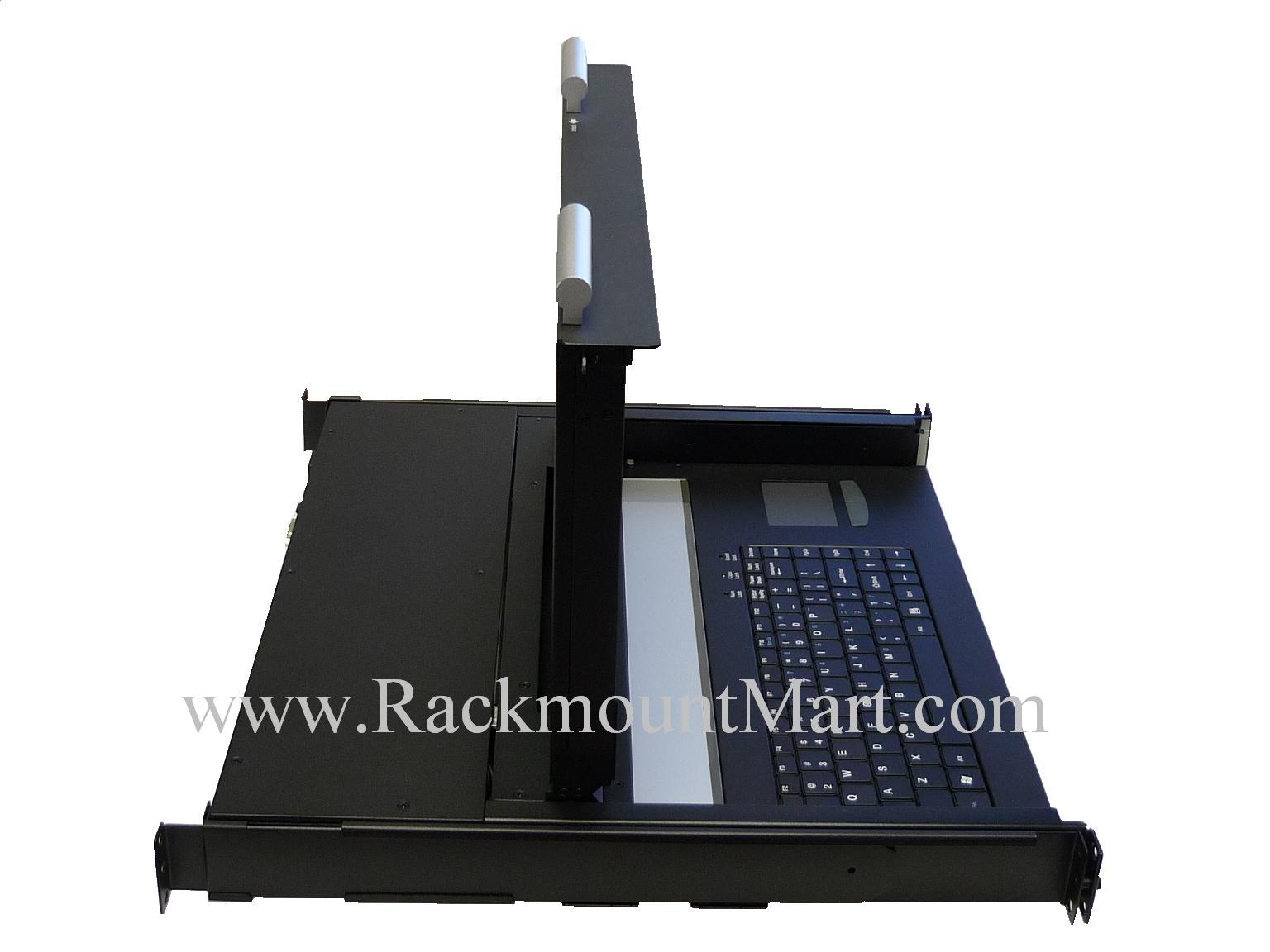

Click on the following photos for enlarged views :






  • Short depth : 16 " only even for 8 port combo PS2/USB KVM model
  • Provide ACL (Access Control List) security function. Store up to 8 independent user accounts
  • OSD pre-installed with 8 different languages : English ,Chinese traditional , Chinese simplify, Francais, Japanese, Portugues ,  Deutsch, Italiano
  • FCC and CE Approved, RoHS Compliant

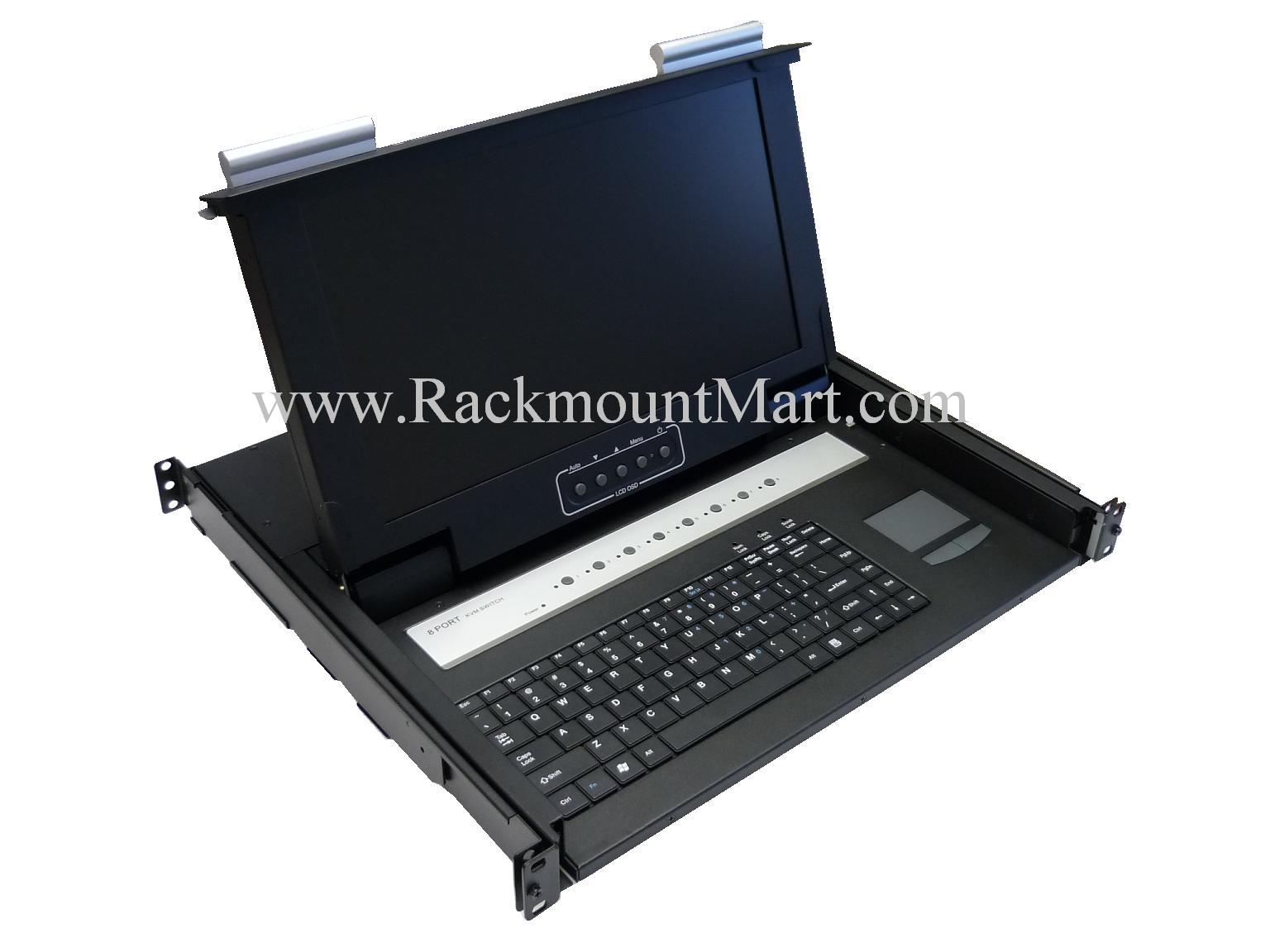

  • The console with 15.6 LCD display is integrated to a drawer type worktable of 1U height to facilitate rack installation.

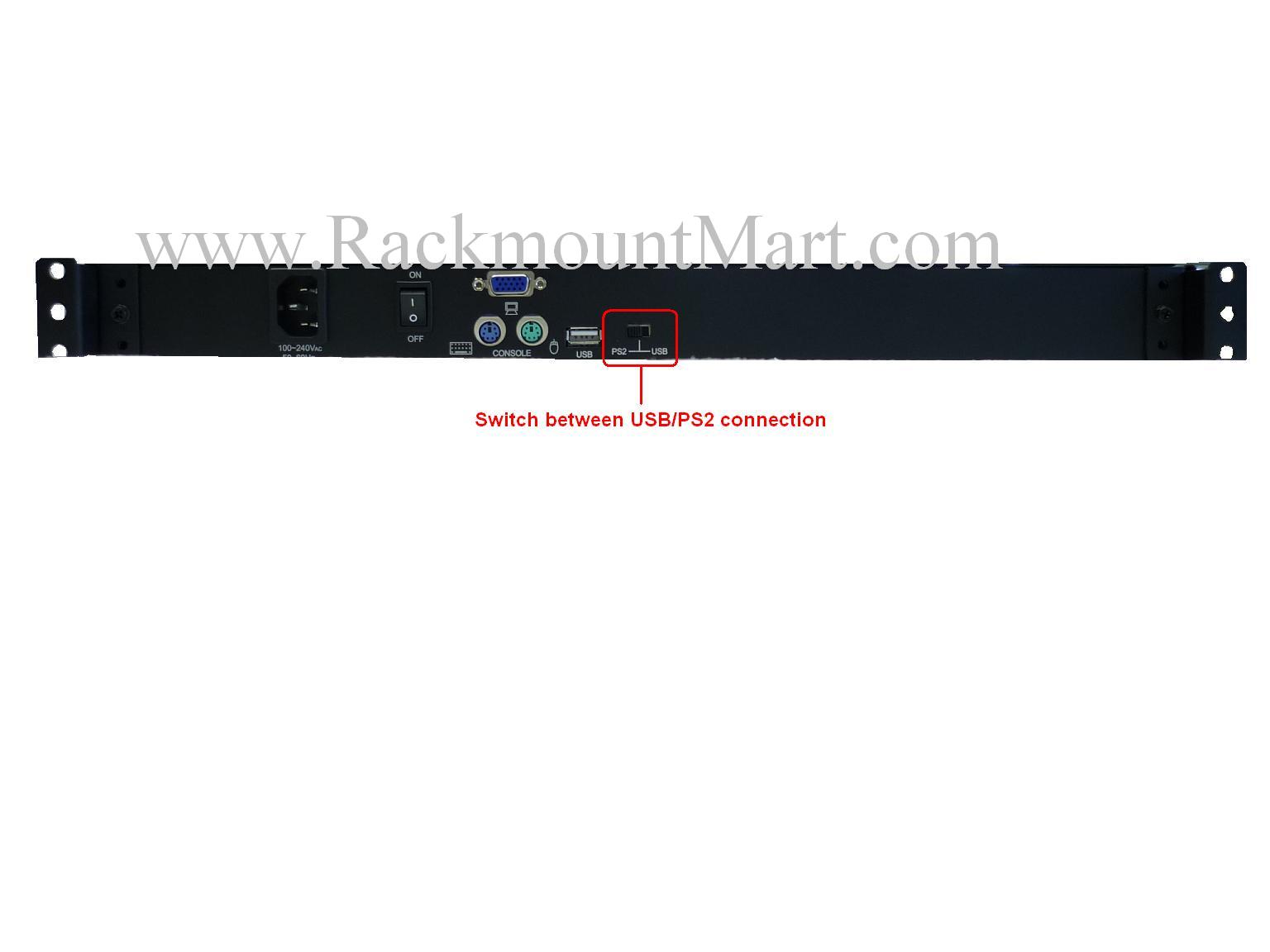

  • Support combo (PS/2 & USB) interface for connecting to computer ports conveniently
  • Support Daisy chain(8-layer) & Cascade(2-layer) function
  • Hot Plug --- add or remove connected computers without powering off the LCD Drawer
  • Support iMAC, Power MAC and Sun Micro Systems with USB connection.
  • Support MS windows, Netware, Unix, and Linux

I
II
Model No
LCD1U15-17-n

LCD1U15-17-8KVM-n

Certification

   FCC and CE Approved, RoHS Compliant

Ports switch for PC
Single combo PS2/USB port
8 port combo PS2/USB KVM
PC Port Connector
HDB15
Diagonal
15.6" (381mm)
LCD Resolution
1366 x 768
Max Distance
(LCD Drawer to PC)
16 feet (5m)
Daisy Chaining
Support Daisy chain(8 - layer) & Cascade(2 - layer) function
Computer port selection
On Screen Display (OSD) Menu, Hot Key, Push Button
Hotkey
Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ Ctrl/ Win)
LEDs
Power on & Selection
Security
Provide ACL(Access control List) security function, store up 8 independent controllable computers list
Multilingual OSD control
8 Languages (English, German, Spanish, Italian, Russian, Japanese, Simplified Chinese, France)
Auto-scan intervals
5 ~ 99 Sec
Keyboard/Mouse Emulation
PS/2 or USB
Max. PC connection
>1024
Housing
Metal
Dimension
(W x H x D)
446.4 x 44 x 406.4 (mm)/17.6 x 1.7 x 16 (inch)
*** 16.5"(D) with rails ***
Operation Temperature
0 - 50 C (32-122F)
Storage Temperature
-20 - 60 C
Humidity
0 ~ 95%, Non-Condensing

  Ordering information :

  Part # Description
LCD1U15-17-n-co-PS2
Price:$771
Short Depth 1U Rackmount wide format 15" TFT LCD Monitor Keyboard Drawer with touchpad and combo PS2/USB input and customer's choice of 1 x PS2 cable included
LCD1U15-17-n-co-usb
Price:$771
Short Depth 1U Rackmount wide format 15" TFT LCD Monitor Keyboard Drawer with touchpad and combo PS2/USB input and customer's choice of 1 x USB cable included
LCD1U15-17-8KVM-n-co
Price:$970
Short Depth 1U Rackmount wide format 15" TFT LCD Monitor Keyboard Drawer with touchpad with 8 port combo PS2/USB KVM switch and customer's choice of combination of 8 x PS2 KVM cables /  USB KVM cables included
