What is a PDU ?  A power distribution unit (PDU) is an apparatus equipped with multiple outputs for distributing electric power,
                           specifically to racks of computers and networking equipment in data center.


 RACK PDU CATEGORIES
 Basic PDU
 Metered PDU
 Monitored PDU Intelligent Monitored PDU
    Monitored kWh PDU Monitored-by-Outlet PDU
 Switched PDU Intelligent Switched PDU
    Switched kWh PDU Switched-by-Outlet PDU
 3-Phase PDU Intelligent
  Basic
  In-Line Meter


Basic Rack PDU
Basic Rack PDUs provide reliable rack power distribution via a single input with multiple output receptacles and distributes power from low amperage single phase circuits to higher-power 3-phase solutions.
  Products --- Click on each Part Number for more details Part Number
Rack PDU, Basic, 1U, 15A, 400V, 1,060 Joules Surge Protection, 16 outlets, UL approved RA5201-16
Rack PDU Extender, Basic, 2U, 30A, 120V, (12)5-20 RA5212-520-30A-L143
Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC C19 RA5204-C19-32A
Rack PDU Extender, Basic, 2U, 30A, 200/208V, (4)L6-30 RA5204-L630-30A-L143
Rack PDU Extender, Basic, 2U, 30A, 200/208V, (4)L6-20 RA5204-L620-30A-L143
Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V, (4)L5-30 RA5204-L530-30A-L143
Rack PDU Extender, Basic, 2U, 30A, 100/120/200/208V, (4)L5-20 RA5204-L520-30A-L143
Rack PDU, Basic, 1U, 16A, 208V, (12)C13 RA5112-C13-20A-L620
Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13 RA5112-C13-16A-C20
Rack PDU, Basic, 1U, 16A, 208&230V, (10)C13 & (2)C19 RA5112-C-16A-C20
Rack PDU, Basic, 1U, 30A, 208V, (10) C13 RA5110-C13-30A-L630
Rack PDU, Basic, 1U, 30A, 120V, (10)5-20 RA5110-520-30A-L530
Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; L5-20P RA5110-520-20A-L520
Rack PDU, Basic, 1U, 20A, 120V, (10)5-20; 5-20P RA5110-520-20A-520
Rack PDU, Basic, 1U, 15A, 120V, (10)5-15 RA5110-515-15A-515
High-Power 3-Phase Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19 RAH5106-C19-50A-CS
Rack PDU, Basic, 1U, 22kW, 400V, (6) C19 RA5106-C19-32A-IEC
Rack PDU, Basic, 1U, 30A, 208V, (4) C19s RA5104-C19-30A-L630
High-Power 3-Phase Rack PDU, Basic, Zero U, 5.7kW, 120V, (42)5-20; 3' Cord RAH5042-520-20A-L212
High-Power 3-Phase Rack PDU, Basic, Zero U, 5.7kW, 120V, (42)5-20; 10' Cord RAH5042-520-20A-L212-A
High-Power 3-Phase Rack PDU, Basic, Zero U, 5.7kW, 208V, (36)C13 & (6)C19 RAH5042-C-20A-L212
High-Power 3-Phase Rack Pdu, Basic, Zero U, 11 KW, 230V, (36) C13 & (6) C19 RAH5042-C-20A-IEC
Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19 RA5042-C-16A-IEC
High-Power 3-Phase Rack PDU, Basic, Zero U, 12.5kW, 208V, (30)C13, (6)C19; 3' Cord RAH5036-C-35A-CS
High-Power 3-Phase Rack PDU, Basic, Zero U, 12.5kW, 208V, (30)C13, (6)C19; 10' Cord RAH5036-C-35A-CS-A
High-Power 3-Phase Rack PDU, Basic, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 3' Cord RAH5030-CN-50A-CS
High-Power 3-Phase Rack PDU, Basic, Zero U, 14.4kW, 208V, (24)C13, (4)C19, (2)L6-30R; 10' Cord RAH5030-CN-50A-CS-A
High-Power 3-Phase Rack PDU, Basic, Zero U, 5.7kW, 120&208V, (21)5-20 & (6)L6-20 RAH5027-N-20A-L212
Rack PDU, Basic, Zero U, 30A, 120V, (24) 5-20 RA5024-520-30A-L530
Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19 RA5024-C-32A-IEC
Rack PDU, Basic, Zero U, 30A, 200/208V, (20)C13 & (4)C19 RA5024-C-30A-L630
Rack PDU, Basic, Zero U, 20A, 208V, (20)C13 & (4)C19 RA5024-C-20A-L620
Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19; IEC309 RA5024-C-16A-IEC
Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19; IEC C20 RA5024-C-16A-C20
Rack PDU, Basic, Zero U, 20A, 120V, (24)5-20 RA5024-520-20A-L520
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13 RA5015-C13-16A-C20
Rack PDU, Basic, Zero U, 10A,230V, (15)C13 RA5015-C13-10A-C14
Rack PDU, Basic, Zero U, 20A, 120V, (14)5-15 RA5014-515-20A-L520
Rack PDU, Basic, Zero U, 15A, 100/120V, (14) 5-15 RA5014-515-15A-515
High-Power 3-Phase Rack PDU, Basic, Zero U, 14.4kW, 208 V, (6) C19 & (3) C13 RAH5009-C-50A-CS
Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13 RA5009-C-32A-IEC

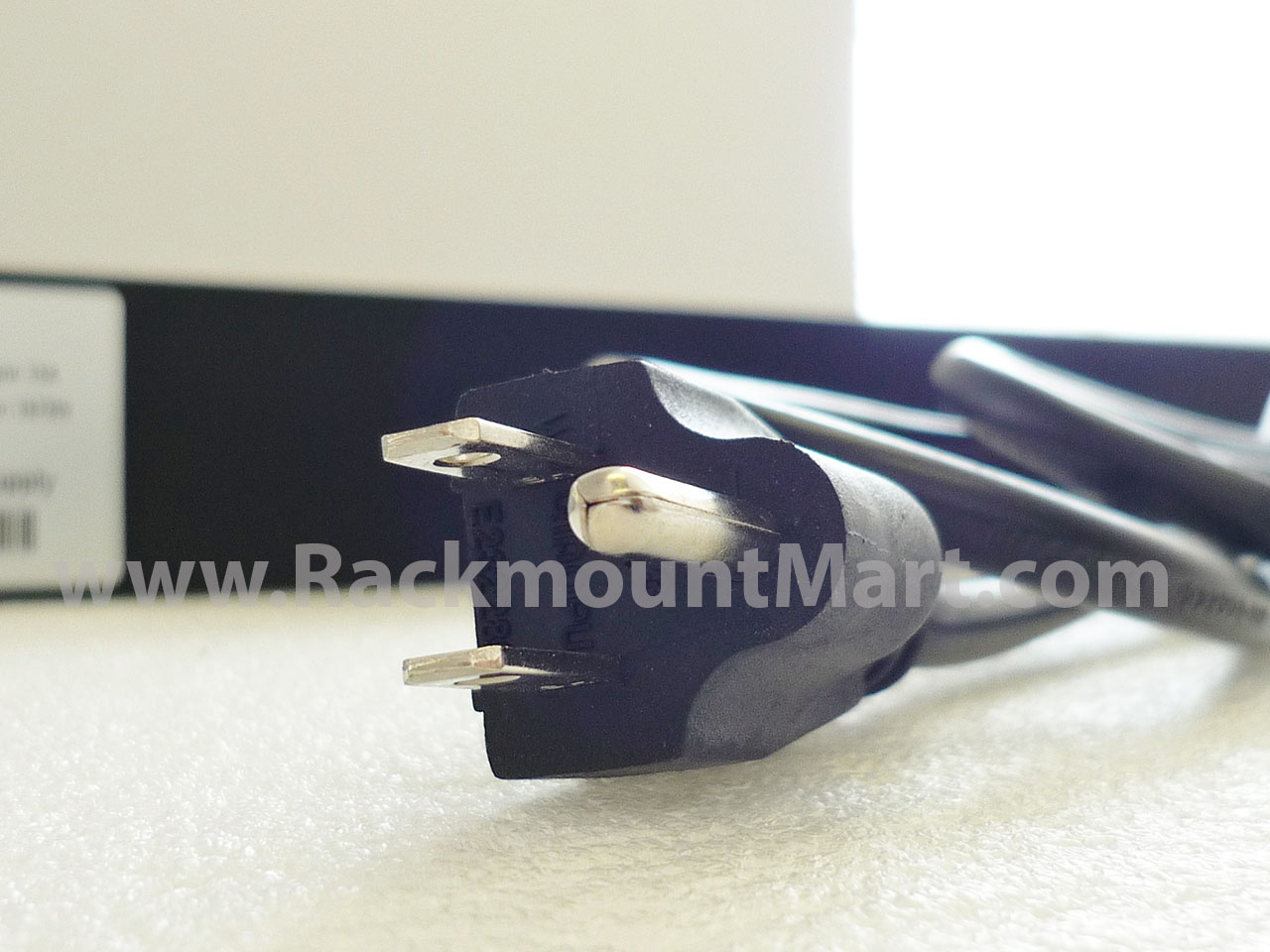

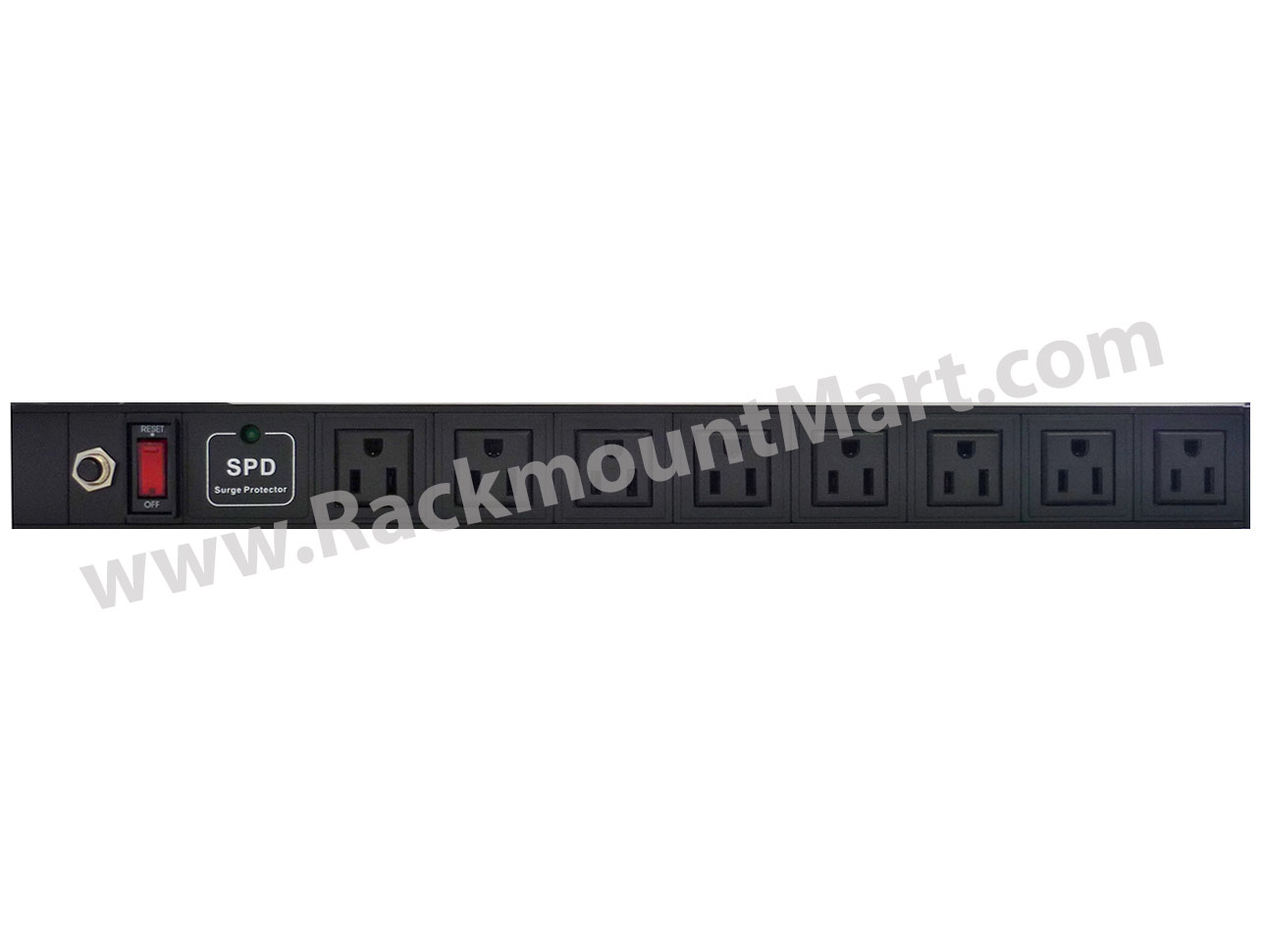

RA5004

Click to Enlarge Image

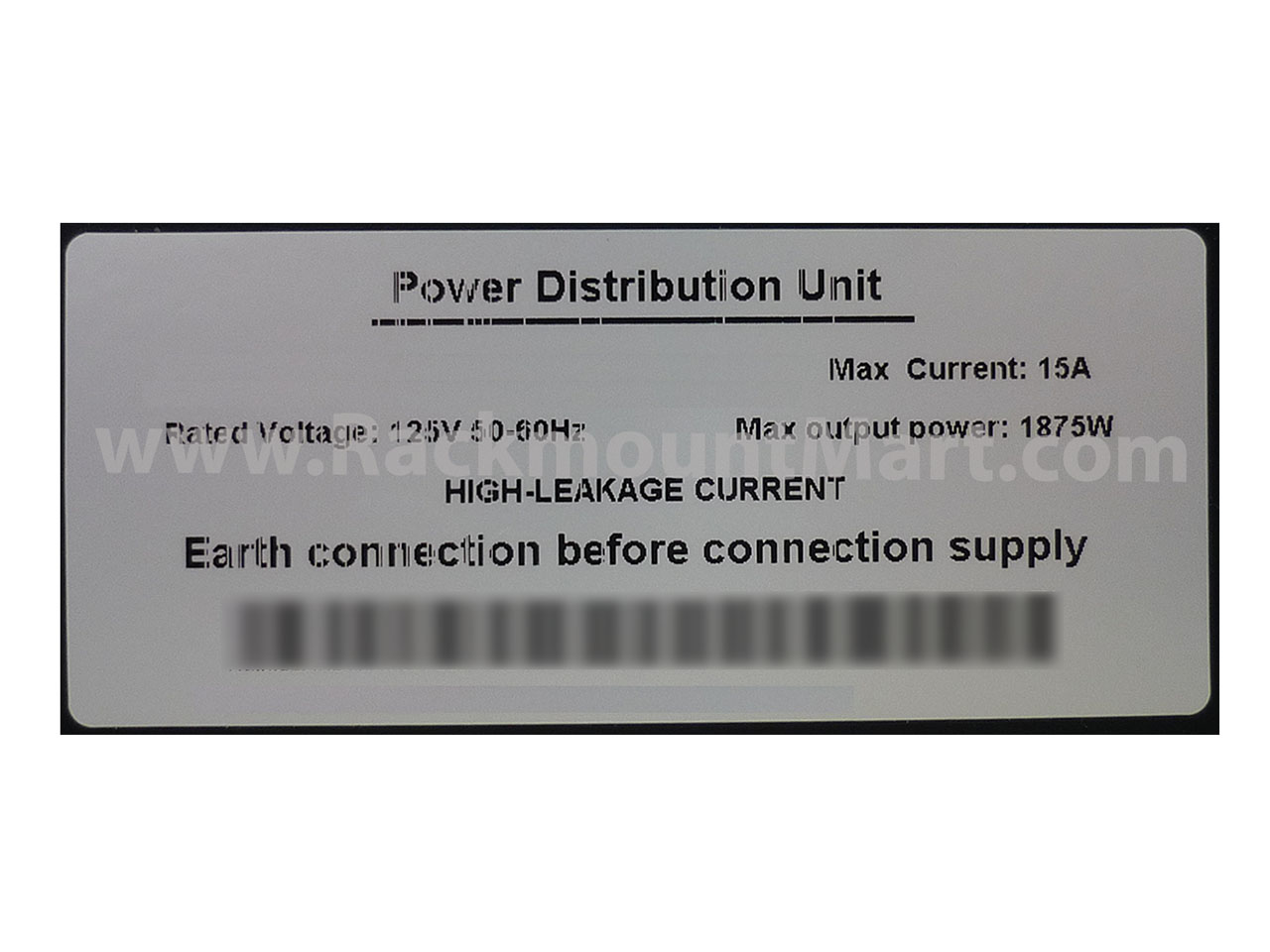

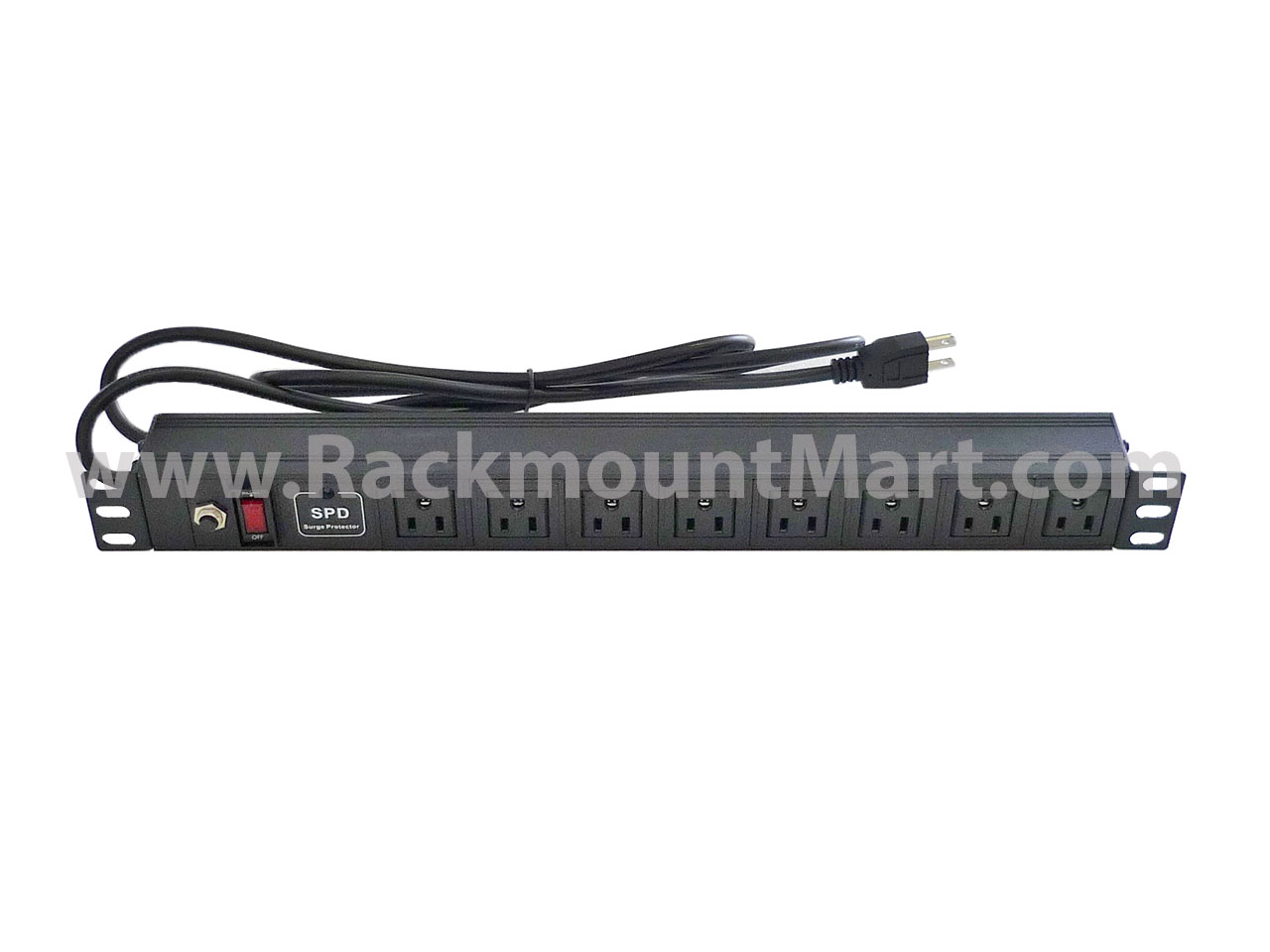

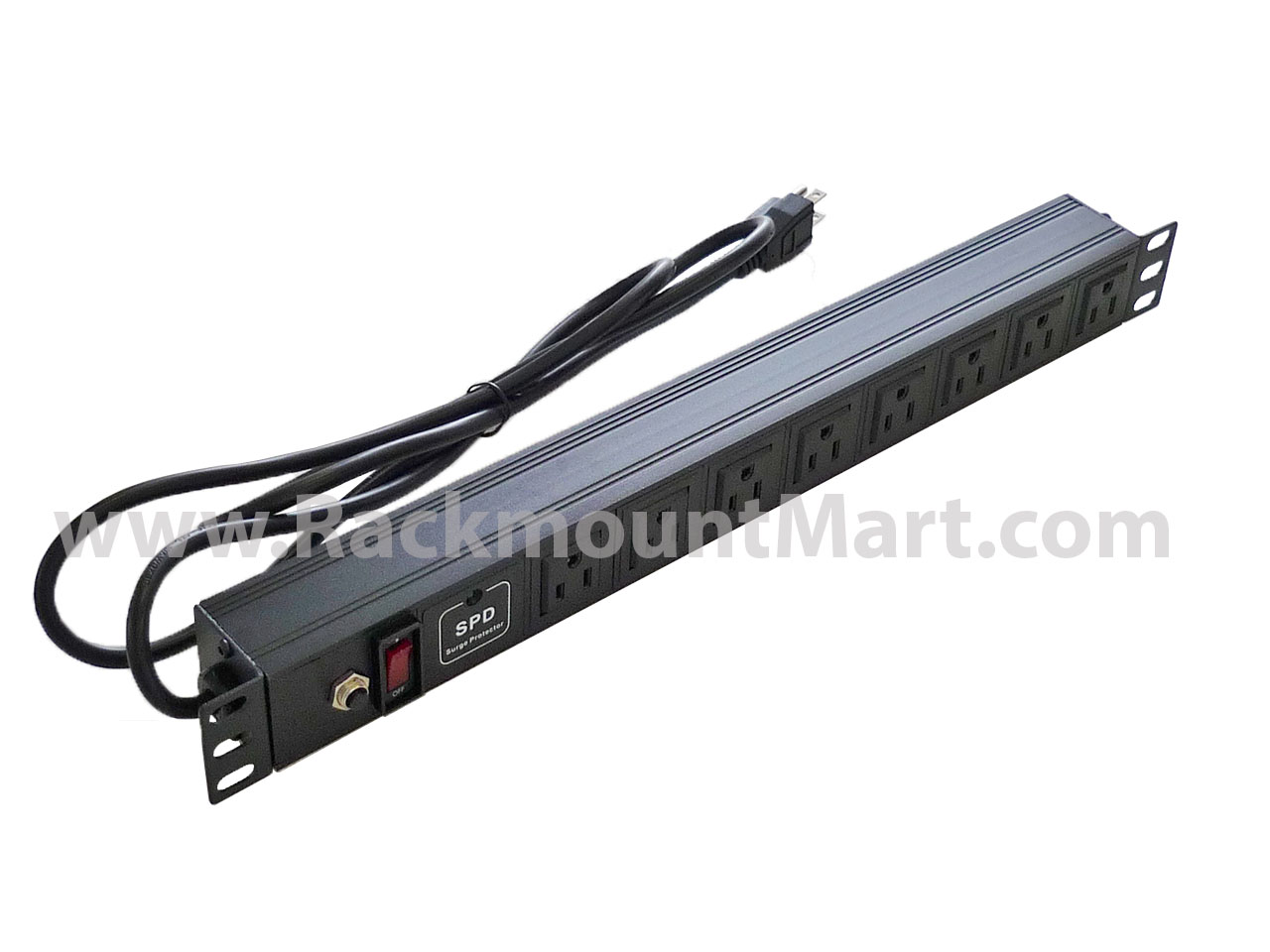

 Part # RA5004
 19" Power Strip w/Circuit Breaker
 Specification
  • 19" Cabinet 8 way Power Strip PDU with Circuit Breaker 15A, 125V, 4KW.
  • Price : $80.95

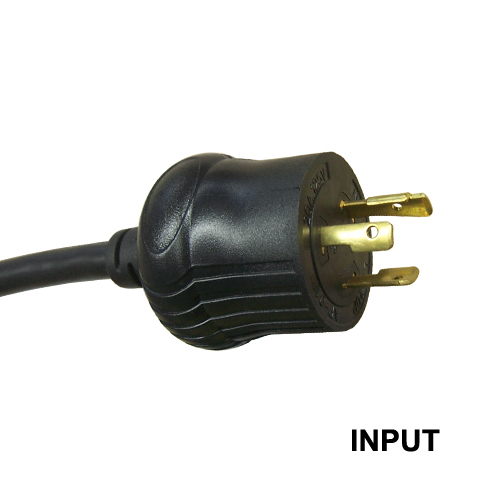

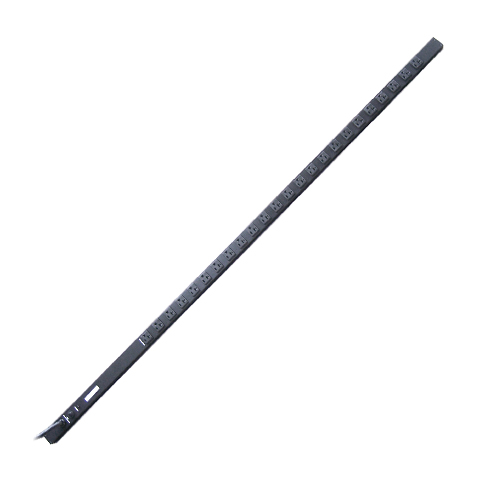

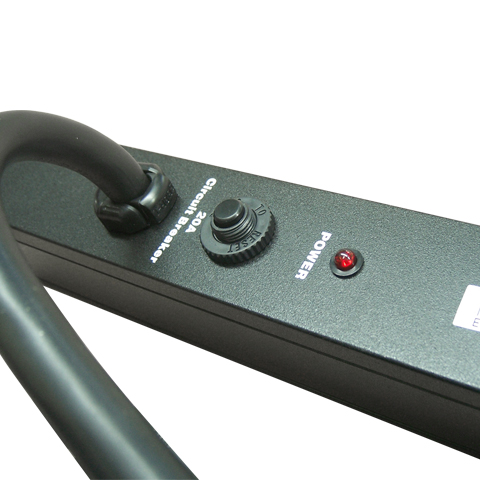

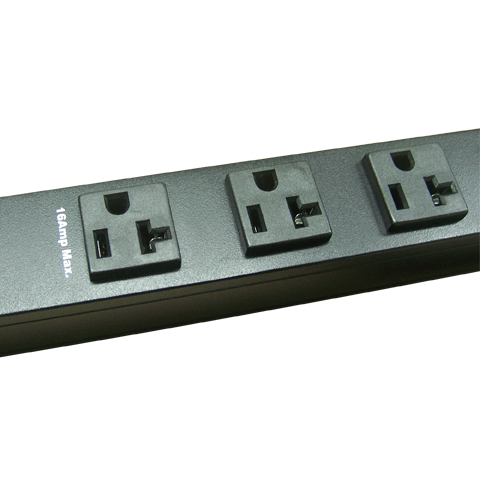

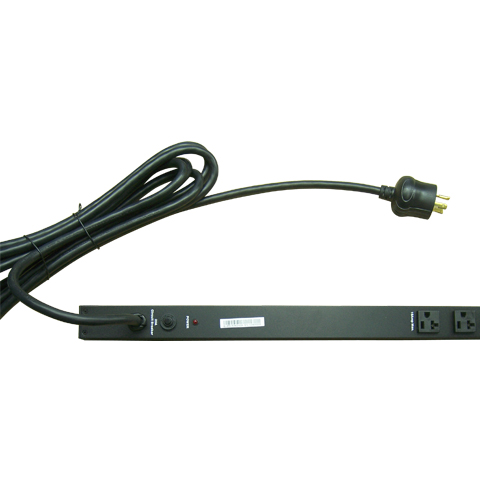

  • RA5003-24

    Click to Enlarge Image
     Part # RA5003-24
     60" 24 OUTLETS, 15 FT CORD, 20 AMP
     Specification
  • 24 outlets on a 60" L x 1.5" H vertical strip
  • 15 feet cord
  • on/off switch
  • 125V / 20 Amp
  • Red LED light
  • case: Aluminum
  • Size: 1524mmx38mmx38mm, 0U Size
  • Price : $189
  • RA5003-16

    Click to Enlarge Image

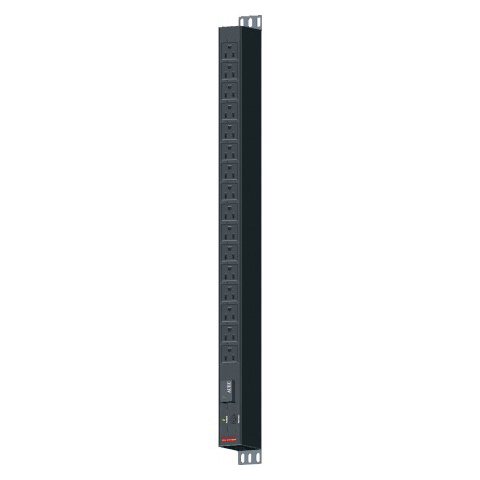

     Part # RA5003-16
     16 OUTLETS, 15 FT CORD
     Specification
  • 16 outlets on front side
  • 15 feet cord
  • Green LED light

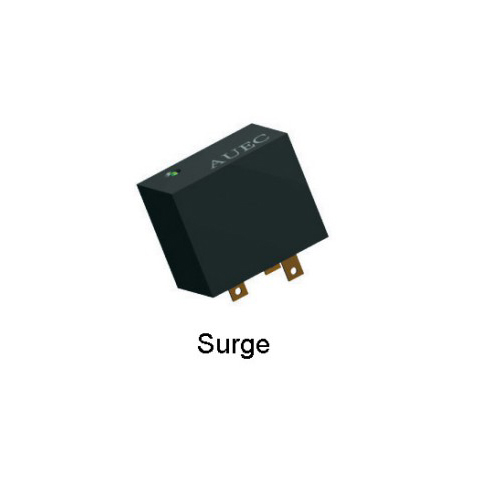

  • User Replaceable Surge Unit
  • Circuit Breaker with Prompt Overload Protection Response
  • Price : $119

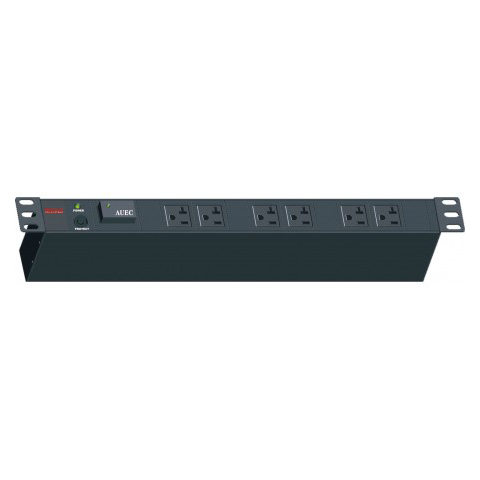

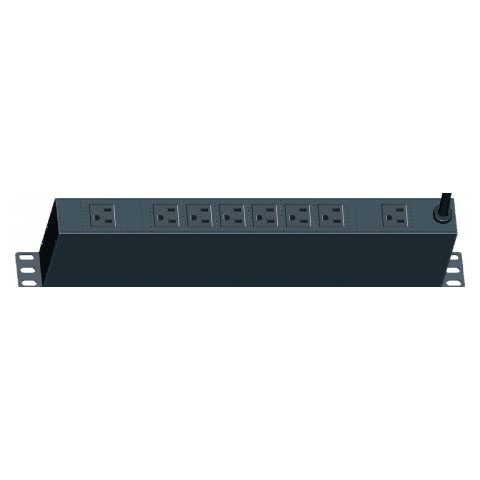

  • RA5003-2-14A

    Click to Enlarge Image
     Part # RA5003-2-14A

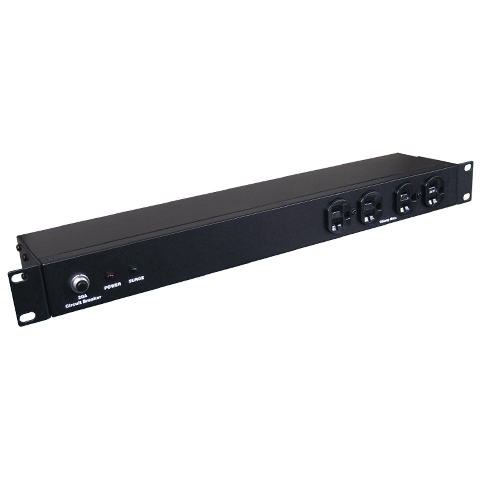

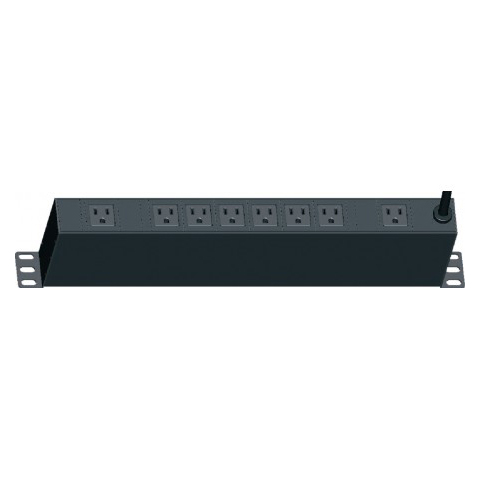

     19" 14 OUTLETS, 12 FT CORD
     Specification
  • Modularized Structure
  • User Replaceable Surge Unit
  • Circuit Breaker with Prompt Overload Protection Response
  • RoHS Accordance
  • Voltage Rating: 120VAC, Frequency: 50 / 60 Hz

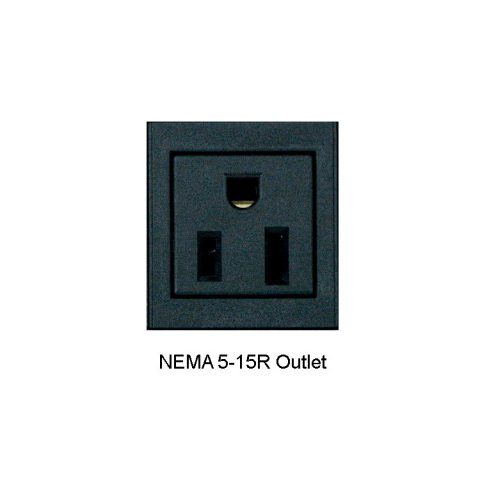

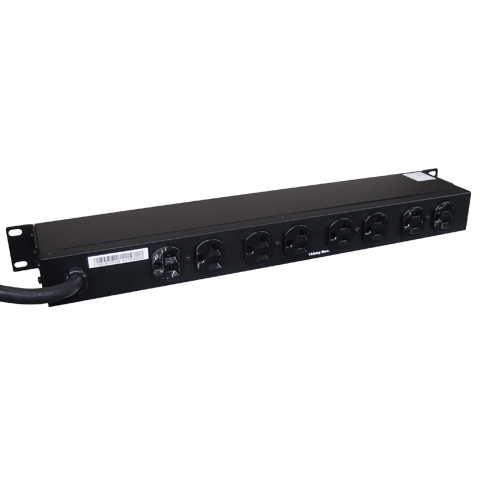

  • 8 x 15A NEMA 5-15R Output & 6 x 20A NEMA 5-20R Output

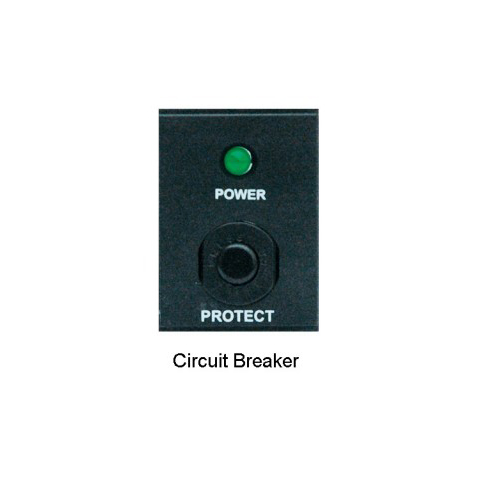

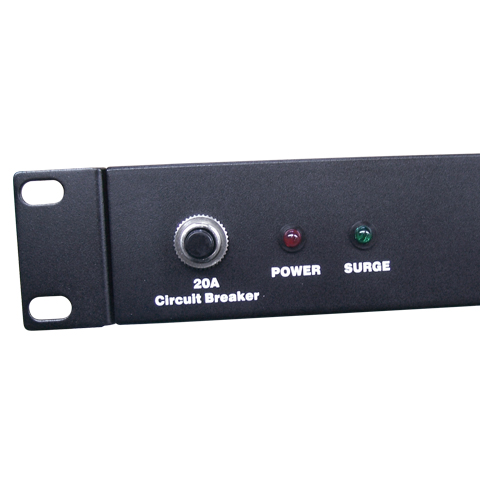

  • 20A Circuit Breaker
  • Size: 19" x 4.6" x 1.75" (L x W x H)
  • Mounting Brackets and screws included
  • Price : $139
  • RA5003-10A
    Click to Enlarge Image
     Part # RA5003-10A

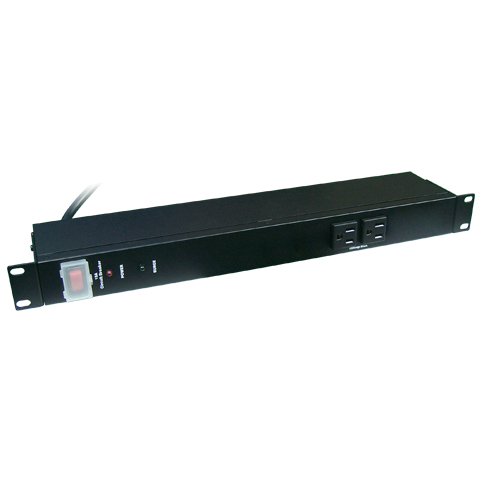

     19" 10 OUTLETS w/ Circuit Breaker
     Specification
  • Modularized Structure
  • 19 inch Rack-Mount Style

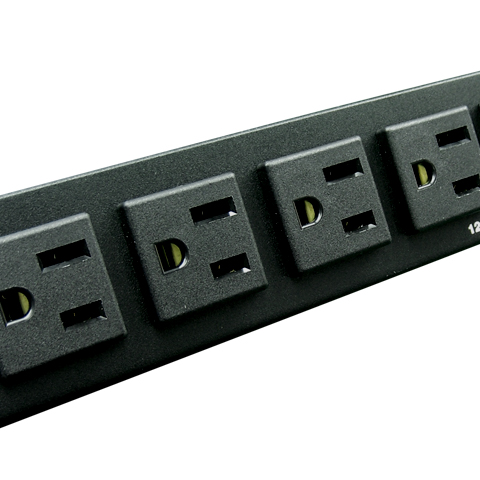

  • 10 Outlets, 120V / 15Amp

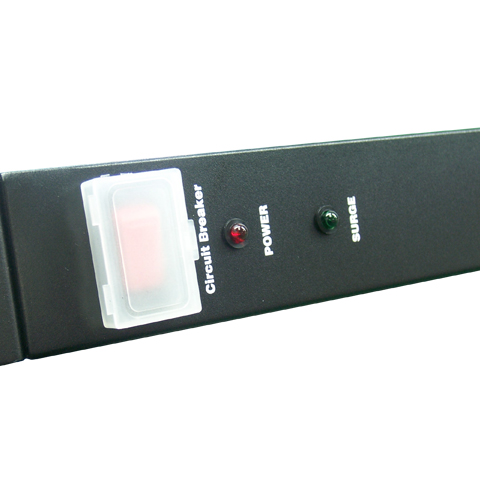

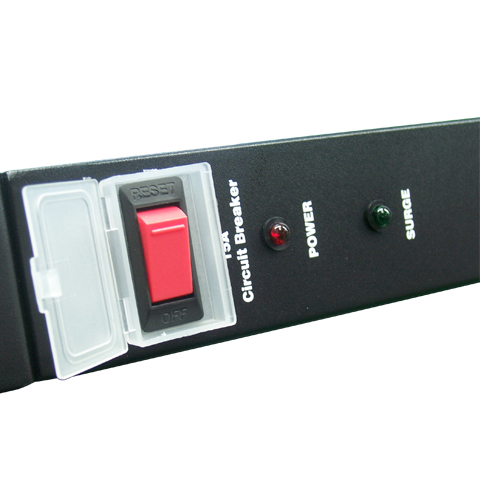

  • Circuit Breaker with Prompt Overload Protection Response
  • RoHS Accordance
  • Price : $68.5

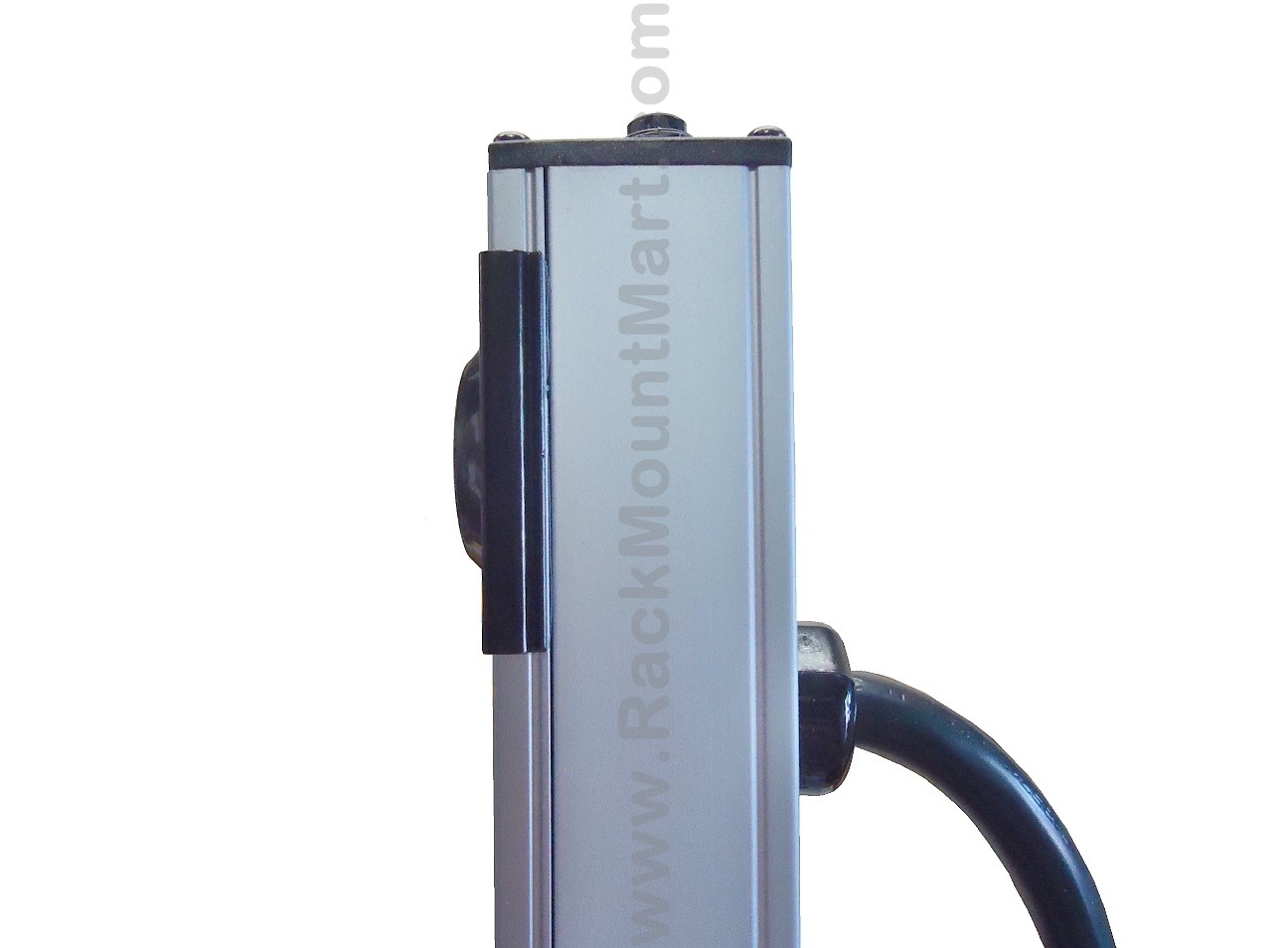

  • RA5002
    Click to Enlarge Image
     Part # RA5002

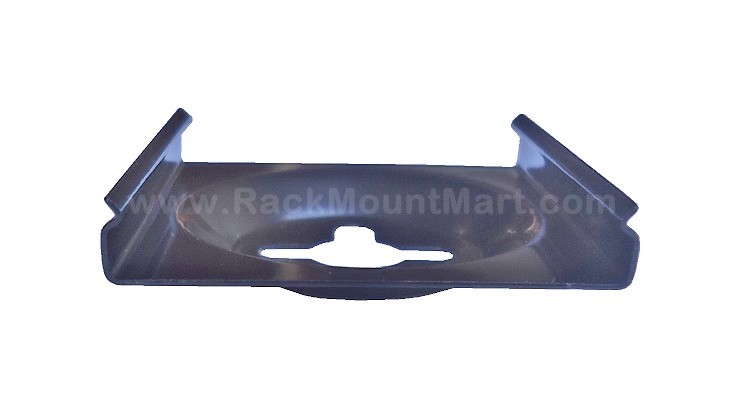

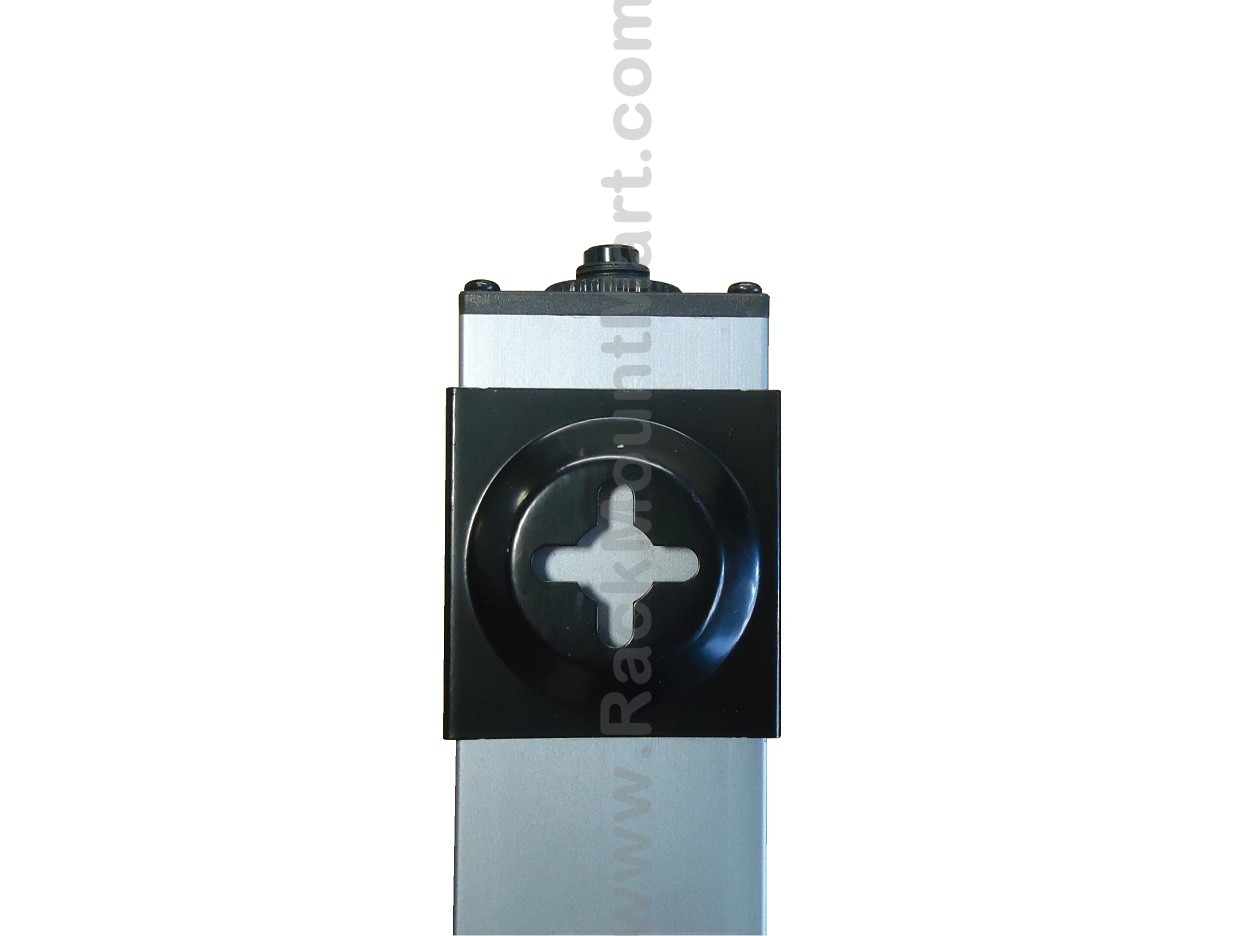

     POWER STRIP HOLDER

  • Price : $20.15
  • RA5001-16

    Click to Enlarge Image
     Part # RA5001-16
     48" 16 OUTLETS, 15 FT CORD, 15 AMP
     Specification
  • 16 outlets on a 48" L x 1.5" H vertical strip
  • 15 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp
  • reset
  • Price : $94.9
  • RA5001-14A
     Part # RA5001-14A
     1U RACK MOUNTABLE 14 OUTLETS, 20AMP
     Specification
  • Outlets: 6 of 5-20R (front), 8 of 5-15R (rear)

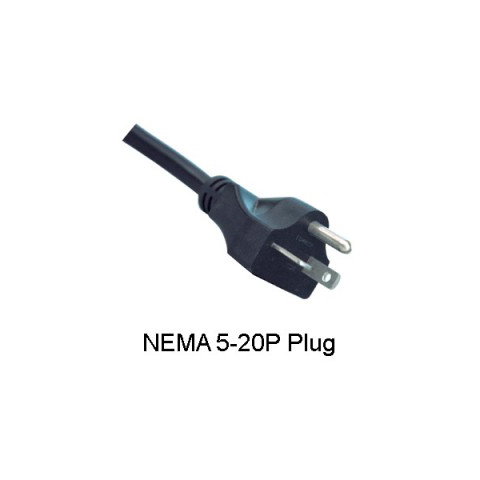

  • Input: 5-20P
  • Power source: 20Amp 120VAC
  • Output watts: 1875W
  • Surge Protection
  • 12' Cord, Safety circuit, metal housing
  • Dimensions: 19"W x 4.6"D x 1.75"H
  • Price : $116.44
  • RA5001-14
     Part # RA5001-14
     1U RACK MOUNTABLE 14 OUTLETS, 15amp
     Specification
  • Number of Outlets : 14 (6 front, 8 rear)
  • Outlets type: NEMA 5-15R
  • 15 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp
  • reset
  • Unit Dimention: 1.75" x 17.5" x 4"
  • Price : $108.23

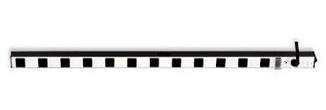

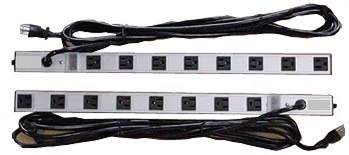

  • RA5001-12
    Click to Enlarge Image
     Part # RA5001-12
     36" 12 OUTLETS, 15 FT CORD, 15 AMP
     Specification
  • 12 outlets on a 36" L x 1.5" H vertical strip
  • 15 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp
  • reset
  • Price : $87.1
  • RA5001-08

    Click to Enlarge Image
     Part # RA5001-08
     24" 8 OUTLETS, 15 FT CORD, 15 AMP
     Specification
  • 8 outlets on a 24" L x 1.5" H vertical strip
  • 15 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp
  • reset
  • Price : $80.6
  • RA5001-06
     Part # RA5001-06
     6 OUTLETS, 12 FT CORD, W/19" PANEL
     Specification
  • 6 outlets with a 19" wide holding bracket
  • 12 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp
  • reset
  • Price : $34.97
  •  Part # RA5001-06-W
    For WB1603 WB1604 WB1605 WB1606 WB2001 WB2004 WB2401 WB2402 WB2403 WB2405 WB2406 Wallmount Cabinet
     Specification
  • 6 outlets on a 17" panel
  • 14 AWG 12 feet cord
  • on/off switch, auto circuit breaker
  • 125V / 15 Amp / 1875 Watts
  • 90 Joules Surge Suppressor
  • reset
  • Price : $35.64
  •
