Basic Rack PDU
Part#  RA5009-C-32A-IEC


Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13


*click on photo for enlarged view
Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 32A 3P+N+PE, Cord Length:6 feet ( 1.83 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19
Includes : Installation guide, Toolless Mounting Kit




Features
Toolless Rack Mounting Capabilities   Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Low Cost Power Distribution   Provides a number of outlets to bring power to rack equipment at an affordable price.
Vertical Mounting Capabilities   Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack.
Specifications
 Output
Nominal Output Voltage   230V
Maximum Total Current Draw per Phase   32A
Output Connections   (3) IEC 320 C13
(6) IEC 320 C19
Overload Protection   Yes
 Input
Nominal Input Voltage   400V 3PH
Input Frequency   47 - 63 Hz
Input Connections   IEC 309 32A 3P+N+PE
Cord Length   1.83 meters
Number of Power Cords   1
Acceptable Input Voltage   200-250 VAC
Maximum Line Current per phase   32A
 Physical
Net Weight   4.76 KG
Maximum Height   927.00 mm
Maximum Width   55.00 mm
Maximum Depth   88.00 mm
Shipping Height   1067.00 mm
Shipping Width   298.00 mm
Shipping Depth   83.00 mm
Color   Black
 Environmental
Operating Environment   -5 - 60 °C
Operating Relative Humidity   5 - 95%
Operating Elevation   0-3000 meters
Storage Temperature   -25 - 65 °C
Storage Relative Humidity   5 - 95%
Storage Elevation   0-15000 meters
 Conformance
Regulatory Approvals   CE, GOST, VDE
 Sustainable Offer Status
RoHS   Compliant
Basic Rack PDU Features & Benefits
Rack-Mountable   Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source   Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections   Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution   Provides a number of outlets to bring power to rack equipment at an affordable price.
Documentation
Basic Rack PDU for Blade Servers Installation (Manual) Dimensional Drawing
Product sheet - System Overview

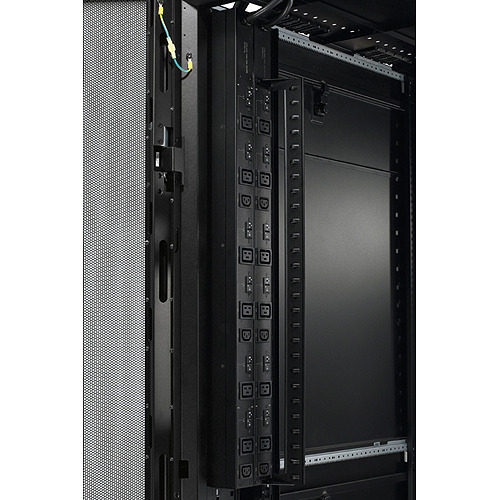

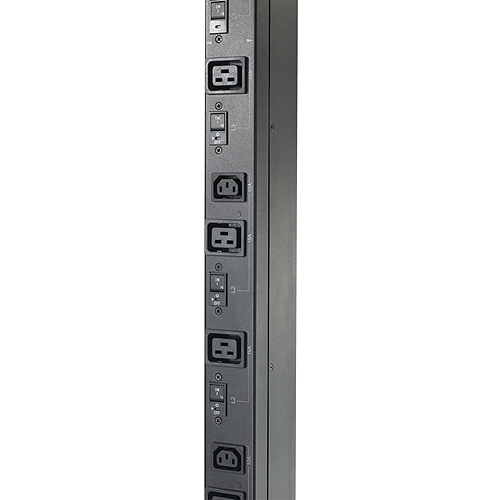

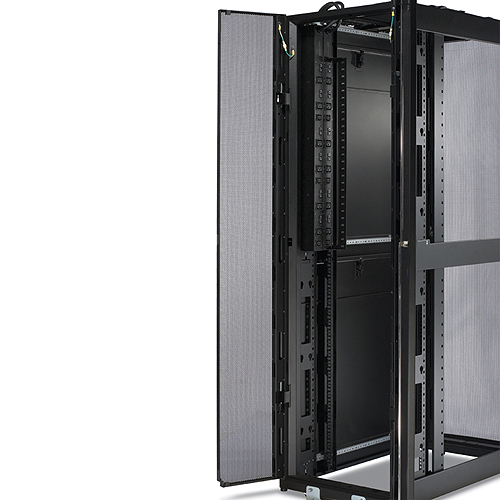

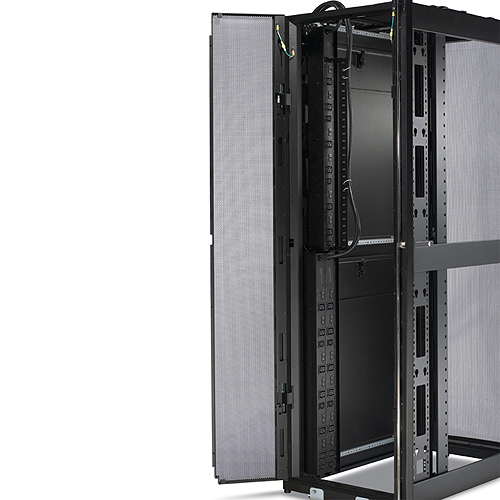

More photos ( Click for enlarged views )



 Ordering Information

Part # Description
 RA5009-C-32A-IEC
 Price : $752.52
RACK PDU BASIC 0U 22KW 230V 6XC19 3XC13 HIGH TEM
