          REDUNDANT POWER SUPPLY: PART # PS3022
PS2 Type 550W Mini Redundant Power Supply

 Download Product Sheet
 Download User Manual


    FEATURES :

  • Universal Input, active PFC
  • Meet latest ATX12V / ERP12V ver.
  • Backward Compatibility, -5V available
  • Hot-Swap / Hot-Plug Application
  • Automatic Thermal Control(Fan Speed)
  • Industrial DIN-Connector for Reliability
  • No Mini. Load Limit, Best for Storage
  • Remote Sense on +5V, +3.3V & +12V
  • Power Failure Alarm & Signals
  • OVP (Over Voltage Protection)/Module
  • UVP (Under Voltage Protection)
  • OCP (Over Current Protection)/Module
  • OPP (Over Power Protection)
  • OTP (Over Temperature Protection)
  • External OCP (Over Current Protection)
  • SCP (Short Circuit Protection)
  • MTBF > 100,000 Hours

   SPECIFICATIONS

  • Input Voltage Range: 100-240V ± 10%
  • Power Factor: 0.95 min. at full Load
  • Efficiency: 74% at full Load
  • Hold up Time 17ms min., at full Load
  • Power Good: 100-500ms, TTL Signal
  • PSON(Remote ON/OFF):TTL Signal
  • Operating Temperature: 0~40°C
  • Operating Humidity: 20~90%
  • Fan Size: 40 x 40 x 20mm

   Output Specification:

Output
+5V
+3.3V
+12V1
-5V
-12V
5VSB
Max. output(A)
30A
24A
36A
0.5A
1A
2A
Min. output(A)
0A
0A
0A
0A
0A
0A
Load Regulation
+/-5%
+/-5%
+/-5%
+/-10%
+/-5%
+/-5%
Cross Regulation
+/-5%
+/-5%
+/-5%
+/-10%
+/-5%
+/-5%
Line Regulation
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
+/-1%
Ripple&Noise
50mV
50mV
120mV
100mV
120mV
50mV

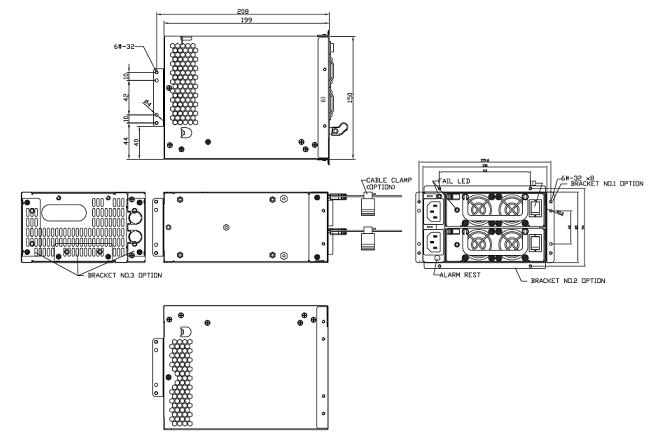

   Dimensions (unit : mm) :
