Model PS3015
2U Type 460 + 460W N+1 Redundant Power Supply
For 2U / 3U Rackmount server
| Output Wattage | 460w |
| AC input | 100-240 VAC FULL RANGE |
| Dimension | D 280 x W 101 x H 86 mm |
| CONNECTORS | 24-Pin ;8-Pin 12V ;4-Pin 12V |
| VOLTAGE | +5V | +12V | +3.3V | -12V | -5V | +5Vsb |
| MAX. LOAD | 40A | 28A | 20A | 0.8A | 0.5A | 1.5A |
| MAX. LOAD | 3A | 2A | 0.3A | 0.1A | 0.1A | 0.1A |
| REGULATION | +-5% | +-5% | +-0% | +-0% | +-5% | +-5% |
| RIPPLE(mV) | 50 | 120 | 50 | 120 | 50 | 50 |
*The Combined total power from +5V and +12V & +3.3V shall not exceed 378W
Specification:
*Temperature Range: Operation 0C~50C
*HOLD UP TIME: 16ms at maximum load & normal
input voltage
*EFFICIENCY: 68% TYPICAL. (NORMAL LINE)
*POWER GOOD SIGNAL: Should be asserted high to
indicate that +5VDC and +3.3 VDC output are above the lower voltage
thresholds. Compatible signal out with 100ms to 500ms.
*OVER POWER PROTECTION: The power supply shall
shut down when output power exceeds 130 to 160 of full load.
*OVER VOLTAGE PROTECTION: Standard on +5.0V,
set at 6.25VDC +-0.75VDC
*SHORT CIRCUIT PROTECTION: A short circuit
placed between the DC return and the output shall cause no damage and the
power supply shall shutdown.
*EMI: FCC part 15, subpart B, Class B, EN55022
CISPR22.2
*AGENCY APPROVALS: UL 6950 , CSA C22.2 No.
60950, TUV (IEC60950)
*REMOTE ON/OFF CONTROL: When PS-ON is pulled to
TLL Low, the DC output is to be enabled. When PS-OFF is pulled to TTL high,
the DC output is to be disabled.
*AGENCY APPROVALS: UL6950 , CSA C22.2 No.60950,
TUV (IEC60950)
*Cooling: By forced air 2x40mm DC Ball Bearing
Fan
*MEET IEC-1000-3-2 Class D (active PFC)

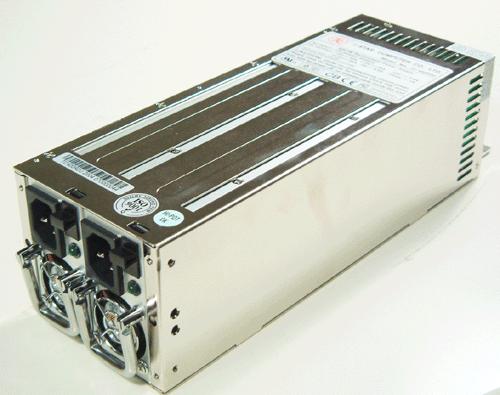

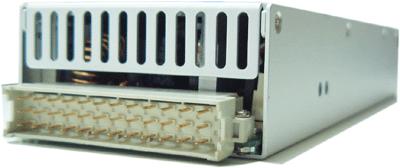

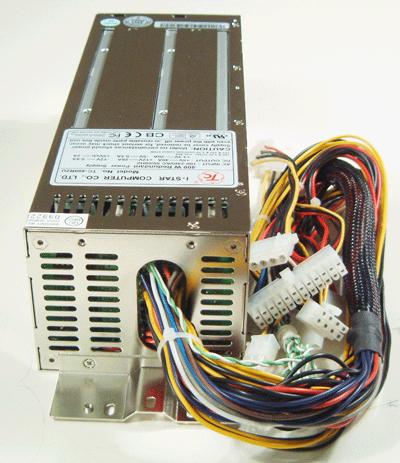

Gallery
