Mini REDUNDANT POWER SUPPLY
Model PS3030


                                             High Efficiency 600W Mini Redundant Power Supply for 4U
  Download
 Download Product Sheet
  Specifications
  • AC Input:
    - Input voltage: 100 ~ 240V (+-/10%) [ HOT-SWAP SOLUTION]
    - Frequency: 50/60Hz
    - Power Factor Correction
  •   FEATURES :

    • DIMENSION: L x W x H: 199 x 150 x 86 (mm) / 7.83 x 5.9 x 3.38 (inches)
    • COOLING: By forced air 2x40mm Fan (Each module)
    • PS/2 Size design
    • Hot-Swappable & Power Sharing capability
    • MEET EN61000-3-2 CLASS D (ACTIVE PFC)
    • High Efficiency
    • ATX 12V / EPS 12V

     SPECIFICATIONS

    Output Voltage +5V DC +12V DC +3.3V DC -12V DC +5VSB
    Output Current(Max) 25A 49A 25A 0.8A 3.5A
    Output Current(Min.) 1A 3A 1A 0A 0.1A
    Ripple/Noise Max.(P-P): 50mv 70mv 50mv 70mv 50mV
    Line Regulation: ±1﹪ ±1﹪ ±1﹪ ±1﹪ ±1﹪
    Load Regulation: ±5﹪ ±5﹪ ±5﹪ ±5﹪ ±5﹪

                    The combined total power from +5V and +3.3V shall not exceed 150W.
                    The combined total power from +5V and +12V & +3.3V shall not exceed 575W

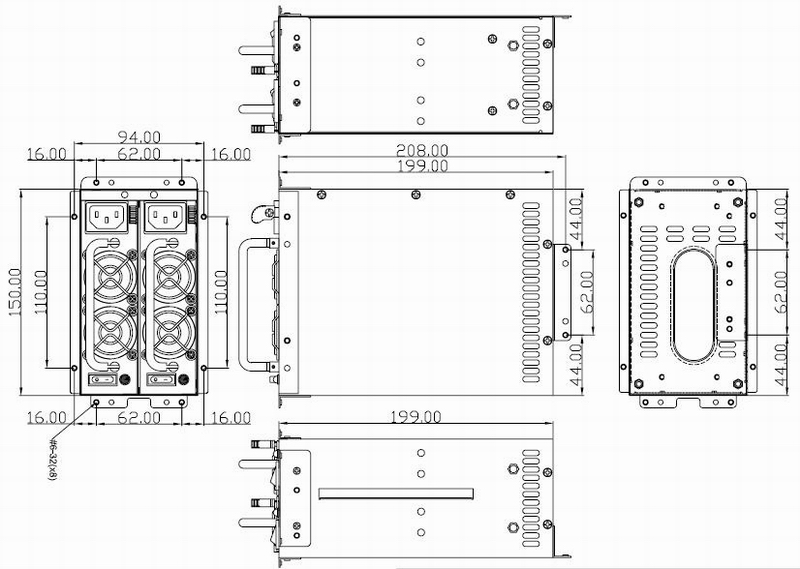

      Dimensions (unit : mm) :




    Ordering information
    Part Number  Description
    PS3030
    High Efficiency 600W Mini Redundant Power Supply for 4U
    Option
    -FM
    Customize to front-mounted design
