                                Industrial Display :   Part #   ID-10A

*** This model is discontinued . Learn more about replacement model ID-10A-LED  ***


                          6mm Aluminum Front Bezel 10.4"  Panel Mount Industrial LCD Displays
                                                  LCD Panel

LCD Type

Grade A Industrial TFT LCD Panel

Display Size

10.4 inch diagonal (211.2H x 158.4V)

Resolutions

800 x 600

Display Color

262,144 color

Brightness

230 cd/m2

Contrast ratio

500 : 1 (Typical)

Response Time

Tr=10 / Tf=25ms

Pixel pitch

0.264 x 0.264 mm

Viewing angle

70 / 70 / 60 / 60 (L / R / U / D)  or
140 / 120

OSD Control

Brightness, Contrast, Phase & Color, H & V
position, Auto-tune & Recall

LCD MTBF

50,000 hrs

Signal Input

-Input Video Signal : Analog RGB
-Video Level :  Analog: 0.7Vp-p
-Sync Type : Separate H/V, Composite H/V
-Input Connector : D-Sub 15 pin VGA analog

Power Supply

External type, 110 ~ 220 VAC at 50 or 60 Hz
via AC adapter (12V), 12V DC Output,
Adapter size : 108(W)x64(H)x30Dmm, UL & CE

Mounting

VESA-mount, Panel-mount, Wall-mount &
Bracket mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    S-Video and Composite
  • Input Connectors : RCA, S-video
  • Input Connectors : RCA-BNC adapter  Details
  • Optional Touch Screen

                     Details

    Optional DC Power

     48V / 24V / 12V DC Power     Details
    Input Range:10~36V(DC-12V, DC-24V model)
                     36~75V (DC-48V model)
    DC power Output : DC 12V
    Voltage Accuracy
    : +/- 1% (Max.)
    Safety  : Continuous short circuit protection

                                      Mechanical

    Material

     6mm Aluminum (Front panel)
     1.2mm Steel (Rear case)

    Finish

     Powder Coating

    Color  Front Panel : Black
     Back          : Dark Grey (RAL7037)
    Dimension  284.7 x 60.8 x 222 mm (WxDxH)
    Product Weight  2.5 kg
                                      Environmental
       Temperature  0 to 50 Degree Celsius (Operation)
     -5 to 60 Degree Celsius (Storage)
    Relative Humidity  5~90%, non condensing
    Shock  10G peak acceleration
     (11ms duration)
    Vibration  5~500Hz, 1G RMS random vibration
    Safety Approval   CE, FCC
                                 Package Content

    Package Content

    LCD Monitor x 1, VGA Cable (Male to Male) x1,   DC 12V adapter  x1 ,Power cord x 1,Mounting Bracket x 1 pair, CA disc, User Manual x 1

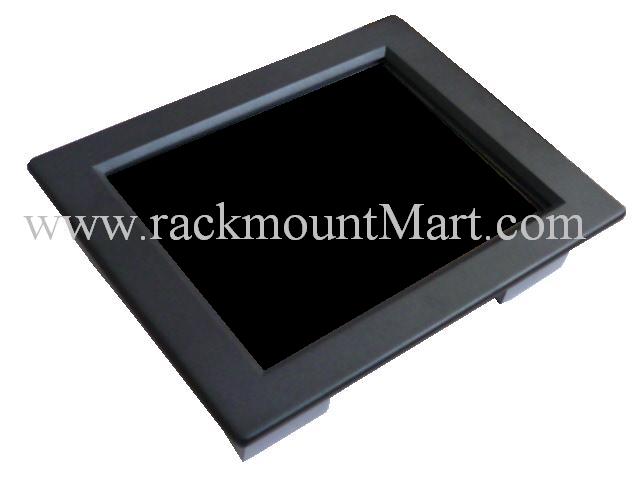

      Front View of  ID-10A

      Construction



       Front / Rear / Top / Side Views & Dimensions



          *click on above picture for enlarged view







                         ( VESA Mount /  Wall Mount )



    Touchscreen Drive Download
    Mac Linux Dos
    Win 2k-Xp Win 98-Me Win CE
    Win 7

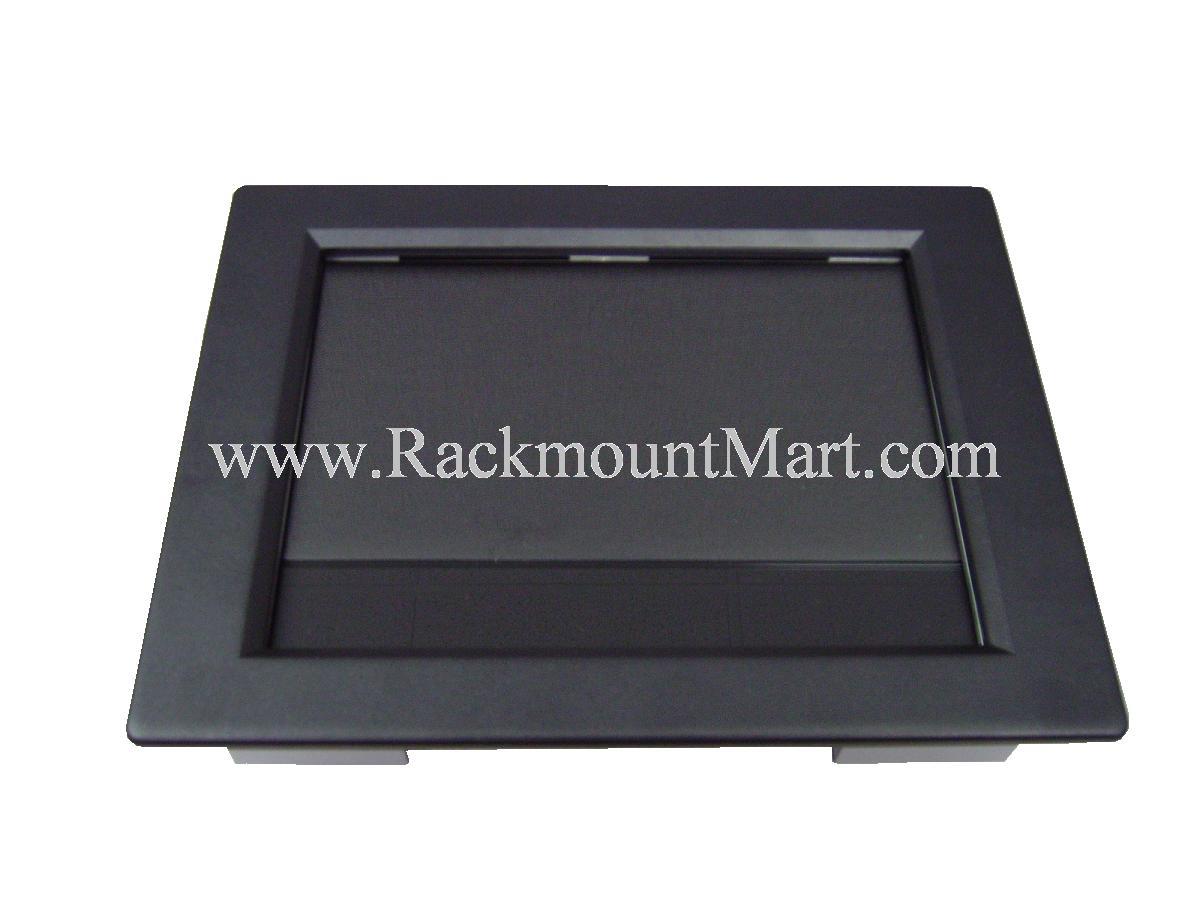

      More photos (click to enlarge )


    FEATURES :
    • 10.4" industrial TFT LCD panel support 800 x 600 pixels
    • 6mm Aluminum front bezel with 45 degree chamfer
    • Rugged construction and modularized design
    • 230 cd/m2 industrial brightness
    • OSD control keys to optimize the display
    • Optional DC power input (12 / 24 / 48 VDC)
    • Optional video input (S-Video & RCA input)
    • Optional touch screen, NEMA 4 / IP 65 front protection
    • Wide-ranges Mounting kits
      (VESA-mount, Bracket-mount, Panel-mount or OEM mounting design etc. )

    APPLICATIONS :

    • Embedded display Unit
    • Industrial automation LCD panel
    • Gaming, lottery & amusement display
    • Touch screen display panel
    • Kiosks, arcade games, Hospitality Display, ATM Machines
    • Aviation simulators, Industrial test equipment, and Instrumentation

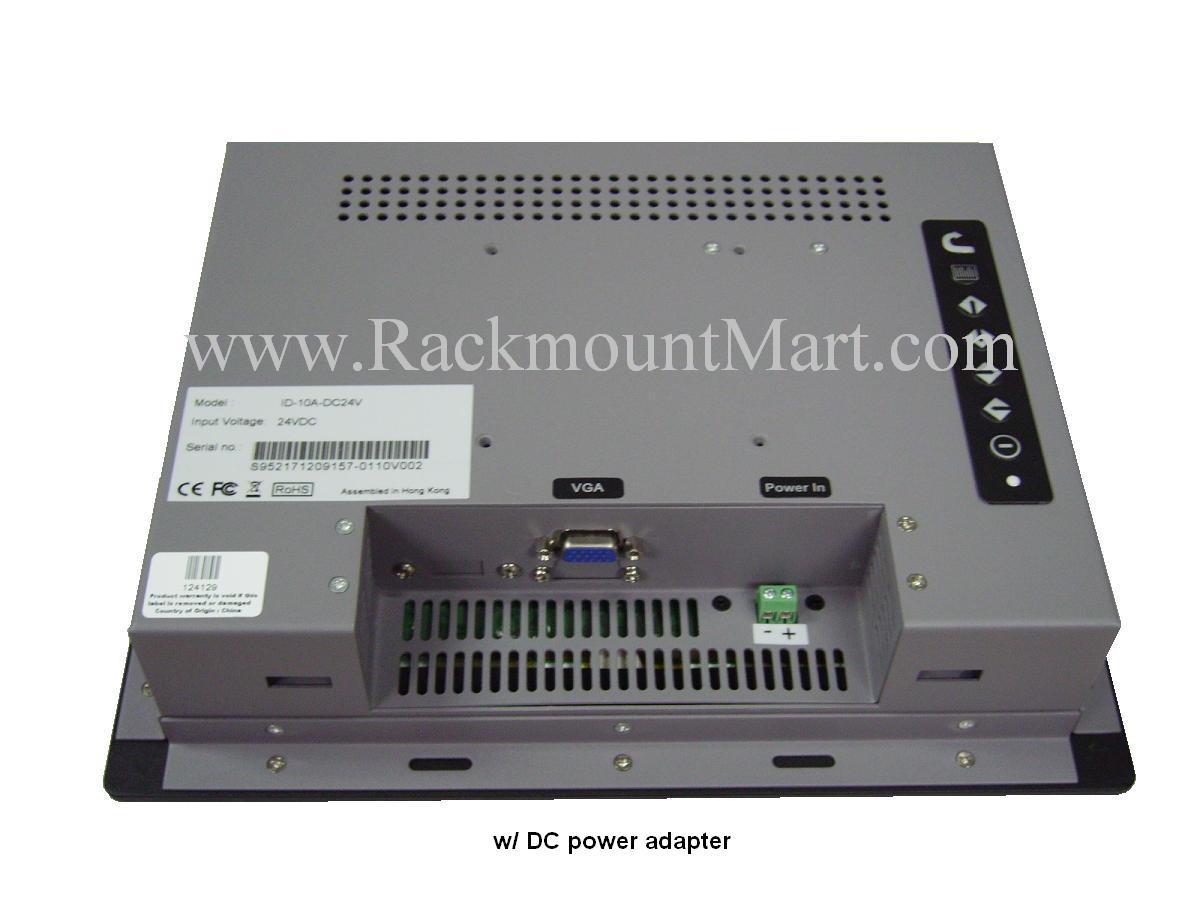

         Diagram for  I/O Outlet




    Ordering information :
    Part # Description
                                                     WITHOUT NEMA 4 / IP65
    ID-10A Standard Version  - 6mm Aluminum Front Bezel 10.4" Industrial display
    ID-10AAV
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + S-Video &
                               Composite video(RCA)
    ID-10ABNC
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + S-Video &
                               Composite video(BNC)
    ID-10ADC12
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 12v DC Power
    ID-10ADC24
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 24v DC Power
    ID-10ADC48
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 48v DC Power
    ID-10ATRS
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               resistive Touch screen & serial controller
    ID-10ATRB
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               resistive Touch screen & USB controller
    ID-10ATCS
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                              capacitive Touch screen & serial controller
    ID-10ATCB
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               capacitive Touch screen & USB controller
    -AV
    Add Composite video(RCA) + S-video
    -BNC
    Add Composite video(BNC) + S-video
    -TV
    Add TV tuner with remote controller
    -12VDC
    Add 12V DC Power
    -24VDC
    Add 24V DC Power
    -48VDC
    Add 48V DC Power
    -SPK
    Add Audio input
    -RM
    Add Remote controller
                                                      WITH NEMA 4 / IP65
    ID-10AN
    Standard Version  - 6mm Aluminum Front Bezel 10.4" Industrial display + NEMA 4 / IP65
    ID-10AAVN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + S-Video &
                               Composite video(RCA) + NEMA 4 / IP65
    ID-10ABNCN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + S-Video &
                               Composite video(BNC) + NEMA 4 / IP65
    ID-10ADC12N
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 12v DC
                               Power +NEMA 4 / IP65
    ID-10ADC24N
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 24v DC
                               Power +NEMA 4 / IP65
    ID-10ADC48N
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display + 48v DC
                               Power +NEMA 4 / IP65
    ID-10ATRSN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               resistive Touch screen & serial controller + NEMA 4 / IP65
    ID-10ATRBN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               resistive Touch screen & USB controller + NEMA 4 / IP65
    ID-10ATCSN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               capacitive Touch screen & serial controller + NEMA 4 / IP65
    ID-10ATCBN
    Version w/option  - 6mm Aluminum Front Bezel 10.4" Industrial display +
                               capacitive Touch screen & USB controller + NEMA 4 / IP65
    -AV
    Add Composite video(RCA) + S-video
    -BNC
    Add Composite video(BNC) + S-video
    -TV
    Add TV tuner with remote controller
    -12VDC
    Add 12V DC Power
    -24VDC
    Add 24V DC Power
    -48VDC
    Add 48V DC Power
    -SPK
    Add Audio input
    -RM
    Add Remote controller
