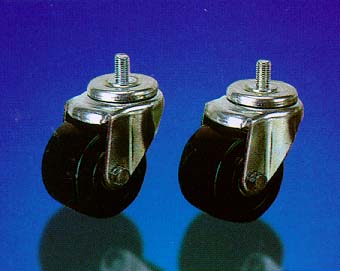

Castor / Caster

For Steel Frame Rack 200KG Load Capacity (Each)
Model RA2001

Specification

440 LBS capacity for each castor (static)

Lockable front set

Wheel dimensions: 2.75" diameter, 1.75" wide

M12 thread and 0.75" long

Ball bearing

Overall high 4"

For Wall Mount 50KG Load Capacity (Each)
Model RA2002

Specification

110 LBS capacity for each castor (static)

Lockable front set

Wheel dimensions: 2" H, 2" W

Screw hole diameter: 5mm

Overall high 2.56"

Model RA2003

Specification

Wheel diameter : 2.75"

Overall height : 4"

Heavy duty casters for cabinets & racks, set of four.
No lock on wheel. Leveling feet are optional

Model RA2201 LAN Station Caster Kit
Specification
4 heavy-duty bearing-driven casters All casters are locking Non-marking wheels Tool-less installation Made in the USA Dimensions(WxDxH):3" x 4.5" x 5.5"

Model RA2202 LAN Station Corner Caster Kit
Specification
6 heavy-duty bearing-driven casters All casters are locking Non-marking wheels Tool-less installation Made in the USA Dimensions(WxDxH):3" x 4.5" x 5.5"

Model RA2203
LAN Station Caster Kit

Specification

Includes four heavy-duty casters and mounting hardware

Non-marking polyurethane wheels

200 lbs. weight capacity (per caster)

Adds 4” to the height of your rack

Made in the USA

Dimensions(WxDxH):3.13" x 4.13" x 4.12"

Model RA2204
Portable Rack Locking Caster Kit

Specification

Includes four locking casters and mounting hardware

Non-marking polyurethane wheels

200 lbs. weight capacity (per caster)

Adds 4” to the height of your rack

Made in the USA

Dimensions(WxDxH):3.13" x 4.13" x 4.12"

Model RA2205 Caster Base
Specification
To be used with the Fixed Wall Mount Cabinets (For Model WB1201~WB1207 except WB1202) 250 lb. weight capacity Easy to assemble Made in the USA
