     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

Industrial Monitors:  Part #  ID-HE21Aw


     6mm Aluminum Front Bezel 21" Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display
LCD w/ LED Backlight Panel
LCD Type

TFT LCD Panel

Backlight

LED

Display Size

Widescreen 21.5 inch diagonal

Resolutions

1920 x 1080

Display Color

16.7 M

Brightness

1000 cd/m2

Contrast ratio

5000 : 1 (Typical)

Active area

477 x 268 (mm)

Viewing angle 178 x 178

LCD MTBF

50,000 hrs

Signal Input

VGA, DVI-D and HDMI

Power Supply

Input : Auto-sensing 100 to 240VAC, 50/60Hz
Consumption :Max. 84 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

48V / 24V / 12VDC Power   Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- TV
- MIL-type or lockable connector
- S-Video + Composite ( BNC ) or Audio input
- Auto / switch dimming

Mechanical
Color  Front Panel : Black
 Rear case   : Dark Grey
Dimension
( W x D x H )
 22.7 x 2.3 x 14.5 inch /
 577.8 x 59.1 x 369.3 mm
Product Weight  6.9 kgs ( 15.2 lbs )
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant

  Front View of  ID-HE21Aw

   Front / Rear / Top / Side Views & Dimensions


*click on above picture for enlarged view

                       Download Product Sheet
                       Download User Manual
                       Download Mounting Guide
Touchscreen Drive Download
Mac Linux Dos
Win 2k-Xp Win 98-Me Win CE
Win 7

         Free Ground Shipping * Click for details


More Photos, click on the following for enlarged view:



   DISPLAY BENEFITS :
  • 21.5" widescreen LCD with high brightness 1000 cd/m, Full HD 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • 6mm aluminum front bezel with protective glass & water proof sealed gasket
   0PTIONS :
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 21" Touchscreen : Capacitive, Resistive, 2-point touch
  • S-Video + Composite ( BNC ) or Audio input
  • MIL-type or lockable connector
  • 48V, 24V or 12VDC power
  • Auto / switch dimming
  • TV - Analog

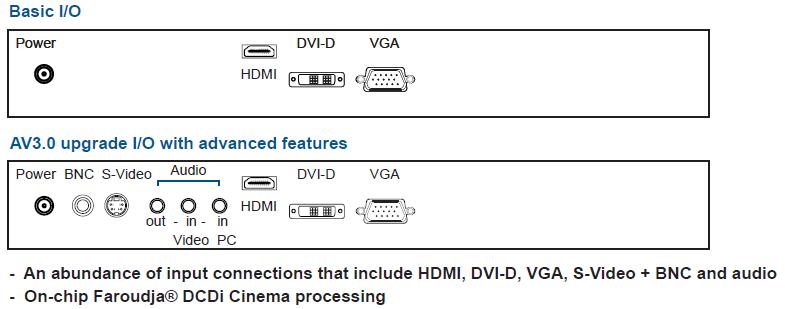

     Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-HE21Aw
Price : $1665
Standard Version  - 6mm Aluminum Front Bezel 21.5" Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display,
with VGA + DVI-D input
ID-HE21Aw-HDMI
Price : $1801
6mm Aluminum Front Bezel 21.5" Full HD High Brightness Widescreen LCD Panel w/ LED-backlit Display,
with VGA + DVI-D + HDMI + BNC +S-Video + Audio + Remote controller
Optional Video/Audio Inputs
-SDI
Price : $298
With VGA + DVI-D + HDMI + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $339
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $339
Add Resistive Touch Screen with USB Controller
-TCS
Price : $501
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $501
Add Capacitive Touch Screen with USB Controller
-TPC10
Price : $508
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Dimming
-DA
Price : $95
Add Auto Dimming
-DS
Price : $95
Add Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12
Price : $203
Add 12V DC Power
-DC24
Price : $203
Add 24V DC Power
-DC48
Price : $203
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
Optional Connectors For DC power only
-MD
Price : $88
Add MIL-type DC lockable jack, male Download Spec Sheet
-MA
Price : $136
Add MIL-type VGA lockable jack, male Download Spec Sheet
-LD
Price : $34
Add Lockable DC jack, male Download Spec Sheet
-LS
Price : $34
Add Lockable USB jack Download Spec Sheet
