Basic Rack PDU
Model RAH5030-CN-50A-CS-A
High-Power 3-Phase Rack PDU,Basic, Zero U,14.4kW,208V,(24)C13,(4)C19,(2)L6-30R;10' Cord
|
Basic Rack PDU 14.4 kW solution for high density installations
Includes : Cord retention bracket(s), Installation guide, Rack Mounting brackets, Toolless Mounting Kit
|
|
| Features |

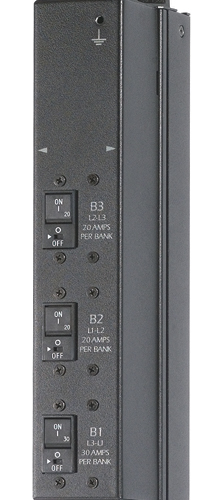

| Resettable circuit breakers |
|
Enables a quick recovery from overload events. |
| Toolless Rack Mounting Capabilities |
|
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. |
| Vertical Mounting Capabilities |
|

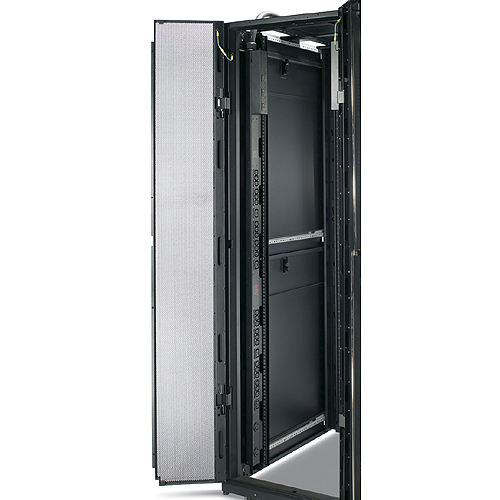

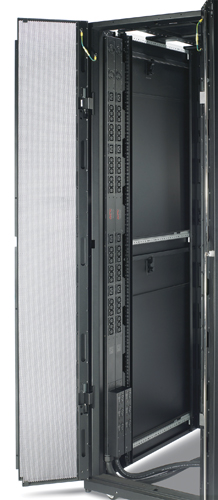

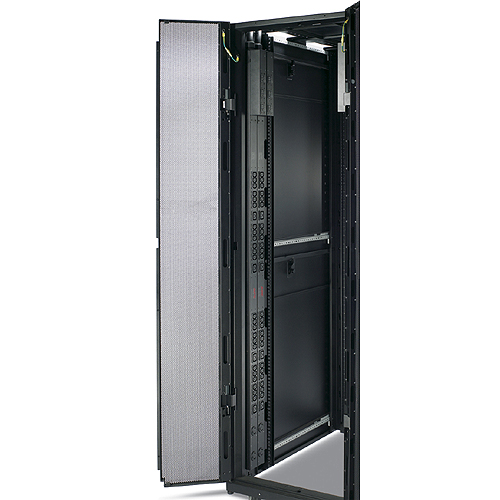

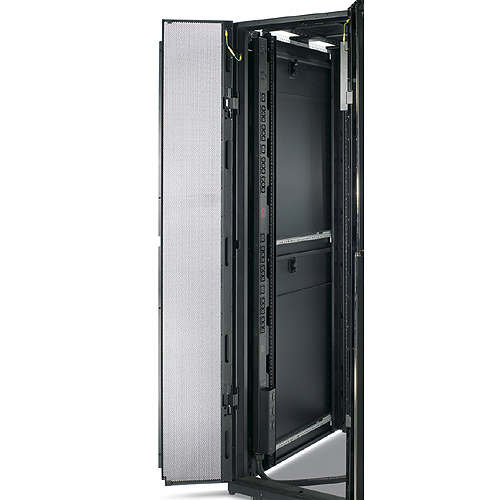

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. |
|
| Specifications |
| Output |
| Nominal Output Voltage |
|
208V |
| Maximum Total Current Draw per Phase |
|
40A |

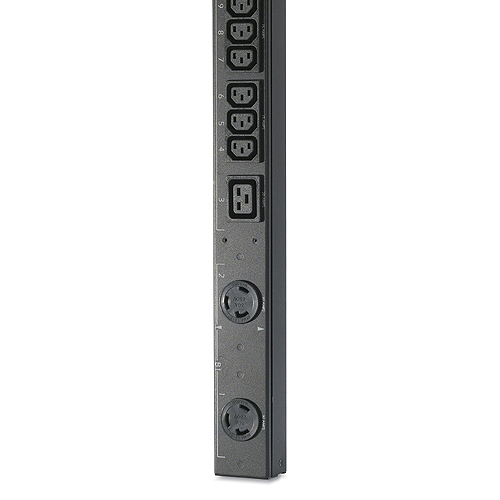

| Output Connections |
|
(24) IEC 320 C13 |
 |
| (4) IEC 320 C19 |
 |
| (2) NEMA L6-30R |
 |
| Overload Protection |
|
Yes |
| Input |
| Nominal Input Voltage |
|
208V 3PH |
| Input Frequency |
|
50/60 Hz |
Regulatory Derated Input Current
(North America) |
|
40A |
|
| Input Connections |
|
CS8365 |
|
| Cord Length |
|
3.05 meters |
| Number of Power Cords |
|
1 |
| Maximum Input Current per phase |
|
50A |
| Load Capacity |
|
14.4 kVA |
| Physical |
| Net Weight |
|
9.86 KG |
| Maximum Height |
|
1778.00 mm |
| Maximum Width |
|
56.00 mm |
| Maximum Depth |
|
95.00 mm |
| Shipping Height |
|
2057.00 mm |
| Shipping Width |
|
79.00 mm |
| Shipping Depth |
|
311.00 mm |
| Color |
|
Black |
| Environmental |
| Operating Environment |
|
-5 - 45 °C |
| Operating Relative Humidity |
|
5 - 95% |
| Operating Elevation |
|
0-3000 meters |
| Storage Temperature |
|
-25 - 65 °C |
| Storage Relative Humidity |
|
5 - 95% |
| Storage Elevation |
|
0-15000 meters |
| Conformance |
| Regulatory Approvals |
|
cUL Listed, CSA, METI Denan, UL 60950, UL Listed |
| Sustainable Offer Status |
| RoHS |
|
Compliant |
|
|
Basic Rack PDU Features & Benefits |
| Rack-Mountable |
|
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. |
| Single input power source |
|
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. |
| Wide range of input and output connections |
|
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip. |
| Low Cost Power Distribution |
|
Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
| Documentation |
 Basic Rack PDU Installation and Quick-Start (Manual)
|
Product Sheet
|
|
Drawing
|
Rack PDU External Ground Connection
|
|
Gallery
Ordering Information
| Part # |
Description |
RAH5030-CN-50A-CS-A
Price : Please call |
High-Power 3-Phase Rack PDU,Basic, Zero U,14.4kW,208V,(24)C13,(4)C19,(2)L6-30R;10' Cord
|
