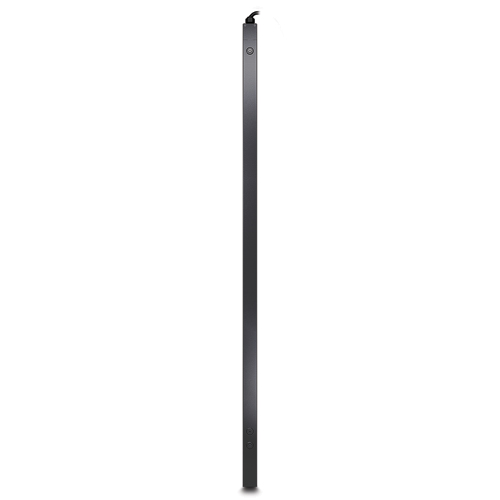

Rack PDU 2G, Switched, ZeroU, 30A, 200/208V, (21) C13 & (3) C19

Switched Rack PDU, Input: 200V, 208V, 230V, Input Connections: NEMA L6-30P, Cord Length:3.05 meters, Output: 200V, 208V, Output Connections: IEC 320 C13, IEC 320 C19

Includes : Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable

Features

Network Management Capabilities		Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Remote Individual Outlet Control		Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
Alarm Thresholds		Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see specifications for availability)

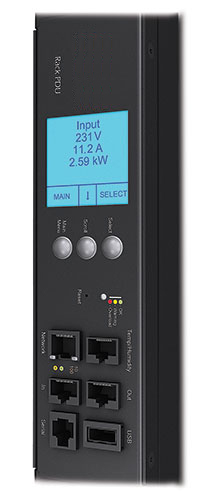

Local Current Monitoring Display		The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Power Delays		Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.
Load indicator LED		Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. (Note: Only available with units with local current monitoring feature)
Flash Upgradeable		Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Integrates with StruxureWare Data Center Expert		An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Specifications

*Output*
Nominal Output Voltage		200V, 208V
Output Connections		(21) IEC 320 C13
		(3) IEC 320 C19
*Input*
Nominal Input Voltage		200V, 208V, 230V
Input Frequency		50/60 Hz

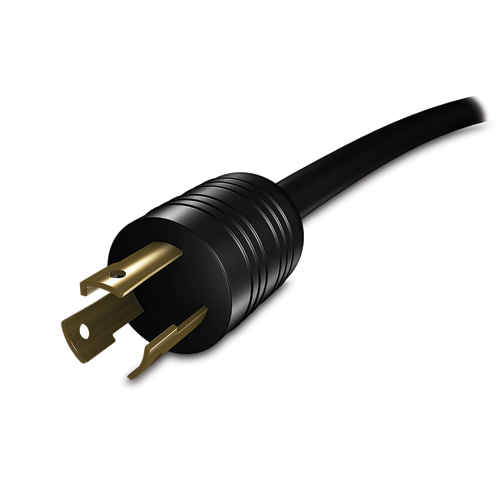

Input Connections		NEMA L6-30P
Cord Length		3.05 meters
*Physical*
Net Weight		16.8 lbs (7.64 KG)
Maximum Height		72 inches (1829.00 mm)
Maximum Width		2.2 inches (56.00 mm)
Maximum Depth		1.8 inches (46.00 mm)
Color		Black
*Environmental*
Operating Environment		-5 - 45 °C
Operating Relative Humidity		5 - 95%
Operating Elevation		0-10000 feet (0-3000 meters)
Storage Temperature		-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity		5 - 95%
Storage Elevation		0-50000 feet (0-15000 meters)
*Conformance*
Regulatory Approvals		cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A
*Sustainable Offer Status*
RoHS		Compliant
REACH		REACH: Contains No SVHCs
Battery Directive		Compliant
Battery Notes		Contains Lithium Coin Cell

Metered-by-Outlet Rack PDU Features & Benefits

Rack-Mountable		Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source		Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections		Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements.

Documentation

Switched Rack PDU User Guide

Drawing

Product sheet - System Overview

Gallery

Ordering Information

Part # Description

AS-024-C-30A-L630
Rack PDU 2G, Switched, ZeroU, 30A, 200/208V, (21) C13 & (3) C19
