Scalable 1U Dual Slide Rackmount 15" LCD KVM Console
Model LCD1U15-19


NOVA Dual Slide 1U Sacalable Rackmount KVM Console with 15" LCD Monitor
TAA Compliant

 Optional Modular KVM / DVI / HDMI / USB Hub / SUN function key / Touch screen / Audio Function / Cherry Trackball / DC Power

Scalable 1U Dual Slide Rack KVM LCD1U15-19
 w/ single port KVM.
.



Supplied as a Dual Slide 1U Rack console with single port KVM, its scalable design enables you to easily scale a solution with modular KVMs by simply adding KVM Ports with few screws yet still maintains a low profile 1RU console.

Optional 18 models of KVM switches ( 8/ 16 / 32 ports ) are available. You can expand connections up to 8 levels.


Benefits
  • Easy Maintenance :
    If malfunction is caused by the optional modular KVM
    switch , you can simply replace the detachable modular KVM switch and / or return the defective modular KVM switch for repair. No need to remove the whole console from your system.


  • Allows future expansion with ease and at a much lower cost as you only need to add / or replace the modular KVM module to the Scalable LCD console. This also helps to keep our planet green because you can keep using the same LCD console.


  • The Duail Rail Design keeps the monitor open even when keyboard is withdrawn to closed position. Perfect for viewing data 24/7 securely with Server Rack Door closed :
  • FEATURES :
    • Dual Slide design enables separate movements of Monitor and Keyboard.
    • LCD screen protected by tempered glass
    • Supports SUN native solution, optional SUN Hot Keys available
    • OSD function for LCD display and KVM swtich
    • Front key lock for extra security
    • Slide-in rail design. Easy to install by just one person
    • Easy to add modular KVM module and  DUAL IP CAT5 KVM module
    • Monitor Auto Shut off in closed position
    • Optional Modular KVM, Fingerprint Scanner , DVI, HDMI, USB 2-port Hub at front panel , Touch screen, Audio function, DC Power, Cherry Trackball keyboard
    • TAA Compliant



    LCD1U15-19 w/ single port KVM



    Easy steps to add a Modular 8 port combo KVM to LCD1U15-19 w/ single port KVM



    Easy steps to add an IP KVM module to LCD1U15-19 / modular 8 port combo KVM




    LCD Screen

    LCD Type

    Active Matrix TFT LCD Panel

    Display Size

    15 inch , Standard Aspect Ratio ( 4: 3)

    Resolutions

    Max. up to 1024 x 768 (SXGA)

    Backlight

    Dual Lamps for Back Light

    Contrast ratio

    550 : 1

    Brightness

    White 250 cd/ m2

    Panel color

    16M Colors

    Response Time

    Rising Time 2 ms, Decay Time 6ms

    Pixel pitch

    0.297 x 0.297 mm

    Viewing Angle

    130° (H) , 100° (V)

    Video Type

    Standard VGA , Optional DVI-D , HDMI

    Hardware
    Operating Systems Dos, Unix, Linux, OSX, Windows XP, 7, 8,
    Server 2012 R2

    Keyboard

    106 key keyboard with touch pad ,
    Optional Cherry trackball keyboard

    Keylock

    Yes

    KVM

    Standard :
    Single Port Combo PS/2 & USB KVM ,
    Optional :
    Modular USB PS/2 Combo KVM - 8 /16 port,
    Modular CAT 5 KVM - 8  / 16  / 32 Port ,
    Modular USB Hub KVM - 8 / 16 port,
    Modular Dual console CAT 5 Remote Access ,
    Modular Dual console IP Remote Access

    Port Selection Hotkeys and On Screen Display ( OSD )
    PC Interface PS2 & USB
    Connectors 1 x VGA (15 pin; High Density D-Sub) Female ,
    2 x PS/2 (6 pin; Mini-DIN) Female, 1 x USB ,
    1 x PS/2-USB switch ,1 x DC Jack ,1 x RR4 36 pin for modular KVM switch
    Chassis Type Heavy Duty Steel
    Power
    Sync 45 ~ 80 KHz
    Power Source Auto-sensing 100 to 240V AC
    Power Consumption 10.12 W for LCD panel
    Environmental
    Temperature 0 to 50 Degree Celsius / 32°~ 122°F (Operation)
    -20 to 60 Degree Celsius / -4°~140°F (Storage)
    Humidity 10 ~ 90% RH

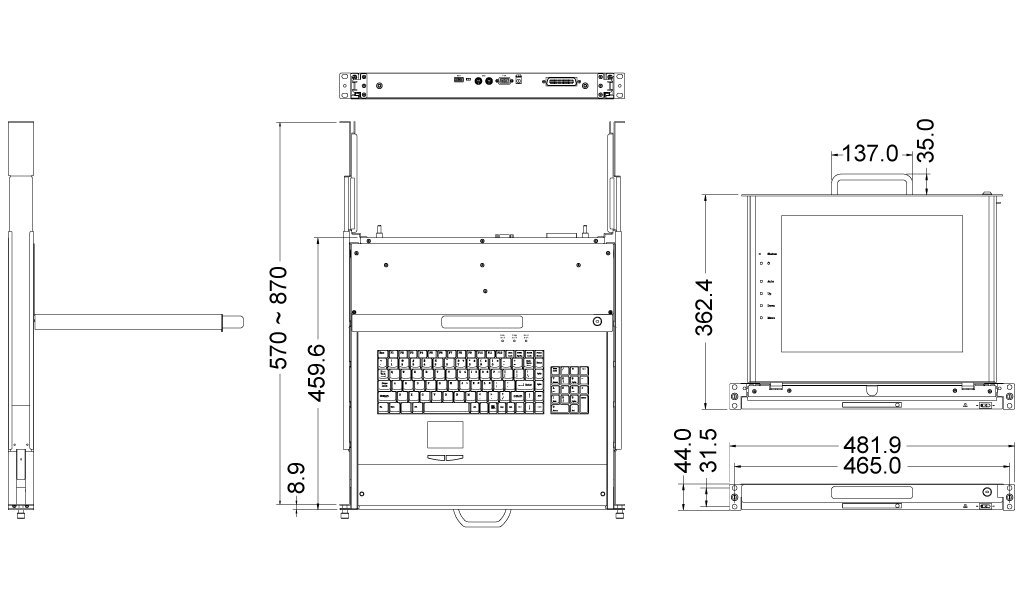

        Dimension


      Product Sheet
    Product Sheet
      User Manual
    LCD1U15-19 Modular Combo KVM
    Modular CAT 5 KVM Modular USB Hub KVM
    Add-On CAT5 Module Add-On IP Module
      Installation Guide
    Rack Console Modular KVM Switch


    Mechanical

    Product Height

    1.73 " / 44 mm

    Product Width

    17.6 " / 448.3 mm

    Depth of Chassis

    18.1" / 459.60 mm
    ( Single port KVM only, wihtout modular KVM )

    Length of Rails

    22.44 " / 570 mm
    Net Weight 28.70 lbs / 13 kgs
    ( Single port KVM only, wihtout modular KVM )
    Regulatory Approval / Declaration
      CE / FCC, UL / CUL / C-Tick, GOST , RoHS, TAA Compliant
