27U Server Cabinet : Convex/Vented Doors - 38.22" Overall Depth
Model CR1205-C/V
TAA Compliant
MADE IN THE USA
|
|
- Includes one locking convex door and one locking vented door
- Removable locking side panels
- 36 inside depth (Also available with a 24" depth)
- Other sizes available: 22U, 37U, 42U
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- Includes preinstalled casters and levelers
- Includes two sets of adjustable cage nut style mounting rails

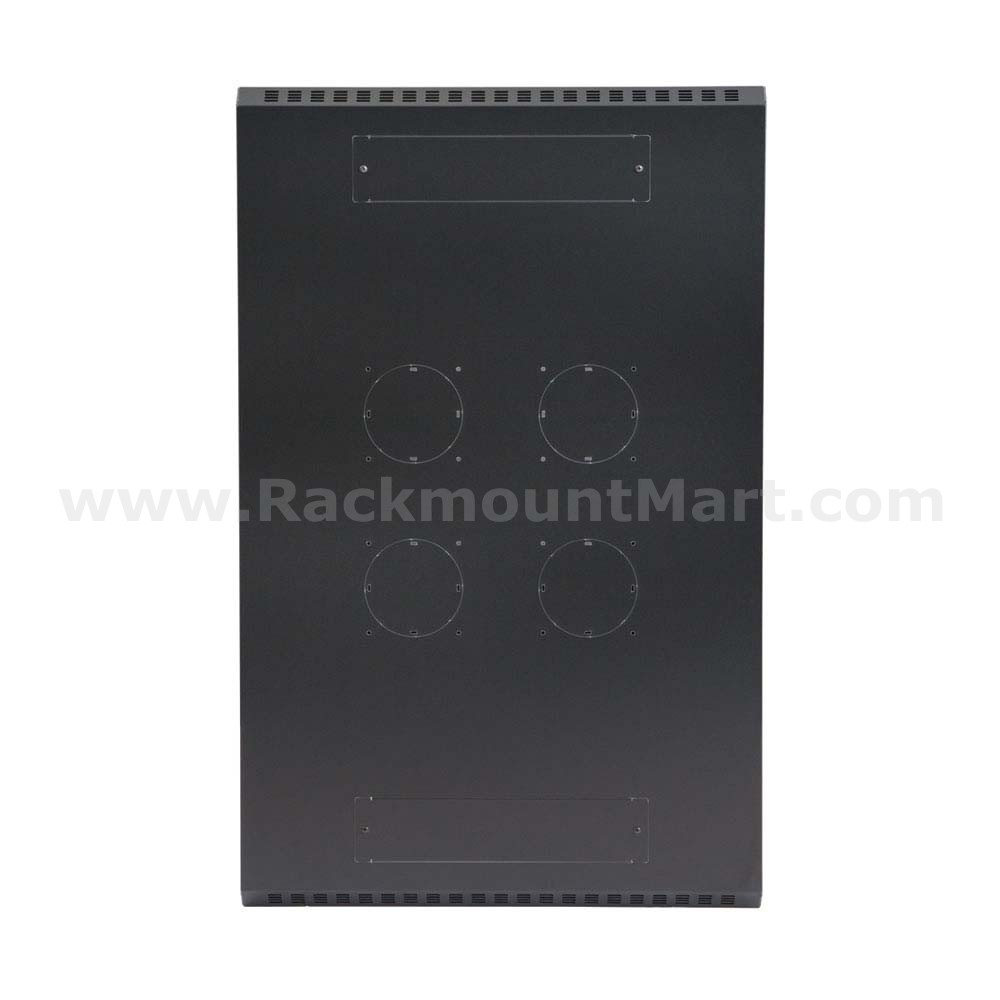

- Top includes removable laser knockouts
- 19” EIA 310-D compliant
- Made in the USA
|
|
| Features |
|
The server rack cabinets is an entry level solution. This cabinet is designed to provide maximum ventilation, having two fully vented doors. The front door has a sleek convex shape to make it look sharp while the rear door offers complete ventilation. Each rack comes with 2 sets of vertical rails that adjust in 1 inch increments, lockable, removable side panels, casters and levelers. The top of the cabinet has cut-outs allowing you to install up to four 4 inch fans. Also there are removable cable slots for easy installation of all your network cabling.
|
| Specifications |
- Width : 24"(Overall) 19"(Inside)
- Depth : 38.22"(Overall) 36"(Inside)
- Height : 54.2"(Overall) 47.25"(Inside)
- Color : Black
- Weight : 170.00 lbs.
|
|
Package Content |
- Qty 1 - 27U Server Cabinet (Convex Front/Vented Rear)
|
| Download |
 Download Cut Sheet
|
|
Gallery
Ordering Information
| Part Number |
Description |
CR1205-C/V
|
27U Server Cabinet - Convex/Vented Doors - 36" inside depth (38.22" overall depth) |
| Options |
CR1205
|
27U Server Cabinet - Glass/Vented Doors - 36" inside depth |
CR1205-A
|
27U Server Cabinet - No Doors/No Side Panels - 36" inside depth |
CR1205-C
|
27U Server Cabinet - No Doors - 36" inside depth |
CR1205-G/S
|
27U Server Cabinet - Glass/Solid Doors - 36" inside depth |
CR1205-C/G
|
27U Server Cabinet - Convex/Glass Doors - 36" inside depth |
CR1205-G/G
|
27U Server Cabinet - Glass/Glass Doors - 36" inside depth |
CR1205-S/C
|
27U Server Cabinet - Solid/Convex Doors - 36" inside depth |
CR1205-C/C
|
27U Server Cabinet - Convex/Convex Doors - 36" inside depth |
CR1205-S/V
|
27U Server Cabinet - Solid/Vented Doors - 36" inside depth |
CR1205-V/V
|
27U Server Cabinet - Vented/Vented Doors - 36" inside depth |
CR1205-S/S
|
27U Server Cabinet - Solid/Solid Doors - 36" inside depth |
