CHASSIS ACCESSORIES - 2U Riser Card


Riser Card is an expansion card that is used to extend a slot for an I/O card in a fully loaded computer to make room to plug it in. It may also refer to a card that contains several slots used in low-profile, space-saving enclosure. The I/O cards are plugged into the riser card and reside parallel with the motherboard.

Picture at left shows the PCI slots location on a 7-slots standard ATX form factor board, starting from left is PCI slot-1, slot-2, slot-3, slot-4, slot-5, slot-6 and AGP slot-7 (On a Micro ATX board, there are only PCI slot-4, slot-5, slot-6 and AGP slot-7 ). The position of slot-6 lines up with the horizontal cutouts of the rackmount chassis.


PART # 2U RISER CARD  DESCRIPTION AND Buy Online
 R2001

* click on photo to enlarge

   2 PCI or 1 PCI + 1 ISA Expansion Slot for 2U Rackmount Chassis



-
2x32bit PCI and 1xISA



 R2002

* click on photo to enlarge

   2 x 32 bit PCI + 1 x AGP Expansion Slot for  2U Rackmount Chassis

-  2 Slots 32 Bit PCI
   -  1 Slot AGP Riser Card

   - For PCI on 6th and 5th slot and AGP on 7th slot
  Download Installation guide  Download detection software for DOS



 R2003

* click on photo to enlarge

   2 x 32 bit PCI +  1xAGP Pro Expansion Slot for  2U Rackmount Chassis

   - 2 Slots 32 Bit PCI
   - 1 Slot AGP Pro Riser Card
   - ( 5V or 3.3 V )
   -For PCI on 6th and 5th slot and AGP on 7th slot




 R2004



* click on photo to enlarge

   2 x 64 bit PCI + 1 X 32 bit PCI w 7cm  flat  cable for  2U Rackmount Chassis

- 2U 2*64bit/3.3V PCI-X +1*32bit/5V PCI w/ 7cm flat cable. Gold finger linked the bottom PCI-32 riser connector is connected to the 6th PCI-32 slot of M/B, the middle riser connector linked with a 7cm flexible cable is connected to the 3rd PCI -64 slot of motherboard, the top riser connector linked with a 8-wire paddle link is connected to the nearby(2nd) PCI -64 slot of motherboard. The top and middle riser connectors tied together and share the same signals from the motherboard.




 R2005

* click on photo to enlarge

3 x 32 bit PCI  w optional 2.5 / 7 / 11cm  ribbon cable for 2U Rackmount Chassis

   - 2U 3*32bit , 5V PCI w/custom length cable from 1"(2.5cm) to 5.905"(15cm) for Motherboard w/6th or/and 4th, 5th PCI slots missing.




 R2006



* click on photo to enlarge

 3 x 64 bit PCI  w optional 5 / 7 / 11 cm ribbon cable for 2U Rackmount Chassis

 - 2U 3*64bit , 3.3V PCI-X 2 channel 133MHz ready w/ custom length flexible cable. Gold finger linked with bottom riser connector is connected to the 6th PCI slot of M/B, the middle riser connector linked with flexible cable is connected to the 4th(5cm ribbon) or 3rd(7cm ribbon) PCI slot of M/B, the top riser connector linked with a 8-wire paddle link is connected to the nearby PCI slot of M/B. The top and middle riser connectors tied together and share the same signals from the mother.



 R2007

* click on photo to enlarge

   3 x 32 bit PCI  Expansion Slot for  2U Rackmount Chassis

   - 3-32 bit PCI Slot for 2U Rackmount Chassis
  -supports the 4th, 5th &  6th PCI slot




 R2008

* click on photo to enlarge

   3 x 64 bit PCI  Expansion Slot for  2U Rackmount Chassis

   - 3x64bit PCI ( 5V or 3.3 V ) for 2U Rackmount Chassis
   -For PCI on 6th / 5th / 4th slot

  Download detection software for DOS




 R2009



* click on photo to enlarge

3 x 64 bit PCI  3.3V, 2 Channel 133 Mhz  ready for 2U Rackmount Chassis

 - The goldfingers linked with the bottom PCI-64 riser connector ,an completely independent 133MHz connection, is plugged to the 6th motherboard slot(PCI X 133MHz), the middle riser connector linked with array-pins (another channel of independent PCIX connection) is connected to the 5th PCI-64 100MHz slot, the top riser connector, sharing PCI bus signal with the middle connector, linked w/a 8-wires paddle link is connected to the nearby 4th PCI-64 100MHz slot. Patented design to support 2 channel 3*PCI-X expansion.


 R2011


* click on photo to enlarge

2 x 32 bit 5V PCI  + 1 AGP Pro for  2U Rackmount Chassis

 - 2U 2*32bit , 5V PCI + 1 AGP Pro for Motherboard w/ AGP Pro on the 7th slot



 R2012


* click on photo to enlarge

2 x 64 bit PCI  + 1 x 4x/8x AGP Pro for 2U Rackmount chassis

-2U, 2*PCI-X 64bit , 3.3V + 1*4x/8xAGP Pro Riser Card, for motherboard w/ AGP(Pro)on 6th slot & PCI-64(PCI-X) on 5th,4th slot, The middle AGP Pro riser connector linked with gold fingers(w/1.5V & 3.3V keys) is connected to the 6th slot (AGP Pro) on motherboard, the top PCI-64 riser connectors linked with array-pins is connected to the 5th PCI-64 slot of motherboard,the bottom PCI-64 riser connector linked w/a 8-wires paddle link is connected to the nearby 4th PCI-64 slot on motherboard.




 R2013



* click on photo to enlarge

   2-slot 64 bit PCI 3.3V  66/100 Mhz , height 62mm for 2U Rackmount Chassis

- The lower PCI-64 riser slot is connected directly to the goldfingers and plug to the 6th PCI-64 slot of the motherboard, while the top PCI-64 riser connector linked w/a 8-wires paddle link is connected to the 5th PCI-64 slot of the motherboard. The top and middle slot are tied together, sharing the same PCI bus signal. For all motherboard with 2*PCI-64 66MHz/100MHz slots on 5th and 6th slot. Does not support more than 2 high-speed PCIX mode add-in cards. Please use R2006 instead.




 R2014



* click on photo to enlarge

   2 x 32 bit 5V PCI  + 1 * 8 AGP Pro for  2U Rackmount Chassis

 - for motherboard w/AGP Pro on 6th slot & 2*PCI-32bit/5V PCI on 5th & 4th slot.

-The middle AGP Pro riser connector linked with gold fingers(w/1.5V &3.3V keys) is connected to the 6th AGP (Pro) slot on motherboard, the top riser connector linkd with array-pins is connected to the 5th PCI-32 slot, the bottom PCI-32 riser connector linked with a 8-wires paddle link is connected to the 4th PCI-32 slot of the motherboard.




 R2015



* click on photo to enlarge

 2U 3-in-1 4x/ 8x AGP Riser Card (w/1.5V & 3.3V gold fingers and universal connector), 2*PCI 32bit/5V + 1*4x / 8x AGP on 7th slot of motherboard

-The top PCI-32 riser connector connects directly to the PCI goldfinger which is plugged to the 6th PCI-32 motherboard slot(from the I/O side),the bottom PCI-32 riser connector linked w/8-wires paddle link is connected to the nearby 5th PCI-32 slot of motherboard, The middle AGP riser connector connects to the 7th AGP slot of motherboard via an short AGP riser attached in the back. For motherboard w/AGP on 7th slot and 2*PCI-32 on 6th and 5th slot. Interoperability issue might happen when install together controller, 8xAGP card and motherboard.




 R2016



* click on photo to enlarge

    2U 3-in-1 8x AGP Pro Riser Card 2*PCI-32bit/5V + 1*AGP Pro on 7th slot of motherboard

-The middle riser connector (AGP Pro) connects to the 7th (AGP Pro) slot of the motherboard via a short AGP Pro riser attached in the back. PCI2 & PCI1(top and bottom riser connectors) connect to the 6th and 5th PCI-32(or PCI-64) slots of the motherboard. For all motherboards w/AGP Pro on
7th slot and 2*PCI-32 on 6th and 5th slot.




 R2017

* click on photo to enlarge

 2U 4x/8xAGP Riser Card (w/1.5V &3.3V gold fingers and universal connector)
2* PCI-32bit/5V + 1*4X,8X AGP on 6th slot of motherboard.

-The middle AGP riser connector linked with AGP goldfingers plugs into the 6th slot(AGP) of the motherboard, the top(an independent connection
linked w/array pins) & bottom PCI-32 riser connectors(linked w/8-wires paddle link) are connected to 5th and 4th PCI-32 slots of the motherboard. For any motherbaord with AGP connector on 6th slot and PCI-32 on 5th and
4th slot. -With optional 7cm ribbon cable.



 R2018



* click on photo to enlarge

  2U 2*PCI-32+1*PCI-Express x16 Combo for PCI-E on 6th slot

-2U 1*PCI-Express x16 +2*PCI-32bit/5V Riser Card.The PCIe goldfingers linked with the middle PCI-Express riser connector is plugged to the 6th PCIe
x16 motherboard slot, the top PCI-32 riser connector linked with array-pins is connected to the 5th PCI-32 slot, the bottom PCI-32 riser connector linked w/a 8-wires paddle link is connected to the nearby 4th or 3rd PCI-32 slot.
-Optional 5cm / 7cm /11cm  ribbon cable is available





 R2019


* click on photo to enlarge

   2U 2*PCI-64 bit /3.3V + 1*8 x AGP Pro Riser card with 7cm ribbon


-2U 2*PCI-X 64bit/3.3V + 1*8x AGP Pro Riser card w/7cm ribbon. gold fingers linked with middle riser AGP Pro connector is connected to the 6th AGP Pro slot of the motherboard, the top PCI-64 riser connector linked with a 7cm ribbon is connected to the 3rd PCI-64 slot of the motherboard, while
the bottom PCI-64 riser connector linked with a 8-wires paddle link is connected to the nearby 2nd PCI-64 slot.




 R2020

* click on photo to enlarge

2U PCI/PCI-E combo riser card, 2*PCI-X 64bit/3.3V +1*PCIe x8 on slot-6

-The middle PCIe x8 riser connector linked with the goldfingers is connected to the motherboard PCIe x8 slot-6.an completely independent PCI-Express connection.
The top PCIX-64 riser connector (main) linked with array-pins is connected to the motherboard PCIX-64 slot-5,another completely independent PCI-X connection.
The bottom PCIX-64 riser connector (share) linked w/a 8-wires paddle link is connected to the nearby PCIX-64 slot-4.
For expansion of PCIe x8 on motherboard slot-6 and 2*PCIX-64 on slot-5 and slot-4.




 R2021



* click on photo to enlarge

  2U 2* PCI-32bit/5V +1* PCI-E x16 on slot-7

-The middle PCI-E riser connector linked with a short PCI-E connector attached in the back and plug to the motherboard PCI-E slot-7.

The top PCI-32(MAIN) riser connector linked with another gold finger is connected to the motherboard PCI-32 slot-6.

The bottom PCI-32 riser connector linked w/8-wires paddle link is connected to the nearby PCI-32 slot-5 of motherboard.




 R2022

* click on photo to enlarge

*****This model is discontinued .  Learn more about replacement model R2021   *****

 2U PCI+PCI-E x16 combo riser card, 2*PCI 32bit/5V + PCI-E x16 on slot-7


 R2023



* click on photo to enlarge

 2U 1* PCI-Express x16 + 2* 64bit/3.3V PCI-X
 Riser Card w/custom length flexible cable

The middle PCIe x16 riser connector linked with the PCIe gold finger is connected to the motherboard slot-6 (PCIe x16).

The bottom & top (main) PCI-64 riser connectors linked with a custom length flexible cable and 8-wire paddle-link are connected to the same bus of PCIX-64 slots on motherboard.


Flexible cables upgradeable to either TPE or Teflon cable with impedance to support higher PCIX bus speed.




 R2024



* click on photo to enlarge

 2U height 1*PCI-Express x16 riser card optional Extender

The top PCIe connector linked directly to the goldfingers, direct plug to the motherboard slot-6 for PCIe extension on any 2U height chassis.

Add extender for PCIe extension on slot-7.etc.




 R2025



* click on photo to enlarge

 2U two PCIE x16 flexible riser cards w/ optional 7/11 CM cable. Goldfingers and slots can be configured to any combination of PCIE x1, x4, x8 or x16.

2U two PCIE x16 flexible riser cards with various lengths of ribbon cable. Goldfingers and slots can be configured to any combination of PCIE x1, x4, x8 or x16. The lower slot can remove down to the bottom for the top slot to house a double-layers graphic card. For two slots PCIE expansion on the Intel Extreme series board etc.

 Order Information:


* click on photo to enlarge




 R2026

* click on photo to enlarge

 2U 3-slots PCIe/PCI Combo riser card supporting 1*PCIe x1 and 2*PCI-32 5V/33MHz

The goldfinger of PCIE x1 linked to the middle PCIe riser slot sits into the motherboard PCIe x1 slot-6, the PCI-32 header board and 8-wires paddle link linked to the top and bottom riser connectors are connected to the motherboard PCI-32 slot-5 and slot-4 and PCI-32 slot-3 and slot-4




 R2027

* click on photo to enlarge

 2U PCIX/PCI-E combo riser card

2U PCIX/PCI-E combo riser card, supporting 2-slots PCI-X 64bit/3.3V +1-slot PCIe x8 on slot-6.

The middle PCIe x8 riser slot islinked directly to the PCI-Express section of the adaptive slot and sit to the motherboard slot-6 (Intel adaptive slot).

The top PCIX-64 riser slot is linked to the PCIX section of the goldfingers, aother completely independent connection of PCI-X.

The bottom PCIX-64 riser slot linked w/ flex cable is plugged to the motherboard PCIX-64 slot-5, another independent connection of PCI-X bus.

For expansion of 1-slot PCIe x8 and 2-slots PCIX-64/3.3V.





 R2029


* click on photo to enlarge

 2U 3 x PCI-64bit combo riser card

2U 3-slots PCI-64bit/3.3V 66MHz/100MHz/133MHz Riser card.



 R2030



* click on photo to enlarge

 2U PCIE/PCIX combo riser card, supporting 2-slots PCIX-64bit/3.3V and 1-slot PCIe on motherboard slot-7

The middle PCIE riser slot is linked with a short PCIE header board attached in the back to connect to the board PCIE (x16 or x8) slot-7.

The bottom PCIX-64 (main) riser slot is linked to another goldfingers and sitting to the board PCI-64 slot-6. The top PCIX-64 riser slot (shared) is linked w/8-wires paddle link and connect to the nearby motherboard PCI-64 slot-5.





 R2031


* click on photo to enlarge

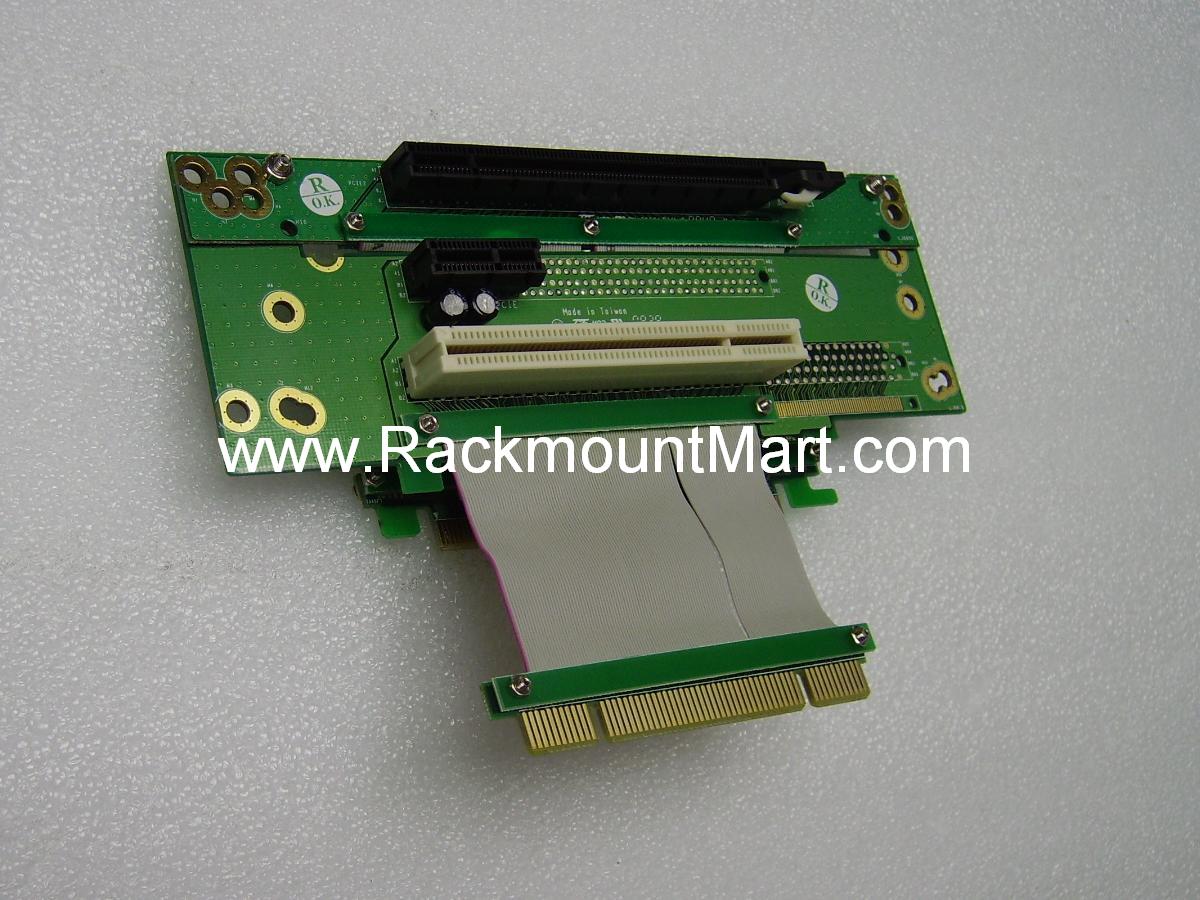

 2U 3-slots PCIE/PCI combo riser card

2U 3-slots PCIE/PCI combo riser card, for up to three PCIe slots expansion or 2-slots PCIe( on board slot7 and slot6) and 1-slot PCI-32 on nearby slot.

PCIe slots and goldfingers can be configured to x1, x4, x8 or x16 for various PCIe board slots and different card interface. The middle riser slot linked to the goldfingers sit to the board slot6 which is aligned to the three horizontal cutouts of the typical 2U rackmount chassis.



 R2032


* click on photo to enlarge

 2U 3-slots PCIE/PCI combo riser card

2U up to 3-slots PCIe/PCI/PCI-X independent connection w/custom lengths of EMI shielded ribbon cable.

PCIe slots and goldfingers can be configured to PCIe x1, x4, x8 or x16. Picture shown is riser with 2-slots PCIe X8 which can be configured up to 3-slots independent expansions( 3-slots PCIe, 2-slots PCIe + 1-slot PCI/PCIX or 1-slot PCIe + 2-slots PCI-X independent). The top riser slot sit to the board slot6 which is aligned to the horizontal three-slots cutout of the chassis, the middle and bottom slots are connected with various lengths of ribbon cable to reach different position of board slots.



 R2033-9


* click on photo to enlarge

 2U 1 x PCI express X1 to 2-slot PCI 32-bit w/ 9cm ribbon cable

• Two PCI 32bit/5V female connectors.
• One PCIE x1 or mPCIe male connector.
• Flexible cable length: 9cm ribbon EMI shielded.
• One FDD-type +12V male power connector and a standby -12V on riser board.

 Download Dimensional Drawing


 R2035

* click on photo to enlarge

 2U 1-slot to 2-slots PCI 32bit/5V w/ 5cm/10cm ribbon cable

1-slot to 2-slots PCI 32bit/5V riser card with 5cm/10cm ribbon cable for Mini-ITX board in slim case. Re-direct the female slots to face either over or away the board.
