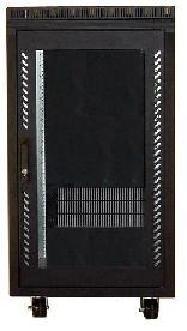

SERVER CABINETS
Model CR1012
TAA Compliant
|
|
|
19" Server Cabinet
Inside Dimension :
Height = 24U ( 43" )
Depth = 20.4"
(Self-tapping type) /
20.9" (Square type,Optional)
Width = 19"
Overall Dimension :
23.50"(w) x 23.60"(d) x 52"(h) |
| Material |
| Cabinet
frame of extrude aluminum sections front and
clear door, side panels, top, bottom plates and
plinth of sheet metal |
|
Package
Content |
*
Heavy Duty Aluminum Main frames
* Tempered glass
front door with lock
(Optional front Mesh door available)
* Rear door with lock (Optional rear Mesh door available)
* Removable solid side panels with lock (push-down
type)
* 4 pieces of Round self-tapping vertical mounting
railings
(optional square type )
* 1 set of depth supporter (0.5”x0.5” adjustable)
* 3 of 12cm fans (115CFM each) fans installed on
top and
expandable
up to total 9
* 4 x Heavy duty castors
* 4 x Leveling feet
* 50 sets of M6 cage nuts and screws
* Vented top panel with cable entry and cable
fixtures
* Solid bottom panel with cable entry and cable
fixtures
* Door Grounding wires
* Fully assembled
|
| Features |
- Good
air ventilation
- You could increase to total 8 fans
- All doors design with the spring
latch, easy remove, tool less
- Water or dust resist from top
- Easy assemble
- Available in White
or Black
- TAA Compliant
|
|
Specification
:
- Overall width: 23.6"
- depth: 23.6"
- height: 24U = 52"
- Interior width: Hole to Hole = 19", Railing to
Railing = 17 5/8"
- Depth of front railing to rear door: Self-tapping type
= 20 3/8" Square type = 20 7/8"
- height: 24U = 43"
- Maximum length of sliding rail's brackets:
Self-tapping type = 15 7/8" Square type = 17.75"
More Photos, click on the following for enlarged view:

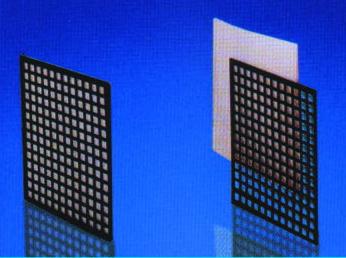

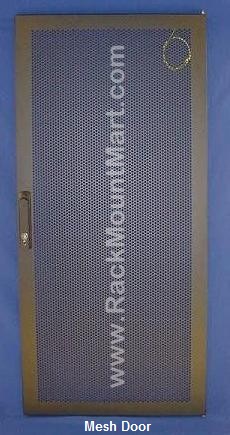

Mesh door Air filter
Optional Accessories
Cable Management
| |
Model Number |
Description |
 |
CM09 |
Cable access panel with 0.39"hole |
 |
CM10 |
Cable access panel with Brush |
 |
CM04 |
1U Horizontal Wire Manager - Closed Design |
 |
CM16-sub |
2U Horizontal Wire Manager - Closed Design |
 |
CM18 |
1U Cable Management |
 |
CM19 |
2U Cable Management |
Rack Cooling Fan
| |
Model Number |
Description |
 |
RA4001 |
Cabinet Cooling fan, 120 x 120 x 25 MM, 86 CFM |
 |
RA4002 |
3 fans in a 3U High 19" Holder with filer , Air Blow In |
 |
RA4003 |
3 fans in a 3U High 19" Holder with filer , Air Blow Out |
 |
RA4004 |
3 fans in a 1U High 19" Holder with filer , Air Blow Up or Down |
Screws and Nuts
| |
Model Number |
Description |
 |
RA6001 |
M5 Self-Tapping |
 |
RA6003 |
M6 Self-Tapping |
 |
RA6004 |
12-24 Self-Tapping |
Power Strip
| |
Model Number |
Description |
 |
RA5001-14 |
1U Rack Mountable 14 Outlets, 15AMP |
 |
RA5001-14A |
1U Rack Mountable 14 Outlets, 20AMP |
Rack Shelf
| |
Model Number |
Description |
 |
RA7001-17 |
1U Rackmount Sliding Shelf, 17" deep, with lock and vented |
 |
RA7002-19 |
2U Fixed Rackmount Shelf, 19" deep |
Rackmount Keyboard
| |
Model Number |
Description |
 |
LCDK1001 |
1U Rack mount Keyboard Drawer with Touch Pad or Trackball |
Rackmount Monitor
|
| |
Model Number |
Description |
 |
LCDR7U17-02 |
7U Rackmount 17" Industrial Grade TFT LCD Monitor Panel |
 |
LCDR8U19-02 |
8U Rackmount 19" Industrial Grade TFT LCD Monitor Panel |
 |
LCDR8U20-09 |
8U Rackmount 20" Industrial Grade TFT LCD Monitor Panel |
Rackmount KVM Switch
| |
Product Link |
Description |
 |
Rackmount KVM Switch |
2K KVM Switch, 4K KVM Switch, DVI KVM Switch, Cat6 HDMI KVM Switch,
Cat6 DisplayPort KVM Switch, Cat6 DVI KVM Switch, Cat6 VGA KVM Switch,
Cat6 KVM Switch, VGA KVM Switch, IP KVM Switch, Multi-User KVM Switch,
Matrix KVM Switch |
Rackmount Monitor Keyboard Drawer with Optional KVM Switch
| |
Model Number |
Description |
 |
LCD1U10-02 |
1U 10" Monitor Keyboard Drawer with Optional 8/16/32 Port KVM Switch
16.1" deep |
 |
LCD1U17-41 |
1U 17" 4K Monitor Keyboard Drawer with Optional 4K KVM Switch
15.7" deep |
 |
LCD1U17-46 |
1U 17" Full HD Monitor Keyboard Drawer with Optional 8-Port 2K KVM Switch
16.1" deep |
