| Dimensions (W x D x H) |
• 17" x 25.4" x 3.5"
|

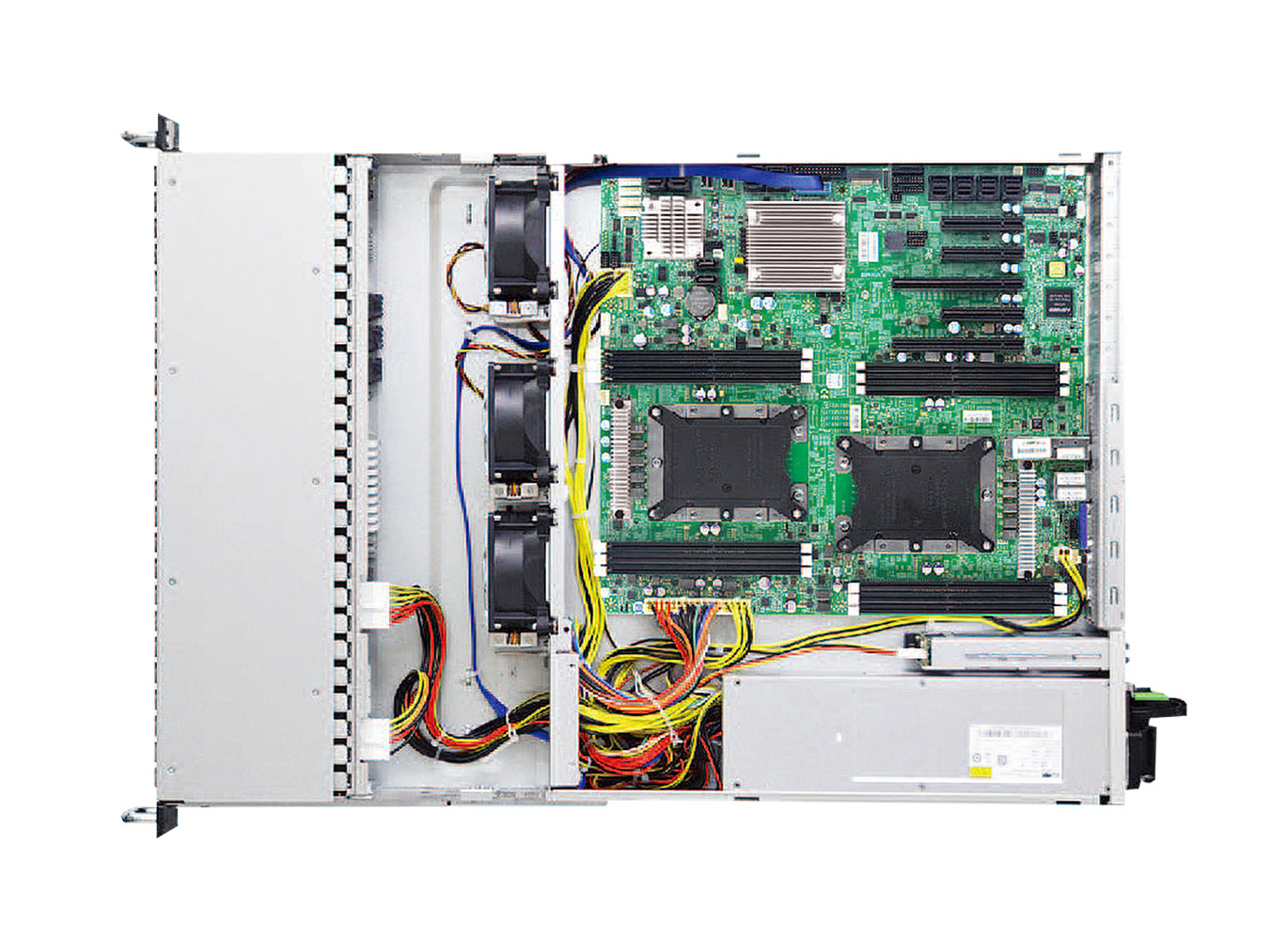

| Motherboard |
Server Board SBA2022
|
| Processor |
Processor Support: • Intel® Xeon® Scalable Processors (Skylake and next gen. CPU)
• Supports CPU TDP up to 140W |
| QPI Speeds: 10.4 GT/s, 9.6 GT/s |
| Socket Type: Socket P0 (LGA-3647 Socket) |
| Chipset Support |
Intel® Lewisburg C620 series PCH
|
| System Memory |
• 6 x memory channels per CPU, 1 x DIMM per channel
• 12 x DIMM slots support:
2666/2400MHz RDIMM/LRDIMM (feature supports up to DDR4 2933MHz by next gen. process upgrade)
- up to 192GB RDIMM SRx4
- up to 384GB RDIMM DRx4
- up to 1536GB RDIMM 3DS 8Rx4
- up to 768GB LRDIMM QRx4
- up to 1536GB LRDIMM 3DS 8Rx4
• Intel® NVM DIMM (Apache Pass) support by next gen. Purley Refresh CPU
|

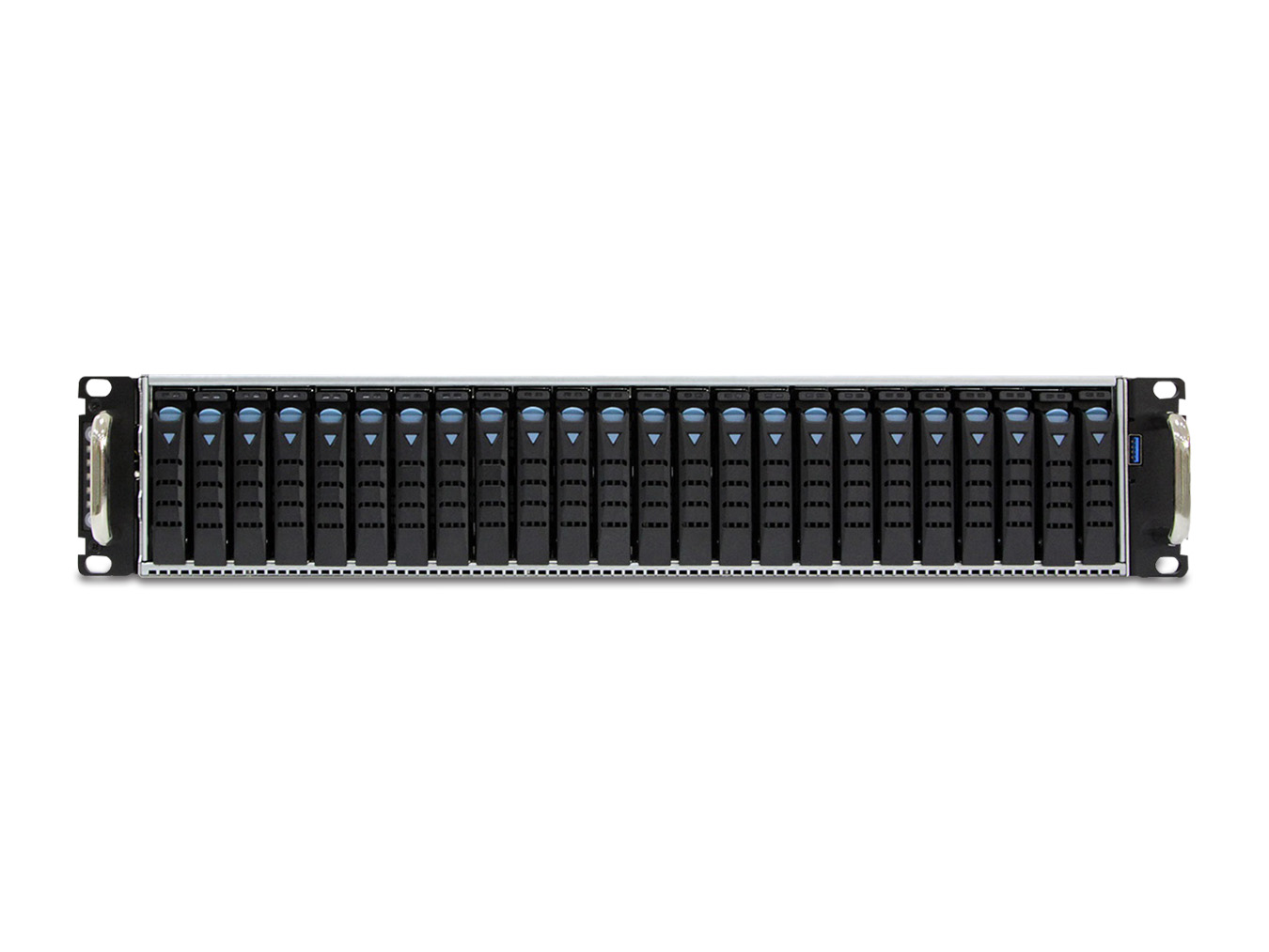

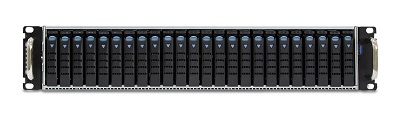

| Front Panel |
• System power on/off
• System reset
• 1 x USB 3.0 Type A
• System ID
|
| LEDs |
Power status, Drive activity, Network activity, System ID
|

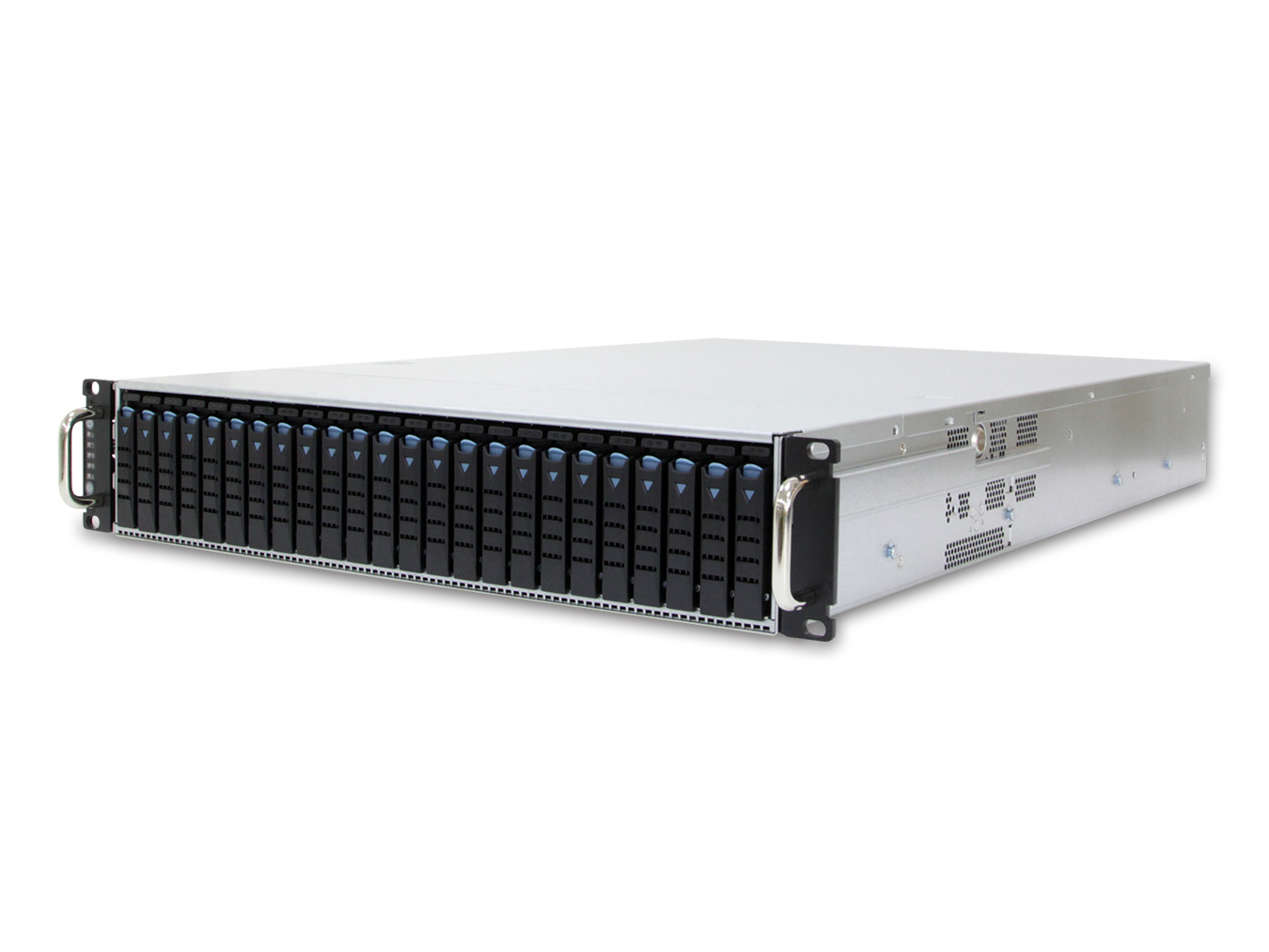

| Drive Bays |
External:
• 24 x 2.5" hot swap
• 2 x 2.5" hot swap (rear, 7mm)
|
| Backplane |
Option:
• 1 x 24-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 24-port 12Gb SAS backplane with 3 SFF-8643 connectors |
| Expansion Slots (PCIe 3.0) |
• 2 x16 slots (LP)
• 3 x8 slots (LP)
|
| System BIOS |
|
BIOS Type :
• AMI UEFI BIOS
|
BIOS Features :
• ACP
• PXE
• WOL
• AC loss recovery
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe Hotplug
|
| On-board Devices |
SATA/SAS:
•Intel® Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS) + 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x SFF-8643 mini-SAS HD (optional)
|
IPMI:
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
|
Network Controllers:
• Intel® PCH (Lewisburg) Integrated 10GbE LAN Controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicated management port
|
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp |

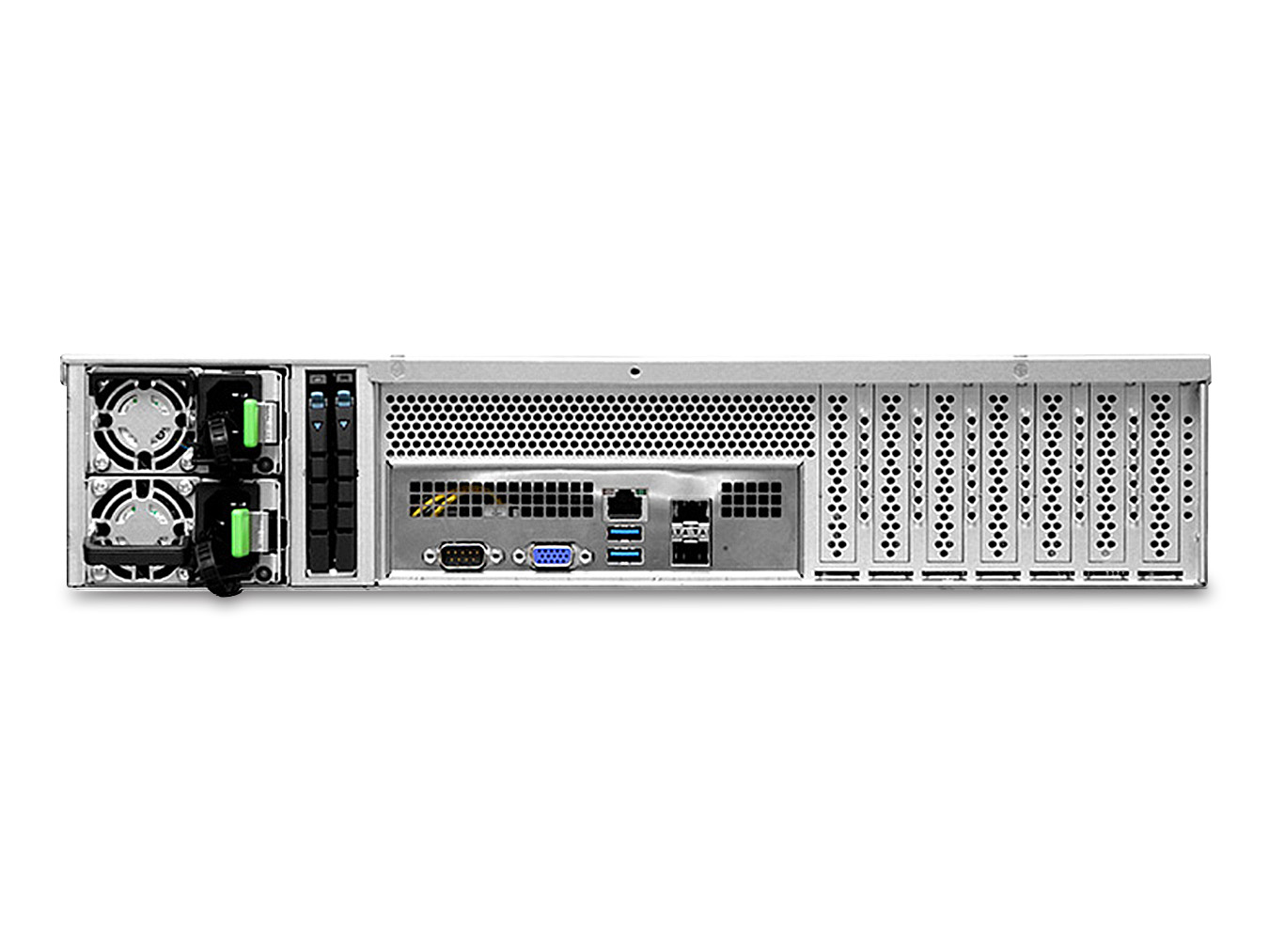

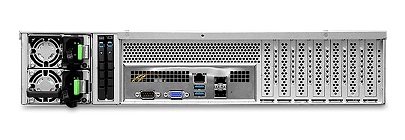

| Rear I/O |
LAN:
• 2 x 10GbE SFP+
• 1 x GbE RJ45 dedicated to BMC management |
USB:
2 x USB 3.0 Type A |
VGA:
1 x external DB-15 VGA port |
Serial Port:
1 x internal serial header |
|
| Power Supply |
800W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~240V,50/60Hz,10-5A
|
| System Cooling |
| 3 x 80x38mm hot swap fans |
| System Management |
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
• HTML5
• Redfish
|
| Environmental Specifications |
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
|
| Gross Weight (w/PSU & Rail) |
• 68.2lbs
|
| Packaging Dimensions (W x D x H) |
• 23.8" x 34.7" x 12.7"
|
| Mounting |
Standard : 28" tool-less slide rail
|
1U Rack Server
