| Dimensions (W x D x H) |
• 17.4" x 31.5" x 3.4"
|

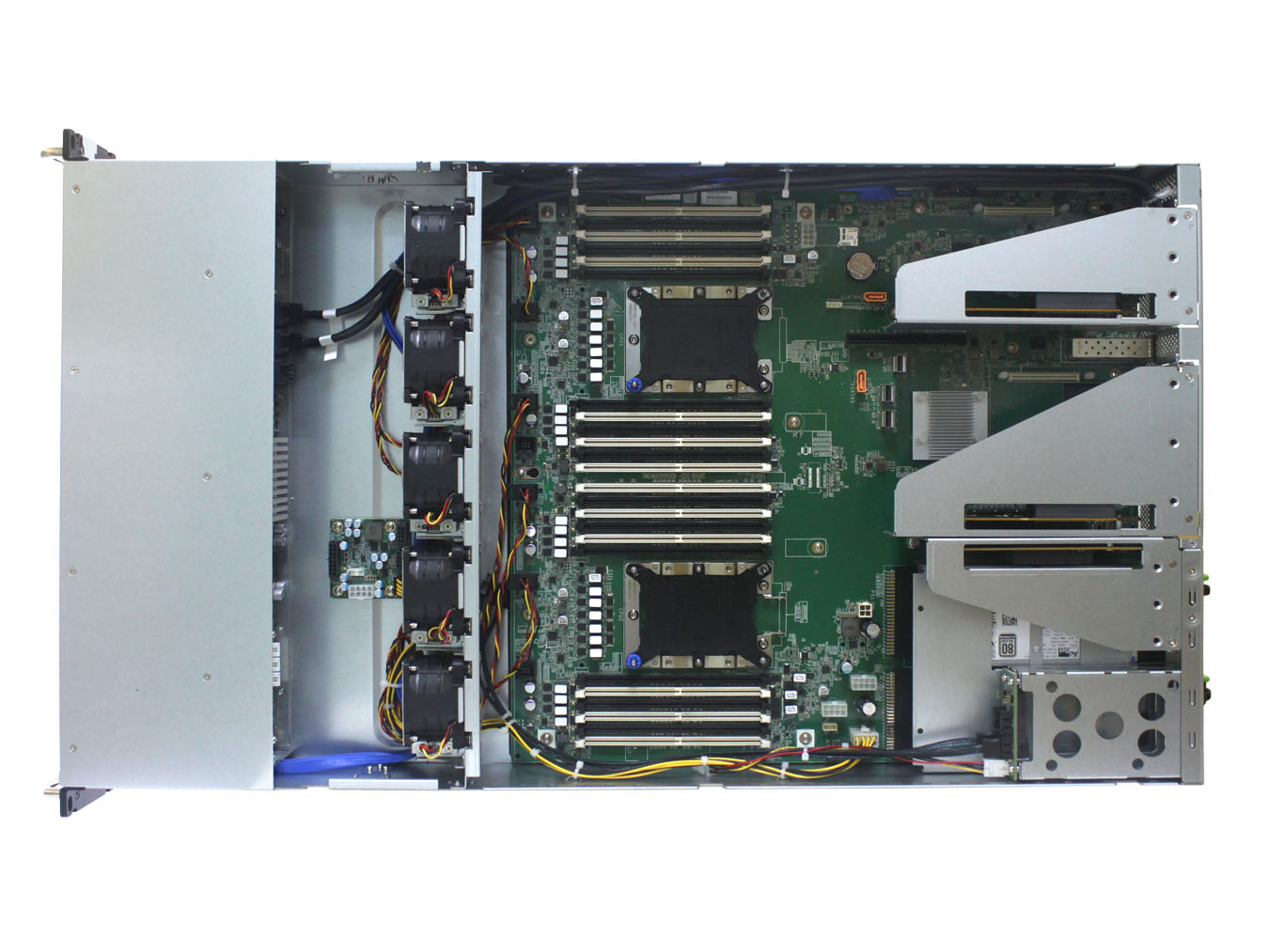

| Motherboard |
Server Board SBA2020
|
| Processor |
Processor Support :
• Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
• Supports CPU TDP up to 205W
*Please contact us for more information about optimized CPUs and specialized system. |
| UPI Speeds: 10.4 GT/s, 9.6 GT/s |
Socket Type : Socket P0 (LGA-3647 Socket)
|
| Chipset Support |
Intel® Lewisburg C620 series PCH
|
| System Memory |
• DDR4 2933/2666/2400 (1DPC/2DPC) MHz
• Total 24 memory slots ; 6 channel per CPU (2DPC)
• Up to 3TB 3DS ECC RDIMM/LRDIMM
• Intel® Optane™ DC Persistent Memory (Apache Pass) support
|
| Front Panel |
• System power on/off
• System reset
• 2 x USB 3.0 Type A
• System ID
|
| LEDs |
• Power status
• System alert
|

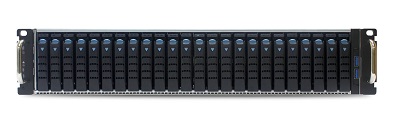

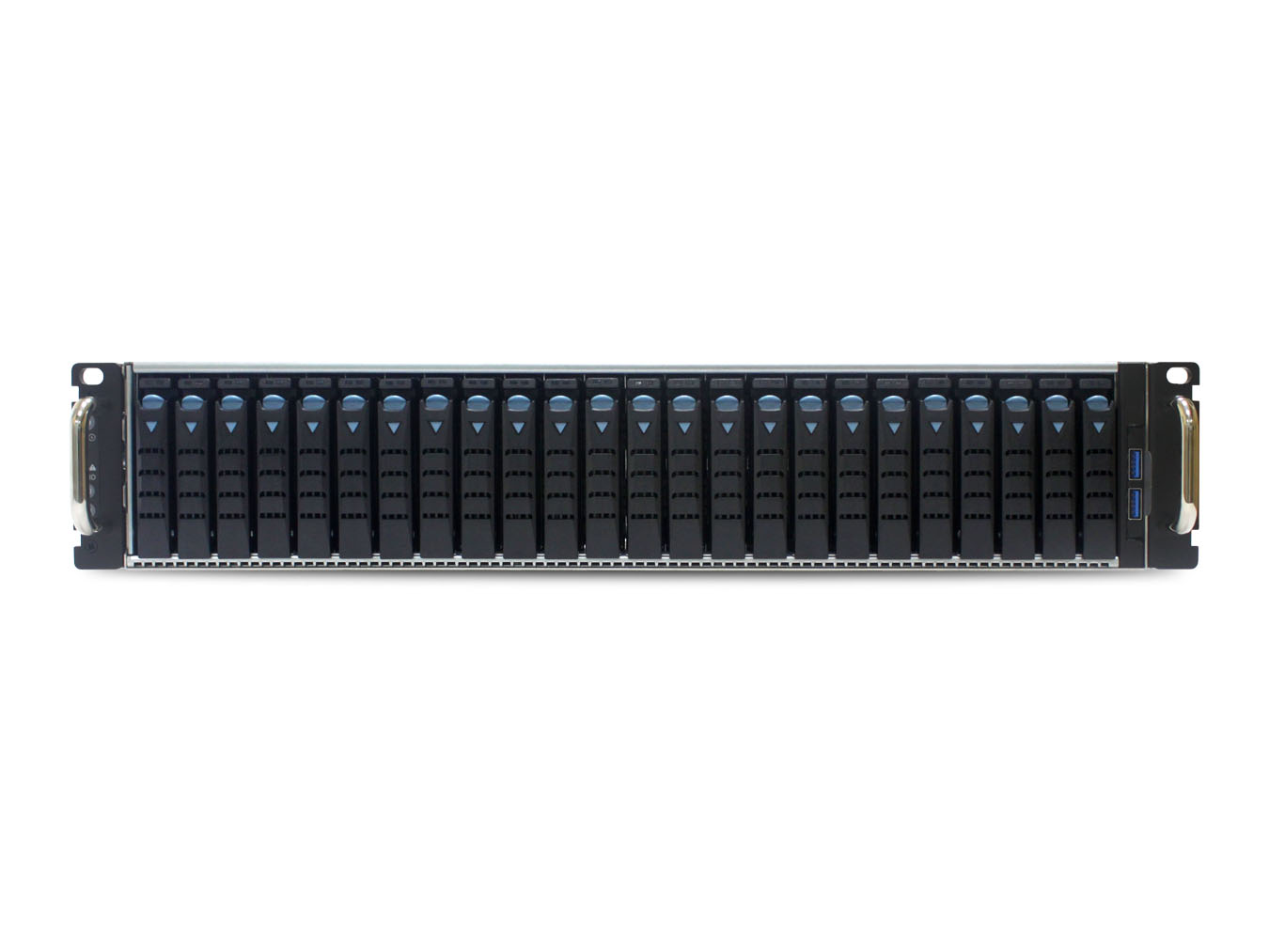

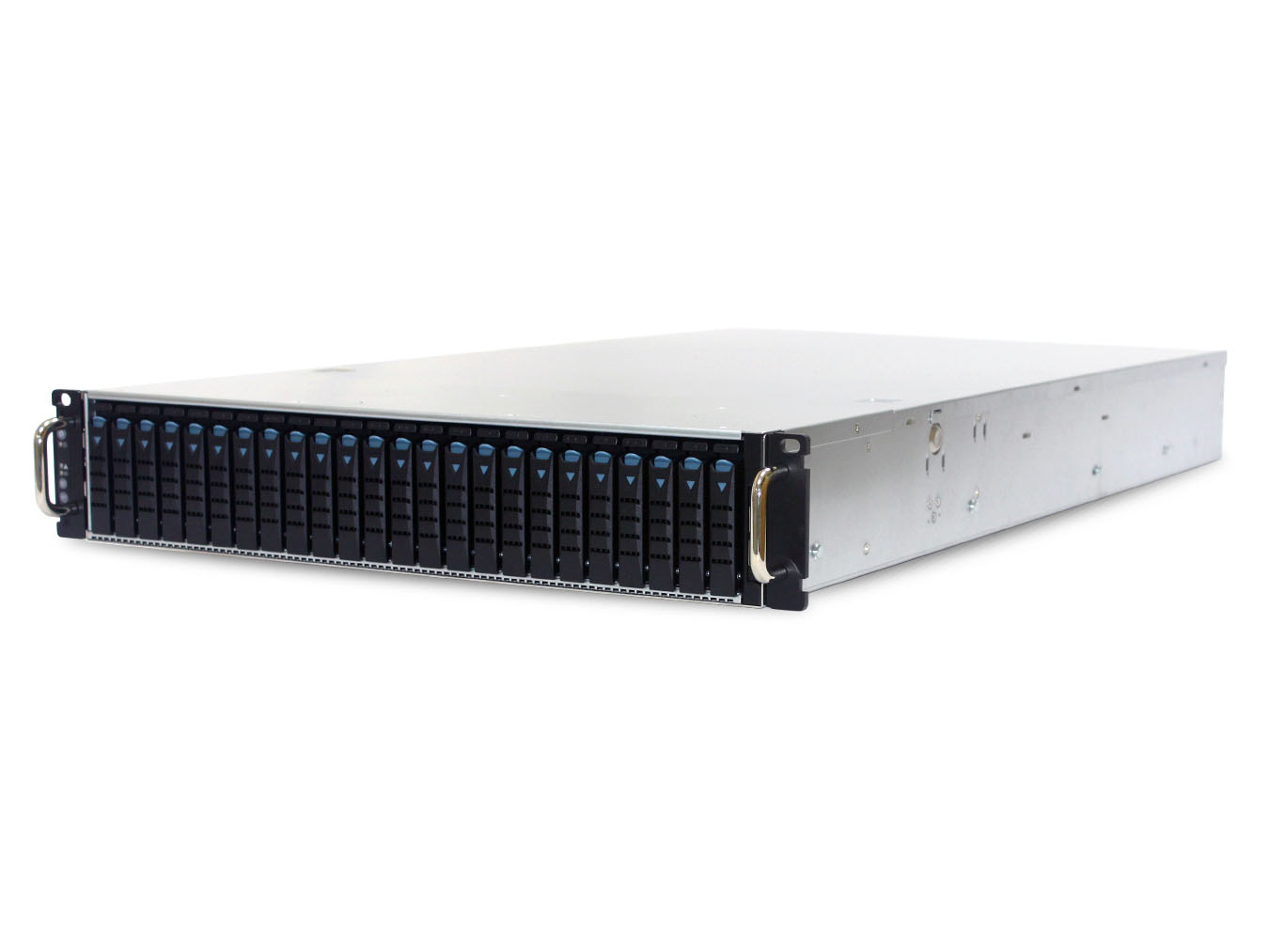

| Drive Bays |
External:
24 x 2.5" hot swap
*Notes: Discrete SAS HBA/RAID card for the front drives connection is required. Sold Separately.
2 x 2.5'' hot swap (15mm, rear)
|
| Backplane |
Options:
• 1 x 24-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors (BTO)
• 1 x 24-port 12Gb SAS backplane with 3 SFF-8643 connectors |
| Expansion Slots (PCIe 3.0) |
• 6 x8 PCIe slots ( 4 LP, 2 FHHL)
• 2 x OCP Mezzanine support:
1 PCIe Gen3 x16 (V2.0)
1 PCIe Gen3 x8 (V1.2))
|
| Riser Card (included) |
2 x8 PCIe slots + 2 x8 PCIe slots
|
| System BIOS |
|
BIOS Type :
• AMI UEFI BIOS
|
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
|
| On-board Devices |
SATA:
Intel® Lewisburg PCH on-chip solution
• 12 x SATA 6.0 Gb/s (by 3 x Slimline)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• RAID 0, 1, 5, 10 support by Intel RSTe
|
IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
|
Network Controller :
• Intel® PCH (C622) Integrated 10GbE LAN Controller support 2 x 10GbE SFP+
• Networking options provided via OCP Mezzanine extension
• Broadcom BCM54612 (GbE) for BMC dedicated management port
|
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp |

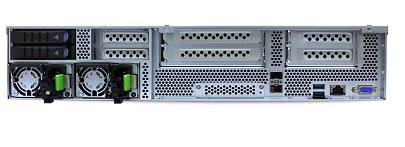

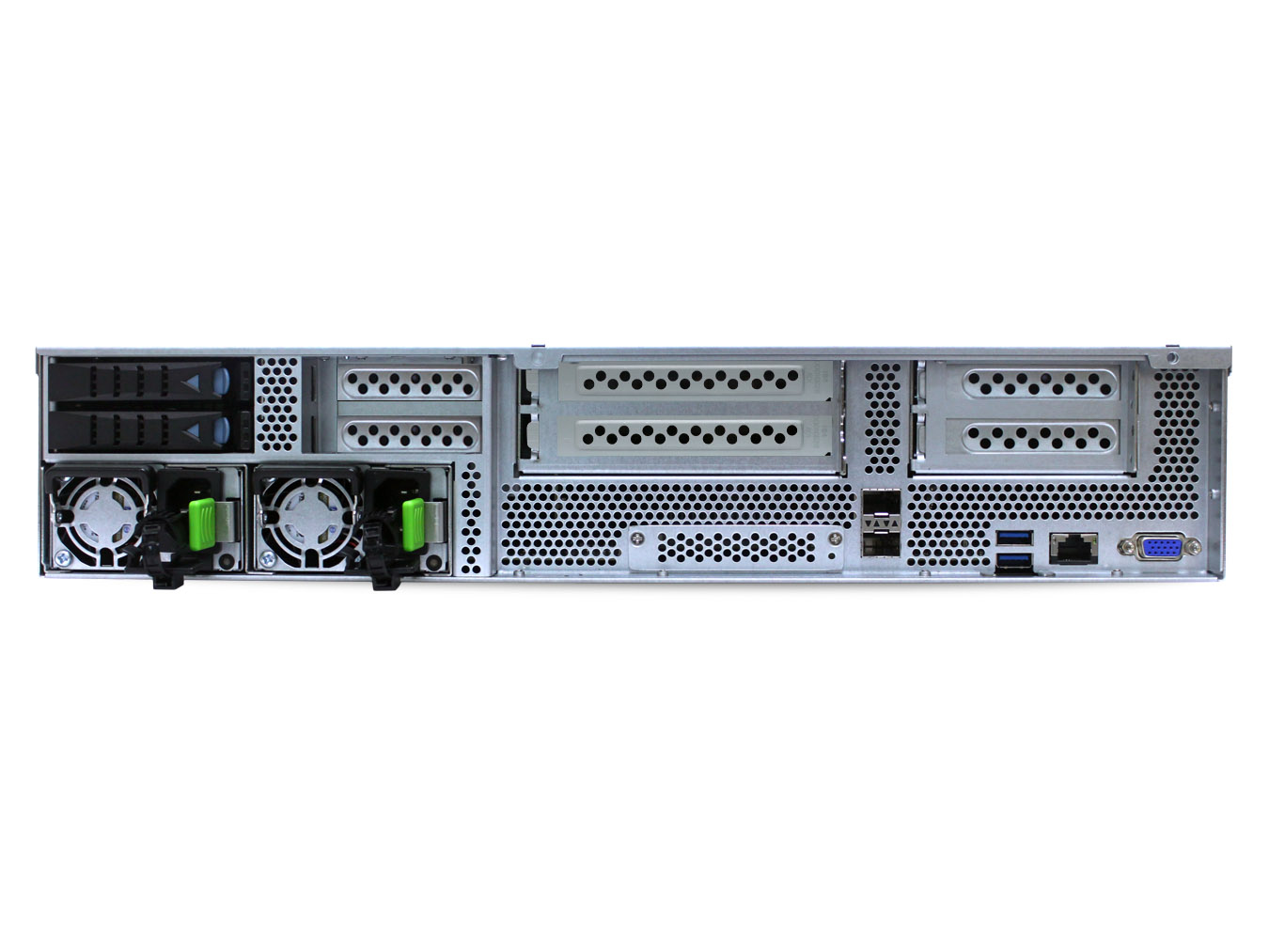

| Rear I/O |
LAN:
• 2 x 10GbE SFP+
• 1 x GbE RJ45 dedicated to BMC management |
USB:
2 x USB 3.0 Type A |
VGA:
1 x external DB-15 VGA port |
Serial Port:
1 x internal serial header |
Other :
1 x TPM connector
|
|
| Power Supply |
550W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~240V,50/60Hz,7-3.5A
800W 1+1 redundant power supply 80+ Platinum (BTO)
• AC INPUT : 100~240V,50/60Hz,10-5A
|
| System Cooling |
| 5 x 60x38mm hot swap fans |
| System Management |
• IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
|
| Environmental Specifications |
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
|
| Gross Weight (w/PSU & Rail) |
• 63.9lbs
|
| Packaging Dimensions (W x D x H) |
• 23.7" x 42.7" x 12.5"
|
| Mounting |
Standard : 28" tool-less slide rail
|
