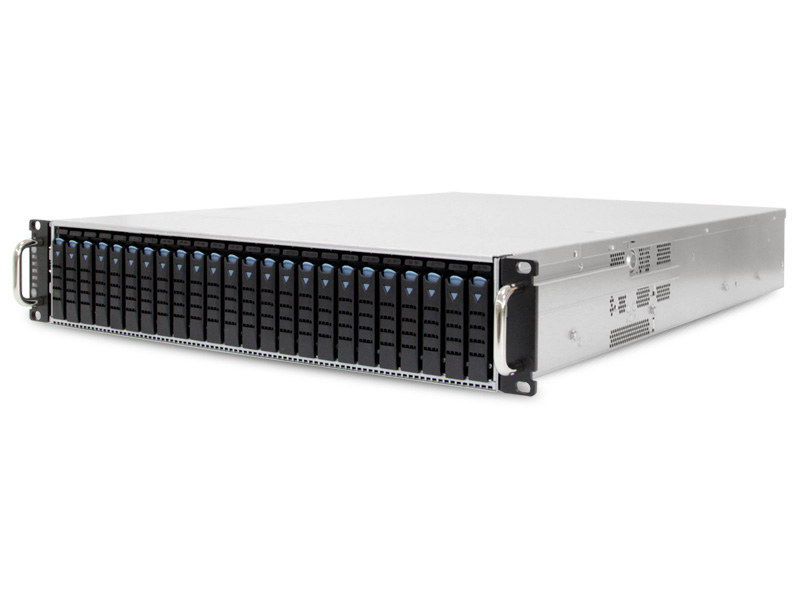

| Dimensions (W x D x H) |
• 17" x 25.4" x 3.5"
|

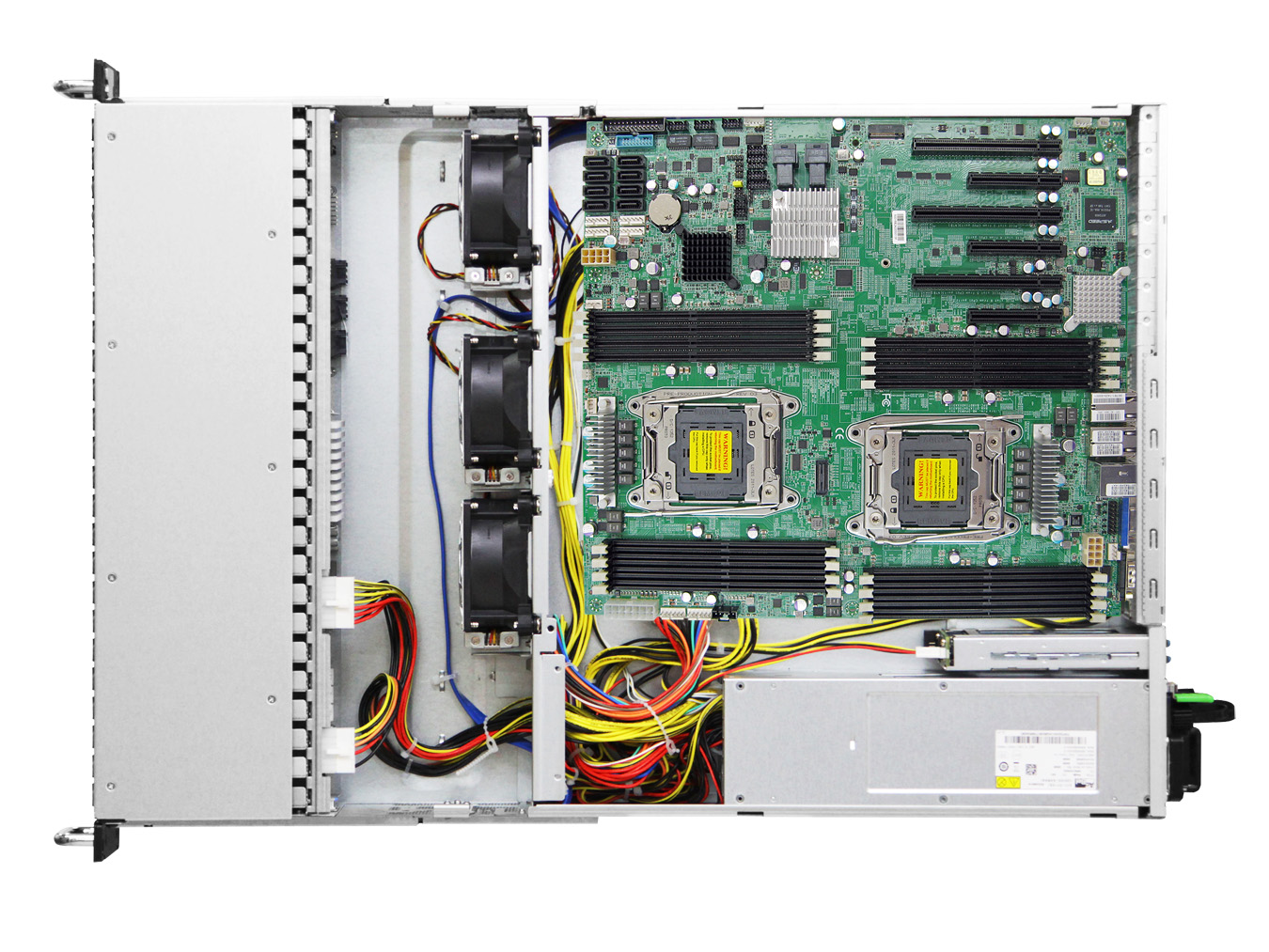

| Motherboard |
Server Board SBA2021
|
| Processor |
Processor Support :
• Two Intel® Xeon® Processors E5-2600 v3/v4 product family
• Supports CPU TDP up to 85W |
| QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s |
| Socket Type : Socket R3 (FCLGA2011-3) |
| Chipset Support |
Intel® C612 Chipset
|
| System Memory |
• 16 DIMM slots across 8 memory channels
(4 memory channels per CPU; 2DPC)
- 512GB DDR4 2400/2133 RDIMM DRx4
- 128GB DDR4 2400/2133 RDIMM SRx4
- 1024GB DDR4 2400/2133 LRDIMM QRx4
- 2048GB DDR4 2400/2133 LRDIMM 3DS 8Rx4
|
| Front Panel |
• System power on/off
• System reset
• 1 x USB 3.0 Type A
• System ID
|
| LEDs |
• Power status
• System alert
• LAN activity
• Drive activity
• System ID
|

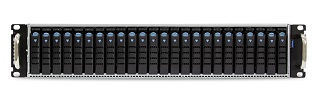

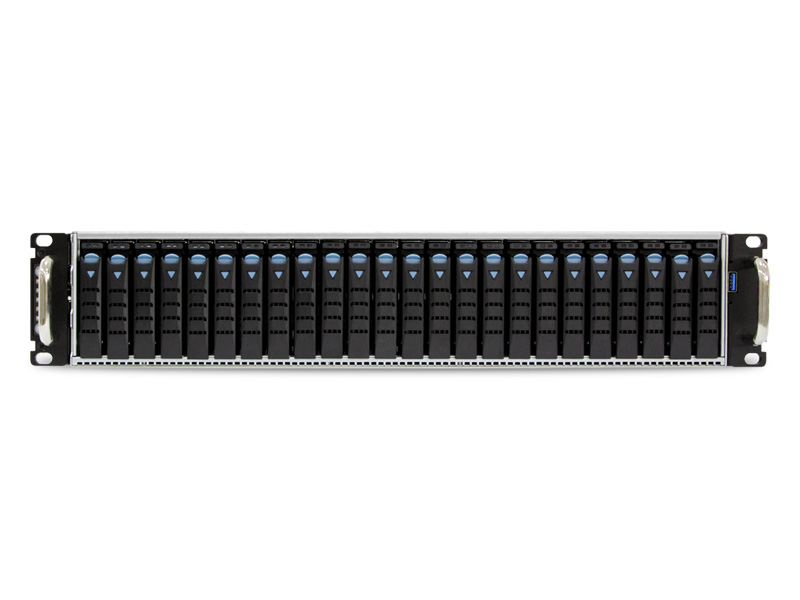

| Drive Bays |
External : 24 x 2.5” hot swap (front)
Options -
External: 2 x 2.5” hot swap (7mm, rear)
Internal: 2 x 2.5” internal
|
| Backplane |
Options:
• 1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
• 1 x 24-port 12Gb SAS backplane with 6 SFF-8643 connectors |
| Expansion Slots (PCIe 3.0) |
• 2 x16 slots (LP)
• 1 x16 slot (x8 mode w/ IOC SKU) (LP)
• 3 x8 slots (LP)
|
| System BIOS |
|
BIOS Type :
• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
|
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB |
| On-board Devices |
SATA :
Built-in SATA controller with RAID support on Intel® C612 Chipset
• 8 x 7pin SATA connectors
• 1 x M.2 with SATA/PCIe X4 support
|
IPMI :
Aspeed AST2400 Advanced PCIe G raphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support |
Network Controller :
• Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
[Or Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2). Minimum Order Quantity required.]
• Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
• Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
• Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
|
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp |

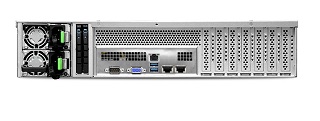

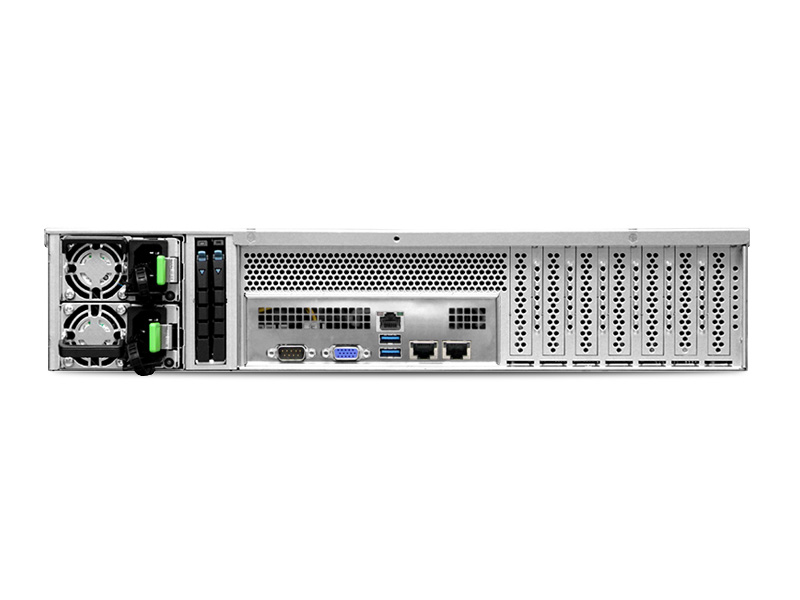

| Rear I/O |
• 2 x 10GbE RJ45 (or factory option: 2 x GbE)
• 2 x additional GbE RJ45: optional in PCIe bracket area
• 1 x GbE RJ45 dedicated to BMC management
• 2 x USB 3.0 Type A
• 1 x external DB-15 VGA port
• 1 x external DB-9 COM port |
|
| Power Supply |
800W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~240V,50/60Hz,10-5A
|
| System Cooling |
| 3 x 80x38mm hot swap fans |
| System Management |
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
|
| Environmental Specifications |
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
|
| Gross Weight (w/PSU & Rail) |
• 56lbs
|
| Packaging Dimensions (W x D x H) |
• 23.8" x 34.7" x 12.7"
|
| Mounting |
Standard : 28" tool-less slide rail
|
