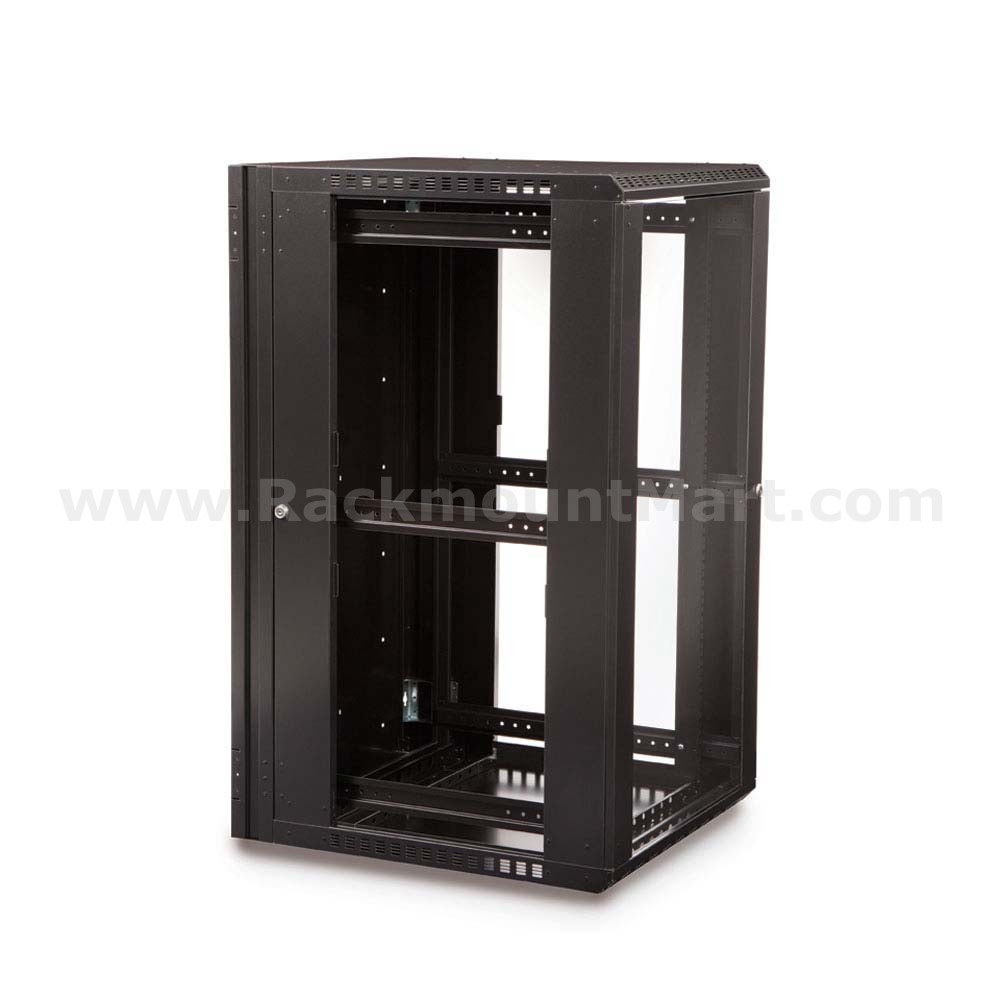

22U Swing-Out Wall Mount Cabinet
Model WB1214

TAA Compliant


                                                                                     MADE IN THE USA

The Swing-Out Enclosures are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don't work around the rack... get a rack that works around you!

  • 150 lbs weight capacity
  • 1 set of cage nut style mounting rails
  • Black powder coated steel
  • 90° positive stop swing-out
  • Mounting depth: 22.5"
  • Locking front door and side panels
  • EIA compliant
  • Made in the USA




Features
Economical Design   Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.

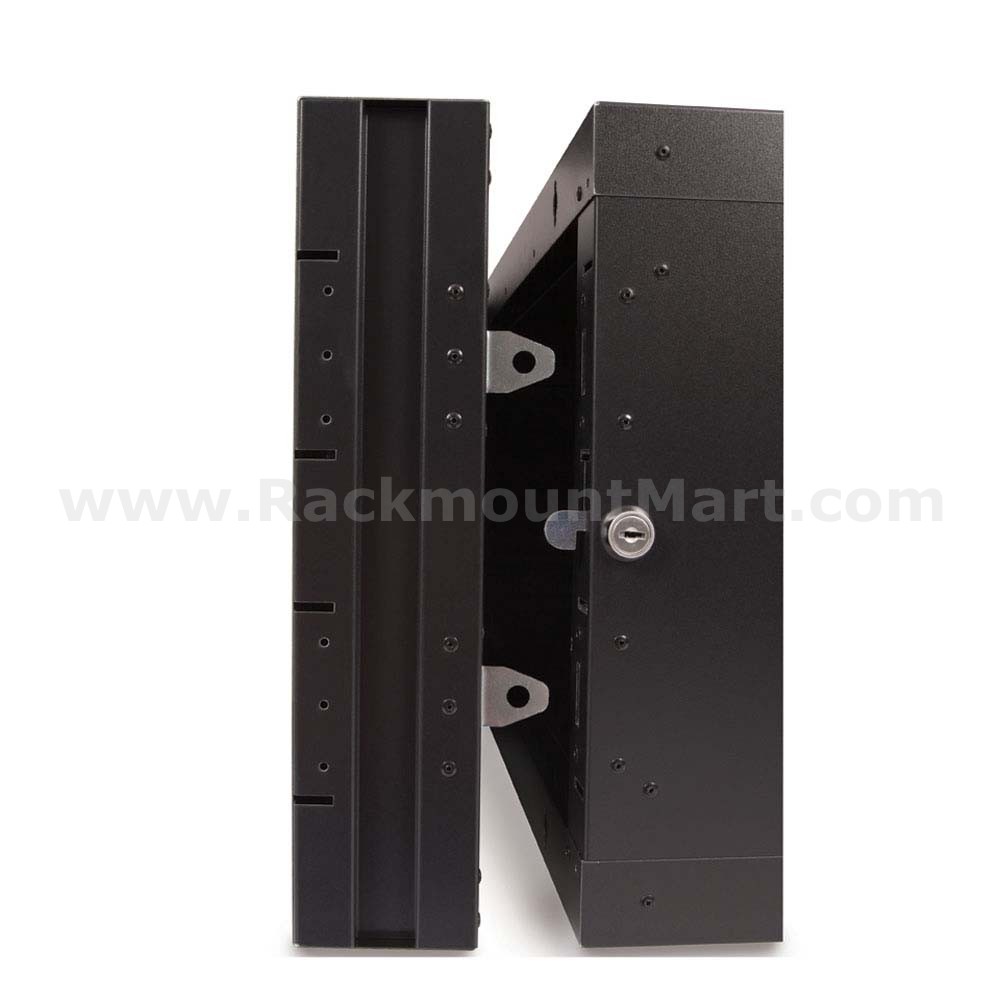

90 Degree Swing-Out   Lockable enclosure can be swung out 90 from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing and managing cables.

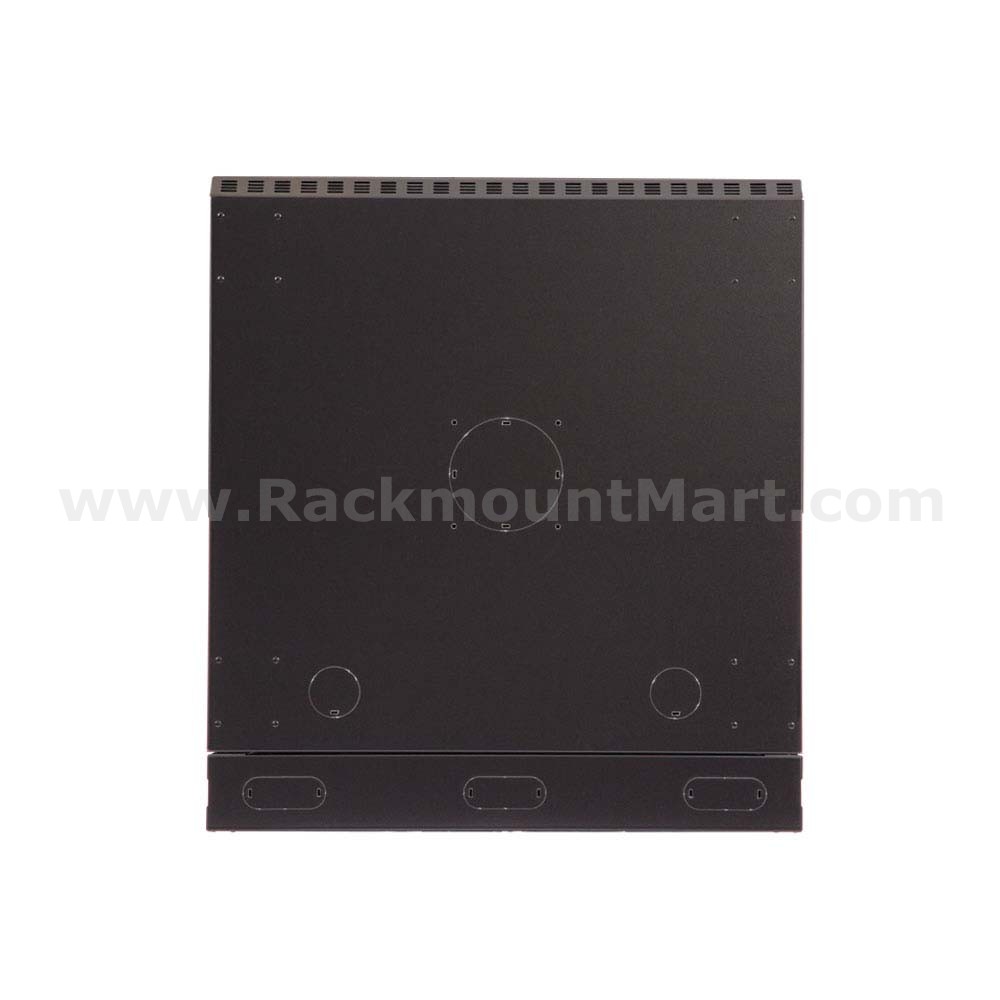

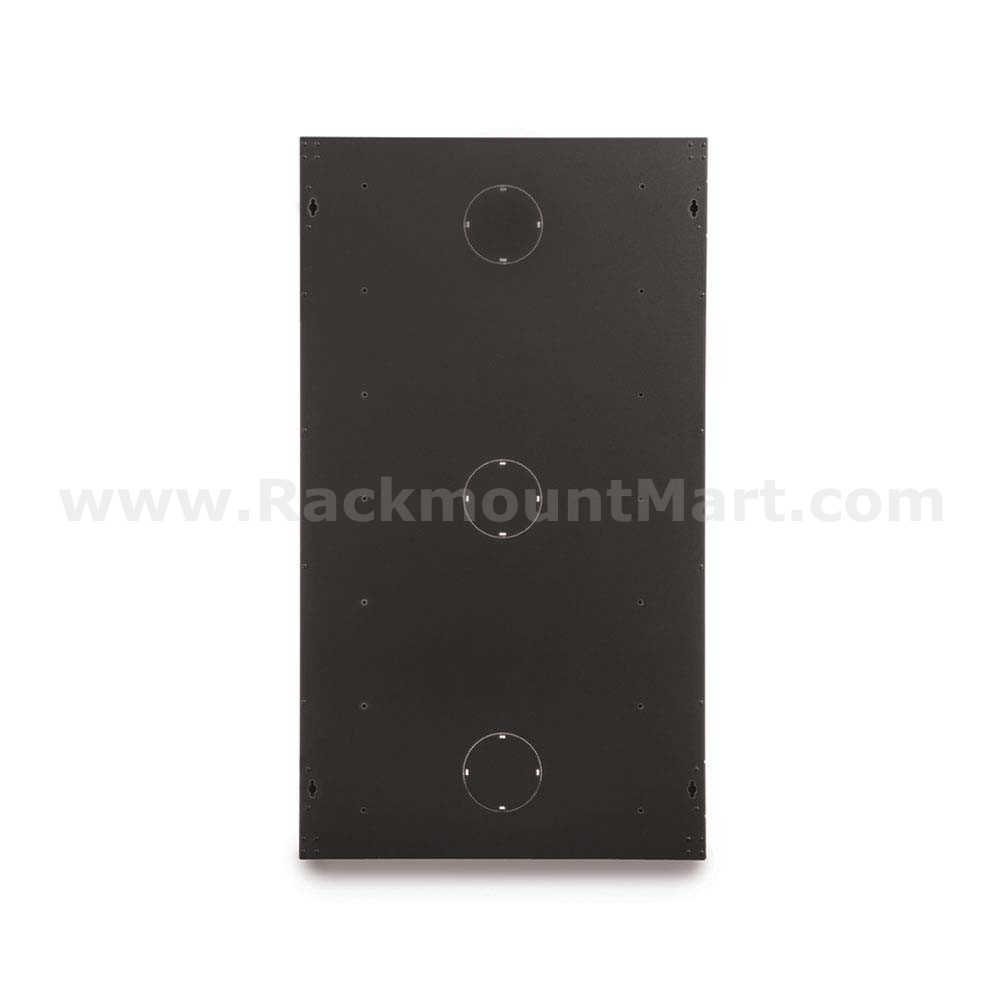

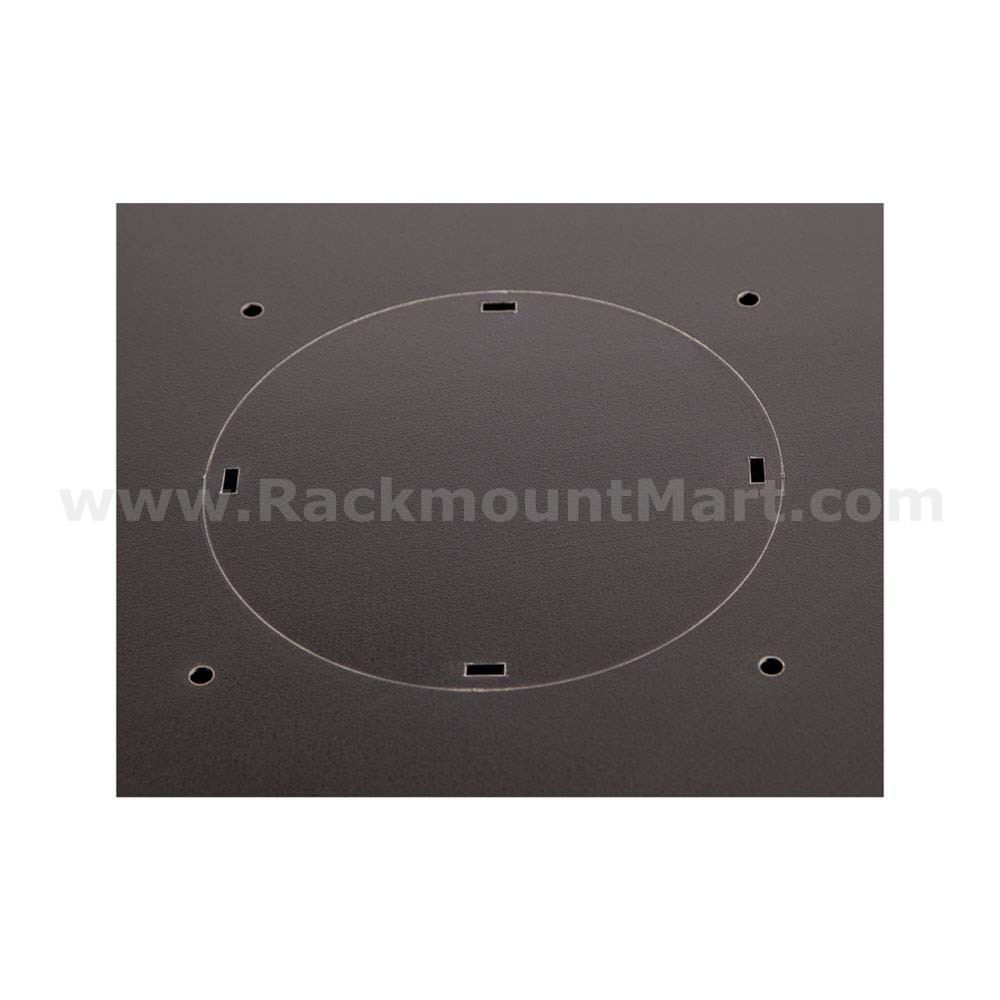

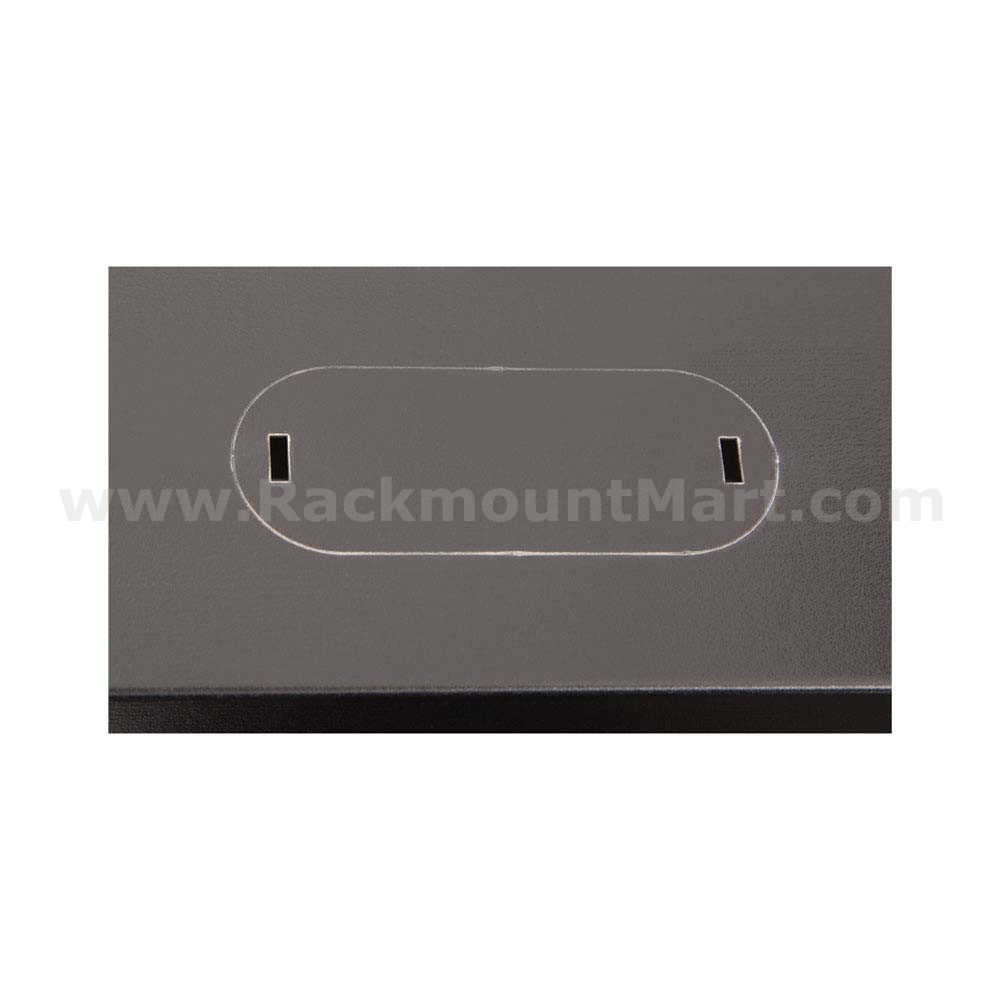

Numerous Laser Knock-Outs   Strategically placed laser knock-outs provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.

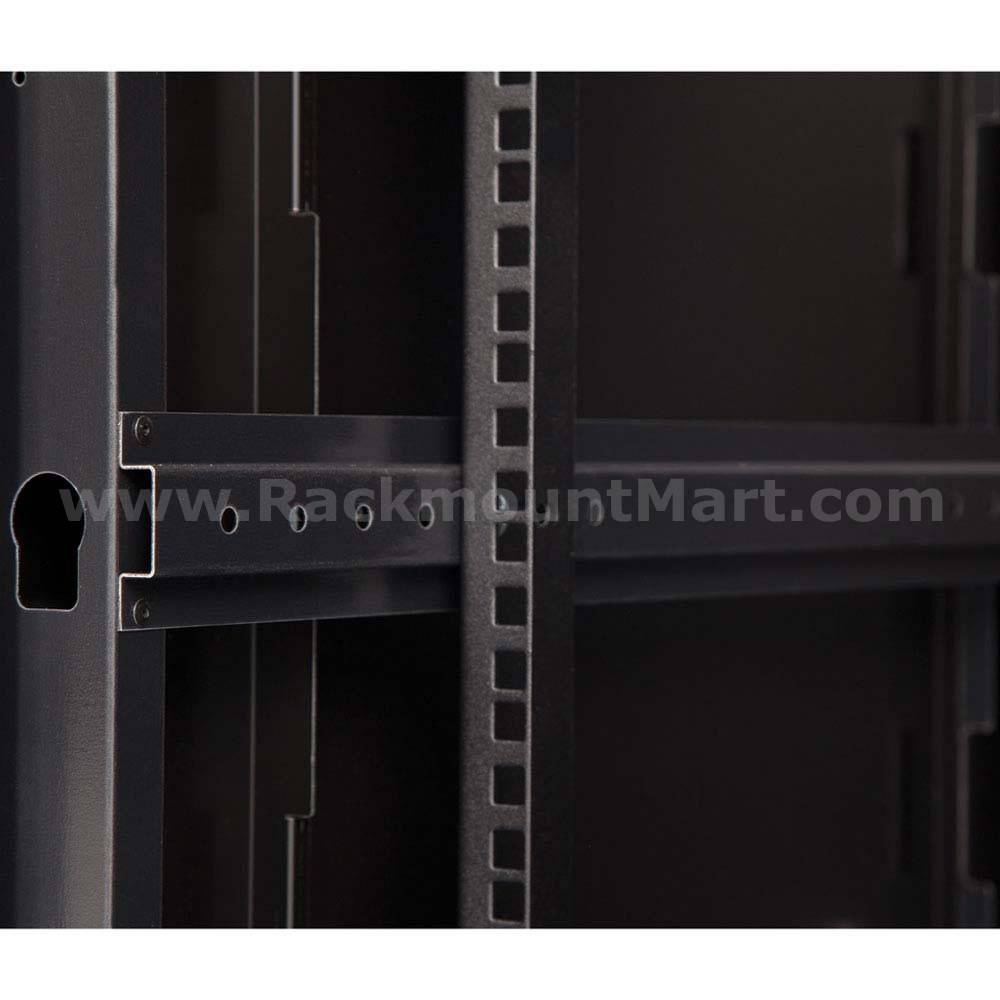

Adjustable Rails   The included set of cage nut style rails fully adjust in 1 inch increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

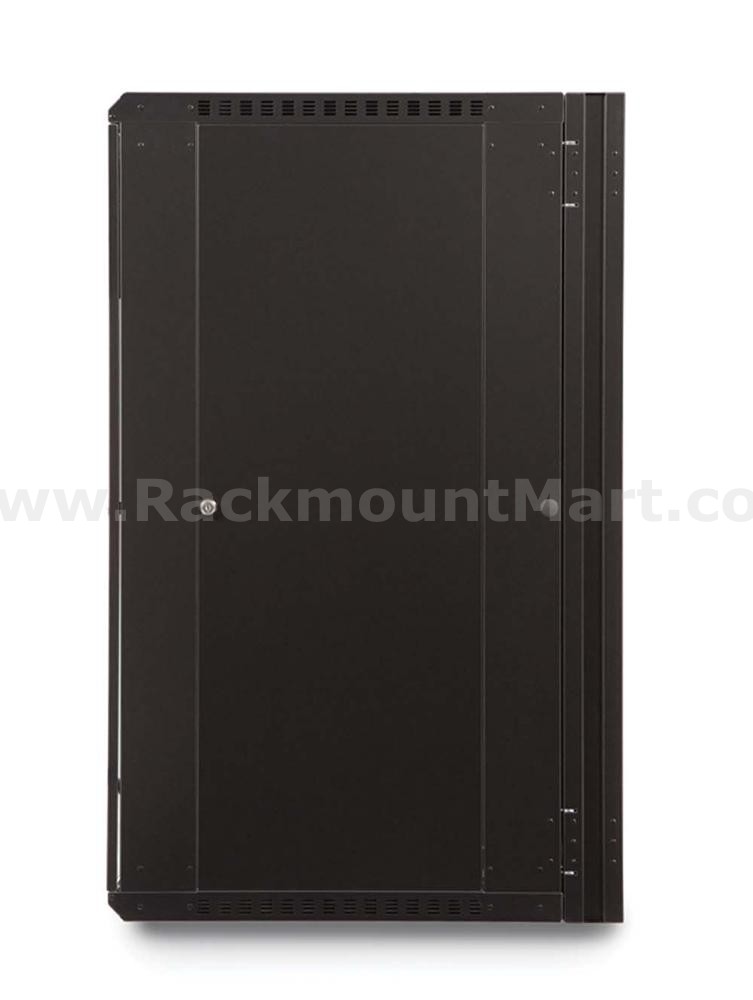

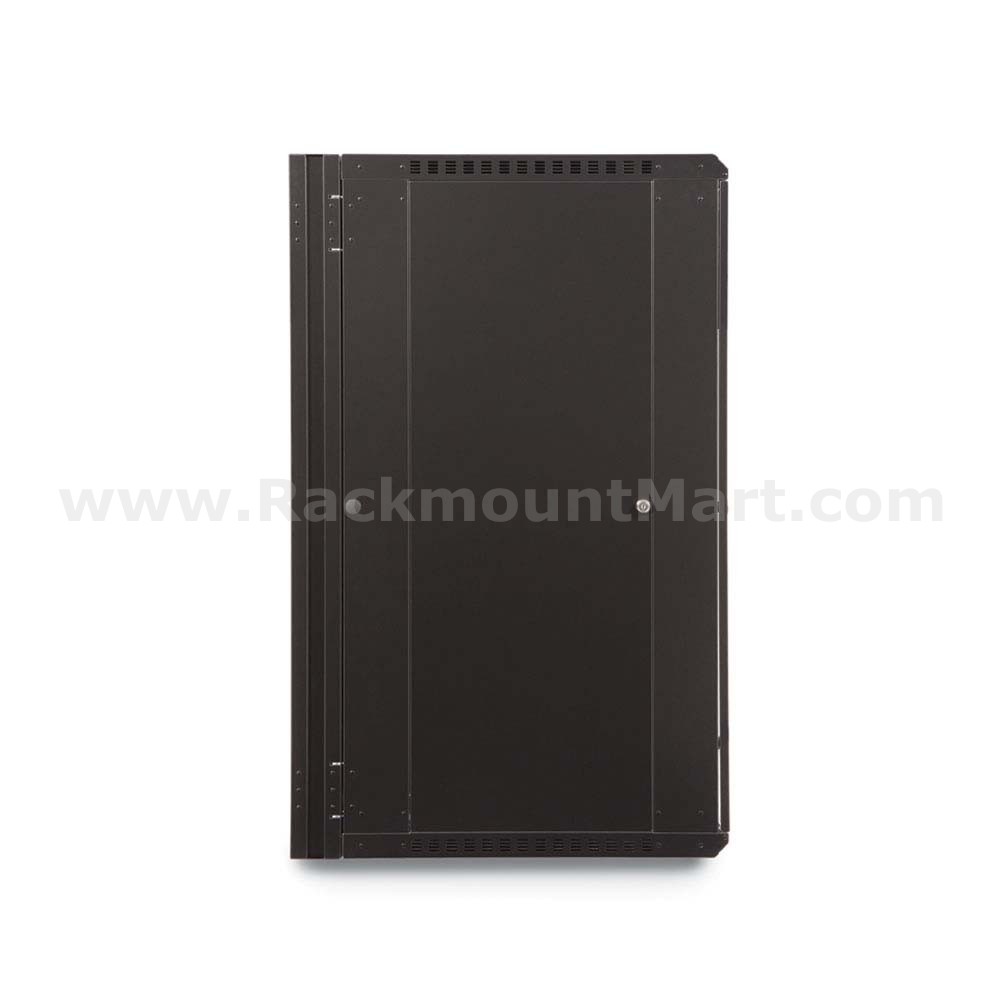

Removable Side Panels   Easy-to-remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

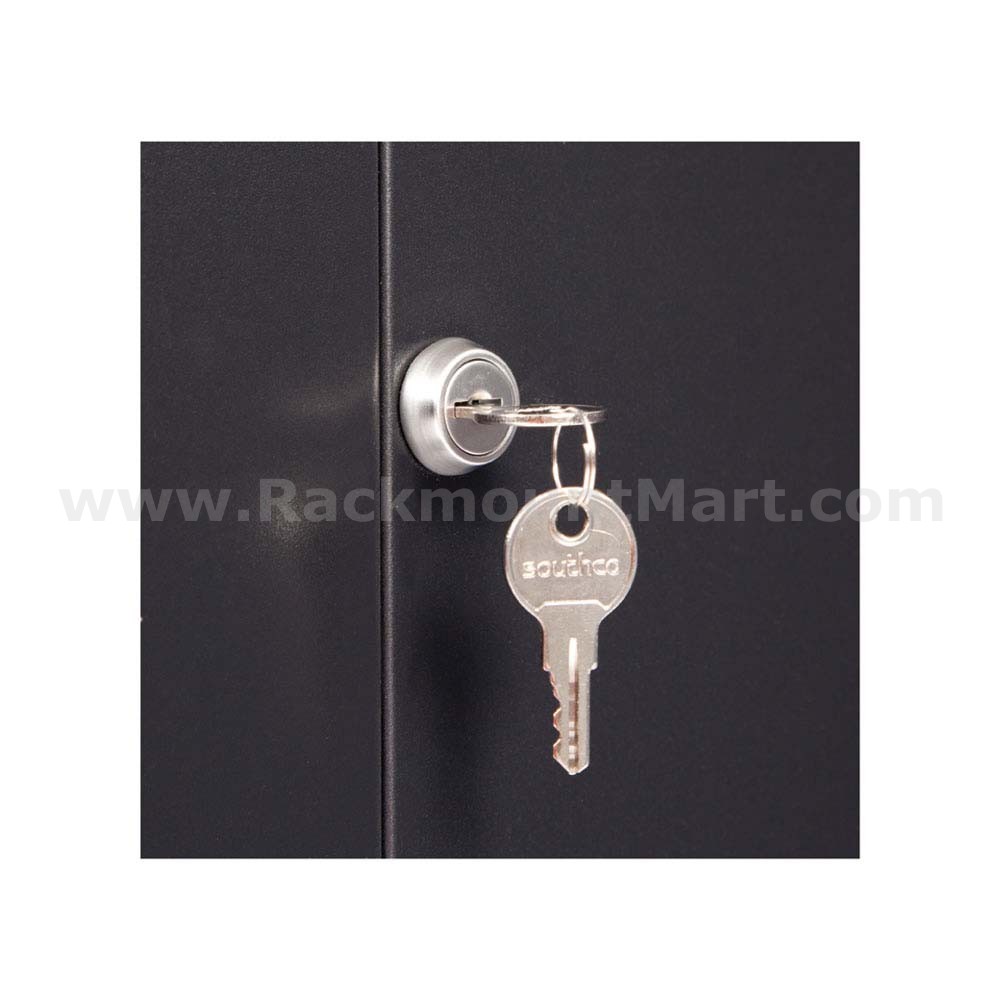

Locking Doors and Side Panels   The locking feature provides additional security for all three access points, to keep your valuable rack mounted equipment safe from unauthorized use.
Reversible Glass Door   Tempered safety glass door can be removed or reversed to be left or right mounted, to accommodate your particular installation.
Specifications
  • Width : 23.50"
  • Depth : 26.64" (Usable 22.50")
  • Height : 42.21"
  • Color : Black
  • Weight : 96 lbs.

Gallery



Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
22U PT-SRL-22U-WKH PT-SRL-22U-WKH-T
Optional Caster Base
  RA2205
Optional Combination Lock
  MP1202-W

 Ordering Information

Part Number Description
 WB1214
22U Swing-Out Wall Mount Cabinet - Glass Door
 WB1214-SD
22U Swing-Out Wall Mount Cabinet - Solid Door
 WB1214-VD
22U Swing-Out Wall Mount Cabinet - Vented Door
