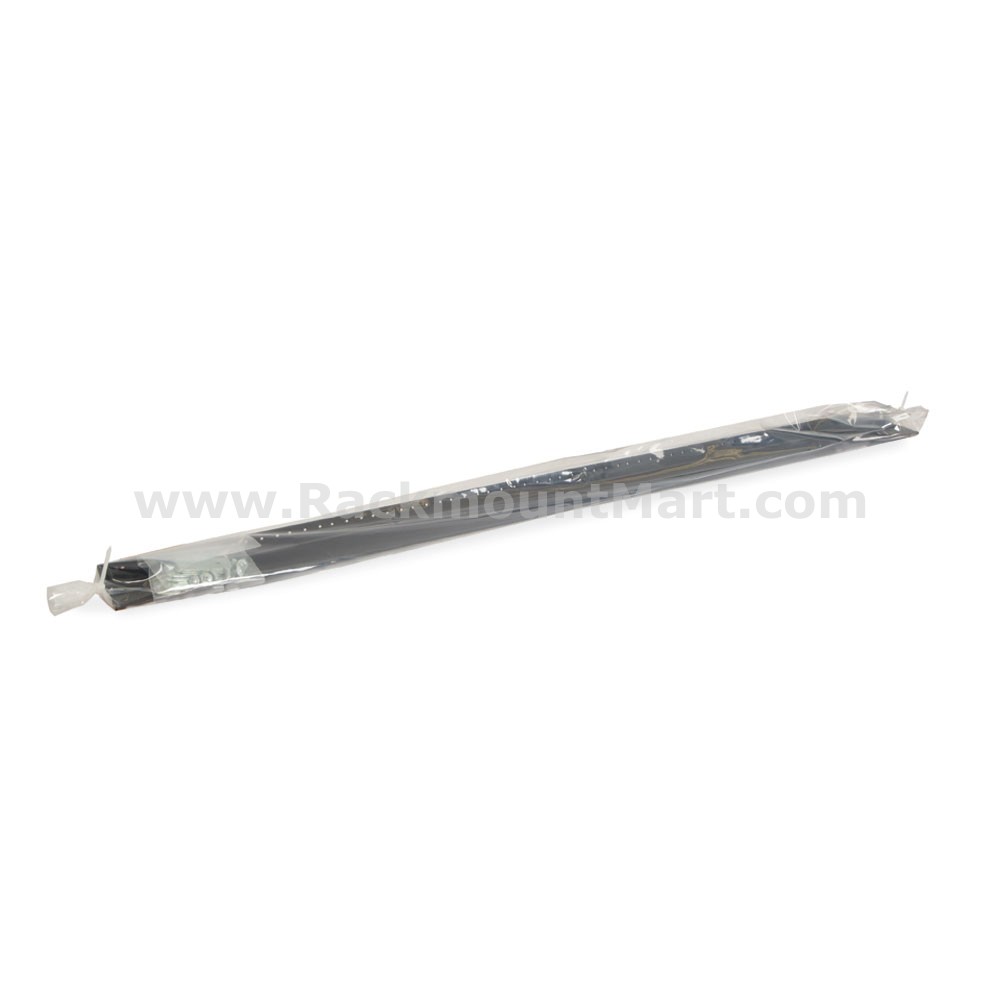

22U Wall Mount Vertical Rail Kit – 10-32 Tapped
Model  PT-SRL-22U-WKH-T

TAA Compliant


                                                                                     MADE IN THE USA

The 22U Wall Mount Vertical Rail Kit can be installed in either the Fixed or Swing-Out Wall Mount Cabinets to provide a 10-32 tapped rail solution. This tapped rail kit can replace the cage nut style rails that are included with the Fixed and Swing-Out Cabinets for installers who prefer a tapped rail mounting solution.
  • Fully adjustable
  • Includes two 22U 10-32 tapped rails
  • Can be used with the 22U Fixed or 22U Swing-Out Wall Mount Cabinet
  • Installation hardware included
  • Made in the USA




Features
10-32 Tapped Rail Kit   Many installers enjoy the convenience of pre-tapped mounting rails. A tapped mounting rail features holes that contain internal threads. These threaded holes accept rack screws without the need for additional hardware such as cage nuts. This mounting style requires less hardware and less installation time.
Specifications
  • Width : 0.912"
  • Depth : 2"
  • Height : 36.75"
  • Material(s) : CRS (Cold Rolled Steel)
  • Color : Black Powder Coated Finish
  • Weight : 6.00 lbs.
Package Content
  • Qty 2 - 22U Vertical Rails
  • Qty 1 - Assembly Parts Pack

Gallery


 Ordering Information

Part Number Description
 PT-SRL-22U-WKH-T
22U Wall Mount Vertical Rail Kit – 10-32 Tapped
