Basic Rack PDU
Model RAH5009-C-50A-CS
Rack PDU, Basic, Zero U, 14.4kW, 208 V, (6) C19 & (3) C13
|
Basic Rack PDU, Input: 208V 3PH, Input Connections: CS8365, Cord Length:6 feet ( 1.83 meters ), Output: 208V, Output Connections: IEC 320 C13,IEC 320 C19
Includes : Installation guide, Rack Mounting brackets, Toolless Mounting Kit
|
|
| Features |
| Toolless Rack Mounting Capabilities |
|
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure. |
| Low Cost Power Distribution |
|
Provides a number of outlets to bring power to rack equipment at an affordable price. |
| Vertical Mounting Capabilities |
|
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. |
|
| Specifications |
| Output |
| Nominal Output Voltage |
|
208V |
| Maximum Total Current Draw per Phase |
|
20A |
| Output Connections |
|
(3) IEC 320 C13 |
 |
| (6) IEC 320 C19 |
 |
| Overload Protection |
|
Yes |
| Input |
| Nominal Input Voltage |
|
208V 3PH |
| Input Frequency |
|
47 - 63 Hz |
Regulatory Derated Input Current
(North America) |
|
40A |
| Input Connections |
|
CS8365 |
| Cord Length |
|
1.83 meters |
| Number of Power Cords |
|
1 |
| Maximum Line Current per phase |
|
40A |
| Maximum Input Current per phase |
|
50A |
| Physical |
| Net Weight |
|
7.25 KG |
| Maximum Height |
|
927.00 mm |
| Maximum Width |
|
55.00 mm |
| Maximum Depth |
|
88.00 mm |
| Shipping Height |
|
1054.00 mm |
| Shipping Width |
|
286.00 mm |
| Shipping Depth |
|
70.00 mm |
| Color |
|
Black |
| Environmental |
| Operating Environment |
|
-5 - 45 °C |
| Operating Relative Humidity |
|
5 - 95% |
| Operating Elevation |
|
0-3000 meters |
| Storage Temperature |
|
-25 - 65 °C |
| Storage Relative Humidity |
|
5 - 95% |
| Storage Elevation |
|
0-15000 meters |
| Conformance |
| Regulatory Approvals |
|
cUL Listed, CSA C22.2 No. 60950-1-03, METI Denan, UL 60950-1, UL Listed |
| Sustainable Offer Status |
| RoHS |
|
Compliant |
|
|
Basic Rack PDU Features & Benefits |
| Rack-Mountable |
|
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. |
| Single input power source |
|
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. |
| Wide range of input and output connections |
|
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip. |
| Low Cost Power Distribution |
|
Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
| Documentation |
 Rack PDU Accessories Circuit Breaker Operation (Sheet)
|
Drawing
|
|

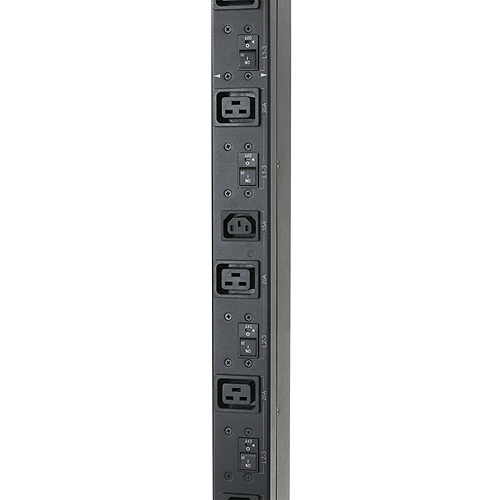

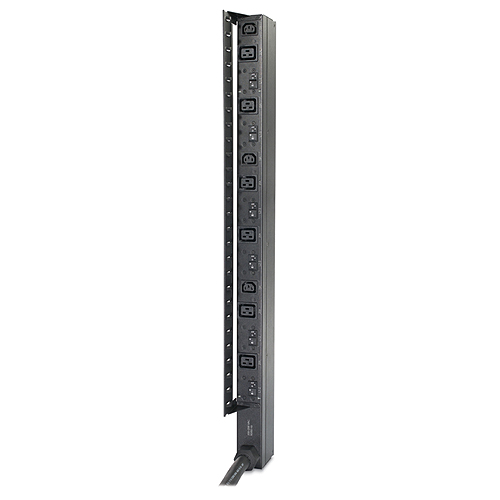

Gallery
Ordering Information
| Part # |
Description |
RAH5009-C-50A-CS
Price : Please call |
Rack PDU, Basic, Zero U, 14.4kW, 208 V, (6) C19 & (3) C13
|
