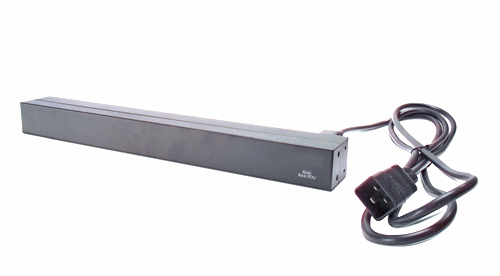

Basic Rack PDU
Model RA5112-C13-16A-C20
Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13
|
Basic Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC-320 C20, Cord Length:8.2 feet ( 2.5 meters ), Output: 208V, 230V, Output Connections: IEC 320 C13
Includes : Installation guide, Rack Mounting brackets
|
|
| Specifications |
| Output |
| Nominal Output Voltage |
|
208V, 230V |
| Maximum Total Current Draw per Phase |
|
16A |
| Output Connections |
|
(12) IEC 320 C13 |
 |
| Input |
| Nominal Input Voltage |
|
200V, 208V, 230V |
| Input Frequency |
|
50/60 Hz |
| Input Connections |
|
IEC-320 C20 |
|
| Cord Length |
|
2.5 meters |
| Number of Power Cords |
|
1 |
| Maximum Input Current per phase |
|
16A |
| Load Capacity |
|
3680 VA |
| Physical |
| Net Weight |
|
2.05 KG |
| Maximum Height |
|
44.00 mm |
| Maximum Width |
|
447.00 mm |
| Maximum Depth |
|
57.00 mm |
| Shipping Height |
|
70.00 mm |
| Shipping Width |
|
464.00 mm |
| Shipping Depth |
|
229.00 mm |
| Color |
|
Black |
| Environmental |
| Operating Environment |
|
0 - 45 °C |
| Operating Relative Humidity |
|
0 - 95% |
| Operating Elevation |
|
0-3000 meters |
| Storage Temperature |
|
-25 - 65 °C |
| Storage Relative Humidity |
|
0 - 95% |
| Storage Elevation |
|
0-15000 meters |
| Conformance |
| Regulatory Approvals |
|
cUL Listed, CE, Queensland Australia, UL 60950, UL Listed, VDE |
| Sustainable Offer Status |
| RoHS |
|
Compliant |
| Other Environmental Compliance |
|
China RoHS |
|
|
Basic Rack PDU Features & Benefits |
| Rack-Mountable |
|
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. |
| Single input power source |
|
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. |
| Wide range of input and output connections |
|
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip. |
| Low Cost Power Distribution |
|
Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
| Documentation |
 Drawing
|
User manual
|
|
Gallery
Ordering Information
| Part # |
Description |
RA5112-C13-16A-C20
Price : Please call |
Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13
|
