Basic Rack PDU
Model RA5106-C19-32A-IEC
Rack PDU, Basic, 1U, 22kW, 400V, (6) C19
|
Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 32A 3P+N+PE, Cord Length:8 feet ( 2.44 meters ), Output: 230V, Output Connections: IEC 320 C19
Includes : Installation guide
|
|
| Features |
| Resettable circuit breakers |
|
Enables a quick recovery from overload events. |
|
| Specifications |
| Output |
| Nominal Output Voltage |
|
230V |
| Maximum Total Current Draw per Phase |
|
32A |
| Output Connections |
|
(6) IEC 320 C19 |
 |
| Overload Protection |
|
Yes |
| Input |
| Nominal Input Voltage |
|
400V 3PH |
| Input Frequency |
|
47 - 63 Hz |
| Input Connections |
|
IEC 309 32A 3P+N+PE |
|
| Cord Length |
|
2.44 meters |
| Number of Power Cords |
|
1 |
| Acceptable Input Voltage |
|
200-250 VAC |
| Maximum Line Current per phase |
|
32A |
| Maximum Input Current per phase |
|
32A |
| Physical |
| Net Weight |
|
4.84 KG |
| Maximum Height |
|
44.00 mm |
| Maximum Width |
|
437.00 mm |
| Maximum Depth |
|
254.00 mm |
| Shipping Height |
|
241.00 mm |
| Shipping Width |
|
559.00 mm |
| Shipping Depth |
|
502.00 mm |
| Color |
|
Black |
| Environmental |
| Operating Environment |
|
-5 - 45 °C |
| Operating Relative Humidity |
|
5 - 95% |
| Operating Elevation |
|
0-3000 meters |
| Storage Temperature |
|
-25 - 65 °C |
| Storage Relative Humidity |
|
5 - 95% |
| Storage Elevation |
|
0-15000 meters |
| Conformance |
| Regulatory Approvals |
|
CE, GOST, VDE |
| Sustainable Offer Status |
| RoHS |
|
Compliant |
| REACH |
|
REACH: Contains No SVHCs |
|
|
Basic Rack PDU Features & Benefits |
| Rack-Mountable |
|
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. |
| Single input power source |
|
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections. |
| Wide range of input and output connections |
|
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. We offer units that bring up to 14.4kW using a single branch whip. |
| Low Cost Power Distribution |
|
Provides a number of outlets to bring power to rack equipment at an affordable price. |
|
|

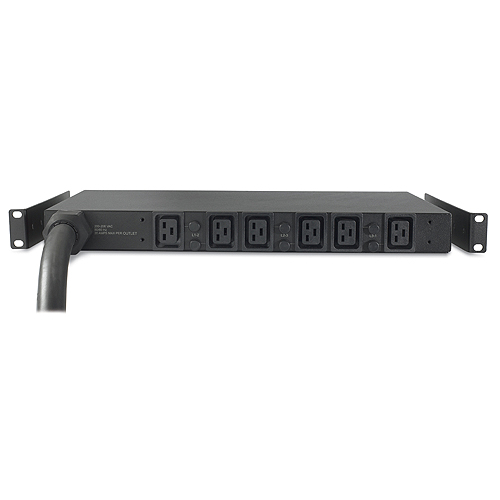

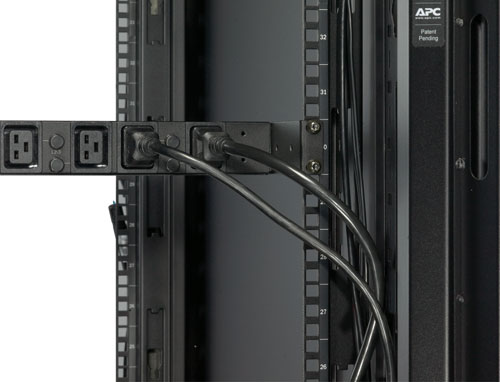

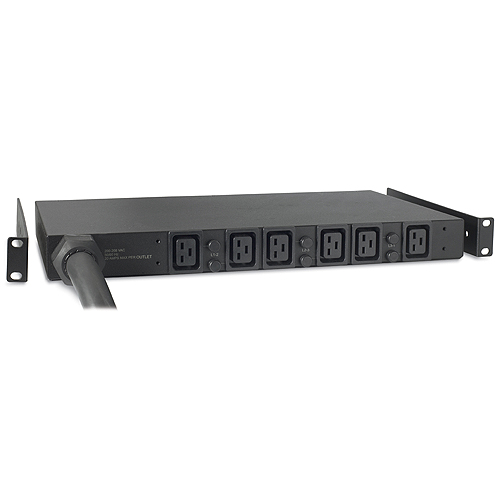

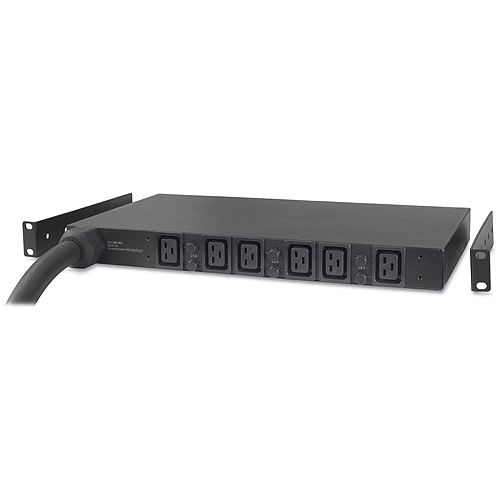

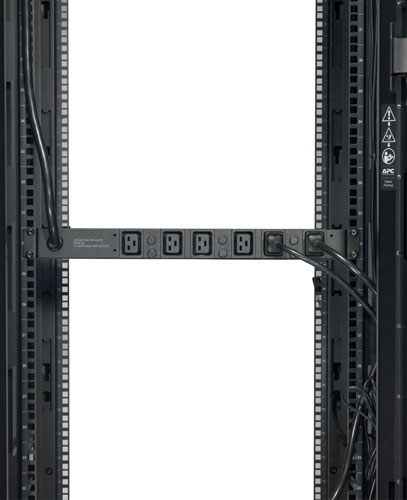

Gallery
Ordering Information
| Part # |
Description |
RA5106-C19-32A-IEC
Price : Please call |
Rack PDU, Basic, 1U, 22kW, 400V, (6) C19
|
