Capacitive Touch Screen
consists of a glass panel with a capacitive (charge
storing) material coating its surface. Unlike resistive touch screens,
where any object can create a touch, they require contact with a bare
finger or conductive stylus. When the screen is touched by an
appropriate conductive object, current from each corner of the
touch screen is drawn to the point of contact. This causes oscillator
circuits located at corners of the screen to vary in frequency
depending on where the screen was touched. The resultant frequency
changes are measured to determine the x- and y- co-ordinates of the
touch event. Capacitive type
touch screens are very durable, and have a high clarity. They are used
in a wide range of applications, from restaurant and POS use to
industrial controls and information kiosks.
Anti-glare surface finish
99% touch accuracy
Light transmission 93%
(+-2%)
Controller Interface Serial / USB
9H surface hardness
25ms response time
Over 300 million touches
2048 x 2048 resolution
Capacitive

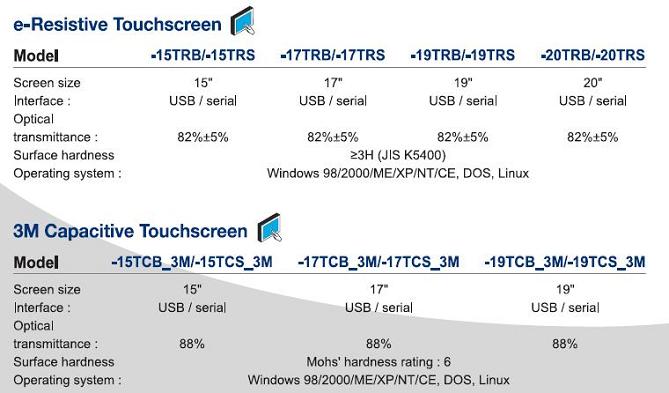

Resistiveb Touch Screen
responds to the pressure of a
finger, a fingernail, or a stylus. They typically comprise a glass or
acrylic base that is coated with electrically conductive and resistive
layers. The thin layers are separated by invisible separator dots.
When operating, an electrical current is constantly flowing through
the conductive material. In the absence of a touch, the separator dots
prevent the conductive layer from making contact with the resistive
layer. When pressure is applied to the screen the layers are pressed
together, causing a change in the electrical current. This is detected
by the touchscreen controller, which interprets it as a
vertical/horizontal coordinate on the screen (x- and y-axes) and
registers the appropriate touch event.
Resistive type touchscreens are generally the most affordable.
Although clarity is less than with other touchscreen types, they're
durable and able to withstand a variety of harsh environments. This
makes them particularly suited for use in POS environments,
restaurants, control/automation systems and medical applications.
> or = 3H surface hardness
Controller Interface Serial / USB
Durability 35 Million
Light transmission : 82%
(+-5%) for 15", 17", 19", 20",19"W
93% (+-2%) for 22" W
3mm thick true safety laminated pure glass fronted construction optically bonded overlay with Anti-Reflective Field
Thermally Strengthened Glass Substrate with UV Protection
Antireflective treatment with specially formulated ultra hydrophobic topcoat to eliminate “smudging”, for better water repellence as well as resistance to dirt, oil, watermarks, and other environmental influences
High Accuracy
Image Stability - Not susceptible to problems caused by high-level short-term variances and axis linearity and drift
Contamination-resistant. Top sheet hermetically sealed with pressure sensitive adhesive with a 30 year rating. Unaffected by harsh cleaning fluids and other noxious substances
External environments – unaffected by dirt, moisture and rain
AR <= 0.5% Photopic Reflection, a vacuum deposited antireflective optical coating that is applied to the outer surface of the sensor armor glass. It has a relatively high temperature process so the coating is very durable and is designed to meet industry standards such as SAE AMS-2521 and MIL-C-675.
Scratch resistant hi-res anti-glare hard coat with 4h hardness
Activation with finger, stylus, gloved hand or any other pressure activation
AccuTouch five-wire resistive technology is the workhorse of resistive touchscreens, providing unsurpassed performance. When activated with a finger, gloved hand, fingernail, or object such as a credit card, the AccuTouch touchscreen delivers a fast, accurate response every time. It is impervious to environmental conditions such as liquid spills and splashes, humidity, and washdown-the most contamination-resistant touchscreen available. AccuTouch is widely used in point-of-sale, industrial, and medical applications and is available for both flat panel and CRT solutions. Read more about AccuTouch technology.
Zero-bezel configuration for seamless design to eliminate the traditional bezel that can collect dust and dirt.
4H pencil hardness resists scratching.
Flat cable attachments for seamless integration and customization capabilities.
No lamination of additional décor foil is required which helps to reduce costs and supply chain complexity.
Stable, drift-free operation.
Broad input flexibility.
Contamination resistance.
Accuracy in high-use applications.
Can be sealed to support NEMA 4/4x/12 and IP65 standards upon integration.
CarrollTouch infrared technology is the survivor of harsh applications. It's the only technology that does not rely on an overlay or substrate to register a touch, so it's impossible to physically "wear out" the touchscreen. CarrollTouch technology combines superior optical performance with excellent gasket-sealing capabilities, so it's an excellent choice for harsh industrial and outdoor kiosk applications. Touched with a finger, gloved hand, fingernail, or stylus, it delivers a fast, accurate response every time. CarrollTouch infrared technology is available for flat panel solutions. Read more about CarrollTouch technology.
Withstands severe environments
Adjusts to changing light conditions, including direct sunlight
Stable, no-drift calibration performance
Vandal- and abrasion-resistant screens, ideal for rugged applications
Parallax-free performance for LCD displays
Sealable against contaminants
Choice of controller interface
Choice of filter type or overlay for system protection and optimal optics
IntelliTouch surface wave is the optical standard of touch. Its pure glass construction provides superior optical performance and makes it the most scratch-resistant technology available. It's nearly impossible to physically "wear out" this touchscreen. IntelliTouch is widely used in kiosk, gaming, and office automation applications and is available for both flat panel and CRT solutions. Read more about IntelliTouch technology. Read more about IntelliTouch Plus Technology.
SecureTouch provides all the features of IntelliTouch along with tempered glass construction for superior resistance to breakage and vandalism. It's nearly impossible to physically break or "wear out" these touchscreens. SecureTouch is widely used in kiosk, gaming, and office automation applications and is available for flat panel solutions. Read more about SecureTouch technology.
No coatings or overlays to wear, scratch, or tear
High impact resistance — about 2.5 times stronger than normal IntelliTouch
Meets UL-60950 and CSA 22.2 No. 60950 ball drop test (0.5 kg, 50 mm diameter ball dropped from height of 1.3 m)
Tempered, heat or chemically strengthened glass
Safe break pattern (tempered only)
Sizes from 10.4 inches to 32.0 inches
Thickness ranging from 0.125 inch (3 mm) to 0.50 inch (12 mm)
Antiglare glass option (0.25-inch thickness only)
Sealable against dust, splashing liquids, and other contaminants
Privacy filter option for applications involving sensitive information (e.g., ATM transactions)
For CRT-based applications, iTouch technology provides superior optical and image quality. The surface wave technology is applied directly to the faceplate of the CRT, so 100% of the image's original brightness and clarity comes through. The CRT faceplate is extremely strong and resistant to scratches, breakage, and vandalism. iTouch is widely used in kiosk, gaming, and office automation applications and is available for CRT solutions. Read more about iTouch technology.
Completely flat touchscreen offers a sleek and refined appearance
No bezel required for easy integration into touchmonitors and touchcomputers
Same fast, accurate, and stable performance as IntelliTouch technology
Uses the standard IntelliTouch controller (2701) for a smooth transition without the need for new firmware
The IntelliTouch Pro Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek design. The IntelliTouch Pro PCAP is designed for the rigors of commercial applications. The two glass solution (2GS) offers pristine optical clarity, high touch durability and long term stability over temperature. IntelliTouch Pro is available in standard screen sizes up to 32-inches with 10-point multi-touch capabilities. Read more about IntelliTouch® Pro Projected Capacitive .
10-point multi-touch
Fast and sensitive touch response
Pristine optical clarity
Long-term stable operation over temperature
Optional coatings such as anti-glare
Windows 8 touch requirements certification when integrated into a final product
