Industrial Monitor
Model ID-E17Aw
Industrial Grade 16.2" High Resolution 1920 x 1200 Panel Mount Monitor
TAA Compliant
LCD Specification
LCD Type

Native WUXGA Ultra high resolution 16.2" TFT LCD Panel

Backlight

LED

Display Size

16.2 inch diagonal

Resolutions

1920 x 1200

Display Color

16.7M, 8-bit

Brightness

300 cd/m2

Contrast ratio

800 : 1 (Typical)

Active area (mm)

343.8H x 214.9V
Viewing angle 178° x 178°

LCD MTBF

20,000 hrs

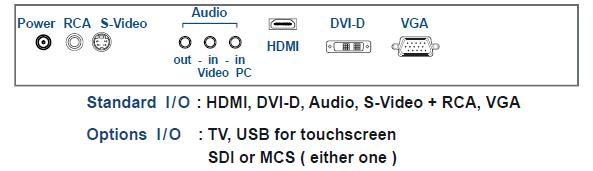

Signal Input

 HDMI / DVI-D / VGA

Power Supply

 Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 34 Watt,
                   Standby 4 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional Input

 3G / HD / SD-SDI Broadcast-grade input

Optional DC Power

250V , 125V , 110V , 48V, 24V or 12V DC power

Other Option

- Multi-Display Controller
- NEMA4 / IP65
- MIL-type or lockable connector
Mechanical
Color  Front Panel : Black
 Rear case   : Dark Grey
Dimension
( W x D x H )		  17.3 x 2.1 x 11.5inch
 440 x 53.6 x 293mm
Product Weight 10.8lb
Environmental
Temperature 0 to 55 Degree Celsius (Operation)
-20 to 60 Degree Celsius (Storage)
Relative Humidity Storage: 5 ~ 90%
Operation: 5 ~ 90%
Vibration 10 ~ 300Hz 0.5G RMS random vibration
Regulatory FCC, CE , REACH & RoSH Compliant , TAA Compliant

  Front View


                    Product Sheet

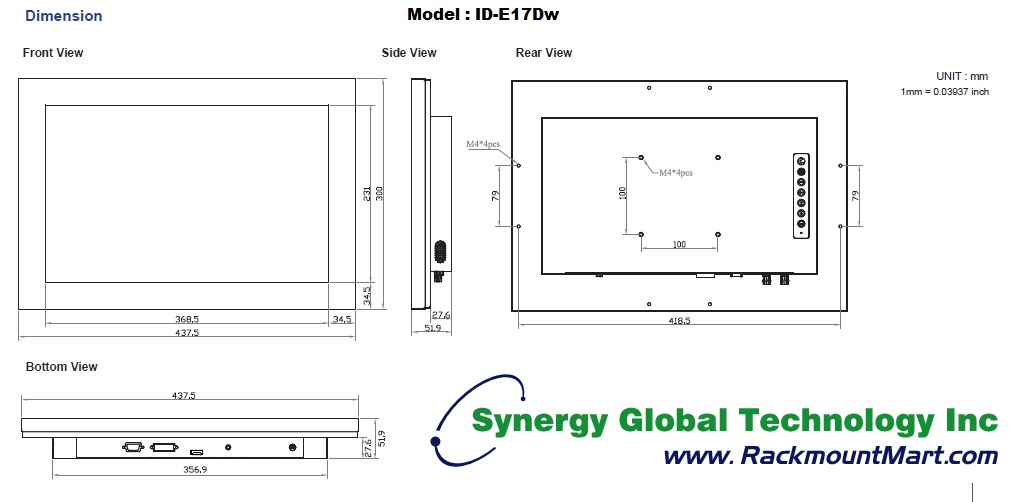

                    Drawing
                    User Manual
                    Mounting Guide
                        (Panel mount / VESA mount)


  Free Ground Shipping. Learn More.

   DISPLAY BENEFITS :
  • 17" widescreen LCD with 1920 x 1200 native WUXGA Ultra high resolution
  • Green LED-backlit panel technology
  • Standard with VGA, HDMI & DVI-D


    0PTIONS :


Ordering Information
Part Number Description
ID-E17Aw
 Panel Mount 17" Wide Screen High Resolution Display, VGA + DVI-D + HDMI
Optional NEMA4 / IP65
-N
 NEMA4 / IP65 Protective Glass
Optional Video/Audio Inputs
-SDI
 VGA + DVI-D + HDMI + Remote Controller + SDI
-MC
 Multi-Display Controller
Optional Touch Screen
-TRS
 Resistive 1-Point Touch Screen with Serial Controller
-TRB
 Resistive 1-Point Touch Screen with USB Controller
-TPC
 Projected Capacitive 10-Point Touch Screen with USB Controller
Optional DC power
-DC12 Change to 12V DC Power
-DC24 Change to 24V DC Power
-DC48 Change to 48V DC Power
-DC110
 Change to 110V DC Power
-DC125
 Change to 125V DC Power
-DC250
 Change to 205V DC Power
Optional Lockable Jack
-MD MIL-type Lockable DC Power jack, Male
-MA MIL-type Lockable VGA jack, Male
-LD Lockable DC Power jack, Male
-LS Lockable USB jack for touch screen
