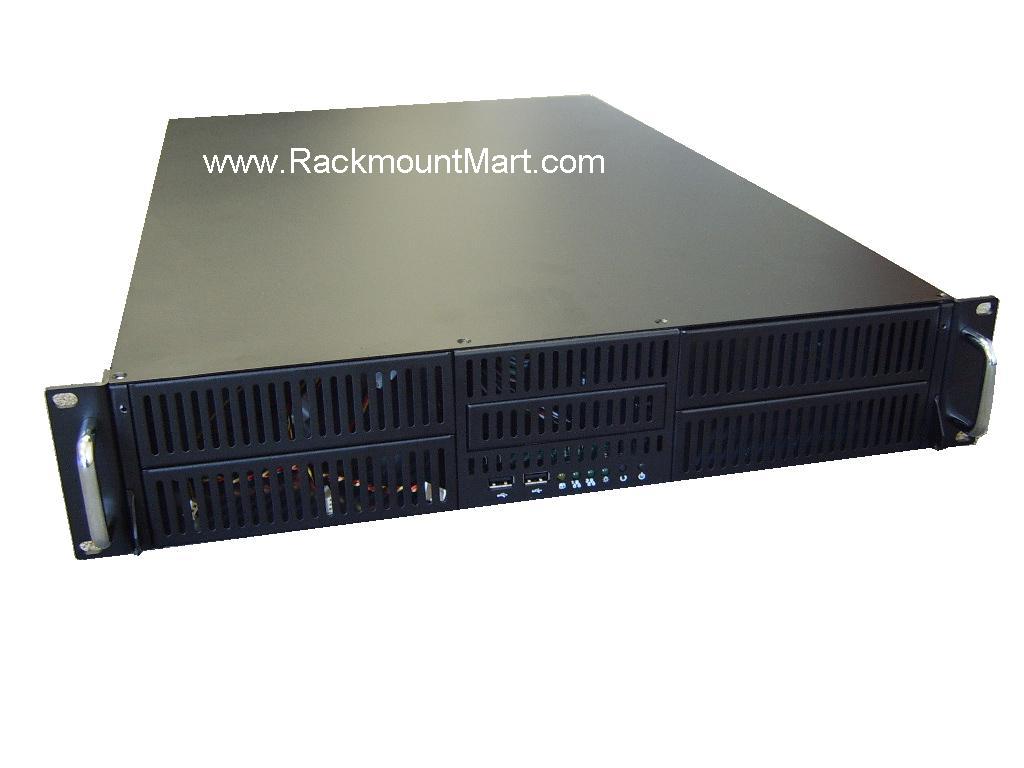

2 U Rackmount Chassis :  Part # RM2022

EIA RS-310C 19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black (Standard) or Custom

System Boards:

Pentium D, Dual Xeon, AMD 64 X2, Dual Opteron

Motherboard Size:

Support EATX M/B (Max. to 12 " x 13")

Drive Bays:

4x 5.25" & 2x 3.5" HDD & 1x 3.5" FDD

Power Supply:

(Rear Chassis Installation) 2U Single up to 510W or Redundant up to 400W ATX P/S Max. Depth 300mm

Cooling Units:

4x (80mm = 42.5CFM ea.) Heavy Duty Ball Bearing Fans

Expansion Slot:

3x Horizontal Slot Full Length/Height or 7 x Vertical Low Profile PCI Slots

Connector Port (front): 2x USB Ports

Indicators:

LEDs for Power ON/OFF, HDD Activity , 2x LAN

Buttons:

Power On/Off & System Reset (Dimple Button)

Crossbar: PCI Spanner Bar to secure riser card

Front Door(s):

Removable Single Door with 2x Thumbscrew

Dimensions:

(W x H x D):

483 x 88 x 650mm (19.0" x 3.5" x 25.6")

Humidity:

5% - 95% Non-condensing

Product Applications:

Multipurpose Server




  More photo - (click on the picture for enlarged view)
