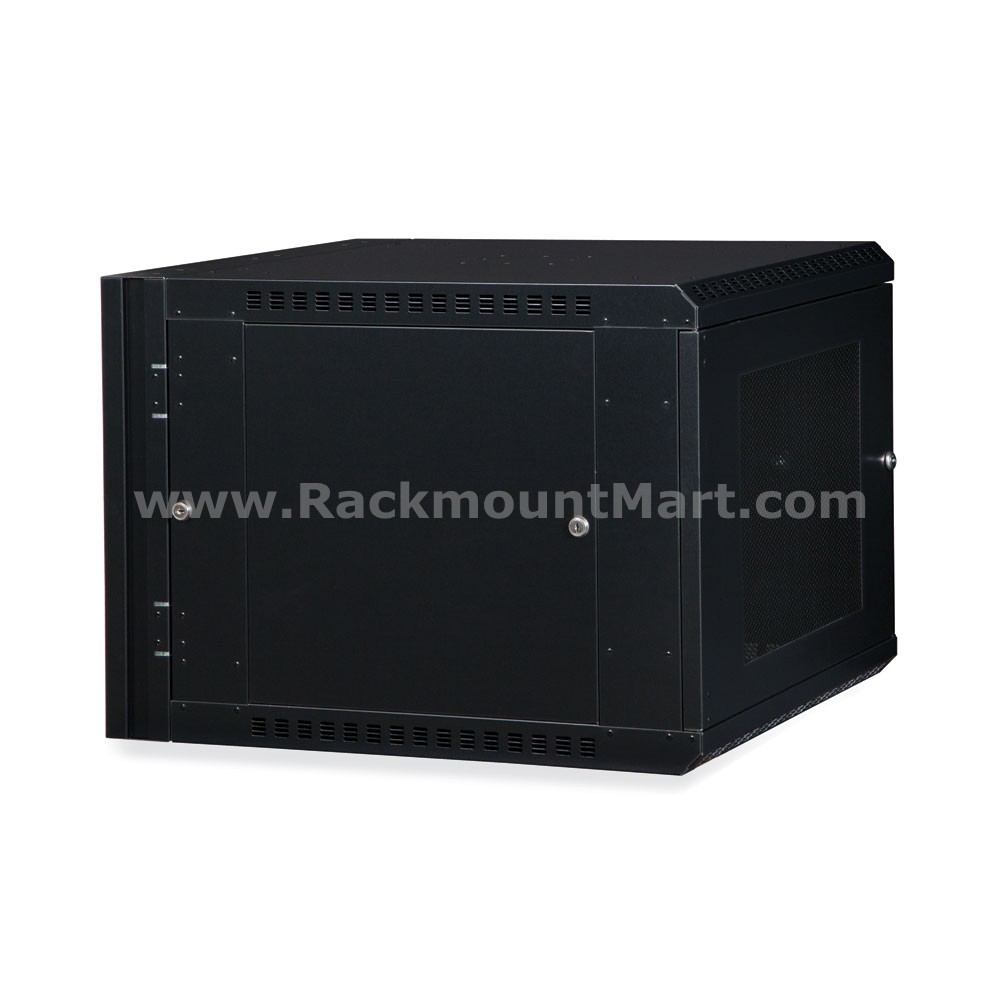

9U Swing-Out Wall Mount Cabinet - Vented Door
Model  WB1210-VD
TAA Compliant

                                                                                     MADE IN THE USA


The Swing-Out Cabinets are designed to solve the everyday problems technicians have while installing and managing the immense amount of cabling that is all-too-common with datacom and telecom equipment. Don’t work around the rack…get a rack that works around you!

  • Includes one locking vented door
  • Locking side panels
  • 150 lb. weight capacity
  • One set of cage nut style mounting rails
  • 90 degree positive stop swing-out
  • Mounting depth: 22.5”
  • 19” EIA 310-D compliant
  • Made in the USA



Features
Economical Design   Smartly engineered to include all the features you would expect, at a competitive price point, and with the quality that comes with American manufacturing.
90 Degree Swing-Out   Lockable enclosure can be swung out 90 from the back frame allowing access to the rear of installed equipment. This capability provides additional space and accessibility for terminating, installing and managing cables.

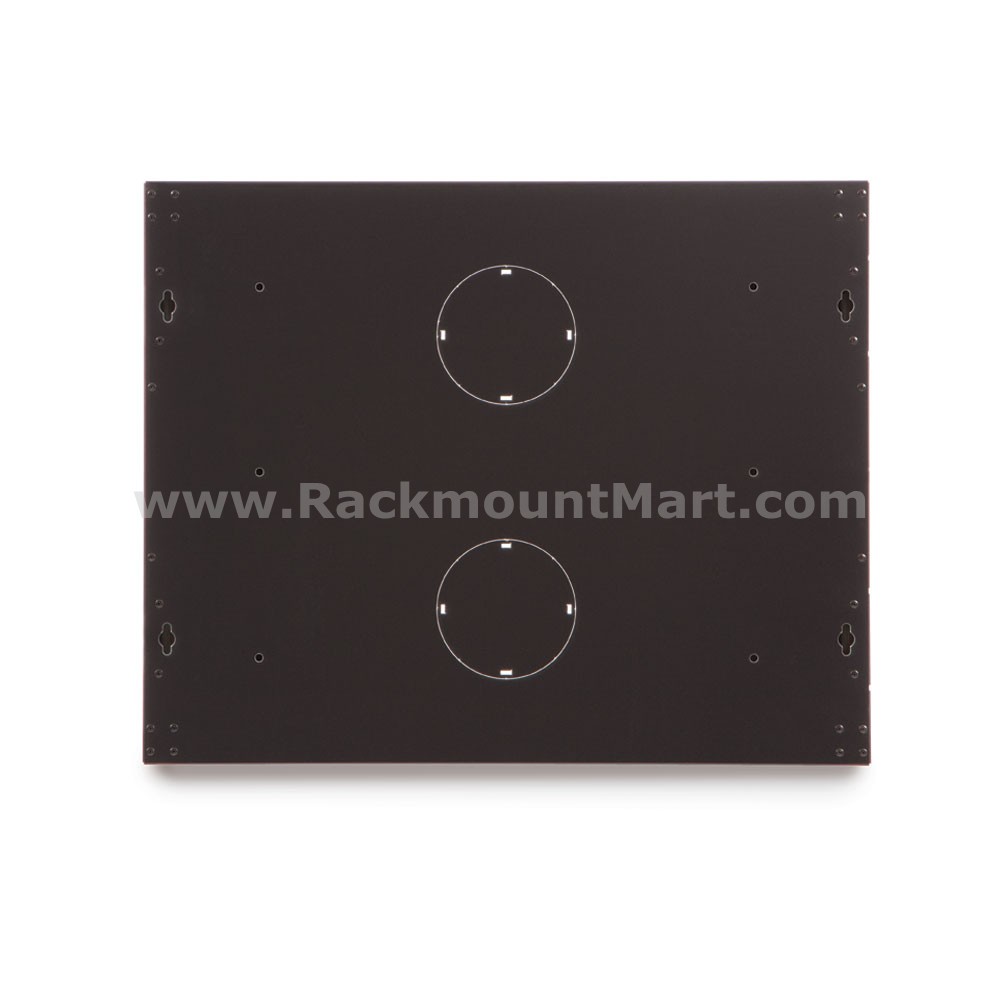

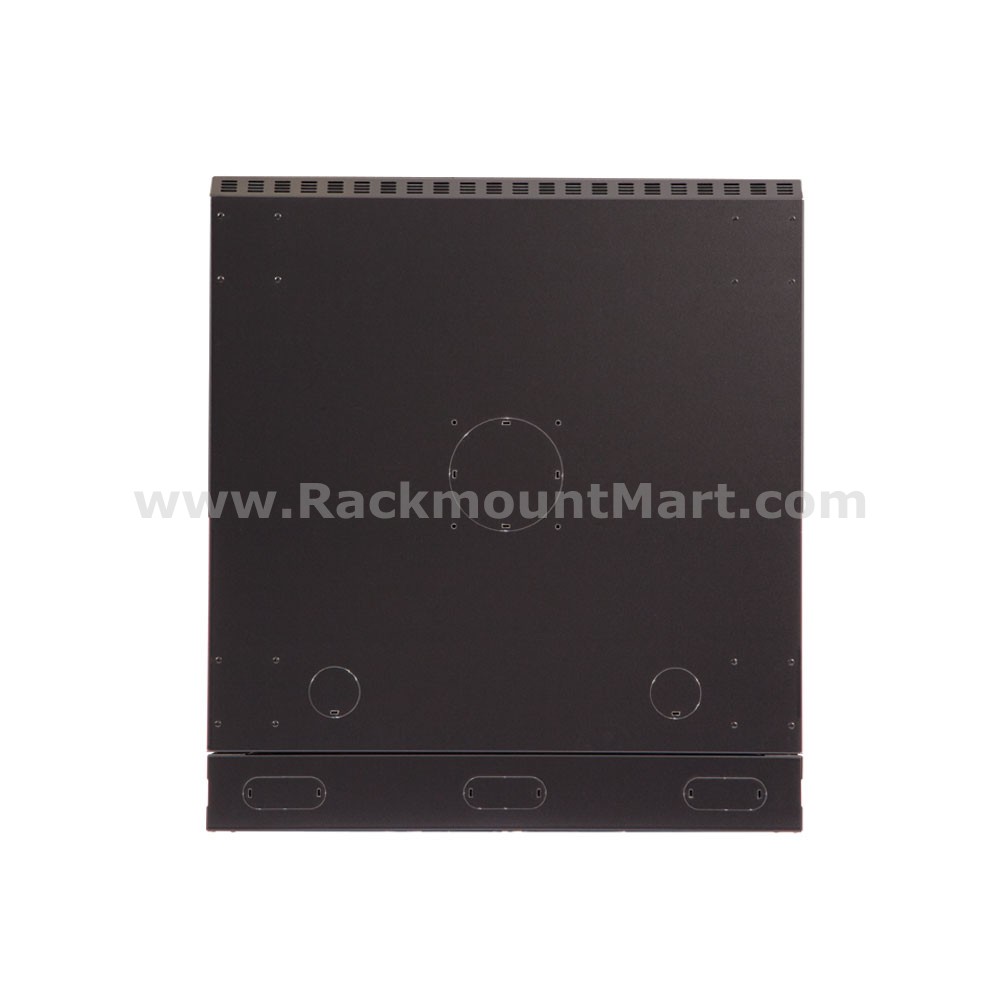

Numerous Laser Knock-Outs   Strategically placed laser knock-outs provide a plethora of locations to feed copper or fiber optic cabling into the cabinet, or to install an optional fan kit for temperature control.
Adjustable Rails   The included set of cage nut style rails fully adjust in 1 inch increments to accommodate the various depths of equipment on the market. Additional rails are available for devices that require 4-point mounting.

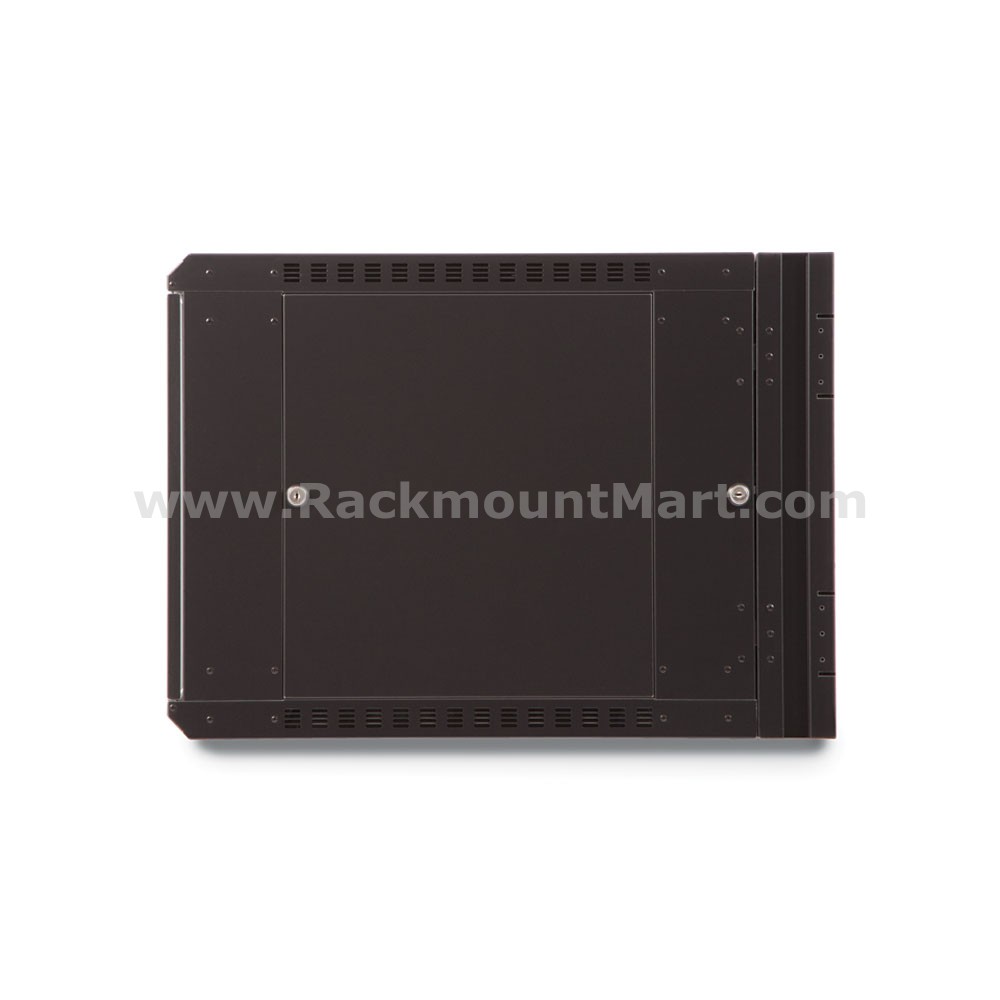

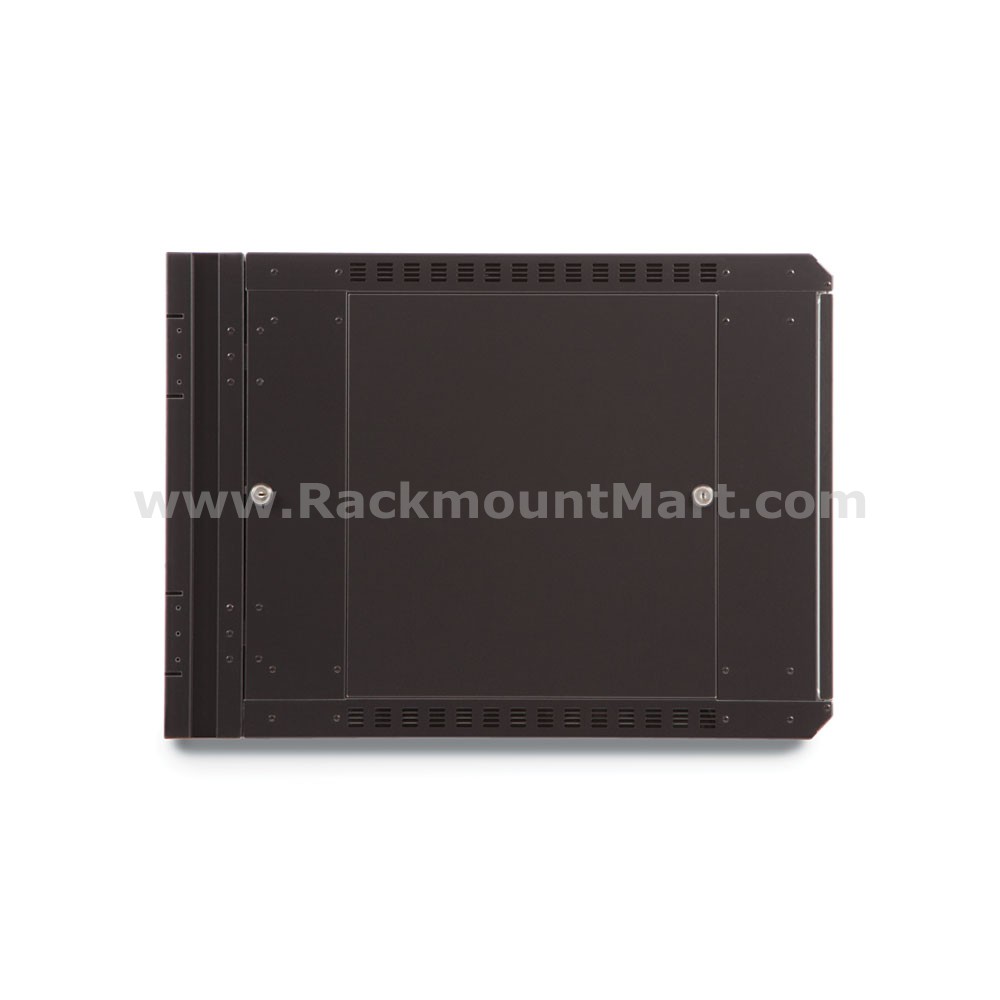

Removable Side Panels   Easy-to-remove side panels provide more access for growing or changing cabling schemes, as well as offer the option for increased air flow to prevent equipment from overheating.

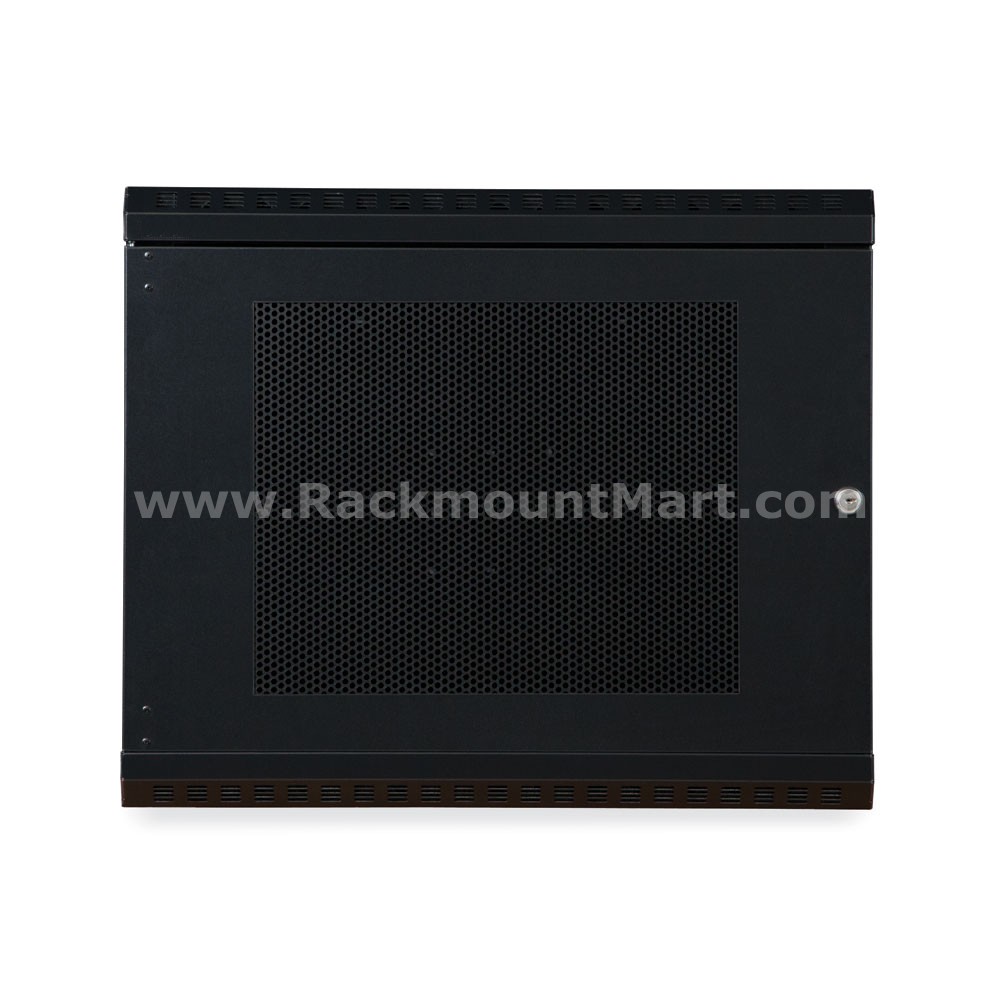

Reversible Vented Door   Vented door can be removed or reversed to be left or right mounted, to accommodate your particular installation. The vented door allows for ventilation for your network system.
Specifications
  • Width : 23.5"
  • Depth : 26.64" (Usable 22.50")
  • Height : 19.46"
  • Color : Black Finish
  • Weight : 58 lbs.
Package Content
  • Qty 1 - 9U Swing-Out wall mount Cabinet - Vented Door
Download
Drawing

Gallery


Optional Vertical Rail Kit
Height Cage Nut 10-32 Tapped
9U PT-SRL-9U-WKH PT-SRL-9U-WKH-T
Optional Caster Base
  RA2205
Optional Combination Lock
  MP1202-W

 Ordering Information

Part Number Description
 WB1210-VD
 9U Swing-Out Wall Mount Cabinet - Vented Door
 WB1210
 9U Swing-Out Wall Mount Cabinet - Glass Door
 WB1210-SD
 9U Swing-Out Wall Mount Cabinet - Solid Door
