| Dimensions (W x D x H) |
• 17" x 21.3" x 1.75"
|

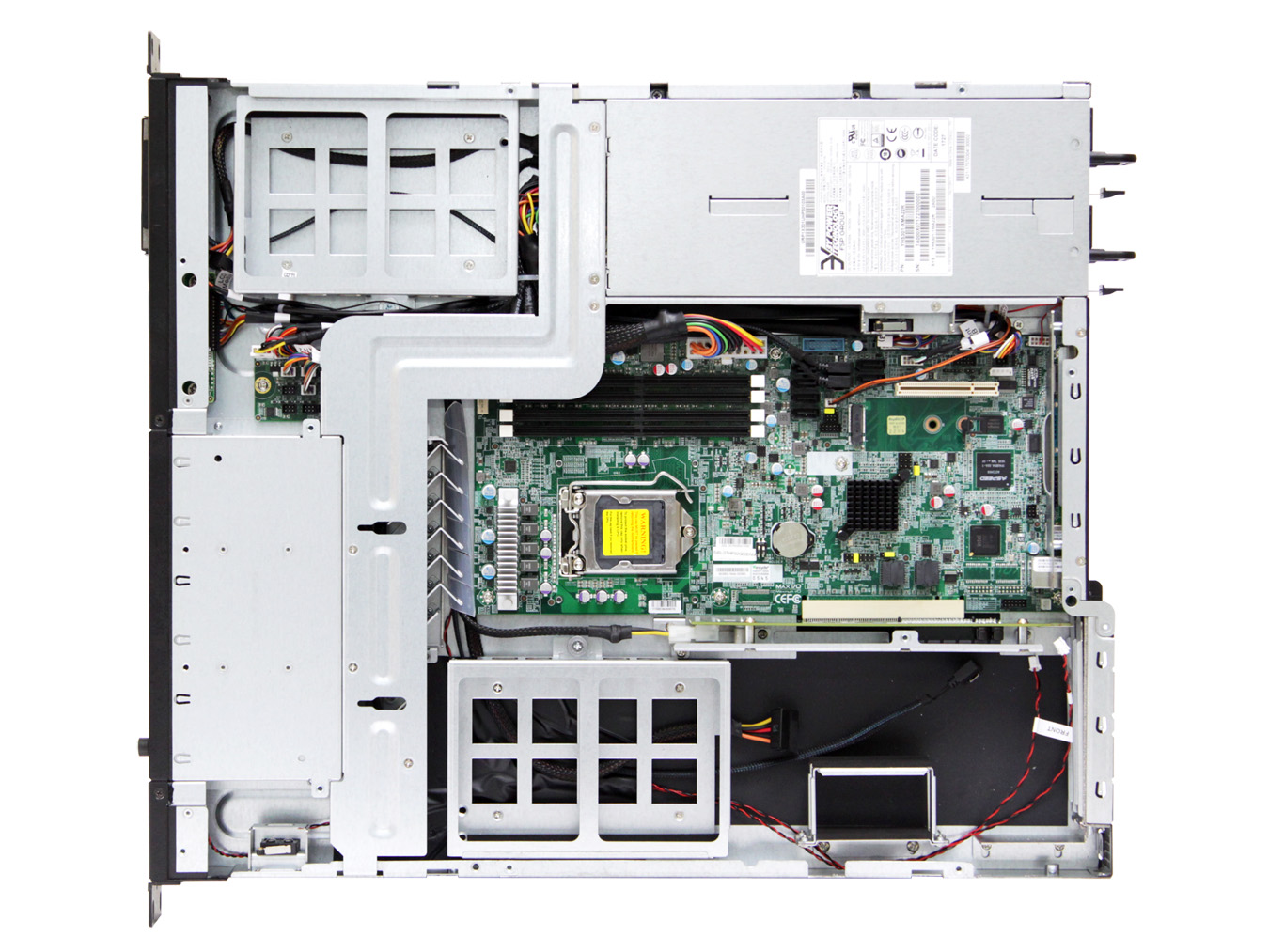

| Motherboard |
Server Board SBA2027
|
| Processor |
Processor Support :
• One Intel® Xeon® Processor E3-1200 v5/v6 Product Family
• Supports CPU TDP up to 80W
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
| Socket Type : Socket H3 (FCLGA1151) |
|
|
| Chipset Support |
• Intel® C236 PCH
• Intel® i350-AM2
|
| System Memory |
• 4 x DIMM slots support DDR4 2400/2133MHz ECC UDIMM
• Up to 64GB capacity
|

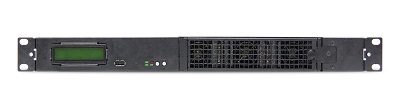

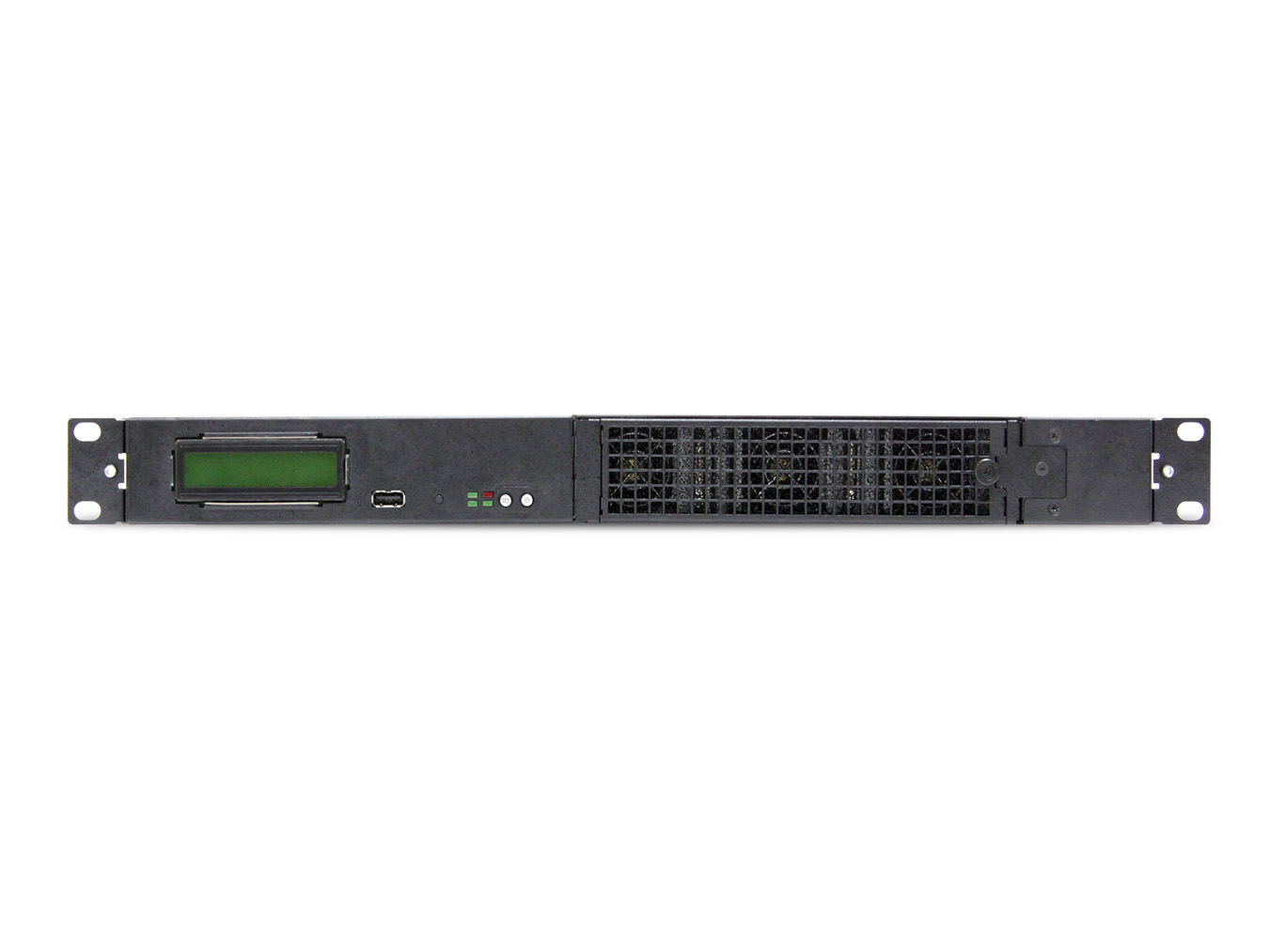

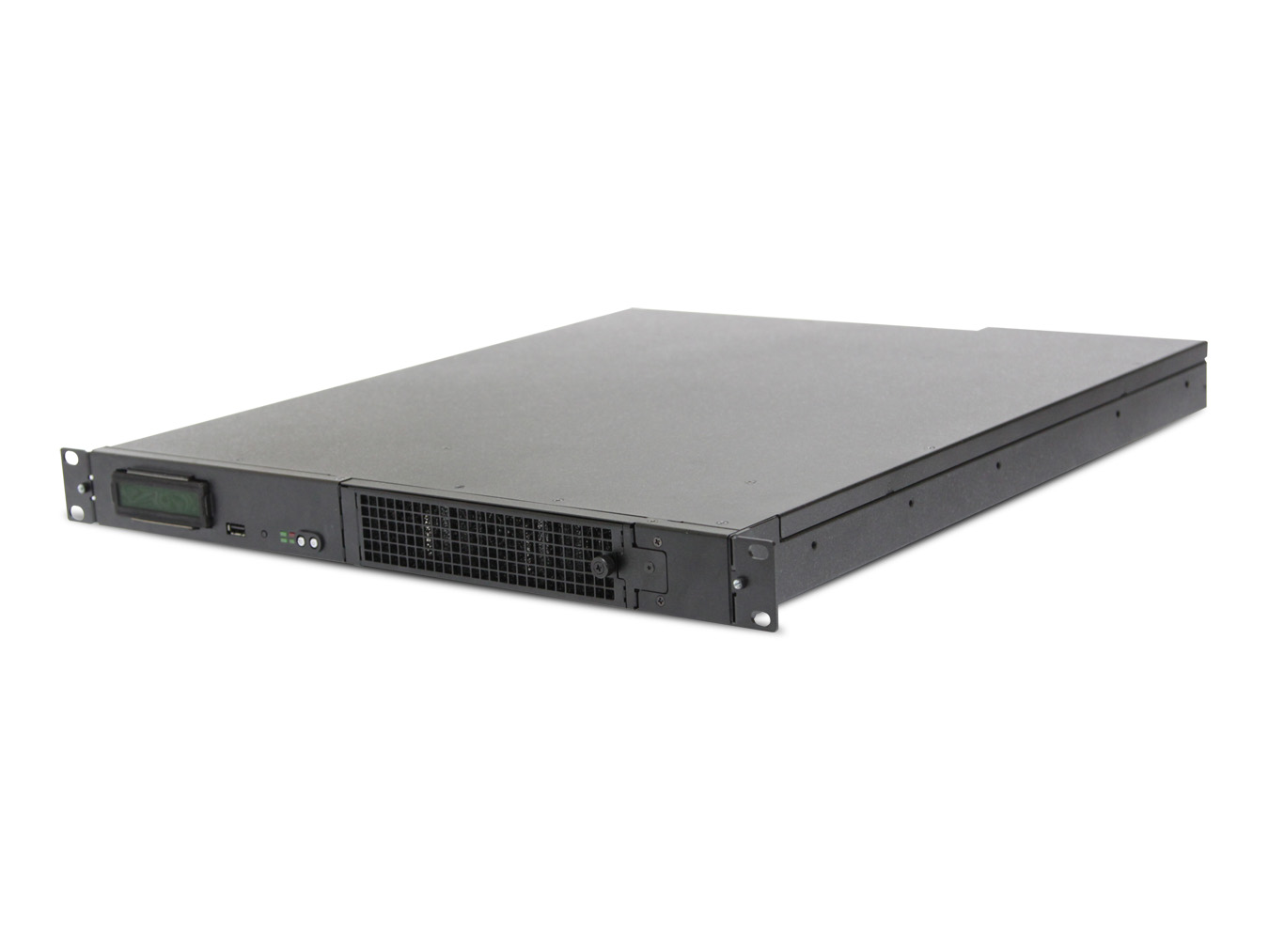

| Front Panel |
• System power on/off
• System ID
• System reset
• NMI
• USB 2.0 Type A |
| LEDs |
• Power status
• System management alert
• Drive activity
• Network activity
• System ID
|
| Drive Bays |
| Internal : 2 x 3.2"/2.5" |
| Expansion Slots (PCIe 3.0) |
• 1 x8 slot (LP)
• 1 x8 slot (x4 mode)
|
| Riser Card (included) |
2 x8 PCIe slots
|
| System BIOS |
BIOS Type :
Insyde BIOS code @ 16MB Flash EEPROM |
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode |
|
|
| On-board Devices |
SATA :
Built-in SATA RAID controller on Intel® C236 PCH
• 8 x SATA3 ports + 1 x M.2
• RAID 0, 1, 5, 10 support by Intel RSTe |
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN |
Network Controller:
• Intel® Ethernet Controller I350-AM2 dual-port GbE PCIe v2.0 (5.0GT/s)
Optional:
Intel® Ethernet Controller I350-AM24 quad-port GbE PCIe v2.0 (5.0GT/s)
(2 rear I/O RJ45 + 2 onboard pin-headers)
• Realtek RTL8201EL for BMC dedicated management port. |
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp |
|
|

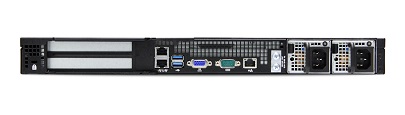

| Rear I/O |
LAN:
• 2 x GbE RJ45
• 1 x 10/100M RJ45 dedicated to BMC management
USB : 2 x USB 3.0 Type A
VGA : 1 x external DB-15 VGA port
Serial Port : 1 x external DB-9 COM port |
|
|
| Power Supply |
300W 1+1 redundant power supply 80+ Silver
• AC INPUT : 100~240V,50-60Hz,5-3A
• DC 36~72V input power module available (BTO) |
| System Cooling |
| 3 x 40x56mm hot swap fans |
| System Management |
• IPMI 2.0
• KVM over IP
• Media redirection
• KCS (Keyboard Controller Style), IOL (IPMI Over LAN)
• SOL (Serial Over LAN) interface
• Temp, voltage and fan speed monitoring
• CPU temperature (PECI)
• System temperature
• Fan speed detection
• Smart fan speed control
• System ID / System fail indicator
• SMASH support
• Remote power on/off/reset |
| Environmental Specifications |
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
|
| Gross Weight (w/PSU & Rail) |
• 48.50lbs
|
| Packaging Dimensions (W x D x H) |
• 23.2" x 33.5" x 13.5"
|
| Mounting |
Standard : 20'' fixed rail
|
