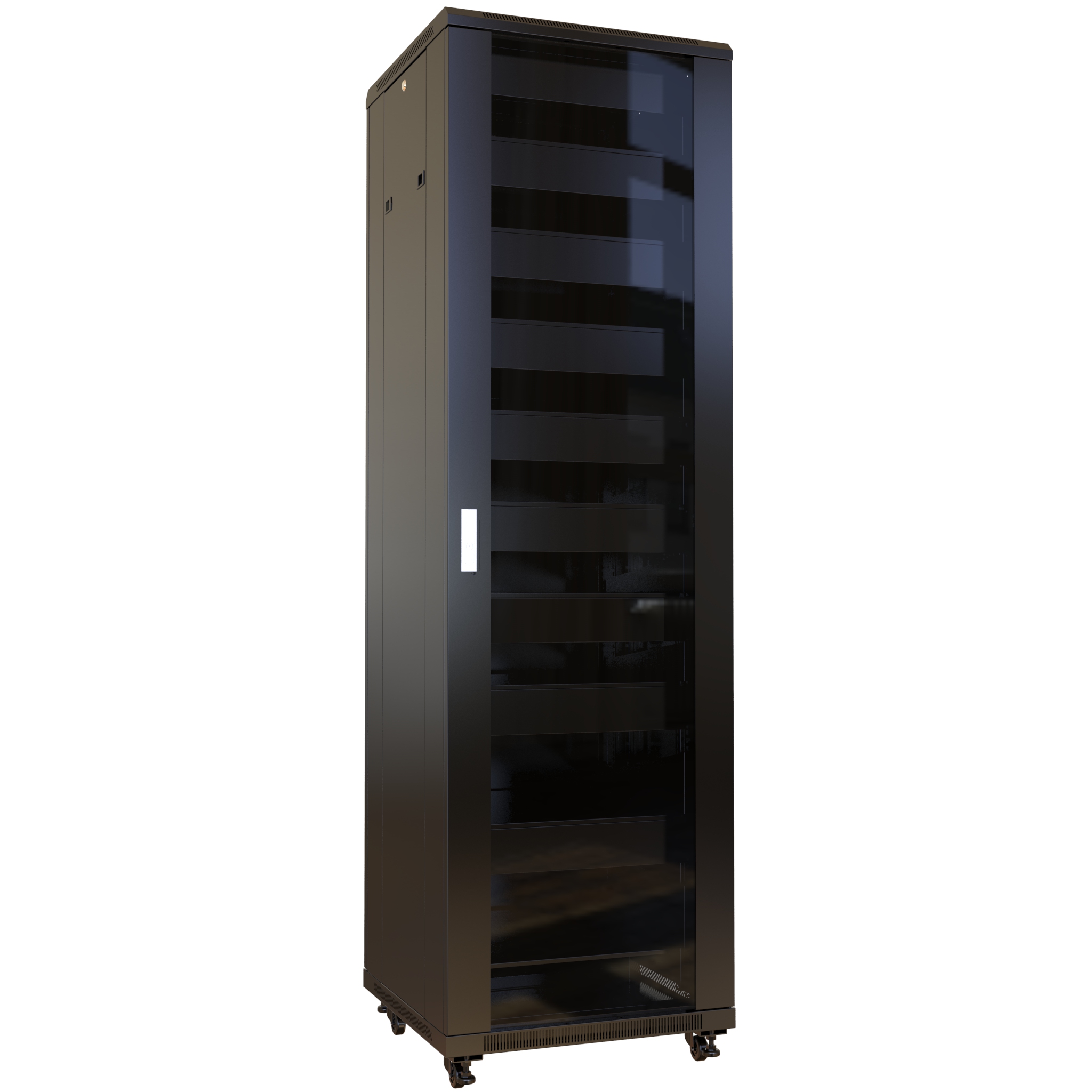

42U AV Rack Cabinet
EIA & RoHS Compliant
Click for enlarged view
Click for enlarged views.
The RB-AV42 is a cost-effective rack cabinet that is ideal for A/V and Security applications. Fully assembled, the RB-AV42 includes factory installed shelves, filler panels, casters, leveling feet and tapped 10-32 mounting rails.
- 42U mounting heights.
- 23.62" overall width and depth.
- Passive cooling vents located on top, bottom and sides.
- Includes provision for up to two (2) optional fans on top panel.
- Ships fully assembled and ready for installation on-site.
- Doors can be flipped to hinge from opposite side.
- Includes factory installed vented rack shelves and blank panels
- Constructed in 16-gauge steel.
- Drilled and 10-32 tapped flange 19" mounting rails are constructed in 13-gauge steel, and are powder coat finished.
- Rails easily adjust in depth in 1/4" increments.
- Tested to 950 lbs of equipment load.
- Grounding studs bonded to frame, side panels and doors.
- Finished in smooth black powder paint.
- Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
- RoHS Compliant.
- Steel frame with factory-installed leveling feet, recessed casters and grounding studs.
- Two (2) pairs of adjustable depth EIA compliant 10-32 tapped mounting rails.
- Starter pack of (50) 10-32 screws included.
- One (1) lightly smoked tempered glass front door with quarter-turn lock.
- One (1) solid steel rear door with quarter-turn lock.
Two (2) solid removable side panels with quarter-turn lock.
Removable cable access panels on cabinet top and bottom.
Includes Seven (7) factory installed 2U vented rack shelves, Two 2(7) factory installed 3U vented rack shelves,and Nine (9) factory installed 2U blank panels
80.91" (H) x 23.62" (W) x 23.62" (D)
73.50" (H) x 19" (W) x 21" (D)
| 42U AV Rack Cabinet, 80.91" (H) x 23.62" (W) x 23.62" (D)
