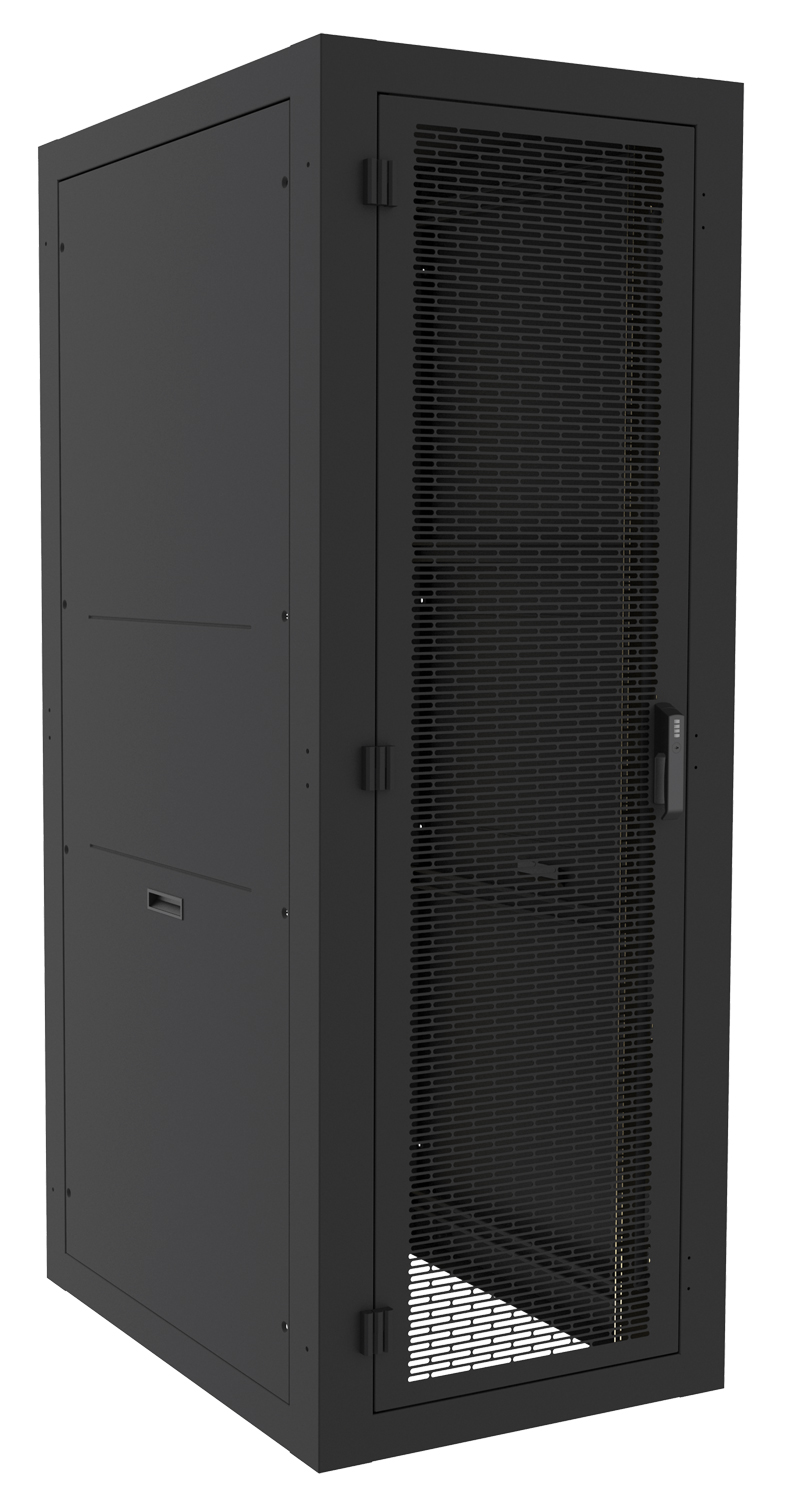

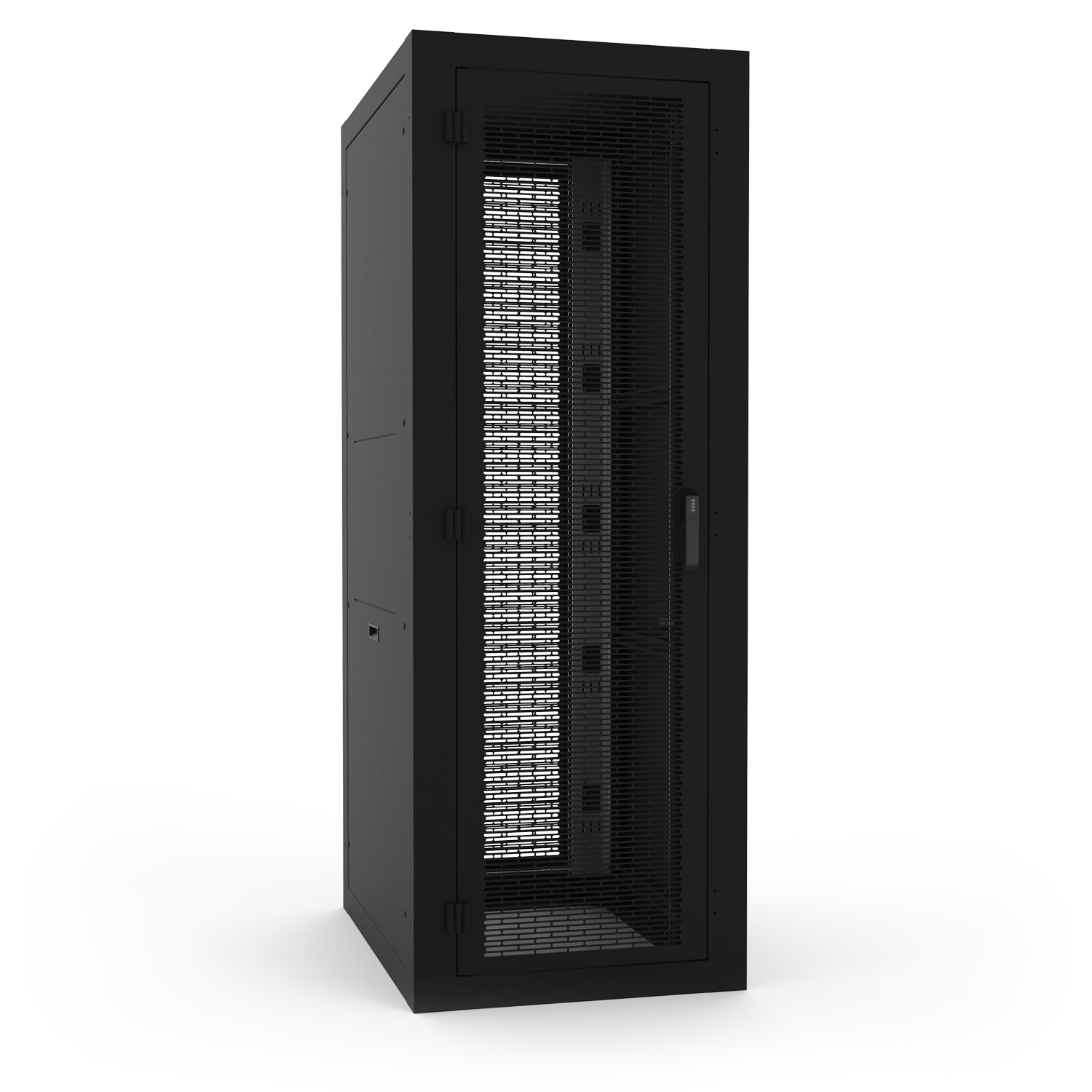

44U Seismic Server Cabinet
Model DCZ4A307742BK
Made in North America, TAA Compliant


Model: DCZ4A307742BK
Click for enlarged views

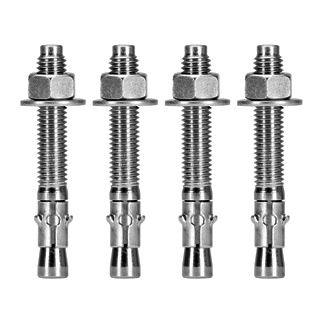

Optional Seismic Bolt Down Kit: Model C4K-Z4

Features

  • Rugged design that is engineered to perform in the most critical seismic environments.
  • Includes generous stud locations for grounding and bonding applications.
  • Cable management includes
    • Four (4) 3.5” top cable access holes.
    • Various bottom panels allow for different cable management options.
    • Corner braces include mounting for cable tray and outlet strips.
    • Support for up to four optional 4” deep vertical cable managers.
  • Ganging holes allow for joining multiple cabinets.
  • C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
  • Flush-mount doors come with 3-point latching and stiffeners to reduce flexing and bowing while increasing cabinet security.

Specifications

  • Cabinet frame constructed in 14-gauge steel cabinet with 12-gauge steel re-enforced corner brackets.
  • Cabinet doors and side panels constructed in 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole mounting rails with rack unit markings.
    • Mounting rails are constructed in 12-gauge steel, and are Zinc-plated to provide superior surface areas for equipment grounding.
  • Dynamic (seismic) load rated up to 1,000 lb. (454 kg) of equipment installed and 100 lb. (45 kg) of cable weight on the top. Requires a seismic bolt down kit such as the C4K-Z4 (sold separately). Independently tested and certified to exceed established Seismic Zone 4 NEBS™ Telcordia® GR-63-CORE testing standards.
  • UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
  • Grounding studs bonded to frame, side panels and doors. Front and rear studs on cabinet frame conform to PET.
  • Finished in textured black powder paint. Also available in textured white upon request.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.






Package Contents
  • Steel frame which includes nylon leveling feet, recessed casters and grounding studs.
  • Two (2) pairs of infinitely adjustable 19” EIA compliant square hole punched rails with rack unit markings.
  • Two (2) perforated front door (63% open area vented) with locking swing-handle.
  • Two (2) removable solid side panels.
  • One (1) removable solid top panel.
Overall Dimensions:
82.81" (H) x 30" (W) x 42" (D)
Usable Diemensions:
77.06" (H) x 19" (W) x 35.75" (D)

 Ordering Information

Model Number Description
DCZ4A307742BK

44U Seismic Server Rack Cabinet, 82.81" (H) x 30" (W) x 42" (D)
C4K-Z4

Seismic Bolt Down Kit, set of 4
DCZ4SD3077BK
Optional Solid Door
DCZ4WD3077BK
Optional Window Door
