6U Rackmount 17" LED MONITOR
Model LCDR6U17-06

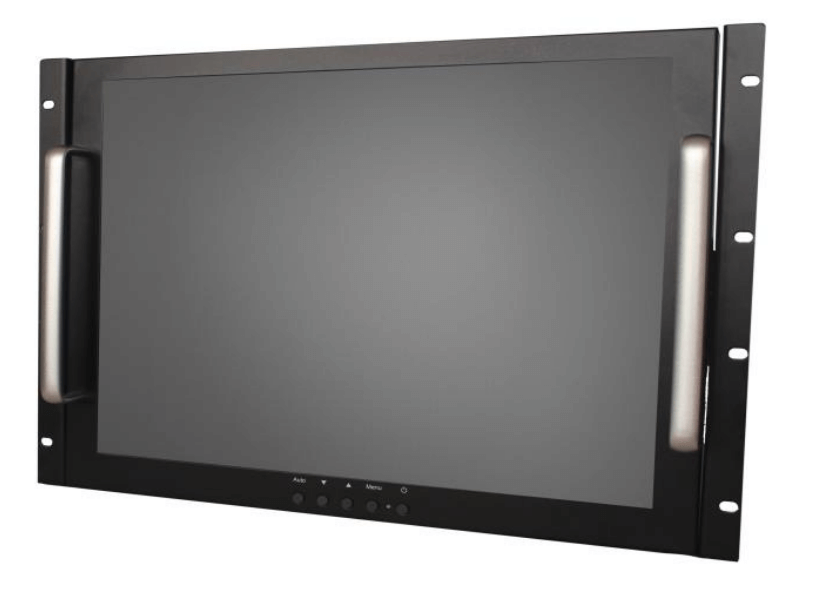

SiriusView 6U Rackmount Tilting FHD 1080p Monitor

Panel: 17" 1080p LCD panel
Display type	17.3"
Resolutions	1920x1080
Pixel Size (HxV)	0.1989 x 0.1989 mm
Contrast ratio	400 : 1 typical
Brightness	300 cd/ m2 typical
Panel color	262K
Viewing angle	140 (Horiz.) / 120 (Vert.)
Back light	LED
LCD MTBF	10,000 hrs
Signal Input	DVI-D / VGA
Power Supply	Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Weight	7 kgs / 15.2 lbs
Dimension	18.98 x 2.44 x 10.47 inch / 482 x 63 x 266 mm (Wx D x H)
Temperature	0 to 50 Degree Celsius (Operation)
Operating Humidity	5~95%, non-condensing
Shock	15G / Peak (11 ms)
Vibration	5 - 500 Hz / 1 Grms PTP
Safety Approval	FCC, CE,RoHS

LCDR6U17-06

	Data Sheet
	User Manual
	Drawing

Features

17.3 inch wide screen monitor

1920 x 1080 WUXGA Ultra high resolution

Support FHD with 1080p resolution

90 ° tilt adjustment: 45° ~ -45°(V)

Options

Composite video, HDMI, DisplayPort input

9-36V DC power input

AR Hardness glass

Touchscreen

Gallery

Ordering Information

Part Number Description

LCDR6U17-06
7U Rackmount 17" Full HD Tilting Monitor
