3U Triple 5.7" Professional Rack Mounted LCD Panel
Model LCDR3U5-02
MADE IN THE USA
|
| Features |
|
The LCDR3U5-02 is a rack mounted unit that has three independently controlled 5.7" active matrix LCD panels with active loop-through. These 5.7" panels have 640 x 480 pixels which produce a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack -- 3U high. Each screen has two composite video inputs and outputs, along wtih a 3-color tally system. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply / manual and features auto recognition for NTSC or PAL.
|
| Specifications |
| Display (Viewing Area) |
|
5.7" (115.2mm x 86.2mm) |
| Resolution (Pixels) |
|
640 x 480 |
| Dot Pitch |
|
0.18mm x 0.18mm |
| Contrast |
|
600:1 |
| Brightness |
|
400 |
| System |
|
NTSC/PAL auto recognition |
| Inputs per Panel |
|
2 (6) Composite |
| Dimensions |
|
18.96"W × 5.2"H × 2.5"D |
| Approx. Weight |
|
5 lbs |
| Power Consumption |
|
12 VDC, 2.0 Amps |
|
|
Gallery
Ordering Information
| Part # |
Description |

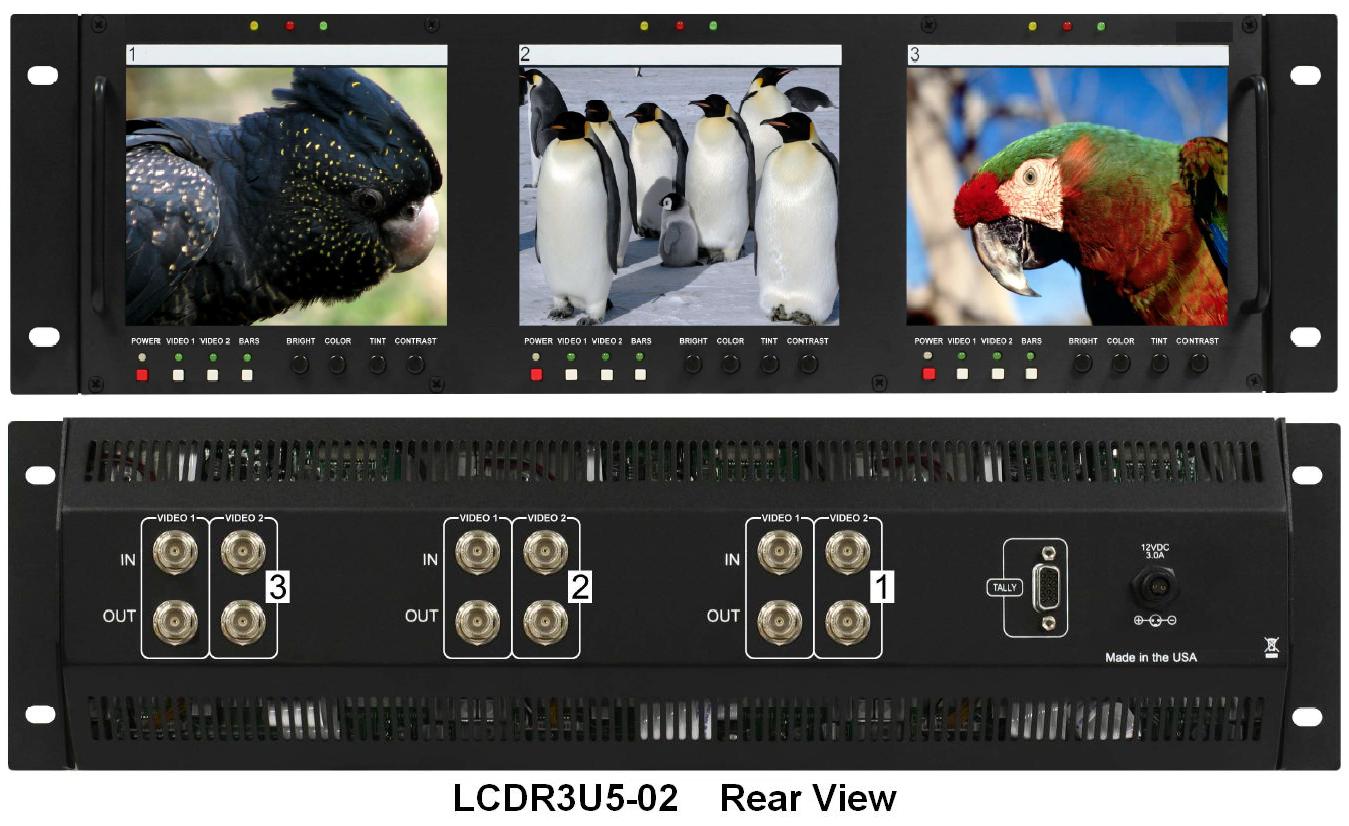

LCDR3U5-02
|
3U 3 x 5.7" Rack Mounted LCD Panel
|

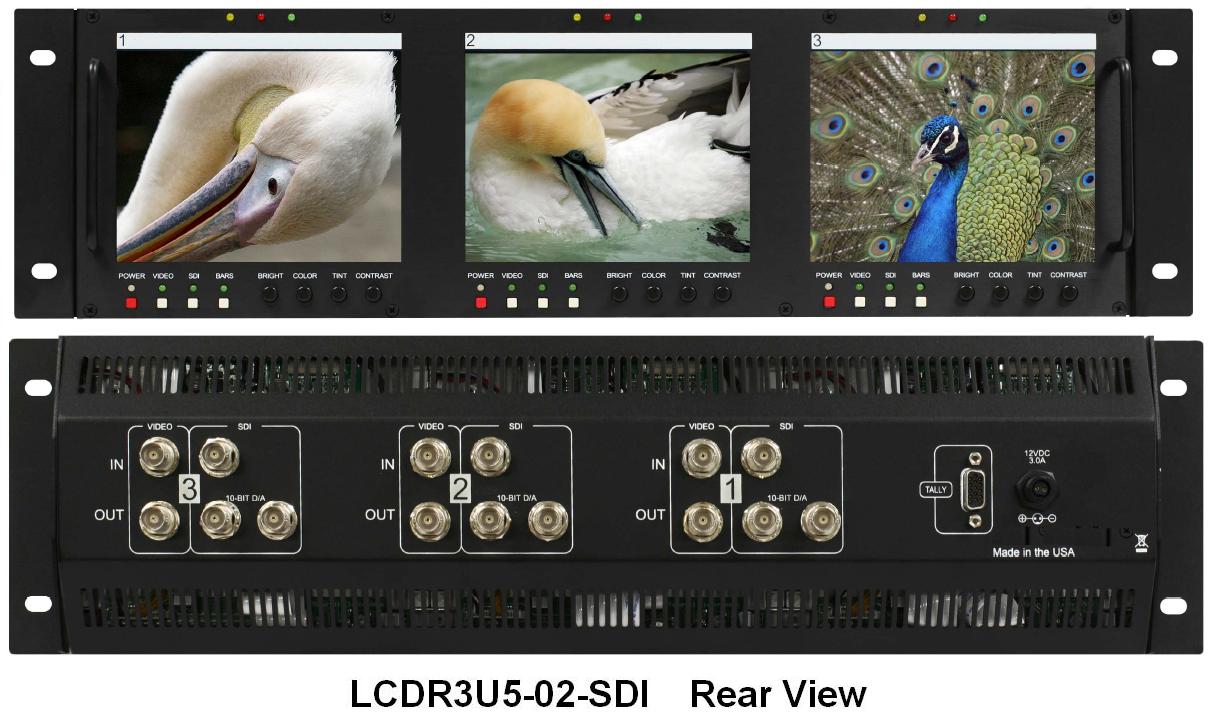

LCDR3U5-02-SDI
|
3U 3 x 5.7" Rack Mounted LCD Panel with SDI inputs
|
