     Home >>   Rackmount LCD Flat Panel >>

                      1U/ 2U/ 3U/ 4U/ 6U/ 7U / 8U Rack mountable LCD Flat Panel :
                                Part #  LCD
R3U2.5-01


                    3U Rackmount  10  x 2.5"  LCD Flat Panel with Automatic NTSC/PAL Detection


Panel:   10 x  2.5" LCD panels

Display

2.5" LCD Panels x 10

Display Area

1.97" x 1.48"

Resolutions

480 H x 234V

Pixel pitch

0.105mm  x 0.16mm

Brightness

250 cd/m2

System

NTSC / PAL auto rec

Input per  panel (total)

 1 ( 10 ) Composite

Approx.  weight

5 lbs

Power Consumption

12 VDC , 3.0 Amps

Product Dimension


19.12" (W) x 5.14" (H)  x 2.65 " (D)

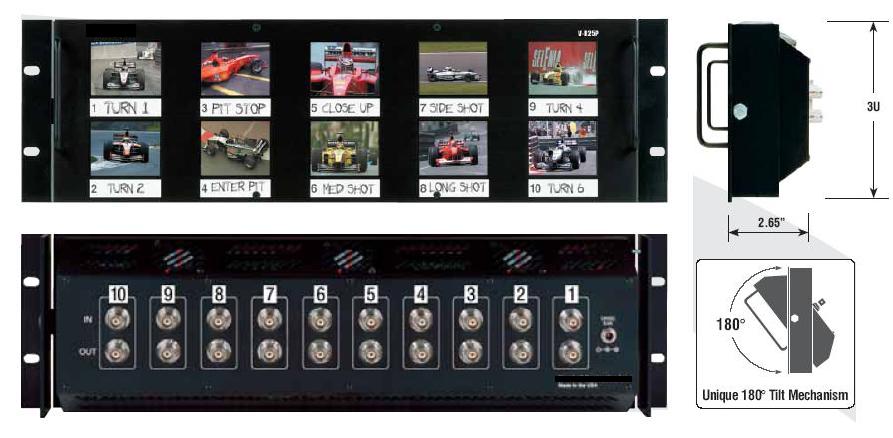

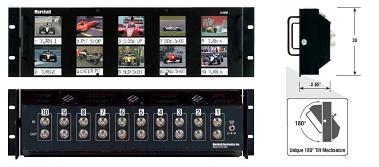

  Front  View

                    *click on  picture for  enlarged view



 Features :

  • High Resolution, 480 234 pixels, 112,320 total pixels
  • Ten 75 ohm Self-Terminated Composite Video Inputs
    with Active Loop through capability
  • Automatic Video Signal Detection, screen will turn
    blue with the absence of a signal
  • Unique 180 degree tilt adjustment
  • Comes with Dry Erase Marker for EZ Identifying of
    screens
  • On/Off switch located on the side of the unit
  • Winner of the Mario Orazio Award at NAB 2000
  • MADE IN USA

 Free Ground Shipping *Click for details





Description :

The LCDR2U2.5-01 is a rack mountable unit that has ten 2.5" active matrix LCD panels with active loop through feature. These 2.5" panels have 480 x 234 pixels producing a true high resolution image. This unit has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack, 3U high. Each screen has NTSC/PAL auto-signal recognition. If there is no video signal present, a blue screen will appear. Unit is turned on and off by using the small toggle switch located on the side of the unit and is accessed by tilting the unit down. The unit includes power supply, instructions and dry erase marker for labeling screens.





Ordering  information
Part Number  Description
LCDR3U2.5-01  3U Rackmount 10 x 2.5"  LCD Monitor panel with Composite Video Inputs
