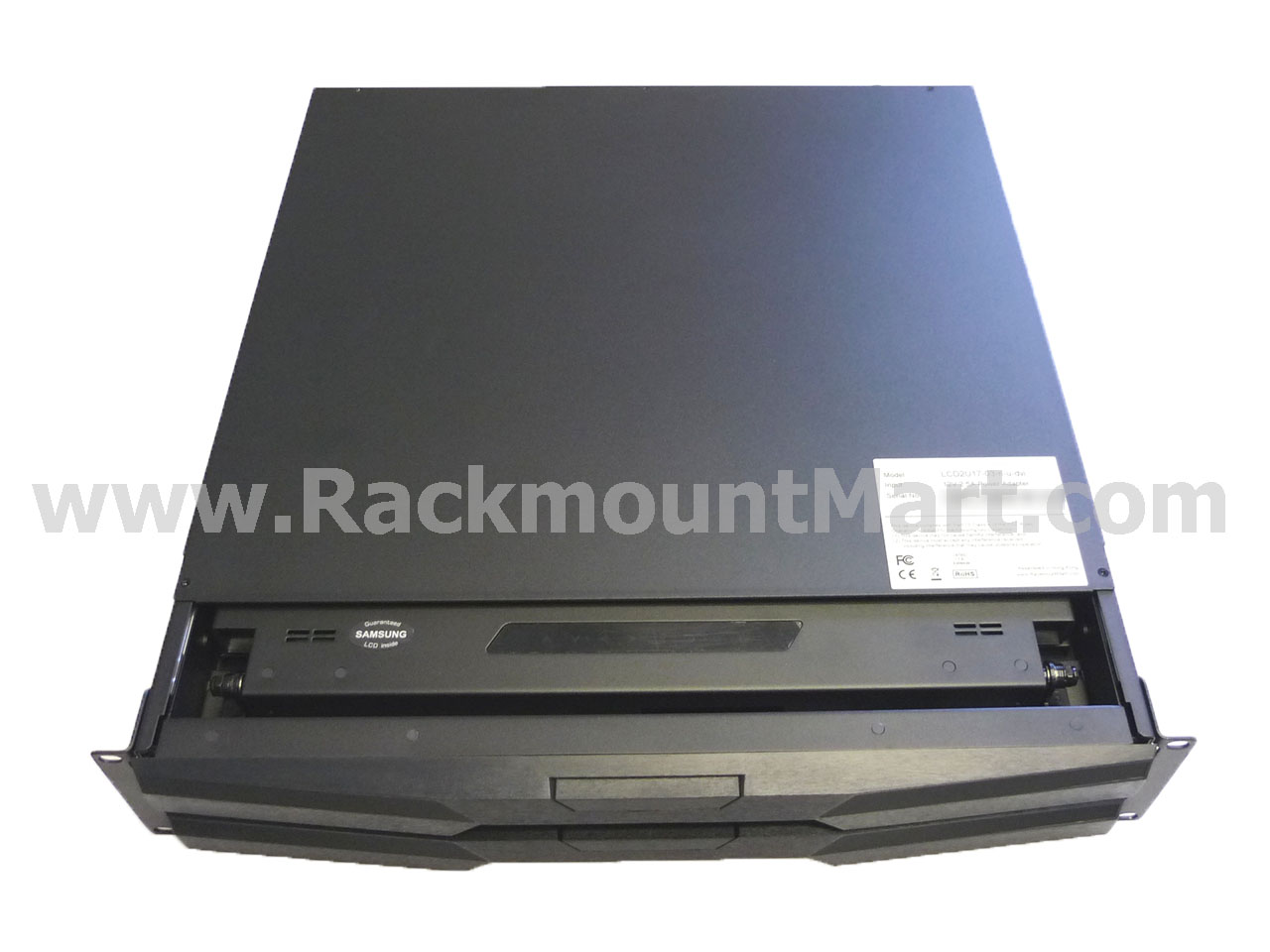

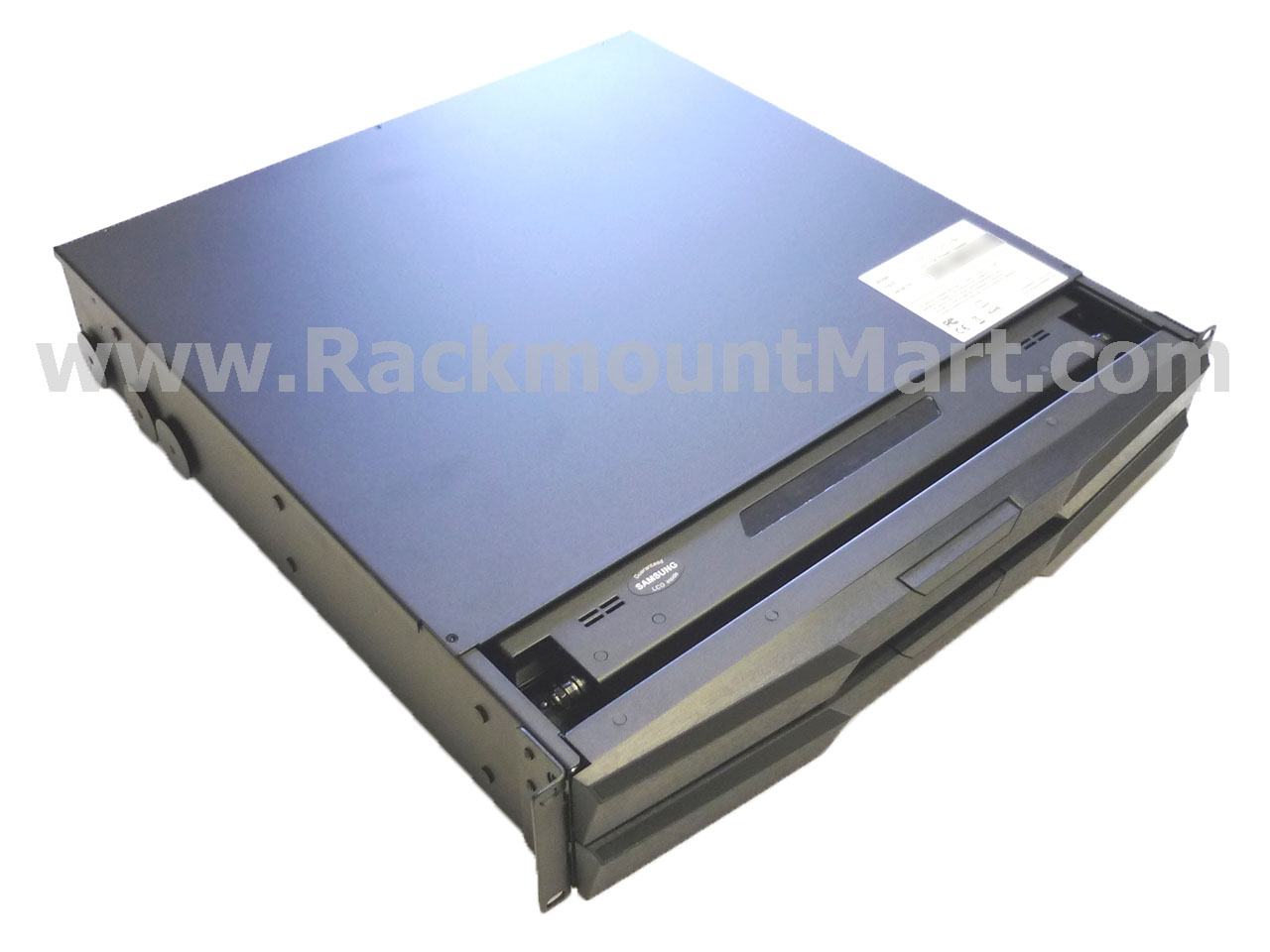

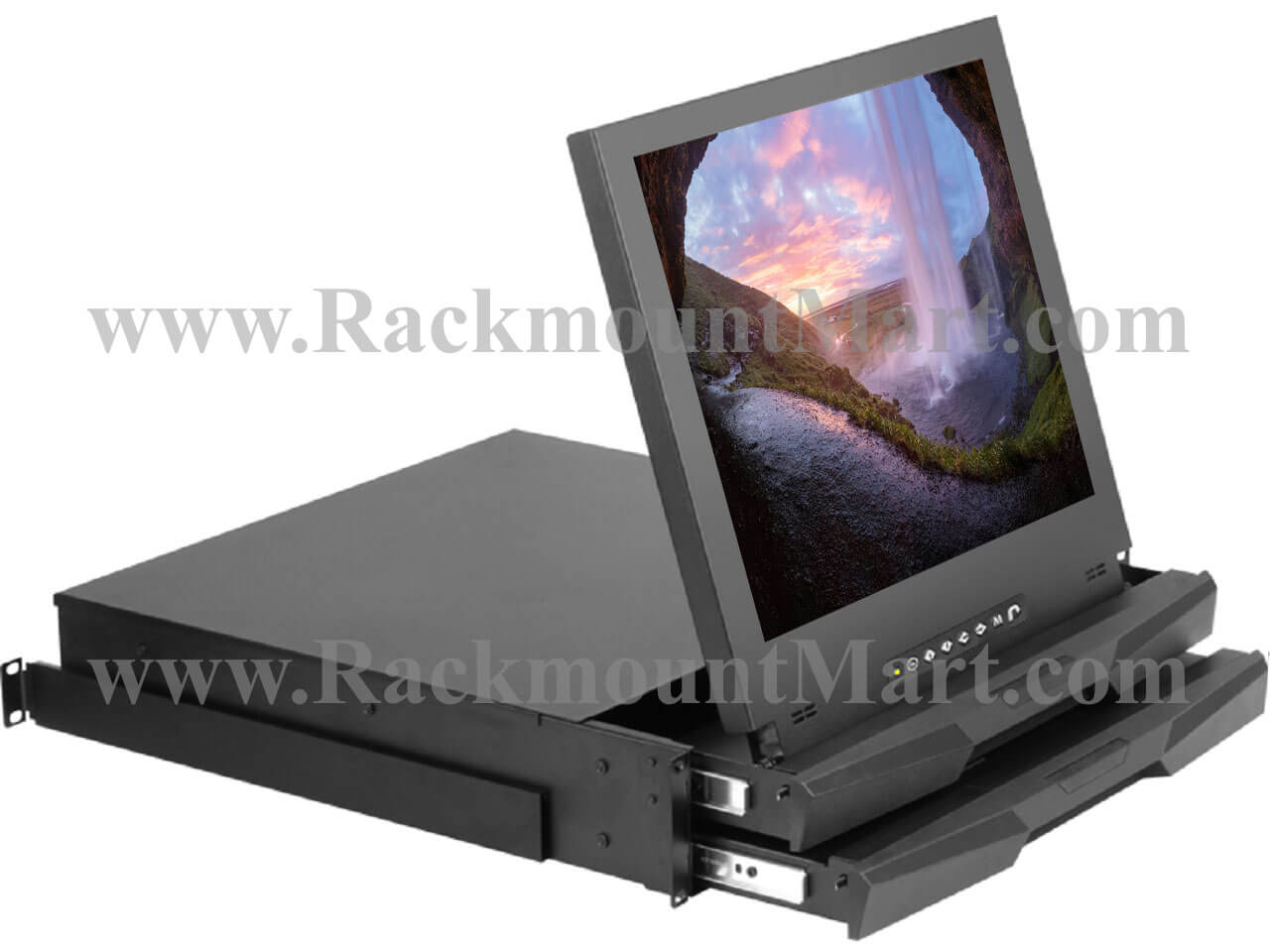

Short Depth 2U Rack KVM Console with Industrial LCD Monitor Keyboard
Model   LCD2U19-02

NOVA Industrial Grade 2U 19" LED Monitor Dual Slide Rackmount KVM Console
NDAA & TAA Compliant
   Optional DB-15 KVM / CAT6 KVM / DVI KVM / Multi-User Matrix KVM
      Optional 1 / 2 / 3 / 4 Simultaneous Users by Local / Remote Access VIA CAT6 or Over IP
                                              Only 18.9" / 480mm Deep, fits  23.6" / 600mm deep cabinet

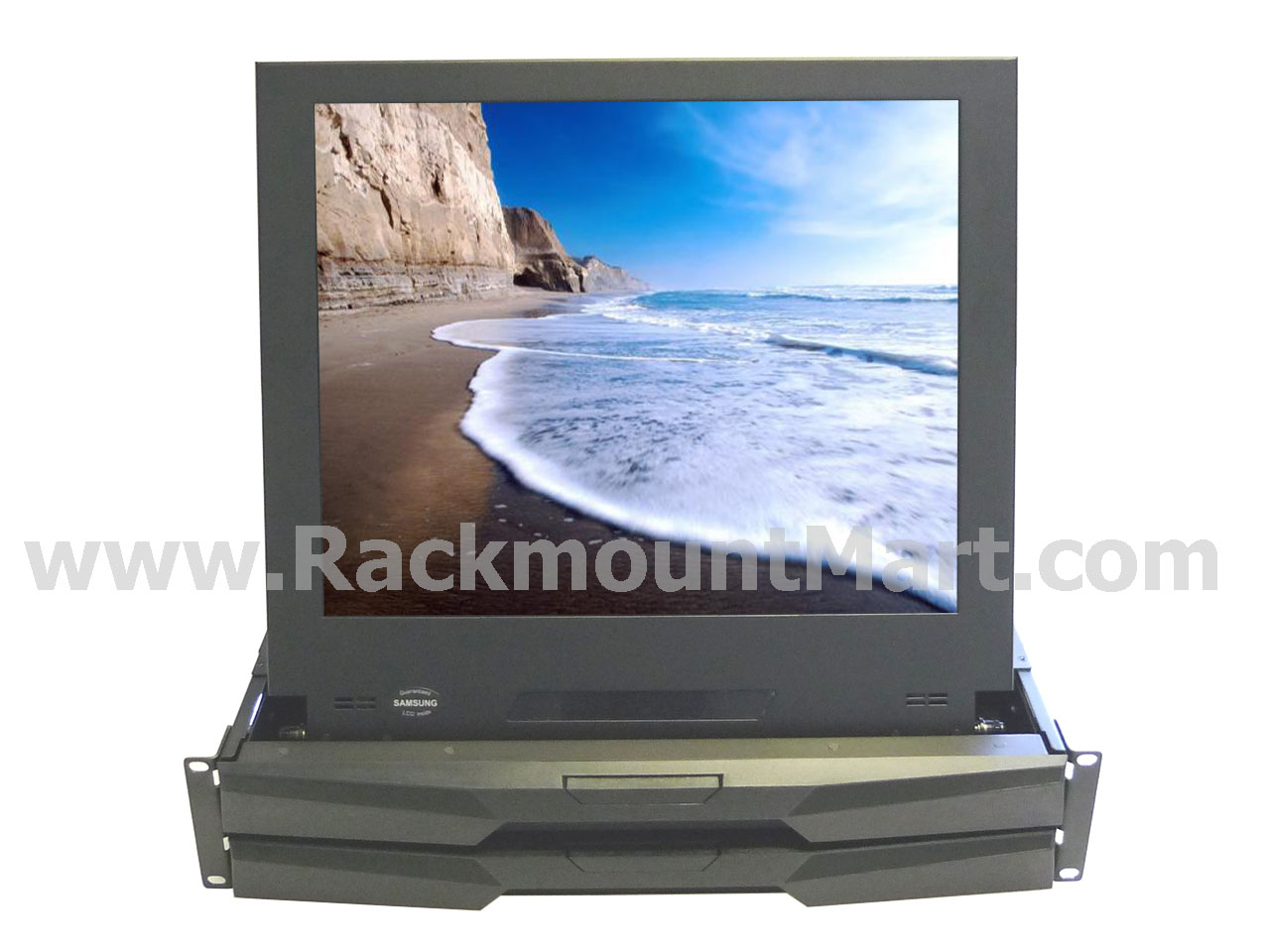

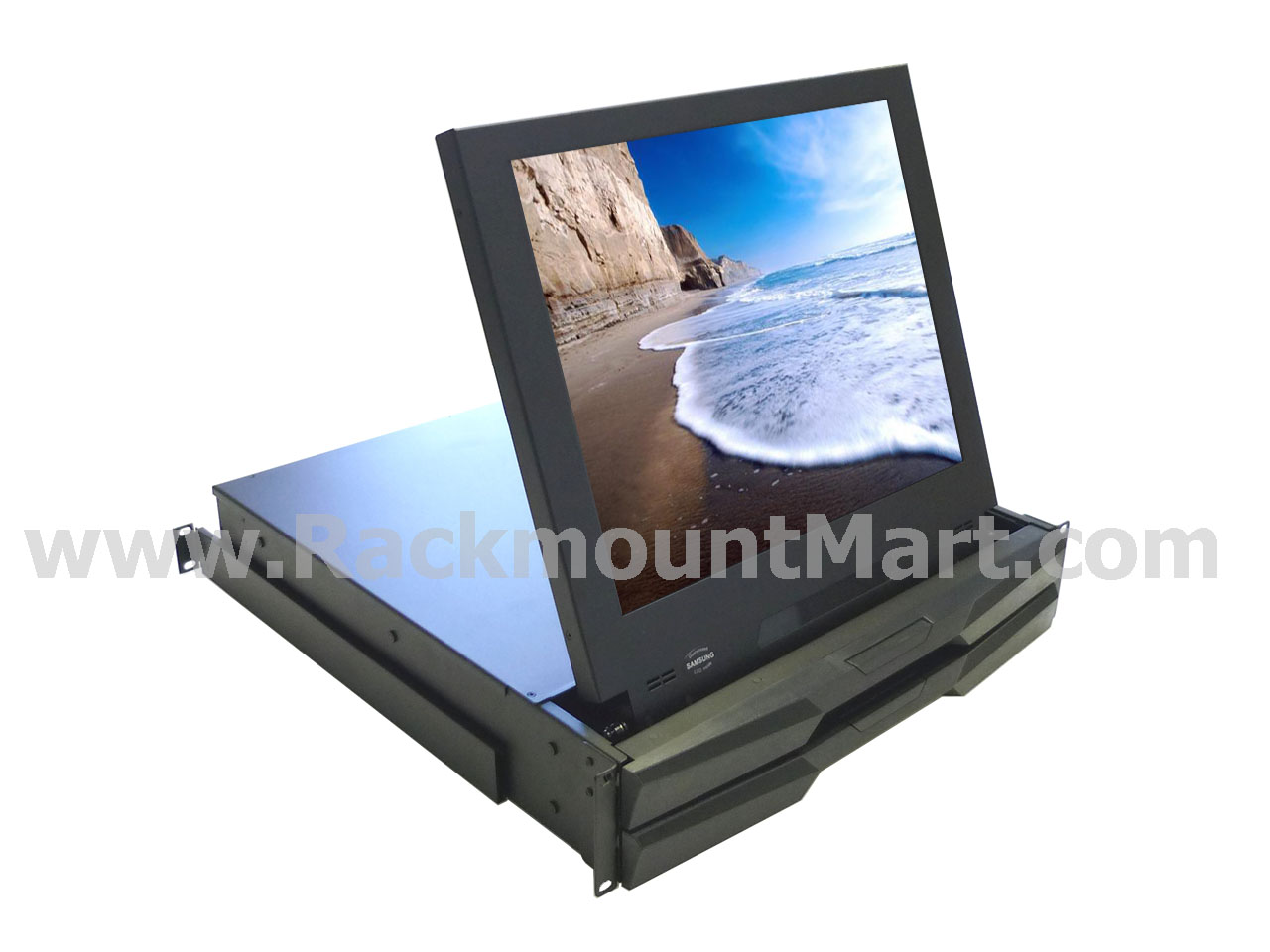

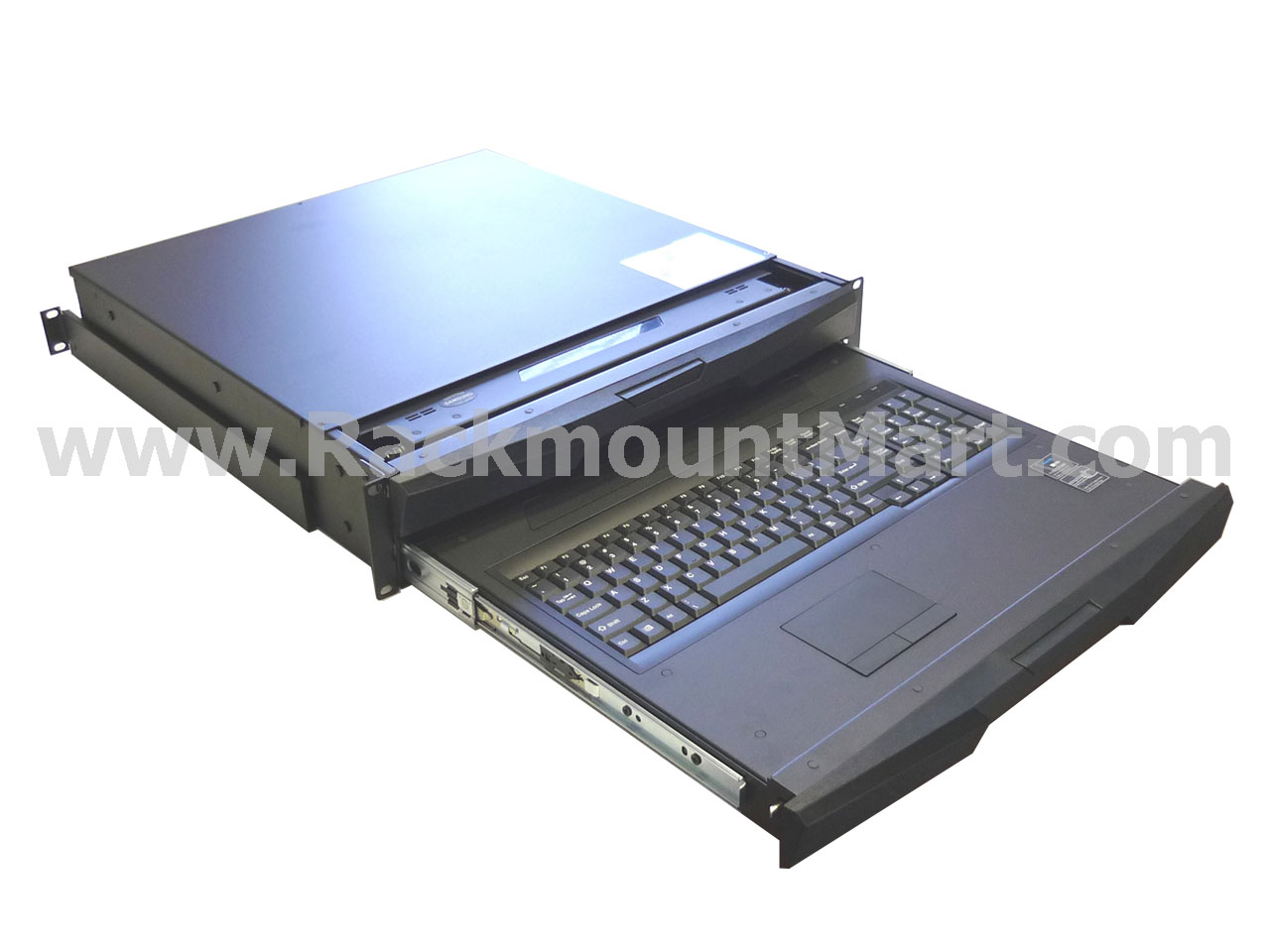

                 Space saving design : Dual Slide enable viewing through closed glass doors of Rack Cabinet
    Rack Console LCD2U19-02-n

   Drawer Features & Display Benefits    Options
LCD Screen

LCD Type

Industrial Grade TFT LCD Panel

Display Size

19 inch diagonal

Resolutions

1280 x 1024

Backlight

LED

Contrast ratio

1000 : 1

Brightness

250 cd/ m2

Active area

376 x 301 (mm)

Panel color

16.7 M

Viewing angle

170° x 160°

Signal Input

VGA

LCD MTBF

30,000 hrs

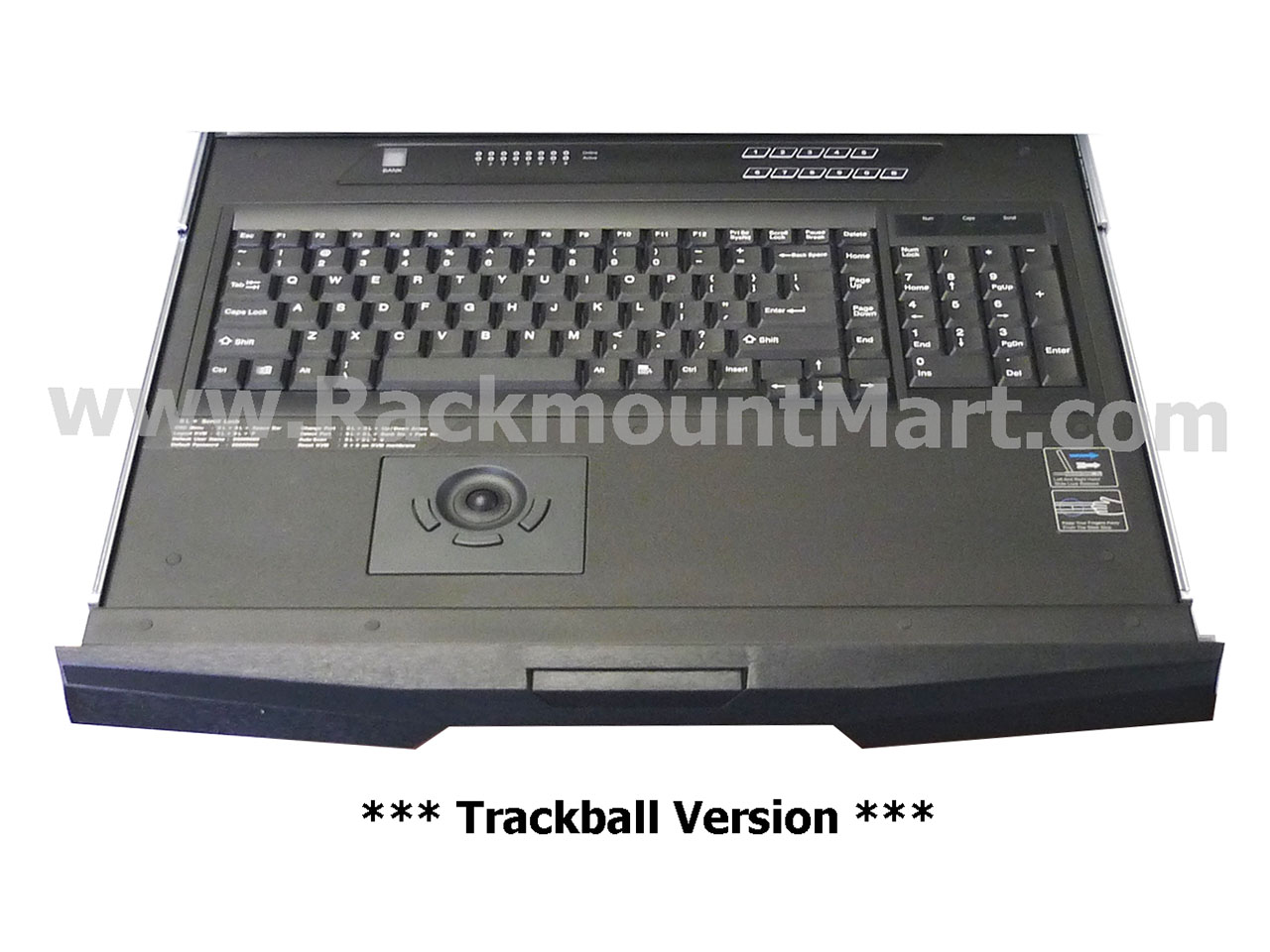

Keyboard & Pointing Device

Model n / b

Standard Windows Keyboard  with Numeric Keypad & Touchpad or Trackball

Model Mn / Mb
(MAC)

MAC Keyboard with Hot-Keys , Numeric Keypad & Touchpad or Trackball
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Screen on : Max. 25 Watt
Power saving mode : Max 4 Watt
Power button on : Max 1 Watt
Environmental
Temperature  0 to 55 Degree Celsius (Operation)
 -20 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Mechanical
Dimensions

441.6(W) x 480(D) x 88(H) mm /
17.4(W) x 18.9(D) x 3.5(H) inch

Product Weight Single Port KVM:45lbs / 20.5kgs
Multi-Port KVM: 47lbs / 21.5kgs
Regulatory Approval
  FCC, CE, RoHS3,
REACH, NDAA & TAA Compliant
ISO 9001, ISO 14001
                              SUN VERSION / SUN KVM
Model LCD2U19-03
    Dimension


     Construction



Data Sheet of the Single Port Model
LCD2U19-02-n / -b

User Manaul of the Single Port Model

Free Ground Shipping. Learn More.

Gallery


Port Type KVM Version No. of Port Cascade Capacity No. of Console User Manual of the Optional KVM Switch
DB-15 KVM ( 1 Active User )
DB-15 PS2 KVM 8 Up to 8 level 1 x Local Console User Manaul w/ product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console User Manaul w/ product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Via CAT6 )		 User Manaul w/ product spec.
DB-15 Combo USB/PS2 KVM 8 / 16 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )		 User Manaul w/ product spec.
CAT6 KVM ( 1 Active User )
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console User Manaul w/ product spec.
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console( Via CAT6 ) 		User Manaul w/ product spec.
Cat6 CAT6 KVM 8/16/32 Up to 8 level 1 x Local Console +
  1 x Remote Console ( Over IP )		 User Manaul w/ product spec.
DVI-D KVM ( 1 Active User )
DVI-D USB & Audio KVM
**External Speakers Only** 		12 1 level 1 x Local Console User Manaul w/ product spec.
Matrix KVM ( 2 ~ 4 Active Users )
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console ( Via CAT 6 )		 User Manaul w/ product spec.
DB-15 Matrix DB-15 KVM 8 / 16 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP ) 		User Manaul w/ product spec.
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
(1, 2 or 3) x Remote Console (Via CAT6 )		 User Manaul w/ product spec.
Cat6 Matrix CAT 6 KVM 16/32 Up to 8 level 1 x Local Console +
( 1 or 2 ) x Remote Cosnole ( Via CAT 6 ) +
( 1 or 2 ) x Remote Console ( Over IP )		 User Manaul w/ product spec.

Back to top

 Ordering Information

DB-15 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console / Single Port Combo KVM 1
 1 x Combo KVM cable
Touchpad LCD2U19-02-n (u)
Trackball  LCD2U19-02-b (u)
1 Local Console / MultiPort PS2 KVM 8
 8 x  PS/2 KVM cable
Touchpad LCD2U19-02-8KVM-n
Trackball  LCD2U19-02-8KVM-b

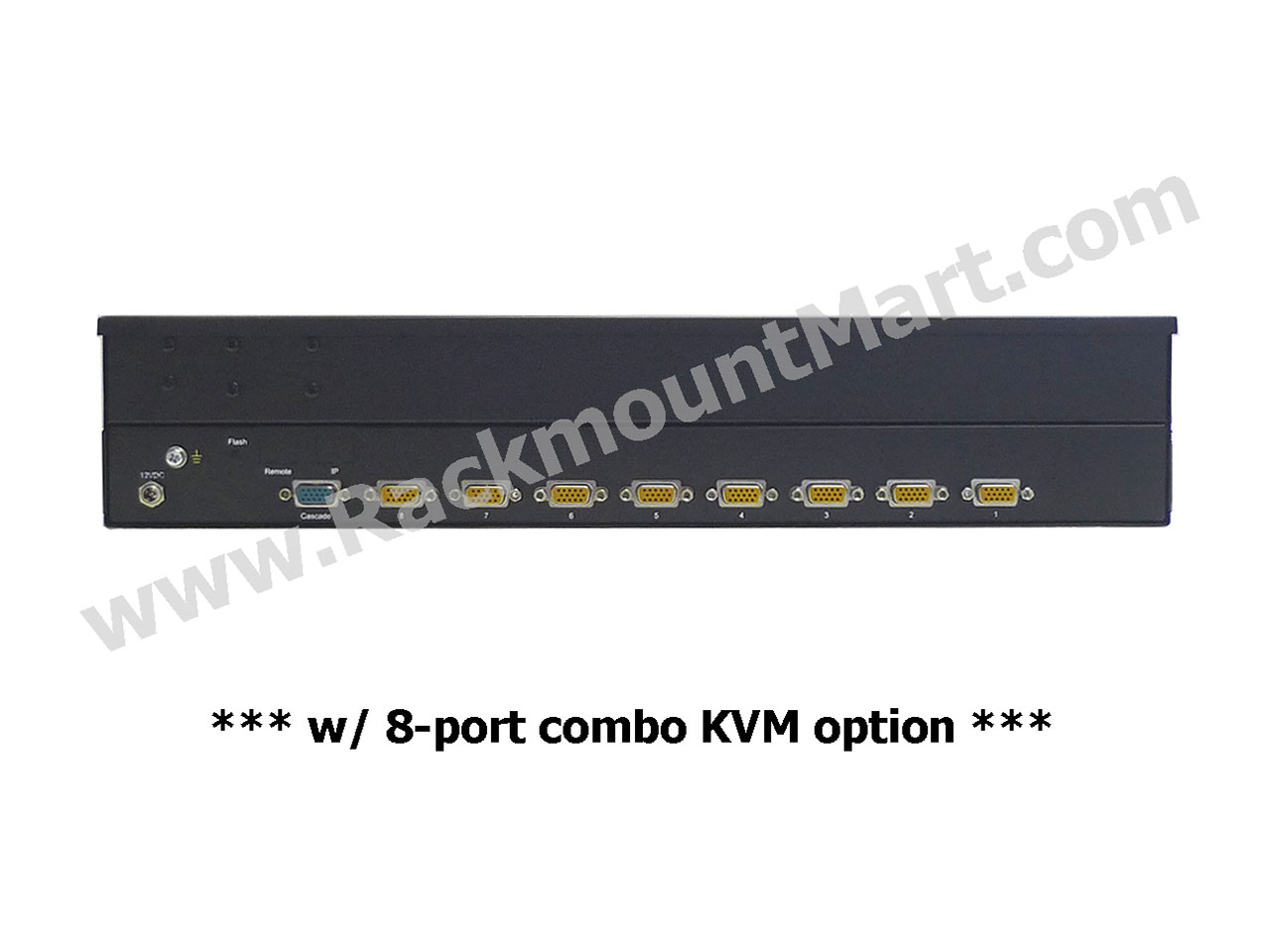

1 Local Console / MultiPort Combo KVM 8
8 x Combo KVM cable
Touchpad LCD2U19-02-8KVM-n-u
Trackball

LCD2U19-02-8KVM-b-u
16
16 x Combo KVM cable
Touchpad LCD2U19-02-16KVM-n-u
Trackball

LCD2U19-02-16KVM-b-u
 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-8KVM2-n
Trackball  LCD2U19-02-8KVM2-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-16KVM2-n
Trackball  LCD2U19-02-16KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-8KVM2IP-n
Trackball  LCD2U19-02-8KVM2IP-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-16KVM2IP-n
Trackball  LCD2U19-02-16KVM2IP-b
CAT 6 KVM : 1 Active User
Local Console & Optional Remote Console ( either Via CAT6 or Over IP)
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number
1 Local Console / MultiPort CAT6 KVM 8
Optional
Touchpad LCD2U19-02-U8KVM-n
Trackball  LCD2U19-02-U8KVM-b
16
Optional
Touchpad LCD2U19-02-U16KVM-n
Trackball

LCD2U19-02-U16KVM-b
32
Optional
Touchpad LCD2U19-02-U32KVM-n
Trackball

LCD2U19-02-U32KVM-b
 LOCAL CONSOLE + REMOTE CONSOLE ( Either Via CAT6 or Over IP )
No. of Console /
KVM Choice		 No. of
KVM port		 Dongle Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) / MultiPort Combo KVM 8
Optional
Touchpad LCD2U19-02-U8KVM2-n
Trackball  LCD2U19-02-U8KVM2-b
16
Optional
Touchpad LCD2U19-02-U16KVM2-n
Trackball

LCD2U19-02-U16KVM2-b
32
Optional
Touchpad LCD2U19-02-U32KVM2-n
Trackball

LCD2U19-02-U32KVM2-b
1 Local Console + 1 Remote Console (Over IP) /
MultiPort Combo KVM		 8
Optional
Touchpad LCD2U19-02-U8KVM2IP-n
Trackball  LCD2U19-02-U8KVM2IP-b
16
Optional
Touchpad LCD2U19-02-U16KVM2IP-n
Trackball

LCD2U19-02-U16KVM2IP-b
32
Optional
Touchpad LCD2U19-02-U32KVM2IP-n
Trackball

LCD2U19-02-U32KVM2IP-b
DVI KVM : 1 Active User
 LOCAL CONSOLE ONLY
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console / MultiPort DVI-D KVM 12
 6 x  DVI-D KVM cable
Touchpad LCD2U19-02-12DVI-n
Trackball  LCD2U19-02-12DVI-b
Matrix DB-15 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M82-n
Trackball  LCD2U19-02-M82-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M162-n
Trackball  LCD2U19-02-M162-b
 3 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M83-n
Trackball  LCD2U19-02-M83-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M163-n
Trackball  LCD2U19-02-M163-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M83IP-n
Trackball  LCD2U19-02-M83IP-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M163IP-n
Trackball  LCD2U19-02-M163IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  KVM Cable Keyboard Part Number
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M84-n
Trackball  LCD2U19-02-M84-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M164-n
Trackball  LCD2U19-02-M164-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M84IP-n
Trackball  LCD2U19-02-M84IP-n
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M164IP-n
Trackball  LCD2U19-02-M164IP-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix DB-15 KVM 		8
 8 x  Combo KVM cable
Touchpad LCD2U19-02-M84IP2-n
Trackball  LCD2U19-02-M84IP2-b
16
16 x Combo KVM cable
Touchpad LCD2U19-02-M164IP2-n
Trackball  LCD2U19-02-M164IP2-b
Matrix CAT6 KVM : 2~4 Active Users
Local Console & Remote Consoles ( either Via CAT6 or Over IP)
 2 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  Dongle Keyboard Part Number
1 Local Console + 1 Remote Console (Via CAT6 ) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU162-n
Trackball  LCD2U19-02-MU162-b
32
Optional
Touchpad LCD2U19-02-MU322-n
Trackball  LCD2U19-02-MU322-b
 3 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  Dongle Keyboard Part Number
1 Local Console + 2 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU163-n
Trackball  LCD2U19-02-MU163-b
32
Optional
Touchpad LCD2U19-02-MU323-n
Trackball  LCD2U19-02-MU323-b
1 Local Console + 1 Remote Console (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU163IP-n
Trackball  LCD2U19-02-MU163IP-b
32
Optional
Touchpad LCD2U19-02-MU323IP-n
Trackball  LCD2U19-02-MU323IP-b
 4 ACTIVE USERS
No. of Console /
KVM Choice		 No. of
KVM port		  Dongle Keyboard Part Number
1 Local Console + 3 Remote Consoles (Via CAT6 ) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU164-n
Trackball  LCD2U19-02-MU164-b
32
Optional
Touchpad LCD2U19-02-MU324-n
Trackball  LCD2U19-02-MU324-b
1 Local Console + 2 Remote Consoles (Via CAT6 ) + 1 Remote Console (Over IP) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU164IP-n
Trackball  LCD2U19-02-MU164IP-b
32
Optional
Touchpad LCD2U19-02-MU324IP-n
Trackball  LCD2U19-02-MU324IP-n
1 Local Console + 1 Remote Console (Via CAT6 ) + 2 Remote Consoles (Over IP) /
Matrix CAT6 KVM 		16
Optional
Touchpad LCD2U19-02-MU164IP2-n
Trackball  LCD2U19-02-MU164IP2-b
32
Optional
Touchpad LCD2U19-02-MU324IP2-n
Trackball  LCD2U19-02-MU324IP2-b
Part Number                                Description
Optional Keyboard & Pointing Devices
-Sn
 Change Standard Windows Keyboard to SUN keyboard with touchpad
-Sb
 Change Standard Windows Keyboard to SUN keyboard with trackball
Optional Video/Audio Inputs
-DVI
DVI-D + HDMI + Audio + Speaker + VGA
-HDMI
HDMI + Speaker + VGA
-SDI
3G-SDI + Speaker + VGA
-AV3.0
Please call
-BNC
BNC + S-Video + Speaker + VGA
-AV
BNC w/ RCA Adapter + S-Video + Speaker + VGA
-SPK
Please call
Optional Touch screen
-TCB
Projected Capacitive 1-Point Touch Screen with USB Controller
-TRB
Resistive 1-Point Touch Screen with USB Controller
Optional DC Power
-DC12 Change to 12V DC power supply
-DC24 Change to 24V DC power supply
-DC48 Change to 48V DC power supply
-DC110
 Change to 110V DC power supply
-DC125
 Change to 125V DC power supply
-DC250
 Change to 250V DC power supply
Optional Dongles
LCD-A2001
 VGA-USB Dongle
LCD-A2002
 VGA-PS/2 Dongle
LCD-A2003
 DVI-USB Dongle
LCD-A2004
 HDMI -USB Dongle
LCD-A2005
 DisplayPort -USB Dongle
LCD-A2006
 USB-C / USB Dongle
Optional Cables
LCD-A3011 6-ft DVI-USB KVM cable
LCD-A3012 6-ft HDMI-USB KVM cable
LCD-A3004
 6-ft DVI Console Cable
LCD-A3005
 6-ft DVI KVM Cable
LCD-A3006
 15-ft DVI KVM Cable
LCD-A3001
 6-ft Combo PS/2 USB KVM Cable
LCD-A3002
 10-ft Combo PS/2 USB KVM Cable
LCD-A3003
 15-ft Combo PS/2 USB KVM Cable
LCD-A1014
 6-ft USB 3-in-1 KVM Cable
LCD-A1015
 10-ft USB 3-in-1 KVM Cable
LCD-A1016
 15-ft USB 3-in-1 KVM Cable
LCD-A1005
 10-ft PS/2 3-in-1 KVM Cable
LCD-A1006
 15-ft PS/2 3-in-1 KVM Cable
LCD-A1007
 33-ft PS/2 3-in-1 KVM Cable
LCD-A1019
 6-ft Cascade Cable

Back to top

Toll Free : 1-888-865-6888    Fax : 510-226-8968    Email :  sales@RackmountMart.com



Home    |   Buy Online   |   About Us  |    Contact Us    |    Site Map

Product images may be generic and may not reflect actual item purchased. Synergy Global Technology  Inc is not responsible for any typographical errors. Specifications subject to change without notice.  Legal.
