1U Mil-Spec Rackmount LCD Monitor with KVM options
Model MIL1U17-18

Rugged Military-Grade 1U Rackmount Dawer with 17" UHD (4K) Monitor
KVM Switch Options: HDMI KVM, DP KVM, DVI KVM, VGA KVM, VGA/USB KVM
Made in USA
TAA Compliant

Made in USA TAA Compliant

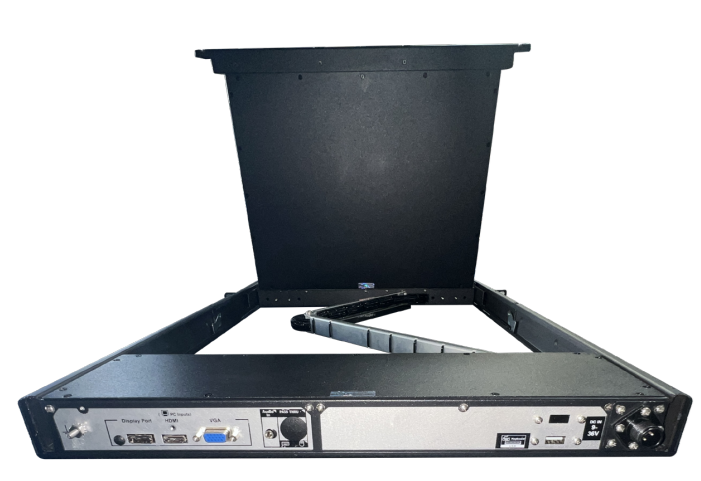

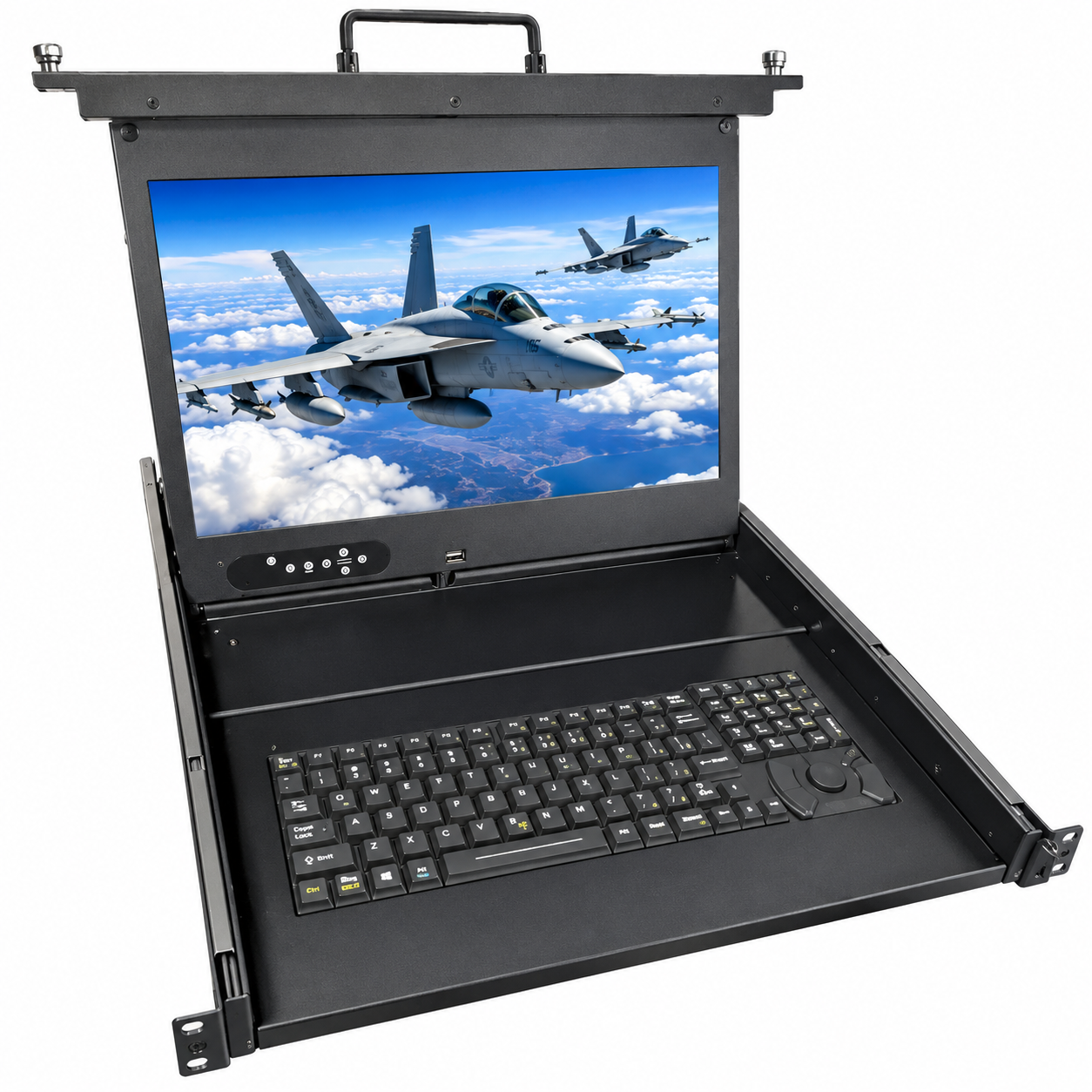

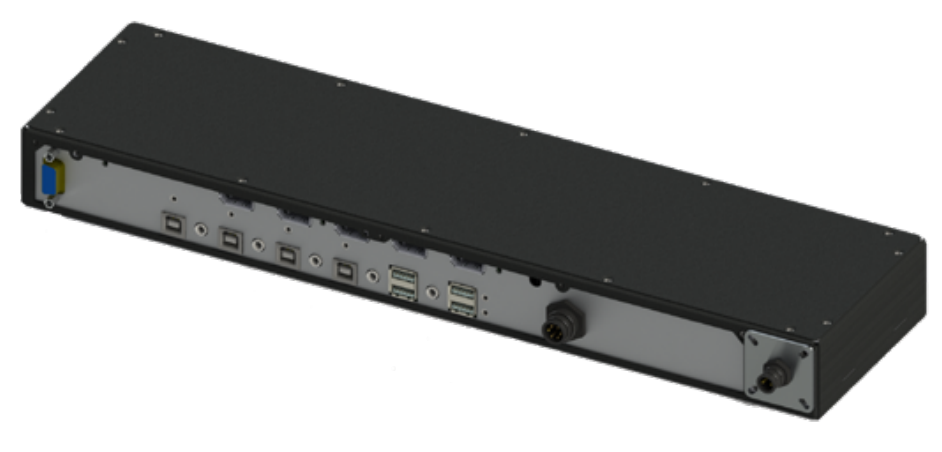

MIL1U17-18

The MIL1U17-18 is a rugged 1U rackmount LCD monitor designed for military, defense, and other demanding environments. Built with precision-machined 5052-H32 and 6061-T6 aluminum, it offers durable construction for standard rackmount and transit case installations.

A chemically strengthened anti-glare protective lens is included as standard. Optional features include MIL-STD-461G EMI enhancements, ITO-coated glass, optical bonding, high-brightness display, MIL-SPEC touchscreen capability, and conformal coating for additional environmental protection.

Designed to meet demanding MIL-SPEC requirements, the MIL1U17-18 supports customized configurations for specialized applications.

Features

1U Rackmount 17" 4K 3840 x 2160 Monitor Keyboard Drawer
Chassis Depth: 20"
Rugged All Aluminum Construction
MIL Standard C300 Friction Slides
Anti Glair, Chem Strengthened Cover Glass
Shock and Vibe Rugged Design 810G, 901D, 167
Fits 19” Rack and Transit Cases
MIL Standard C90, 2 Pin Power Inlet
Made in USA, TAA Compliant

Options

KVM Options: DP KVM, HDMI KVM, DVI KVM, VGA KVM or
VGA / USB KVM
Display Enhancements: Heated Glass and NVIS Backlighting.
Daylight Viewable, High-Brightness
461G EMI, ITO Glass Enhancement
Optical Bonding for Grade A Shock
PCAP and Resistive Touch Screen
Multiple Keyboard Options
MIL Options
Custom Options

LCD Screen
Display Size	17.3"
Resolutions	UHD 3840 x 2160
Cont rast Ratio	1,000 : 1
Brightness	400 nits
Response Time	27 ms
Surface Treatment	Anti-glare
Back Light	LED
Input Signals
VGA	DB15 Male
HDMI or DVI	Standard HDMI or Standard DVI-D
Display Port	Stabdard or Mini Cable
USB	USB 2.0 Type A
Power
DC Power Input	12VDC (Optional 9-36VDC)
Connector	MIL lock connector (C90 Connector Standard)
AC Power Supply	UL Listed AC/DC Brick (Optional MIL SPEC)
Keyboard
Standard	K: Military - Industrial Grade Keyboard
Options	K1: Thin, rugged military-grade keyboard with touchpad and Force Sensing Resistor K2: Thin Military OEM Keyboard K3: Mobile Keyboard with Force Sensing Resistor K4: NEMA 4 Sealed Keyboard with Glidepad
Mechanical and Environment
Height	1.75"
Mounting	20" Rack Mount with Rear Arms 20 to 28" Depth
Construction	Aluminum Housing with black powder coating
Operating Temp.	0°C ~ 50°C
Operating Humidity	5% - 95%, non -condensing \| Method 507.4
Anti-Vibration	5 - 500 Hz / 1 Grms PTP \| Method 514.5
Anti-Shock	15G / Peak (11 ms) \| Method 516.5
Physical Dimension	19" W x 1.75" H x 20" D
Gross Weight	17 lb
Certification and Approvals	UL/CE/ FCC RoHs
Altitude Test	10,000/ 30,000 ft (Operational/ No-Operational)

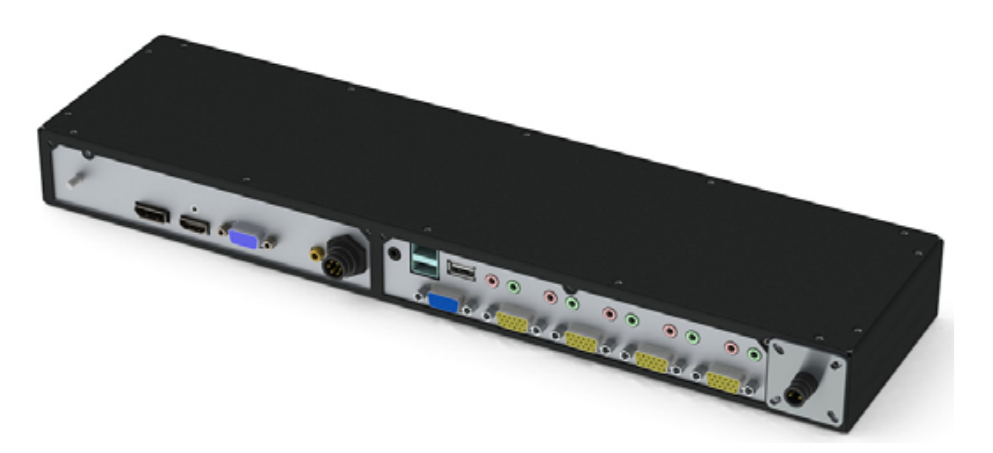

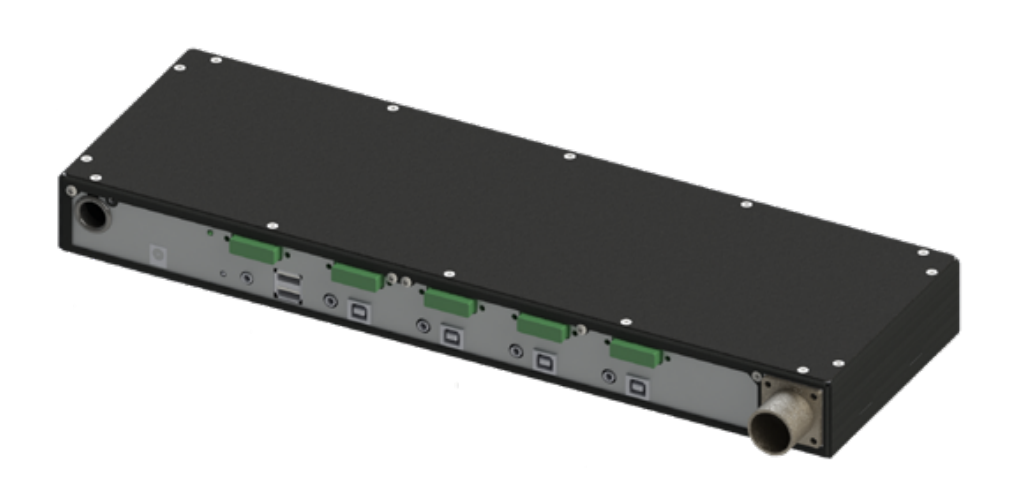

KVM Switch Options
4-Port DP KVM

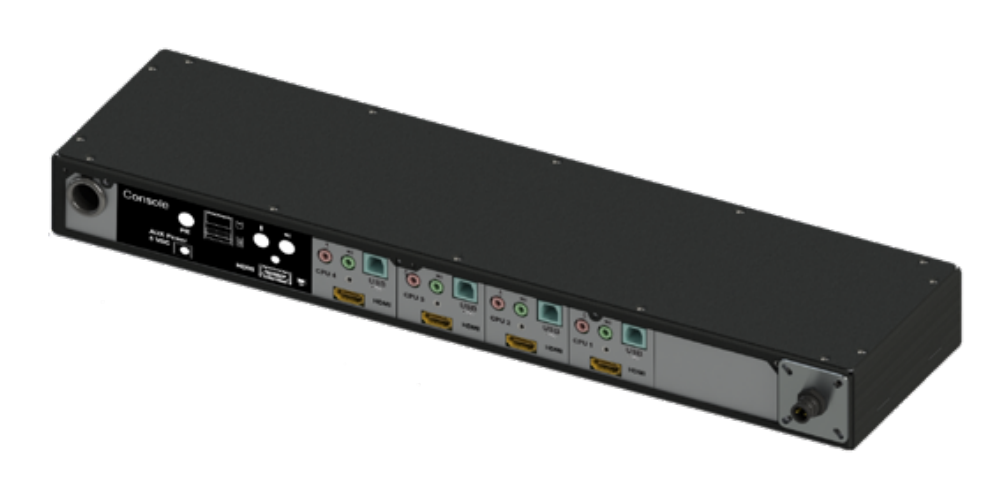

4-Port HDMI KVM
4-Port DVI KVM
4-Port VGA KVM

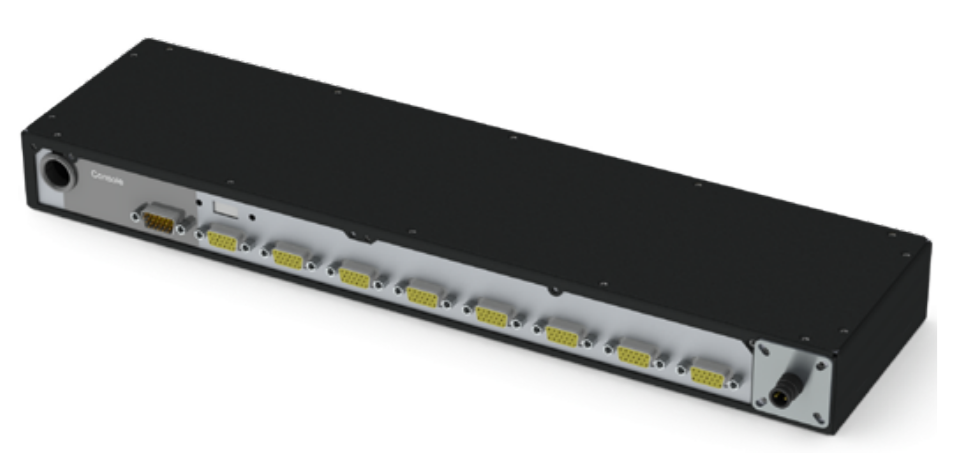

8-Port or 16-Port VGA KVM

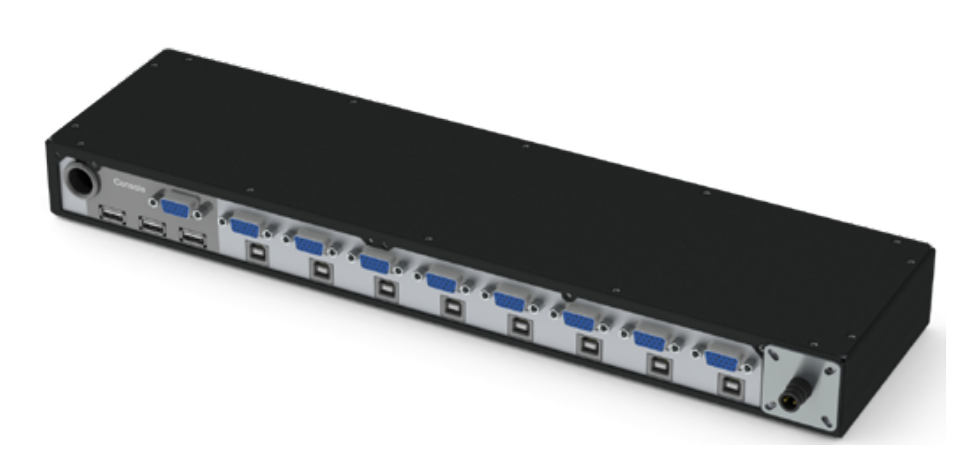

8-Port VGA/USB KVM
MIL Options
Operational Temperature Range	MIL-STD-810F/G, -10C to +50C
Storage Temperature	MIL-STD-810F/G, -30C to +60C
Humidity	MIL-STD-810F/G
Altitude	MIL-STD-810F/G
Vibration	MIL-STD-810F/G, -167, or -516.2
Shock	MIL-STD-810F/G, -901E Grade B, or -901E Grade A
EMI	MIL-STD-461F/G CE102, RE101, RE102, CS101, CS114, CS116, RS101, and/or RS103
	Datasheet
