1U Mil-Spec KVM Console Rack Drawer
Model MIL1U17-06

Rugged Military-Grade Short Depth 1U Rackmount 17" Monitor Keyboard Drawer
Made in USA
TAA Compliant

Made in USA TAA Compliant

MIL1U17-06

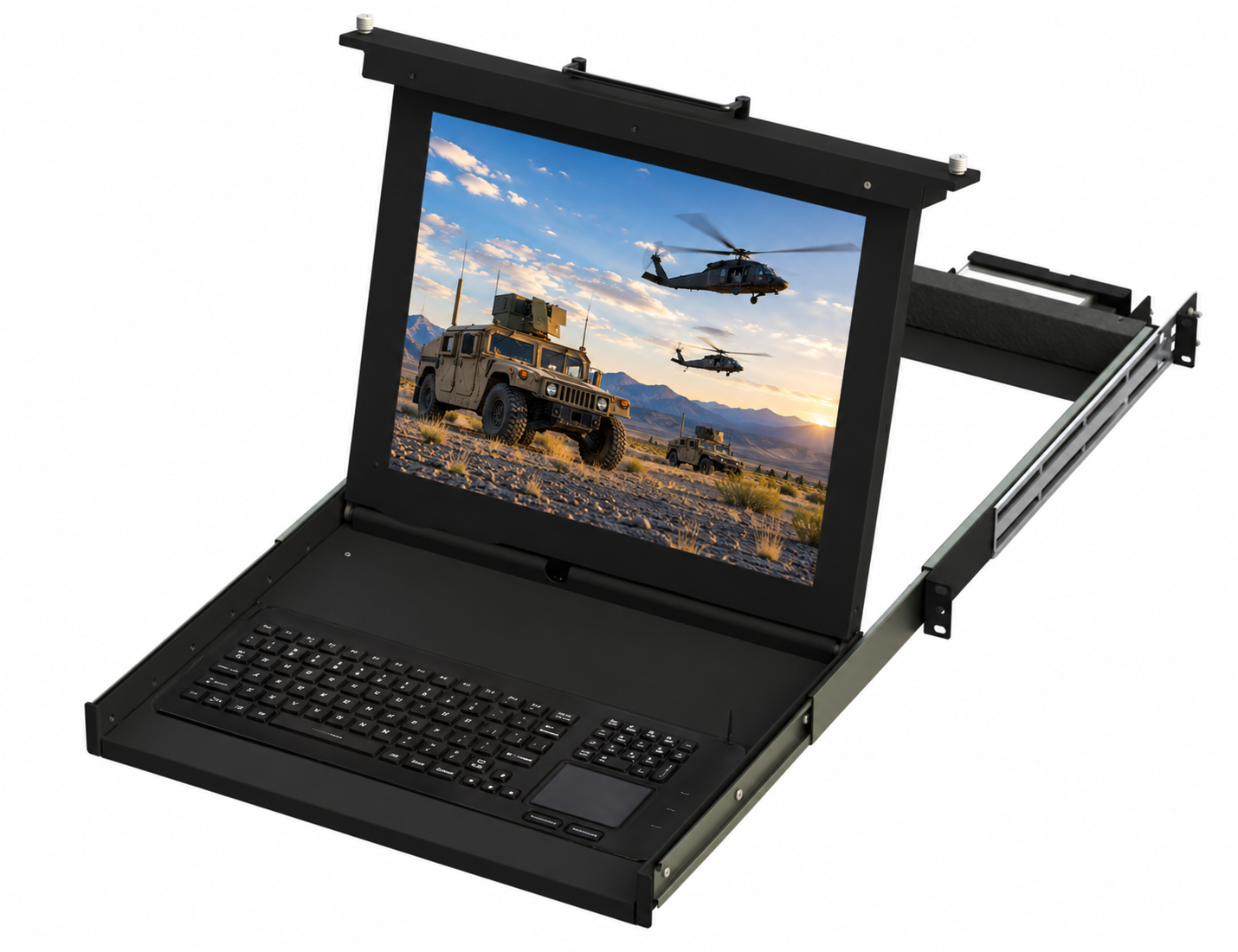

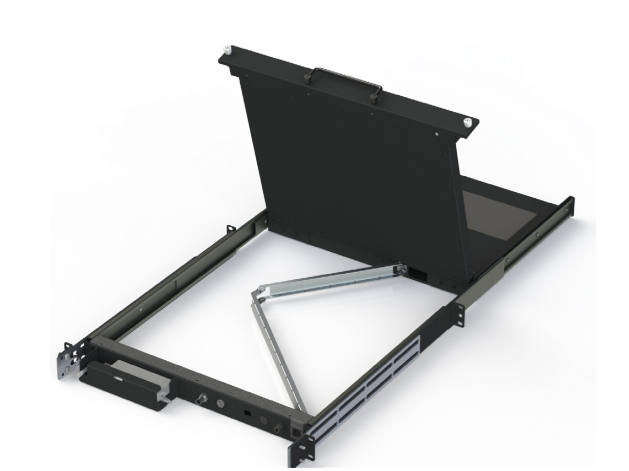

The MIL1U17-06 is a rugged 1U rackmount LCD monitor designed for military, defense, and other demanding environments. Built with precision-machined 5052-H32 and 6061-T6 aluminum, it offers durable construction for standard rackmount and transit case installations.

A chemically strengthened anti-glare protective lens is included as standard. Optional features include MIL-STD-461G EMI enhancements, ITO-coated glass, optical bonding, high-brightness display, MIL-SPEC touchscreen capability, and conformal coating for additional environmental protection.

Designed to meet demanding MIL-SPEC requirements, the MIL1U17-06 supports customized configurations for specialized applications.

Features

1U Rackmount 17" SXGA 1280 x1024 Monitor Keyboard Drawer
Short Depth Design: 17"
Rugged All Aluminum Construction
MIL Standard C300 Friction Slides
Anti Glair, Chem Strengthened Cover Glass
Shock and Vibe Rugged Design 810G, 901D, 167
Fits 19” Rack and Transit Cases
MIL Standard C90 2 Pin Power Inlet
Made in USA, TAA Compliant

Options

LCD Options: FHD (1080p), UHD (4K)
Display Enhancements: Heated Glass and NVIS Backlighting.
Daylight Viewable, High-Brightness
461G EMI, ITO Glass Enhancement
Optical Bonding for Grade A Shock
PCAP and Resistive Touch
Multiple Keyboard Options
MIL Options
Custom Options

LCD Screen
Display Size	17"
Screen Spec.	17M1 , a-Si TFT LCD
Resolutions	SXGA 1280 x1024
Viewing Angle	80/80/60/80 (H/V)
Contrast Ratio	800 : 1
Brightness	350 cd/m²
MTBF (hrs)	50,000
Colors	6-bit+HiFRC (16.7M), NTSC 72%
Surface Treatment	Hard-coating, Anti-glare
Surface hardness	3H
Surface Enhancement	Optical Bonding
Back Light	LED
Input Signals
VGA	DB15 Male
HDMI or DVI	Standard HDMI or Standard DVI-D
Display Port	Stabdard or Mini Cable
USB	USB 2.0 Type A
Power
DC Power Input	12VDC (Optional 9-36VDC)
Connector	MIL lock connector (C90 Connector Standard)
AC Power Supply	UL Listed AC/DC Brick (Optional MIL SPEC)

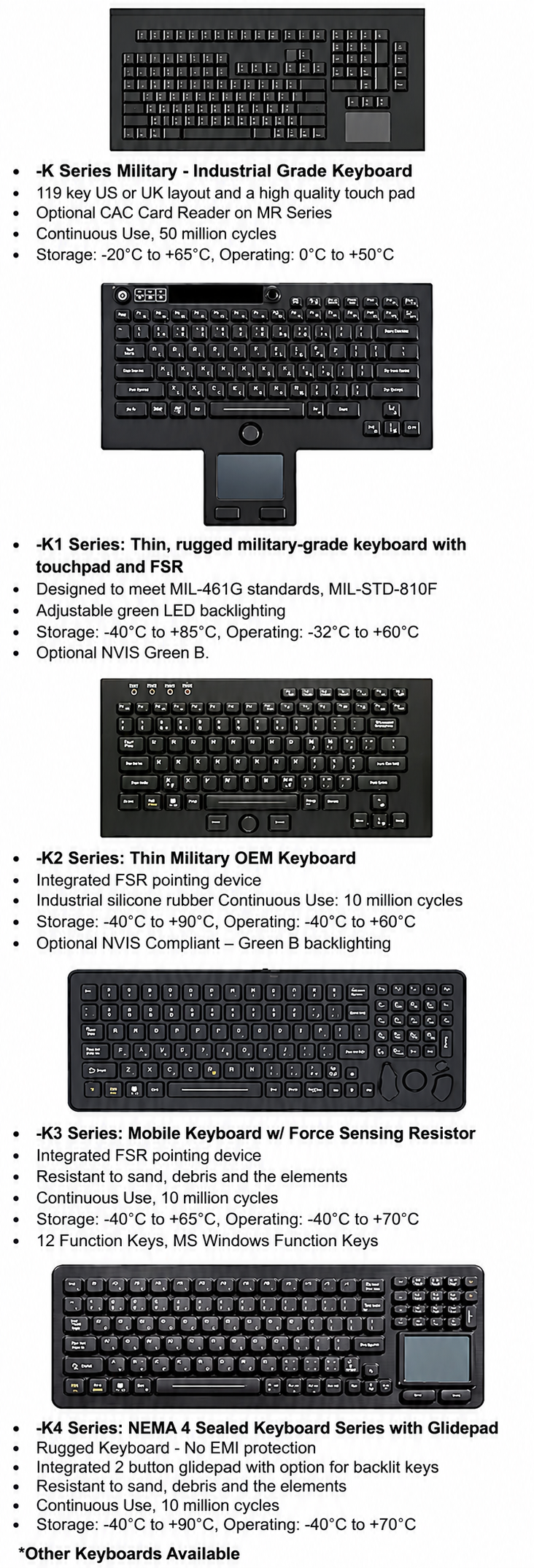

Keyboard
Standard	K: Military - Industrial Grade Keyboard
Options	K1: Thin, rugged military-grade keyboard with touchpad and Force Sensing Resistor K2: Thin Military OEM Keyboard K3: Mobile Keyboard with Force Sensing Resistor K4: NEMA 4 Sealed Keyboard with Glidepad

Mechanical and Environment
Height	1.75"
Mounting	17" Rack Mount with Rear Arms 17 to 25" Depth
Construction	Aluminum Housing with black powder coating
Operating Temp.	-30°C ~ 85°C \| Method 501.4 and 502.4
Storaging Temp.	-30°C ~ 85°C \| Method 501.4 and 502.4
Operating Humidity	5% - 95%, non -condensing \| Method 507.4
Anti-Vibration	5 - 500 Hz / 1 Grms PTP \| Method 514.5
Anti-Shock	15G / Peak (11 ms) \| Method 516.5
Physical Dimension	19" W x 1.75" H x 17" D
Gross Weight	22 lb
Certification and Approvals	UL/CE/ FCC RoHs
Altitude Test	10,000/ 30,000 ft (Operational/ No-Operational)
MIL Options
Operational Temperature Range	MIL-STD-810F/G, -10C to +50C
Storage Temperature	MIL-STD-810F/G, -30C to +60C
Humidity	MIL-STD-810F/G
Altitude	MIL-STD-810F/G
Vibration	MIL-STD-810F/G, -167, or -516.2
Shock	MIL-STD-810F/G, -901E Grade B, or -901E Grade A
EMI	MIL-STD-461F/G CE102, RE101, RE102, CS101, CS114, CS116, RS101, and/or RS103
