     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor >>

Industrial Monitors:  Part #  ID-H19A-LED



       Industrial Grade 19" High Brightness Monitor , Panel Mount , Assembled in USA , TAA Compliant

LCD Specification
LCD Type

Industrial Grade TFT LCD Panel

Backlight

LED

Display Size

19 inch diagonal

Resolutions

1280 x 1024

Display Color

16.7 M color

Brightness

1000 cd/m2

Contrast ratio

1000 : 1 (Typical)

Active area (mm)

376 x 301

Viewing angle 160° x 160°

LCD MTBF

50,000 hrs

Signal Input

DVI-D, VGA

Power Supply

Input : Auto-sensing 100 to
          240VAC, 50 / 60Hz
Consumption :Max. 84 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
OPTIONS

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V DC Power         Details
Input Range:
  10~36V(DC-12V, DC-24V model)
  36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details
- HDMI, DVI-D, S-Video + BNC & Audio
- 3G / HD / SD-SDI Broadcast-grade input
- MIL-type or lockable connector
- Auto / switch dimming
- TV - PAL or NTSC

Mechanical
Dimension  18.8 x 2.5 x 15.1 inch /
 476.5 x 63.6 x 384.1 mm ( WxDxH )
Product Weight  7.7 kgs ( 16.9 lbs )
Casing Color  Black front panel
 Black rear case
Environmental
Temperature 0 to 50 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5 ~ 90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5 ~ 500Hz 1G RMS random vibration
Regulatory FCC, CE, RoHS Compliant , Assembled in USA , TAA Compliant
Package Content

Package Content

19" High Brightness LCD display x 1, 6ft VGA Cable x 1, Power adapter x1, Power cord x 1, Mounting hardware x 1 pack
  Front View

  Construction

   Front / Rear / Top / Side Views & Dimensions

*click on above picture for enlarged view

                        Download Product Sheet
                        Download User Manual
                        Download Mounting Guide
                          (VESA Mount / Wall Mount)


   Free Ground Shipping * Click for details


More photos (click to enlarge )

   DISPLAY BENEFITS :
  • 19" LCD with high brightness 1000 cd/mē
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • 6mm aluminum front bezel with protective glass
   0PTIONS :
  • HDMI, DVI-D, S-Video + BNC & Audio
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • 19" Touchscreen : Capacitive, Resistive
  • 48V or 24VDC Power
  • MIL-type or lockable connector
  • Auto / switch dimming
  • TV - PAL or NTSC

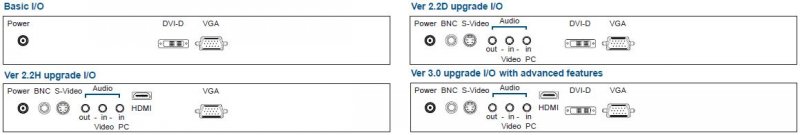

     Diagram for  I/O Outlet

Ordering information :
Part # Description
ID-H19A-LED
Price : $1204
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + DVI-D input
ID-H19A-BNC-LED
Price : $1339
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-H19A-AV-LED
Price : $1339
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + DVI-D + BNC with RCA adapter + S-Video + Audio + remote controller
ID-H19A-HDMI-LED
Price : $1339
6mm Aluminum Front Bezel with NEMA4 / IP65 front protection 19" High Brightness LCD w/ LED Backlight Panel Mount Monitor,
with VGA + HDMI with speakers + BNC +S-Video + Audio + remote controller
Optional Video/Audio Inputs
-SDI
Price : $461
With VGA + DVI-D + SDI Download Spec Sheet
-MC
Price : $88
Add Multi-Display Controller Download Spec Sheet
Optional Touch Screen
-TRS
Price : $257
Add Resistive Touch Screen with Serial Controller
-TRB
Price : $257
Add Resistive Touch Screen with USB Controller
-TCS
Price : $434
Add Capacitive Touch Screen with Serial Controller
-TCB
Price : $434
Add Capacitive Touch Screen with USB Controller
-TPC10
Price : $508
Add Projected Capacitive 10-point multi-touch + USB controller
** casing dimension will be changed if multi-touch is applied
Optional Dimming
-DA
Price : $95
Add Auto Dimming
-DS
Price : $95
Add Dimming switch
** casing dimension will be changed if -DS is applied
Optional DC power
-DC12
Price : $262
Add 12V DC Power
-DC24
Price : $262
Add 24V DC Power
-DC48
Price : $262
Add 48V DC Power
-DC110
Price : $339
Add 110V DC Power
-DC125
Price : $339
Add 125V DC Power
Optional Connectors
-MD
Price : $88
Add MIL-type DC Power lockable jack, male
-MA
Price : $136
Add MIL-type VGA lockable jack, male
-LD
Price : $34
Add Lockable DC Power jack, male
-LS
Price : $34
Add Lockable USB jack
