     Home >>  Industrial Display >>  Panel Mount Monitor / Wall Mount / Bracket Mount Monitor / Vesa Mount >>

Industrial Flat Panel :  Model ID-20A


6mm Aluminum Front Bezel 20" LG Industrial Grade Display Monitor
TAA Compliant
                                                  LCD Panel

LCD Type

LG  Industrial Grade TFT LCD Panel

Display Size

20.1" TFT

Resolutions

1600 x 1200

Display Color

16.7M color

Brightness

300 cd/m2

Contrast ratio

800 : 1 (Typical)

Backlight CCFL
Viewing angle 178 x 178 (H/V)
Active area (mm) 408 x 306
LCD MTBF 45,000
Signal Input VGA / DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Max. 48 Watt, Standby 5 Watt

Mounting

Panel mount / VESA mount
                                                  OPTIONS

Optional Video  Input

  • Video Input   :    HDMI and S-Video and Composite and BNC
  • Input Connectors : BNC, S-video, HDMI

Optional Touch Screen

                 Details

Optional DC Power

48V / 24V / 12V DC Power     Details
Input Range:10~36V(DC-12V, DC-24V model)
                 36~75V (DC-48V model)
DC power Output : DC 12V
Voltage Accuracy
: +/- 1% (Max.)
Safety  : Continuous short circuit protection

Other Option

- Multi-Display Controller         Details

                                  Mechanical
Casing Color Black
Dimension
(W x D x H)
512.5 x 72.1 x 391.6 mm
20.2 x 2.8 x 15.4 inch
Product Weight 7 kgs ( 15.4 lbs )
                                  Environmental
Temperature 0 to 55C Degree(Operation)
-5 to 60C Degree(Storage)
Relative Humidity  5~90%, non condensing
Shock 10G acceleration ( 11 ms duration )
Vibration 5~500Hz, 1G RMS random vibration
Regulatory Safety : FCC & CE certified
Environmental : RoHS2 & REACH compliant
TAA Compliant

  ID-20A


  Construction

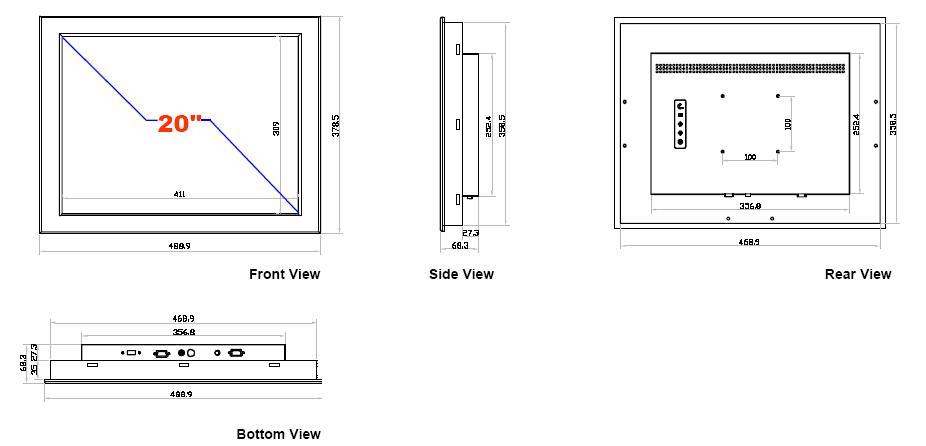

  Dimensions

*click for enlarged view


 Download Product Sheet
 Download User Manual
 Download Mounting Guide

      Free Ground Shipping * Learn More.


  Gallery

   DISPLAY BENEFITS :
  • 20" LCD with high resolution 1600 x 1200
  • Rugged construction against external impact
  • Protective 3mm glass
   0PTIONS :
  • MC Multi-display control solution
  • Resistive ( single point touch )
  • S-Video + Composite ( BNC / RCA) or Audio input
  • HDMI
  • MIL-type or lockable connector
  • DC power : 12V / 24V / 48V / 110V / 125V
  • Quad display for CCTV

Ordering Information
Part Number Description
ID-20A
20" LG Panel Mount TFT LCD Display, VGA + DVI-D input
ID-20A-BNC
20" LG Panel Mount TFT LCD Display, VGA + DVI-D + BNC + S-Video + Audio + remote controller
ID-20A-AV
20" LG Panel Mount TFT LCD Display, VGA + DVI-D + RCA + S-Video + Audio + remote controller
ID-20A-HDMI
20" LG Panel Mount TFT LCD Display, VGA + HDMI with speaker + BNC + S-Video + Audio + remote controller
Optional NEMA4 / IP65
-N
NEMA4 / IP65 protection on the screen
Optional Video/Audio Inputs
-SDI
VGA + DVI-D + HDMI + BNC + S-Video + audio + remote controller + SDI
-QD
Quad display ( VGA + DVI-D + QD)
-MC
Multi-Display Controller
Optional Touch Screen
-TRS
Resistive Touch Screen with Serial Controller
-TRB
Resistive Touch Screen with USB Controller
Optional DC Input Power
-DC12 Change to 12V DC power supply
-DC24   Change to 24V DC power supply
-DC48   Change to 48V DC power supply
-DC110
  Change to 110V DC power supply
-DC125
  Change to 125V DC power supply
-DC250
  Change to 250V DC power supply
Optional Lockable Jack
-MD MIL-type Lockable DC Power jack, Male
-MA MIL-type Lockable VGA jack, Male
-LD Lockable DC Power jack, Male
-LS Lockable USB jack for touch screen
