    Home >>  Industrial Display >>  Open Frame LCD Monitor >>

Industrial Monitor  :   Model ID-2-E17Pw



17" Industrial Grade  Open Frame Full HD 1080p Widescreen LED
TAA Compliant

                                                  LCD Panel

LCD Type

17"Industrial Grade WidescreenFull HD TFT LCD Panel

Backlight

LED

Display Size

17.3 inch diagonal (382H x 215V)

Resolutions

1920 x 1080

Display Color

16.7M, 8-bit

Brightness

400 cd/m2

Contrast ratio

600 : 1 (Typical)

Viewing angle

160 x 140

LCD MTBF

50,000 hrs

Signal Input

VGA & DVI-D

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt

Mounting

Universal mount / VESA mount
                                                  OPTIONS

Touch Screen

                 Details

DC Power

250V , 125V , 110V , 48V, 24V or 12V DC power

Other Options

- HDMI, Audio, Remote Controller
- MIL-type or lockable connectors
- Video Transmission Over Network or IP & Video Management:
* Video Decoding capability up to 1080p over Internet
* HDMI Extender Module 1080p over network
* Multi Monitor On Screen Display Control Module over
  Serial Controller

* 3G / HD / SD-SDI Input Module
* Portrait Mode Module
* Quad Display Module
* Auto Brightness Dimming Module
  or Manual Brightness Dimming Knob

Mechanical
Color  Case : Black
Dimension  18.3 x 2 x 12.9 inch /
 465.5 x 50.6 x 328 mm (W x D x H)
Product Weight 7.5 lbs ( 3.4kgs)
Environmental
Temperature  0 to 50 Degree Celsius (Operation)
 -5 to 60 Degree Celsius (Storage)
Relative Humidity  5~90%, non condensing
Shock  10G peak acceleration   (11ms duration)
Vibration  5~500Hz, 1G RMS random vibration
Safety Approval  FCC, CE, RoHS , REACH, TAA Compliant

  Front View of  ID-2-E17Pw

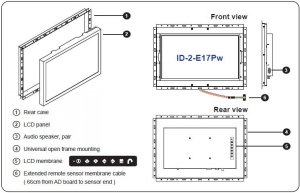

  Construction

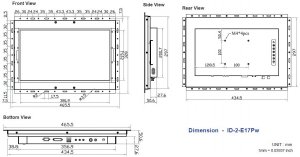

   Dimension

      *click for enlarged view

Product Sheet
User Manual


         Free Ground Shipping * Click for details


More Photos





   DISPLAY BENEFITS :
  • 17" widescreen LCD with Full HD 1080p resolution
  • Green LED-backlit panel technology
  • Rugged construction against external impact

0PTIONS :


Ordering information
Part Number Description
ID-2-E17Pw
Price : $594
17" Open Frame FHD 1080p Monitor with VGA + DVI-D
ID-2-E17Pw-HDMI
Price : $762
17" Open Frame FHD 1080p Monitor with VGA + DVI-D + HDMI + Audio + Remote Controller
ID-2-E17Pw-SDI
Price : $1,070
17" Open Frame FHD 1080p Monitor with VGA + DVI-D + HDMI + Audio + Remote Controller + SDI
Optional Video Transmission & Management
-DE
Price : $378
Embedded HDMI Decoder Module
-EN
Price : $630
Standalone HDMI Encoder
-RV
Price : $154
Embedded HDMI Receiver Module
-TM
Price : $154
Standalone HDMI Transmitter
-QU
Price : 791
Embedded HDMI Quad Display Module
-QUe
Price : 224
Embedded HDMI Quad Display Extension Module
-PM
Price : $154
Portrait Mode Module
-MC
Price : $91
Multi-Display Controller            Download Spec Sheet for Multi-Display Controller
-DA
Price : Please call
Brightness Auto Dimming Module
-DS
Price : Please call
Manual Brightness Dimming Knob
Optional Touch Screen
-TRB
Price : $
238
Resistive 1-point Touchscreen with USB controller
-TRS
Price : $
238
Resistive 1-point Touchscreen with Serial controller
-TPC
Price : $
413
Projected Capacitive 10-point multi-touch + USB controller
** Product dimension will be changed if multi-touch is applied. Please ask for details.
Optional DC Input Power
-DC12
Price : $266
12V DC Power
-DC24
Price : $266
24V DC Power
-DC48
Price : $266
48V DC Power
-DC110
Price : $350
110V DC Power
-DC125
Price : $350
125V DC Power
-DC250
Price : Please call
250V DC Power
Optional Connectors
-MD
Price : $91
MIL-type DC Power lockable jack, male for DC Input Power only
-MA
Price : $140
MIL-type VGA lockable jack, male
-LD
Price : $35
Lockable DC Power jack, male for DC Input Power only
-LS
Price : $35
Lockable USB jack for Touch Screen
