Industrial Display
Model  ID-19D


Industrial Grade 19 Inch Chassis Mount Monitor with LED backlight
TAA Compliant


    Front View

    Display Benefits
  • 19" LCD with resolution 1280 x 1024
  • Green LED-backlit panel technology
  • Rugged construction against external impact
  • Protective 3mm glass
    Options
  • 3G / HD / SD-SDI Broadcast-grade input
  • MC Multi-display control solution
  • Projected Capacitive ( 4-point touch )
    Resistive / Capacitive ( single point touch )
  • Composite BNC / RCA or Audio input
  • DVI , Speakers
  • MIL-type or lockable connector
  • DC power : 12V / 24V / 48V / 110V/ 125V/ 250V
  • Quad display for CCTV
                                                  LCD Panel
LCD Type Industrial Grade TFT LCD Panel

Display Size

19 inch diagonal (376H x 301V)

Resolutions

1280 x 1024

Display Color

16.7M color

Brightness

250 cd/m2

Backlight

LED

Contrast ratio

1000 : 1 (Typical)

Viewing angle

170° x 160°

LCD MTBF

30,000 hrs

Signal Input

HDMI / VGA

Power Supply

Input : Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption :Max. 48 Watt, Standby 5 Watt
                                                  OPTIONS

Optional Video  Input

3G / HD / SD-SDI Broadcast-grade input

Optional Touch Screen

                 Learn More

Optional DC Power

12V / 24V / 48V / 110V/ 125V / 250V DC Power     Learn More

Other Option

- Multi-Display Controller         Learn More

                                  Speaker

Speaker

 Built-in Dual Stereo Speakers 2W x 2
( Bundled with AV2.2 upgrade )

                                  Mechanical

Material

 6mm Aluminum (Front panel)

Casing Color Black

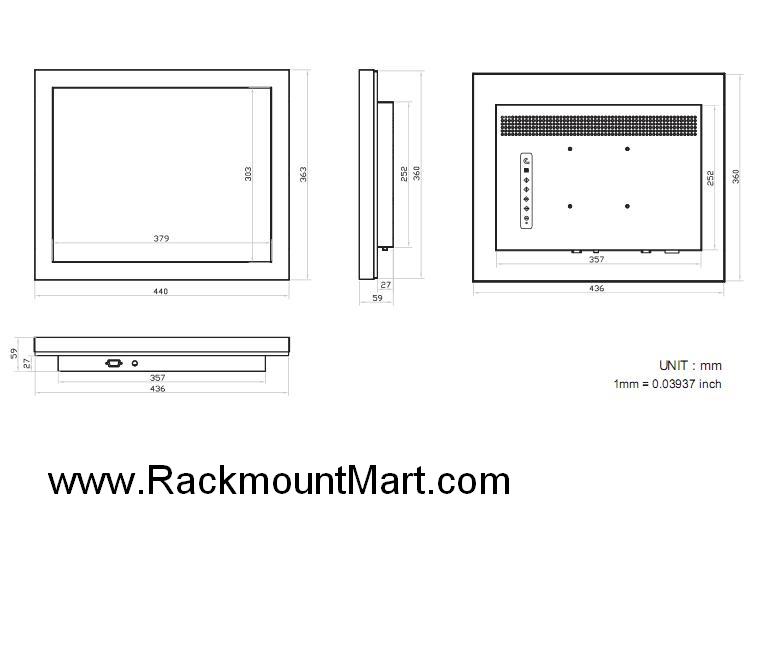

Dimension
WxDxH
18.8 x 2.5 x 15.1 inch
476.5 x 63.6 x 384.1 mm
Product Weight 7.7 kgs ( 16.9 lbs )
                                  Environmental
Temperature 0 to 55 Degree Celsius (Operation)
-5 to 60 Degree Celsius (Storage)
Relative Humidity 5~90%, non condensing
Shock 10G peak acceleration (11ms duration)
Vibration 5~500Hz, 1G RMS random vibration
Safety FCC & CE certified
Environmental RoHS2 & REACH compliant , TAA Compliant



Download Product Sheet
Download User Manual


  Free Ground Shipping. Learn More.



Ordering Information
Part Number Description
ID-19D
Chassis Mount 19" Industrial display, VGA + HDMI
ID-19D-DVI
Chassis Mount 19" Industrial display, DVI-D + Audio + Speaker + VGA + HDMI
ID-19D-BNC
Chassis Mount 19" Industrial display, BNC + Audio IN + Speaker + VGA + HDMI
ID-19D-AV
Chassis Mount 19" Industrial display, BNC w/ RCA Adapter+ Audio IN + Speaker + VGA + HDMI
ID-19D-HDMI
Chassis Mount 19" Industrial display, VGA + HDMI + 2 Speakers for HDMI
ID-19D-SDI
Chassis Mountl 19" Industrial display, 3G-SDI + VGA + HDMI + Speaker
Optional NEMA4 / IP65
-N
NEMA4 / IP65 Protective Glass
Optional Video/Audio Inputs
-MC
Add Multi-Display Controller Download Spec Sheet
-QD
Add Quad display
(With VGA & DVI-D. Case dimension will change. Please call for details)
Optional Touch Screen
-TRS
Resistive 1-Point Touch Screen with Serial Controller
-TRB
Resistive 1-Point Touch Screen with USB Controller
-TCS
Projected Capacitive 1-Point Touch Screen with Serial Controller
-TCB
Projected Capacitive 1-Point Touch Screen with USB Controller
-TPC
Projected Capacitive 10-Point Touch Screen with USB Controller
Optional DC Input Power
-DC12 Change to 12V DC power supply
-DC24   Change to 24V DC power supply
-DC48   Change to 48V DC power supply
-DC110
  Change to 110V DC power supply
-DC125
  Change to 125V DC power supply
-DC250
  Change to 250V DC power supply
Optional Lockable Jack
-MD MIL-type Lockable DC Power jack, Male
-MA MIL-type Lockable VGA jack, Male
-LD Lockable DC Power jack, Male
-LS Lockable USB jack for touch screen
