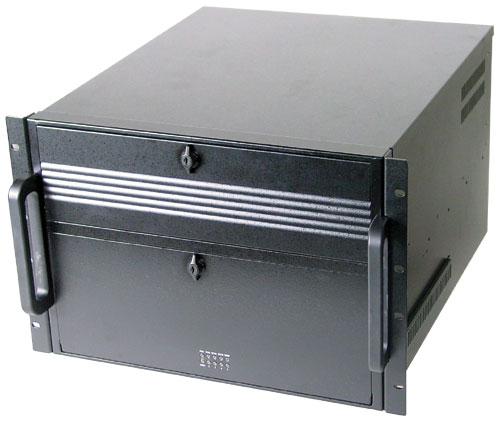

7U Rackmount Chassis :  Part # RM7001

Click to enlarge

Material: Heavy-duty cold-rolled steel. Inside: zice-plated with bright chormate, Outside: texture-coated
Dimension: 19"(W) x 19.9"(D) x 12.2"(H)
Cooling: 4x 92mm hot-swap ball-bearing fans at 50 CFM each
Power Supply: 300W ATX, 300W/400W ATX HRP, 300W/400W AT HRP, 450W/620W N+1 HRP
PCI Extension: 7-slots for ATX M/B, 20-slots for passive backplane.
Air Filter: Removable and washable
Controls: Two CPU and one alarm reset buttons, power on/off switch
Indicators: 2x power, 1x system fan, 1x CPU fan, 1x temperature sensor and 5x HDD LED's
System Boards: 12"(W) x 13"(D) ATX M/B, also fits a 20-slot passive backplane
Speaker: 0.4W built-in
Drive Bay: 6x 5.25" exposed, up to 4x 3.5" internal HDD optional for ATX version (2 for B/P version)
Temperature: 0°C(32°F)~ 50°C(122°F)
Humidity: 5%~95% non-condensing

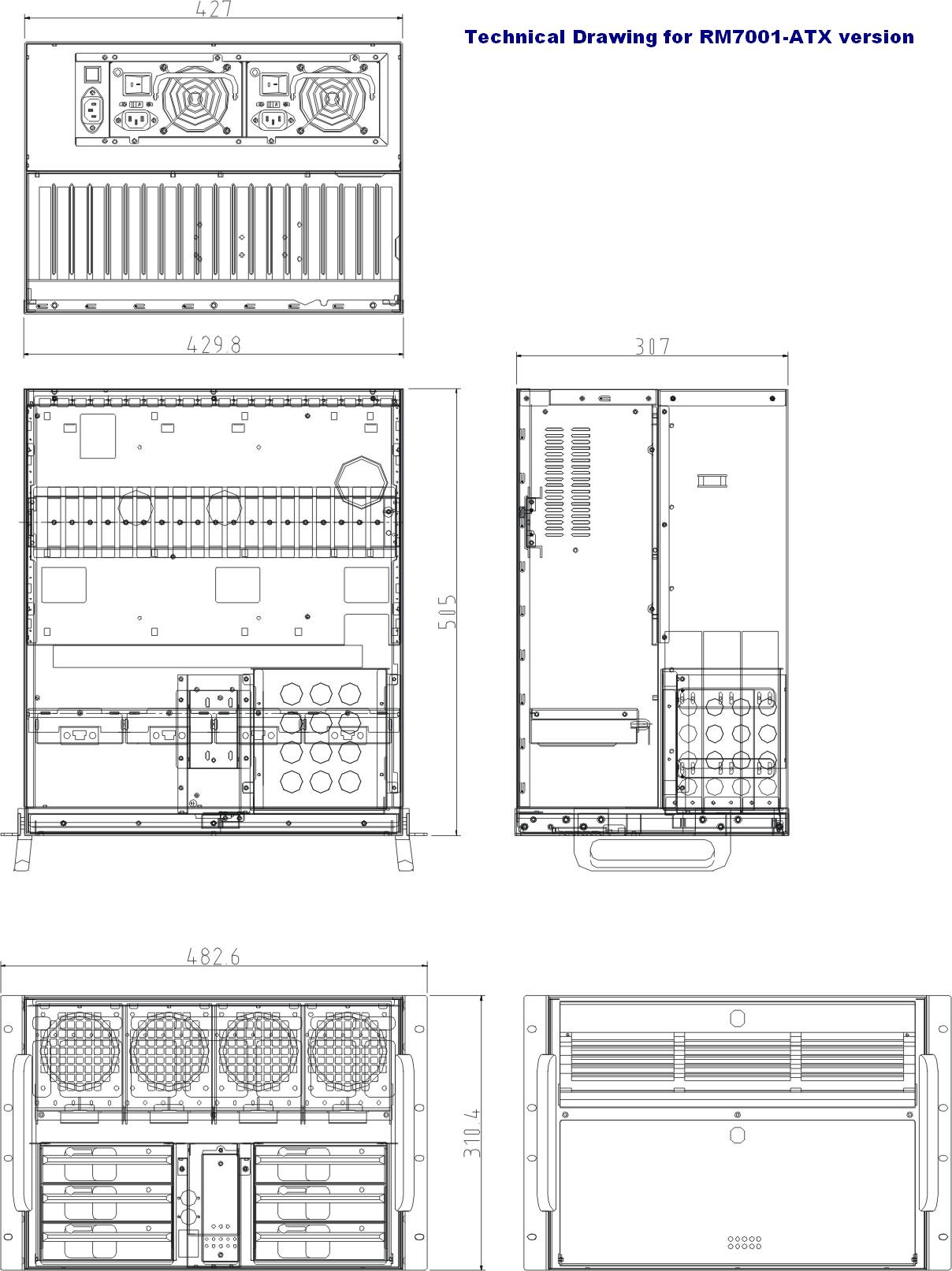

Download Technical Drawing

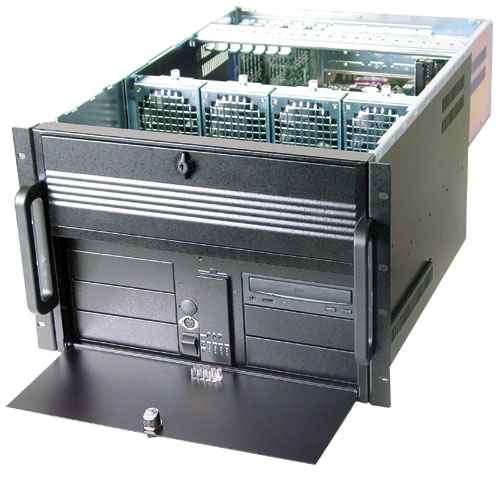

More views  (click to enalarge) :



ATX Version          Passive Backplane Version


FEATURES:
Four 50mm removable ball-bearing fans, Selectable ATX M/B or 20-slot PCI/ISA passive backplane, Built-in temperature/fan detect board, supports two reset buttons and two power LED's of dual systems

APPLICATIONS: The RM7001 series chassis is designed to meet the requirements of mission critical applications, it is ideal for network, telephony, and telecommunications or data acquisitions.

BENEFITS: The RM7001's multiple features are designed to provide maximum amount of fault tolerance in your system. From removable fans, total monitoring systems, and redundant capabilities.
