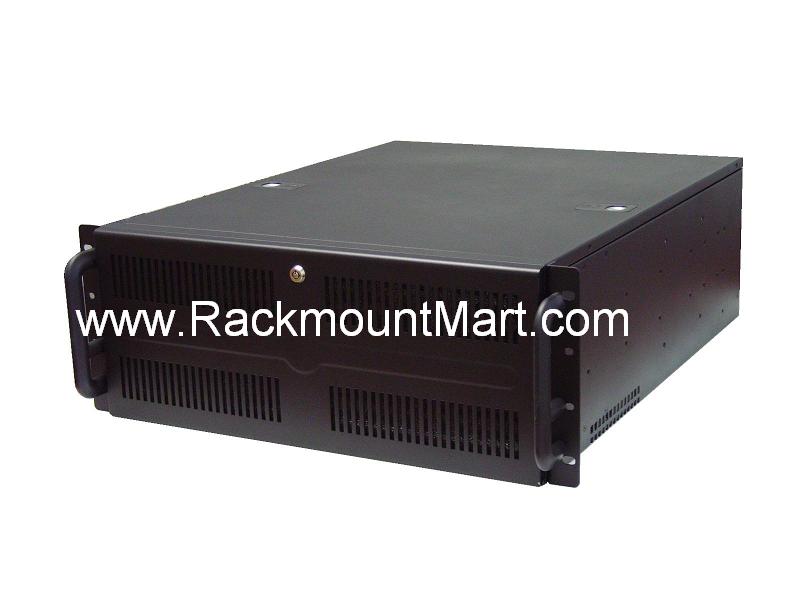

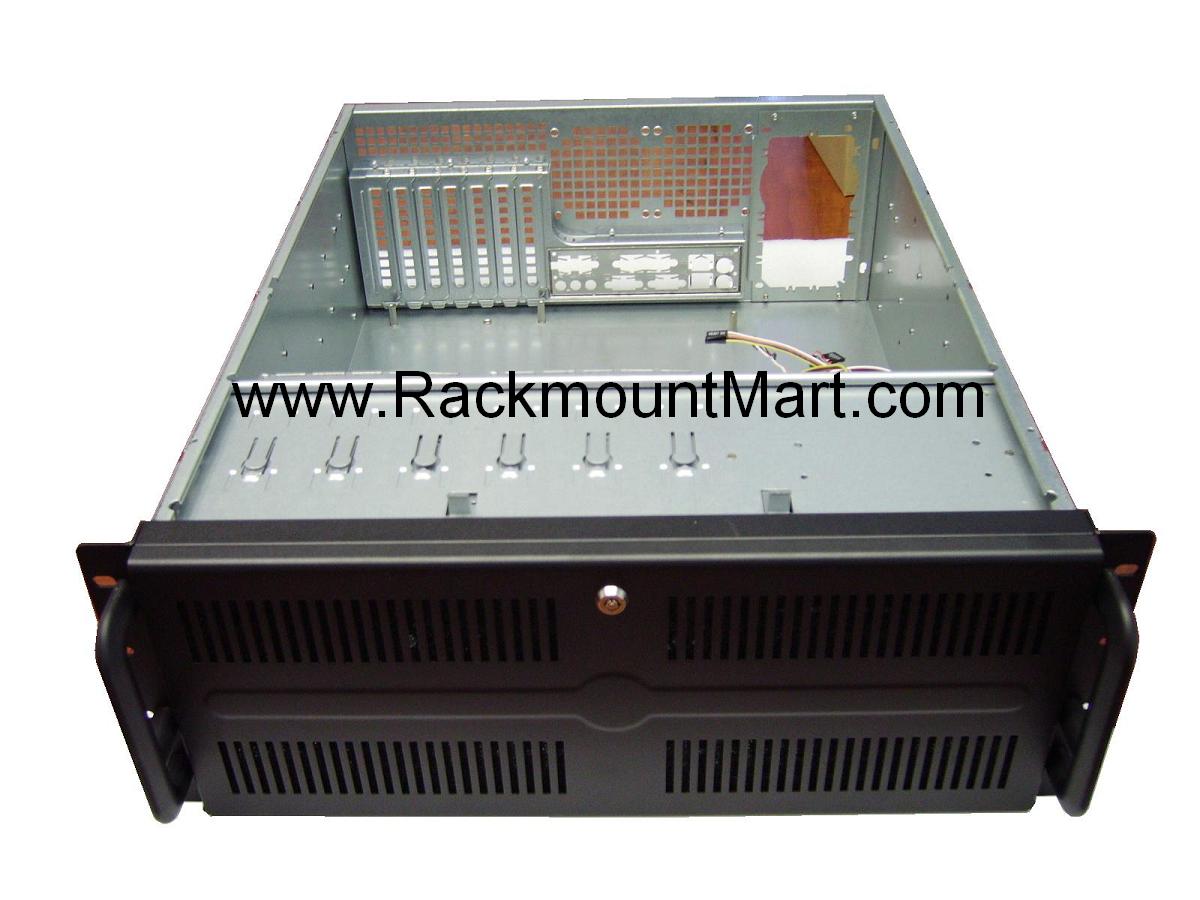

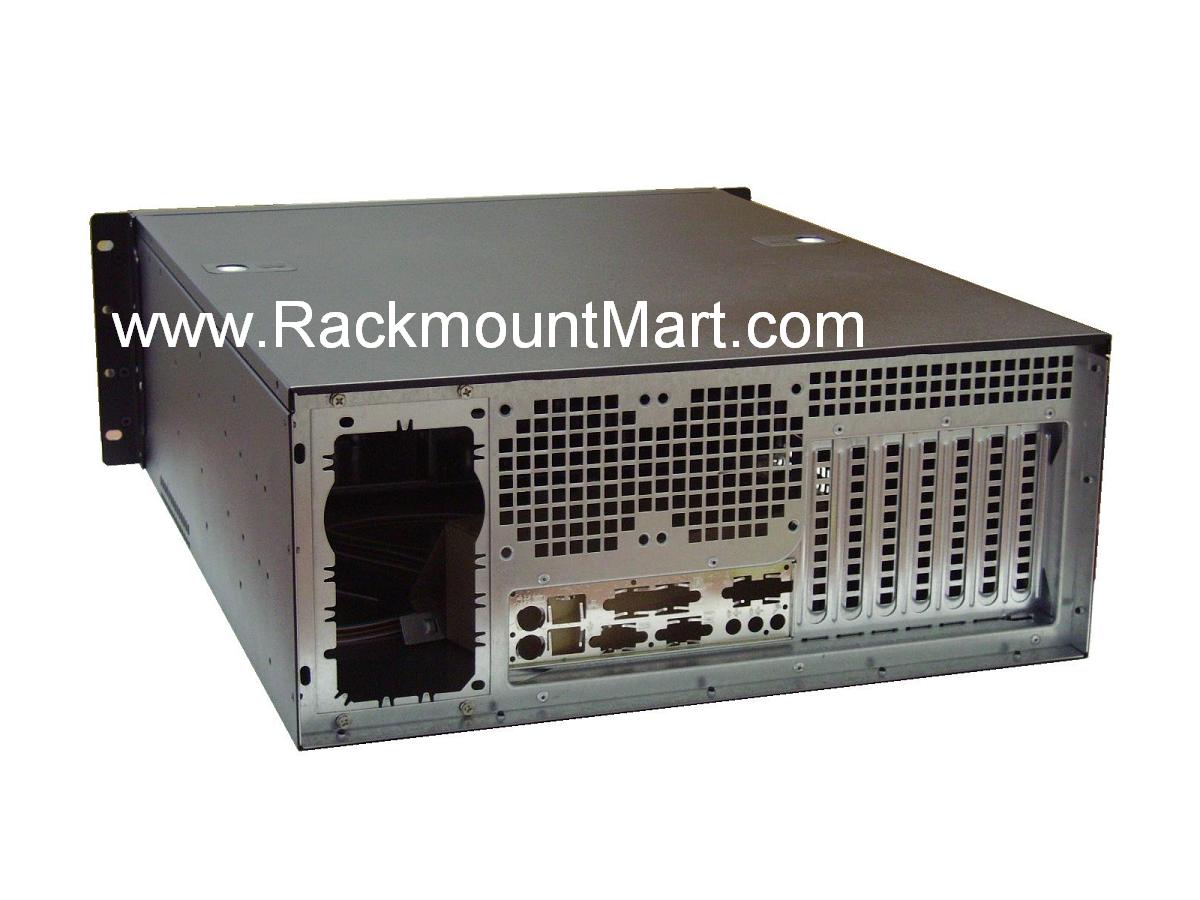

  4U Rackmount Chassis :  Part # RM4031




                      19" Rackmount Standard
Construction: 4U rackmount design
Color: Sliver and Black
RoHS Compliance : Yes
Motherboard Size: Support Up to 12" x 13" ATX M/B
Drive Bays: 3 x 5.25" or 2 x 5.25” + 1 x 3.5” Drive Bay + 10x 3.5" HDD Bay
Power Supply: Standard ATX, mini redundant power supply (Convertor kit is sold separately)
Cooling Units: 2 x 120mm front fans, 2 x 80mm optional rear fans
Switches: Power ON/OFF, System Reset
Indicators: LEDs for Power ON/OFF, HDD, 2x LAN
Front  connector: Front USB 2.0 x 1 Connector
Speaker: 0.4W Built-In
Dimensions:
(W x H x D )
19 x 7 x 21.6inch
483mm x 176mm x 550mm

  Features:

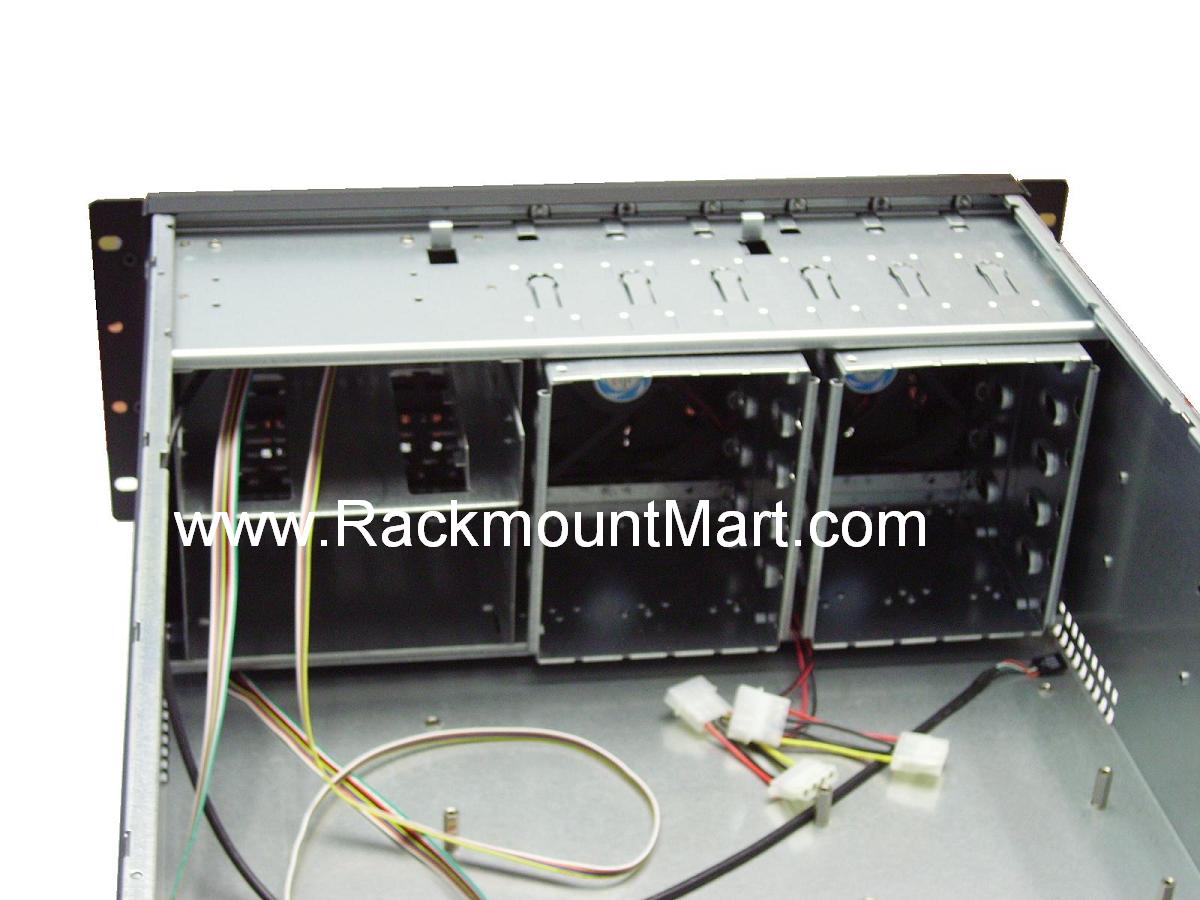

   - 3 x 5.25" or 2 x 5.25” + 1 x 3.5” Drive Bay + 10x 3.5" HDD Bay
   - Easy drive mounting with 24 screwless rails

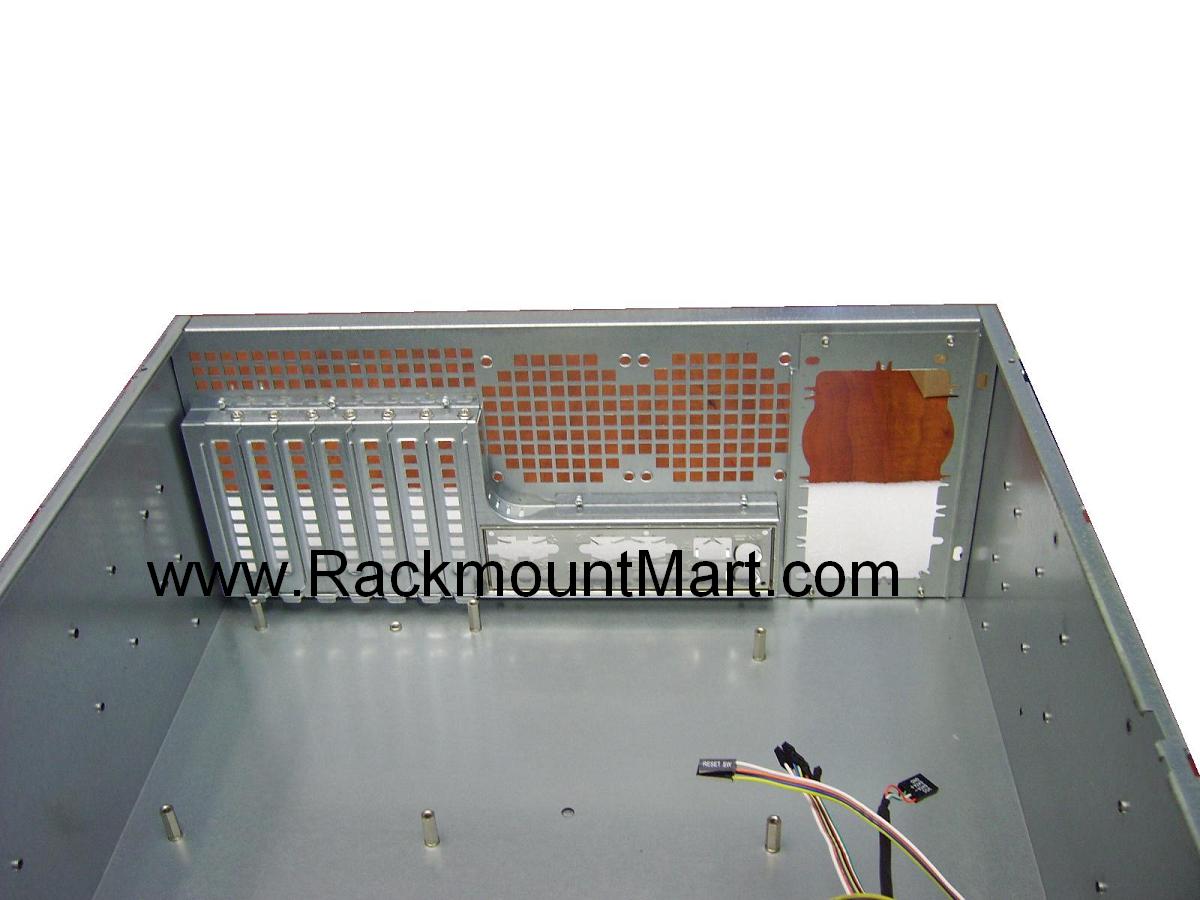

   - Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6") motherboard
   - Screwless top cover
   - Lockable front panel door

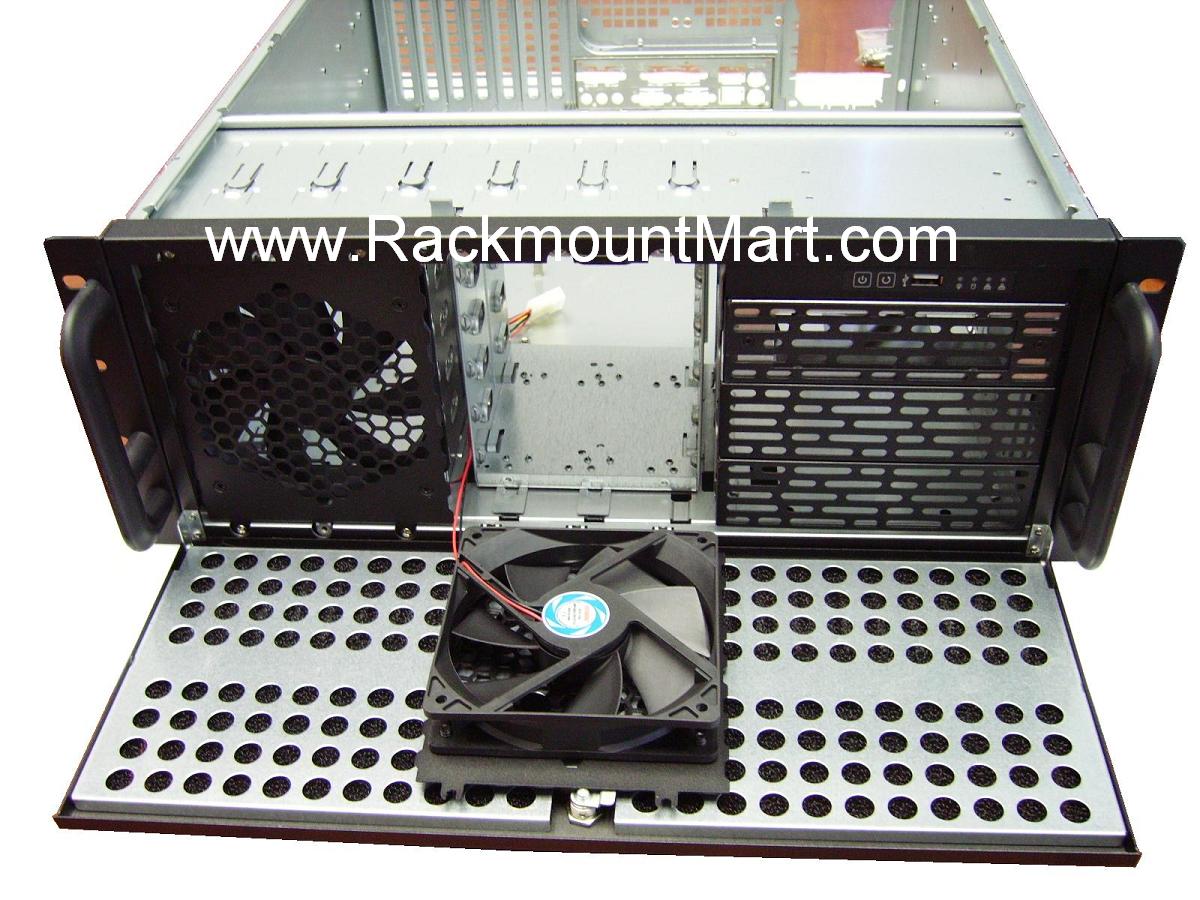

   - Easy-accessed front changeable air filter
   - Smooth border prevent lacerating your skin
